Berner Industrial Series IDC14-2078A-3 78-Inch Ambient Direct Drive Air Curtain

Unheated, Dual 1 HP Motors, For Openings Up to 14 Feet

Designed for wide openings, this 78-inch ambient air curtain uses dual 1 HP direct-drive motors to provide environmental separation without added heat.

  • Unheated ambient air curtain for environmental separation and insect control.
  • Dual 1 HP direct-drive motors deliver strong airflow performance.
  • Rated for doors up to 14 feet high for environmental separation and 12 feet high for insect protection.
  • Protective inlet screen and high-efficiency Pro-V nozzle help support consistent airflow.
  • Gray powder-coated exterior with optional stainless steel or custom color cabinet finishes.
  • Wall and top mounting design supports flexible installation needs.

Overall Dimensions:

78.0"W

Product Weight:

240.0 lb

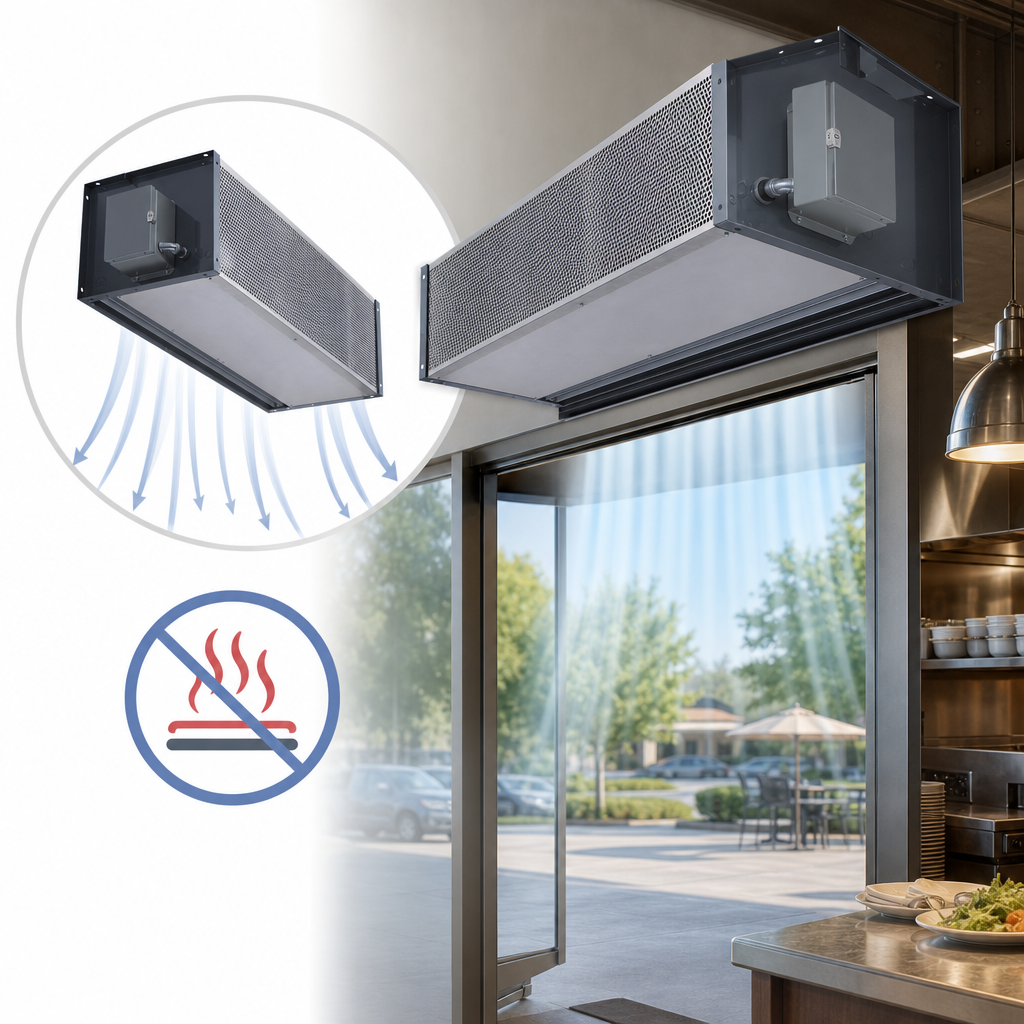

Ambient Operation

Unheated design is intended for air-separation and insect-control applications without adding heat.

Ambient Operation

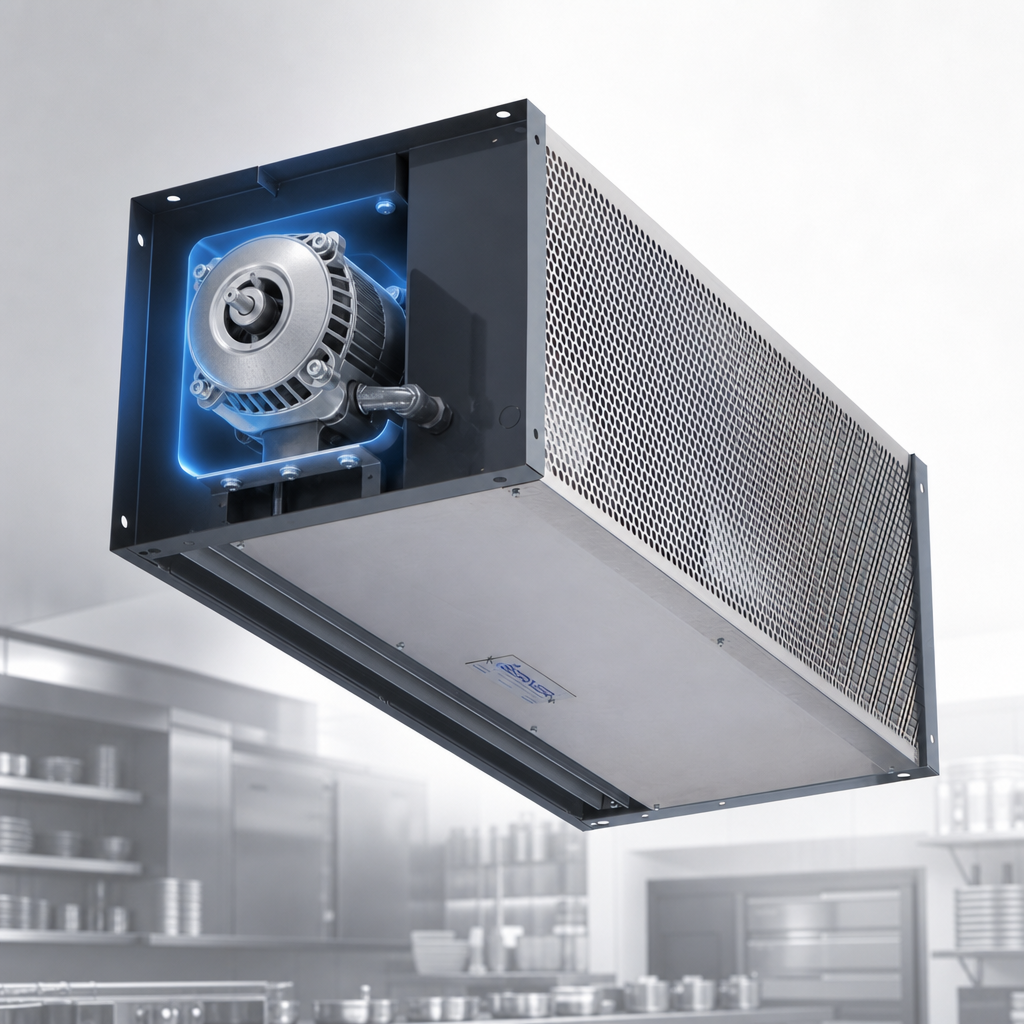

Direct Drive Motors

Direct drive construction helps simplify the drive system and reduce maintenance compared with belt-driven designs.

Direct Drive Motors

Dual 1 HP Motors

This 78-inch unit uses two 1 horsepower motors for airflow performance across wider openings.

Mounting Height Performance

Documented for mounting heights up to 14 feet for environmental separation and 12 feet for insect control.

High-Efficiency Pro-V Nozzle

Engineered nozzle design supports air delivery and outlet control.

Protective Inlet Screen

Protective inlet screen is included to help shield internal components and support cleaner airflow intake.

Powder-Coated Cabinet Finish

Standard gray powder-coated exterior with mill aluminum screen and access panels; stainless steel or custom color finishes are available options.

Wall And Top Mounting

Designed for wall and top mounting applications with interior installation.

Type Air Curtain
Style Direct Drive
Heating Unheated
Installation Type Wall Mounted
Finish Gray Powder Coated
Horsepower Per Motor 1 HP
Motors 2
Max Opening Height 14 Feet
Insect Protection Height 12 Feet
Air Volume 4,882 CFM
Power Rating 2.24 kW
Shipping Width 78 Inches
Shipping Weight 240 lb.
Country of Origin USA
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Warranty & Protection

5-year limited warranty on unheated models.

Documents

PDF Cutsheet PDF Download PDF Installation manual PDF Download PDF Terms & conditions PDF Download PDF Air curtain flyer PDF Download PDF Warranty PDF Download PDF Replacement parts diagram PDF Download

Frequently Asked Questions

No. This model is an ambient, unheated air curtain.
It is rated for mounting heights up to 14 feet for environmental separation and 12 feet for insect control.
This 78-inch model uses two 1 HP motors.
The standard finish is gray powder coated with mill aluminum screen and access panels. Stainless steel or custom color cabinet finishes are available options.
Unheated models carry a 5-year limited warranty.
Documented voltage options include 120/1/60, 208/1/60, 240/1/60, 220/1/50, 208/3/60, 240/3/60, 480/3/60, 600/3/60, and 380/3/50.
