Berner

Berner Industrial 60-Inch Ambient Direct-Drive Air Curtain with 2 x 1 HP Motors

SKU: IDC14-2060A-1
$2,870.40
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Air Doors Berner Best Sellers Equipment Facility Equipment Kitchen Ventilation & Climate Control New Arrivals Restaurant Equipment

Berner Industrial 60-Inch Ambient Direct-Drive Air Curtain with 2 x 1 HP Motors

Unheated, Interior Mounting, Protective Inlet Screen

This unheated industrial air curtain helps keep conditioned air in and insects out while large doors stay open.

  • Ambient, unheated air curtain for environmental separation and insect control.
  • Two 1 HP direct-drive motors provide dependable airflow for large openings.
  • Rated for openings up to 14 feet high for environmental separation and 12 feet high for insect protection.
  • Protective inlet screen and high-efficiency Pro-V nozzle support consistent air delivery.
  • Gray powder-coated cabinet with mill aluminum screen and access panels.
  • Wall and top mounting options with optional stainless steel or custom color finishes.

Overall Dimensions:

60.0"W

Product Weight:

225.0 lb

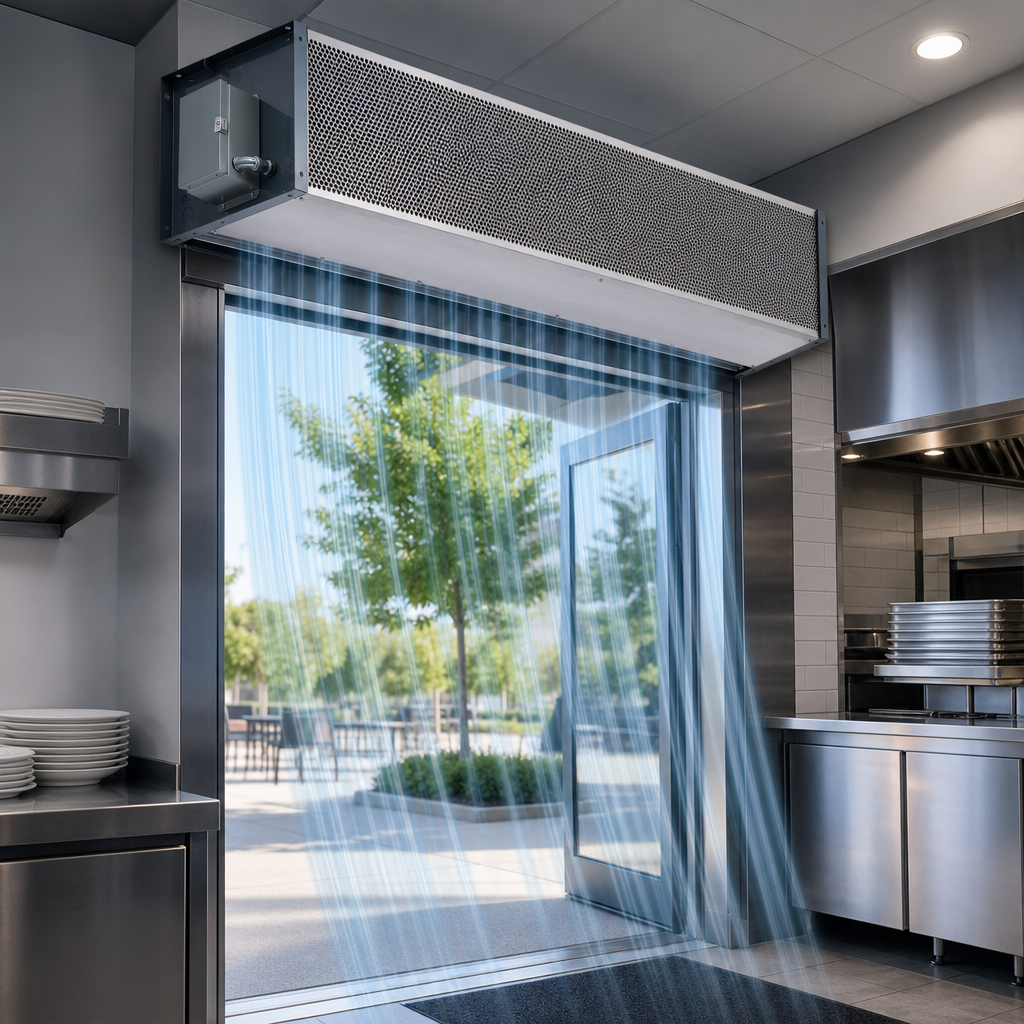

Ambient (Unheated) Operation

Moves air without added heat for separation at open doorways and insect protection.

Ambient (Unheated) Operation

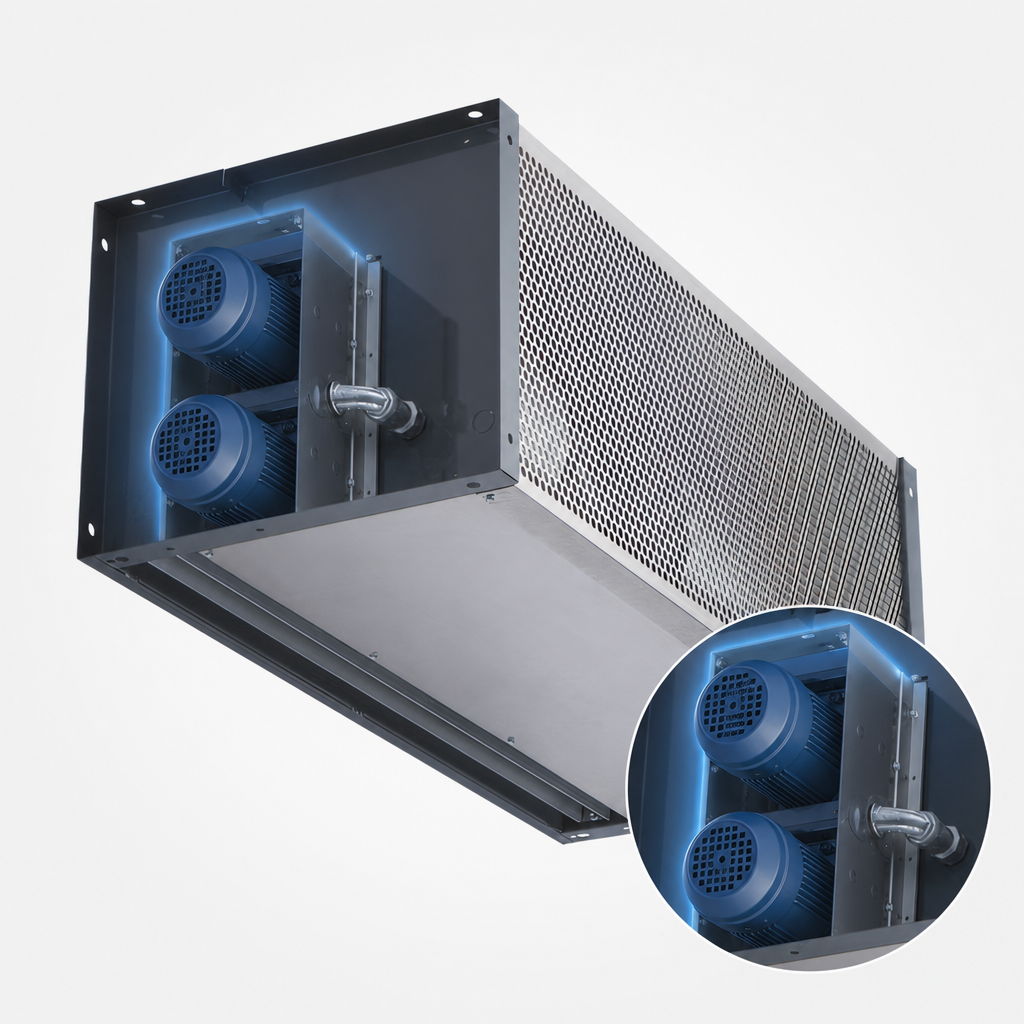

Two 1 HP Direct-Drive Motors

Standard two-motor setup delivers strong airflow with a simple direct-drive design.

Two 1 HP Direct-Drive Motors

Large Opening Coverage

Designed for doors up to 14 feet high for environmental separation and 12 feet high for insect control.

Protective Inlet Screen

Inlet screen helps protect internal components and supports clean airflow intake.

High-Efficiency Pro-V Nozzle

Helps shape the discharge stream for even coverage across the opening.

Gray Powder-Coated Cabinet

Standard exterior finish with mill aluminum screen and access panels; stainless steel or custom color is optional.

Flexible Mounting Options

Supports wall and top mounting for interior installation; control panel mounting can be left-hand, right-hand, or remote.

Type Air Curtain
Style Direct Drive
Heat Type Unheated
Installation Type Wall Mounted
Max Opening Height 14 Feet
Horsepower Per Motor 1 HP
Motor Count 2
Color Gray
Finish Powder Coated
Shipping Width 60 Inches
Shipping Weight 225 lb.
Country of Origin USA
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Warranty & Protection

5-year limited warranty on unheated models

Documents

PDF Cutsheet PDF Download PDF Installation manual PDF Download PDF Warranty PDF Download PDF Replacement parts diagram PDF Download PDF Terms & conditions PDF Download PDF Air curtain flyer PDF Download

Frequently Asked Questions

No. This model is an ambient, unheated air curtain.
It is designed for mounting heights up to 14 feet for environmental separation and 12 feet for insect control.
This unit uses two 1 HP direct-drive motors.
The documentation lists 120/1/60, 208/1/60, 240/1/60, 220/1/50, 208/3/60, 240/3/60, 480/3/60, 600/3/60, and 380/3/50 as available voltage configurations.
Unheated models include a 5-year limited warranty from the original shipment date when properly installed and operated.
The documentation says to consult the factory for vertically mounted units.
