Berner Industrial Series 60-Inch Direct-Drive Air Curtain, 1 HP

Ambient (Unheated), for up to 14-foot openings

A rugged ambient air curtain that helps separate indoor and outdoor environments while keeping insects out without adding heat.

  • Ambient, unheated design provides environmental separation without supplemental heat.
  • Standard 1 HP direct-drive motor supports reliable airflow with low-maintenance operation.
  • Rated for doors up to 14 feet high for environmental separation and 12 feet high for insect control.
  • Standard wall and top mounting gives flexibility for different entrance conditions.
  • Gray powder-coated exterior with protective inlet screen and high-efficiency Pro-V nozzle.
  • 5-year limited warranty on unheated models; made in USA.

Overall Dimensions:

60.0"W

Product Weight:

175.0 lb

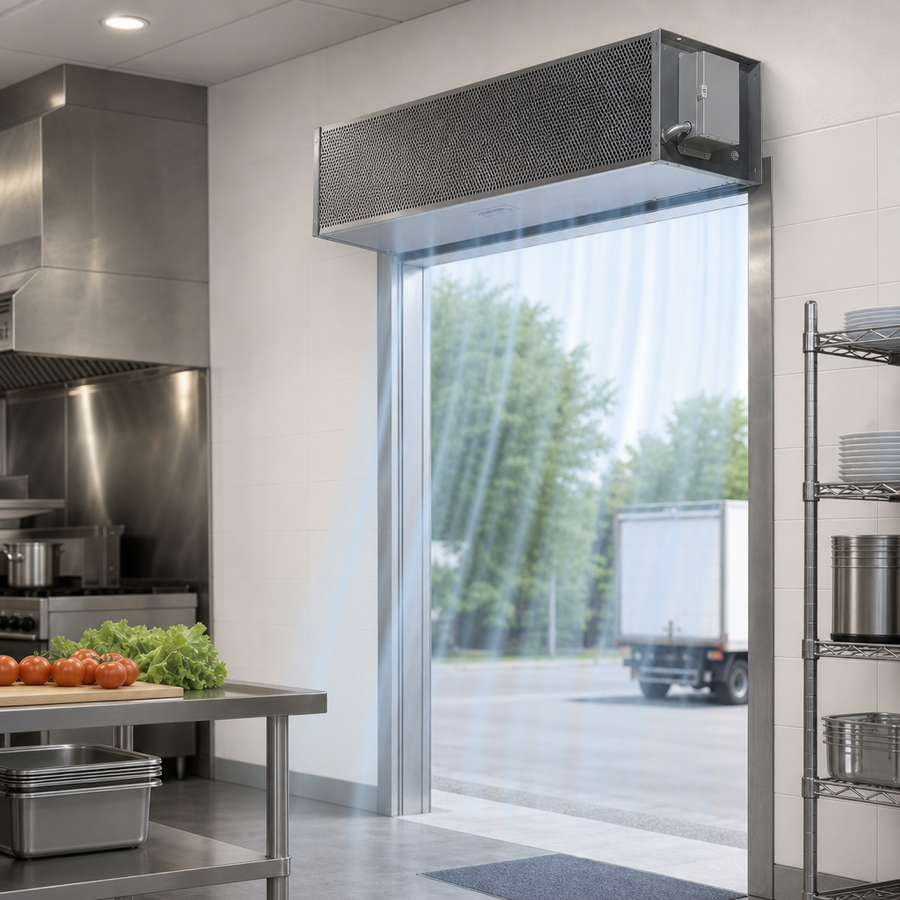

Ambient (Unheated) Operation

Creates an air barrier without adding heat, making it ideal for temperature separation and insect control.

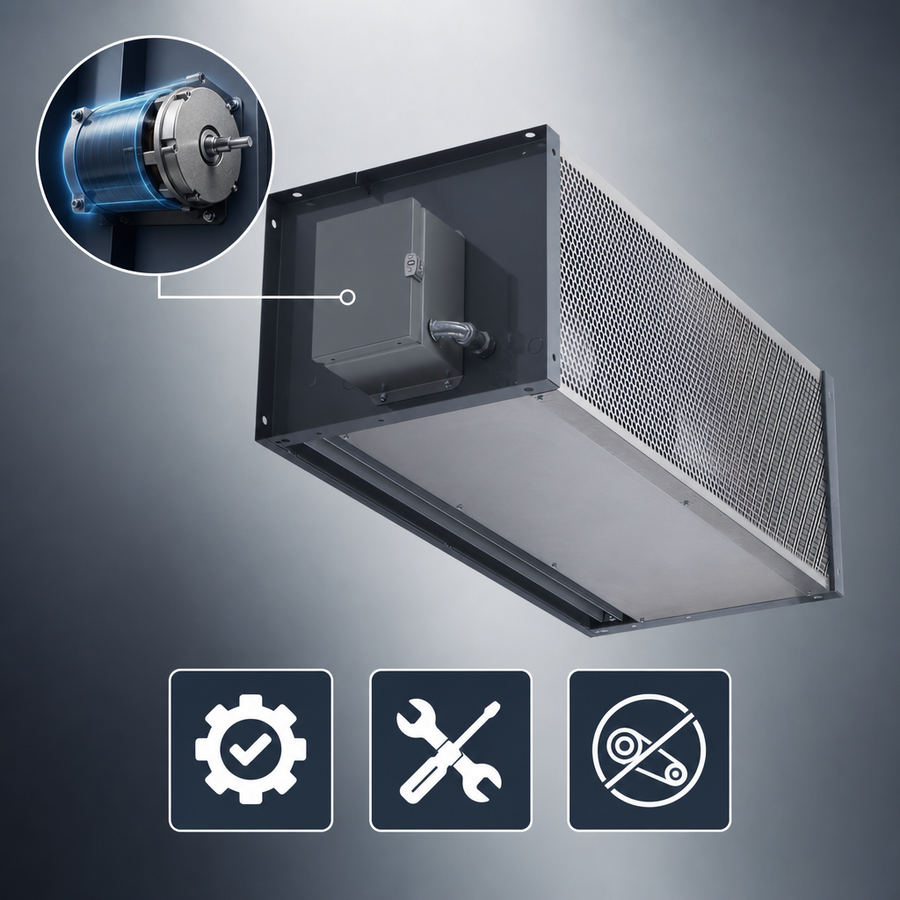

1 HP Direct-Drive Motor

Standard single-speed direct-drive motor provides dependable performance with fewer maintenance items than belt-driven designs.

Designed for High Openings

Built for mounting heights up to 14 feet for environmental separation and 12 feet for insect protection.

Flexible Mounting Options

Standard wall and top mounting are supported; consult factory for vertically mounted units.

Protective Inlet Screen and Pro-V Nozzle

Includes an inlet screen and a high-efficiency Pro-V nozzle to help control airflow and protect internal components.

Gray Powder-Coated Exterior

Standard gray powder-coated exterior with mill aluminum screen and access panels; stainless steel or custom color options are available.

Single-Speed Standard, Two-Speed Optional

The standard unit uses a single-speed motor, with an optional two-speed configuration available.

Made in USA

Manufactured in the United States.

Type Air Curtain
Style Ambient
Installation Type Wall Mounted
Controls Single Speed
Motor Count 1
Horsepower Per Motor 1 HP
Maximum Opening Height 14 Feet
Insect Control Height 12 Feet
Color Gray
Finish Powder Coated
Country of Origin USA
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Warranty & Protection

5-year limited warranty on unheated models.

Documents

PDF Cutsheet PDF Download PDF Air curtain flyer PDF Download PDF Replacement parts diagram PDF Download PDF Installation manual PDF Download PDF Warranty PDF Download PDF Terms & conditions PDF Download

Frequently Asked Questions

It is designed for mounting heights up to 14 feet for environmental separation and 12 feet for insect control.
No. This is an ambient, unheated air curtain.
The standard configuration uses a 1 HP single-speed direct-drive motor; an optional two-speed version is available.
Standard wall and top mounting are supported. Front air intake is standard, and top intake is optional.
The data sheet notes that vertically mounted units should be consulted with the factory.
The data sheet states that IDC14-1060A is not licensed to bear the AMCA seal and exists only as an equivalent to competitors' models.
