Berner Industrial Series 48-Inch Heated Direct Drive Air Curtain, 14 kW Electric, 1 HP Motor, For 14-Foot Doors

SKU: IDC14-1048E
$3,164.20
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Air Doors Berner Best Sellers Equipment Facility Equipment Kitchen Ventilation & Climate Control New Arrivals Restaurant Equipment

Berner Industrial Series 48-Inch Heated Direct Drive Air Curtain, 14 kW Electric, 1 HP Motor, For 14-Foot Doors

Interior Mount, 12-Foot Insect Protection

Keep open doorways comfortable and pest-free with a 48-inch heated air curtain powered by a 1 HP direct-drive motor and 14 kW electric heat.

  • 48-inch direct-drive air curtain designed for door openings up to 14 feet high.
  • 14 kW electric heat and a 1 HP motor deliver heated airflow coverage.
  • Helps stabilize indoor temperatures and keep flying insects out when doors are open.
  • Interior-mounted design with inlet screen, gray powder-coated exterior, and mill aluminum inlet panel.
  • Optional filters, control packages, mounting brackets, and nozzle extensions are available.
  • Made in the USA.

Overall Dimensions:

48.0"W

Product Weight:

160.0 lb

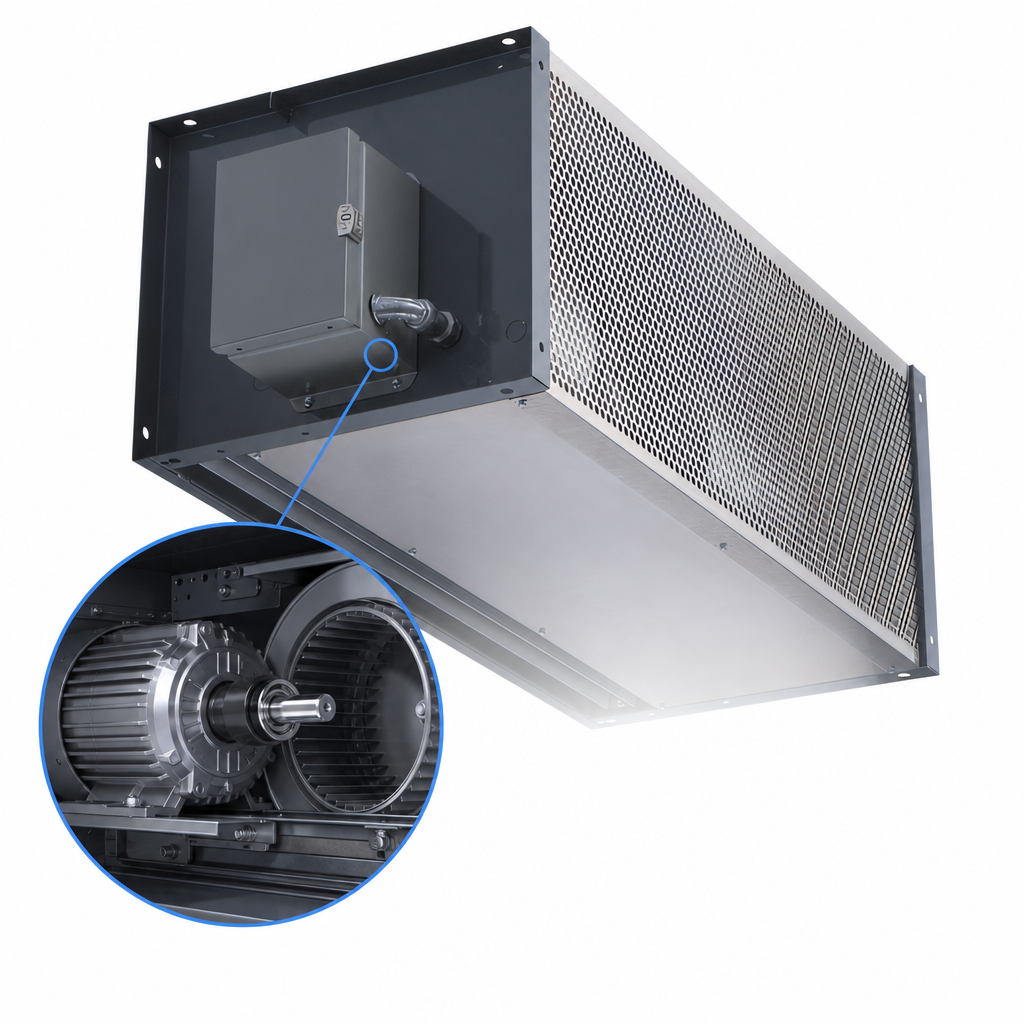

Direct Drive Design

Direct-drive construction reduces maintenance compared with belt-driven units and is built for continuous doorway service.

Direct Drive Design

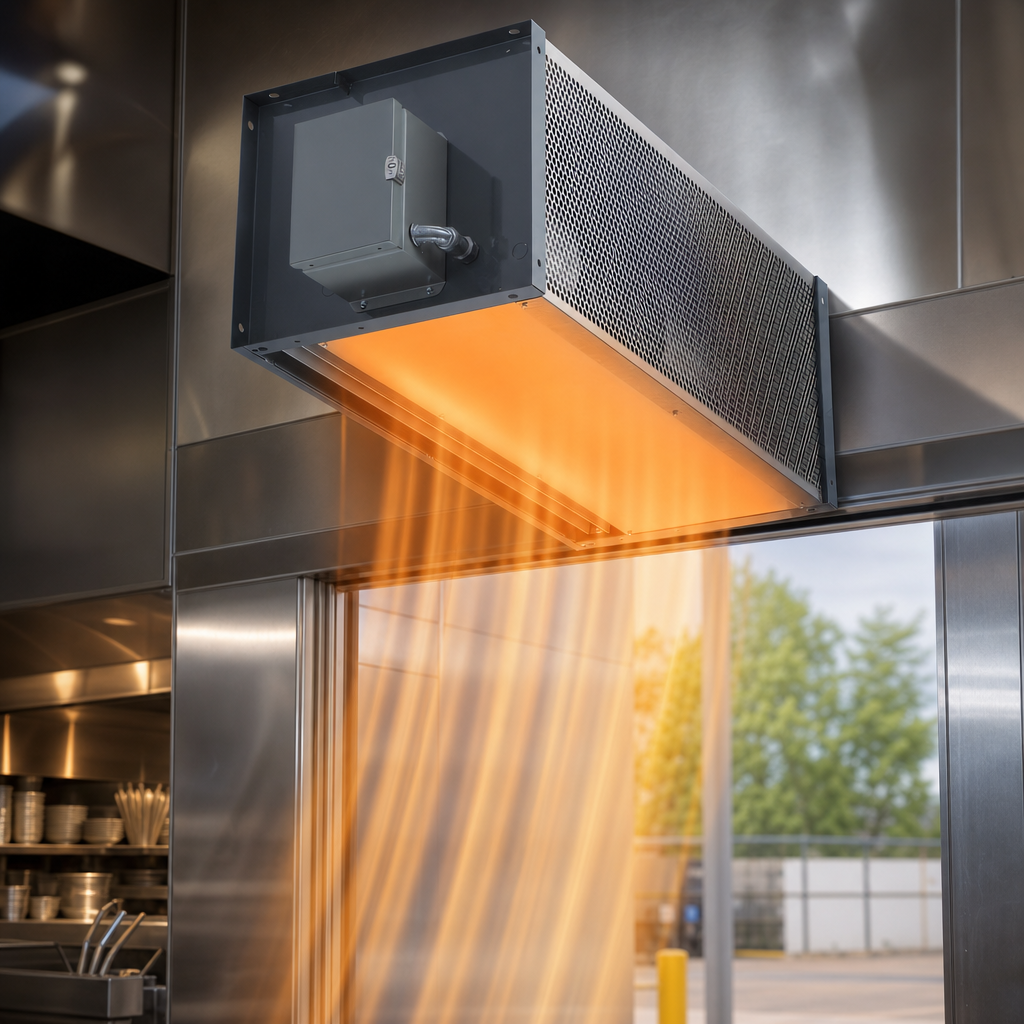

Electric Heat Package

14 kW electric heat supports heated applications at open doorways.

Electric Heat Package

1 HP Motor

Single 1 HP motor provides airflow for the 48-inch air curtain.

Door Coverage

Designed for openings up to 14 feet high for environmental separation and up to 12 feet high for insect control.

Interior Mounting

Intended for interior installation with wall and top mounting support.

Inlet Screen

Inlet screen assembly helps protect the air intake.

Durable Construction

All-welded construction with a gray powder-coated exterior and mill aluminum inlet panel.

Optional Accessories

Filters, control packages, mounting brackets, nozzle extensions, and a tamper-resistant correctional package are available.

Type Air Curtain
Style Heated
Installation Type Wall Mounted
Horsepower Per Motor 1 HP
Motor Count 1
Heat Type Electric
Watts 14 kW
Maximum Opening Height 14 Feet
Insect Protection Height 12 Feet
Color Gray
Finish Powder-Coated
Shipping Width 48 Inches
Shipping Weight 160 lb.
Country of Origin USA
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Warranty & Protection

2-year warranty on heated models.

Documents

PDF Cutsheet PDF Download PDF Replacement parts diagram PDF Download PDF Air curtain flyer PDF Download PDF Terms & conditions PDF Download PDF Warranty PDF Download PDF Installation manual PDF Download

Frequently Asked Questions

It is designed for doors up to 14 feet high for environmental separation and 12 feet high for insect protection.
Yes. This model uses electric heat and is rated at 14 kW.
It is intended for interior mounting and supports wall and top mounting.
Yes. Optional filters, control packages, mounting brackets, nozzle extensions, and a tamper-resistant correctional package are available.
Heated models are covered for 2 years from the original date of shipment.
