Berner Industrial IDC14-1042E Direct Drive Heated Air Curtain, 42-Inch, Electric Heat, 14 kW, For 14-Foot Doors

Interior Mount, 1 HP Motor, 12-Foot Insect Protection

This 42-inch heated air curtain helps hold conditioned air in and insects out across 14-foot door openings with a durable direct-drive design.

  • Rated for doors up to 14 feet high for environmental separation and 12 feet for insect protection.
  • 42-inch direct-drive air curtain with a 1 HP motor and electric heat.
  • 14 kW heating output for warm-air performance at the opening.
  • Durable all-welded construction with a gray powder-coated exterior and mill aluminum inlet panel.
  • Designed for interior mounting with wall and top mounting options.
  • Includes an inlet screen; optional filters, nozzle extensions, and mounting brackets are available.

Overall Dimensions:

42.0"W

Product Weight:

155.0 lb

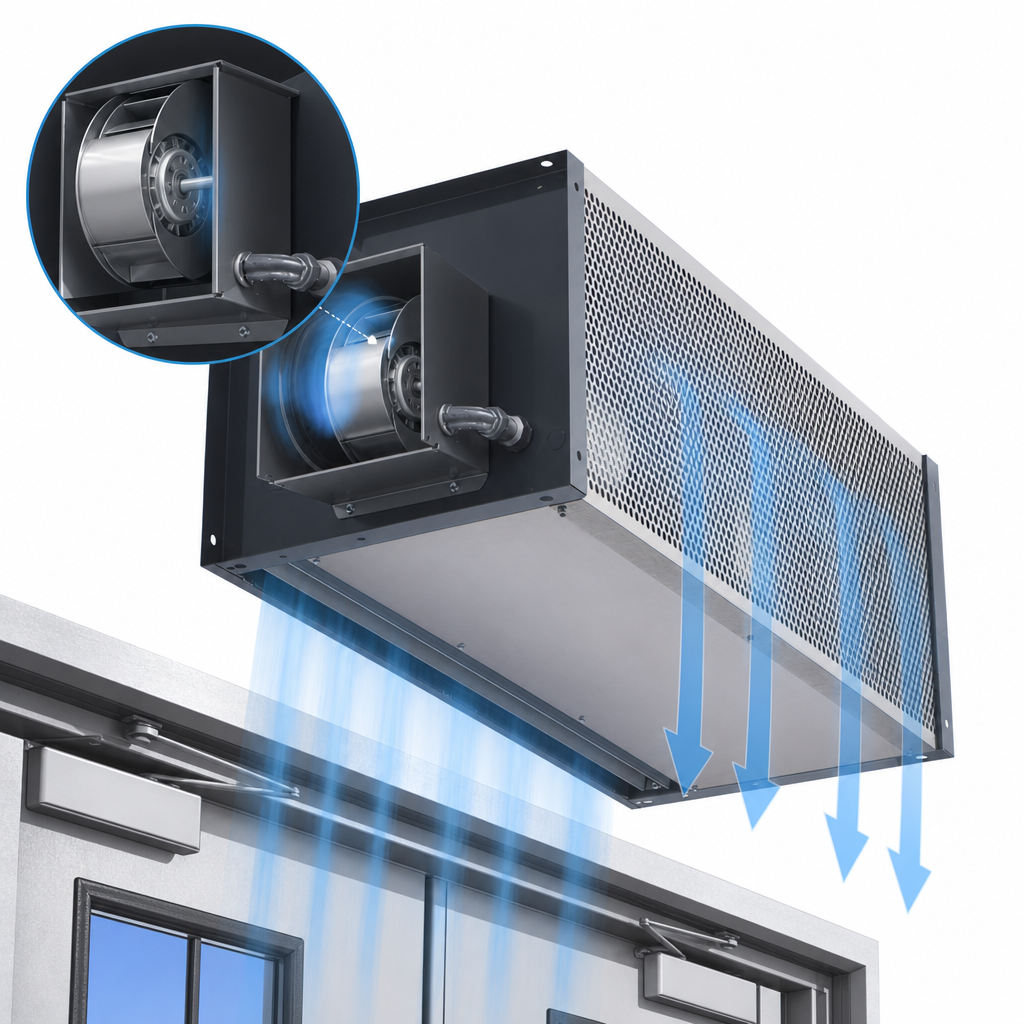

Direct Drive Air Delivery

Direct drive design supports reliable airflow with a single motor assembly.

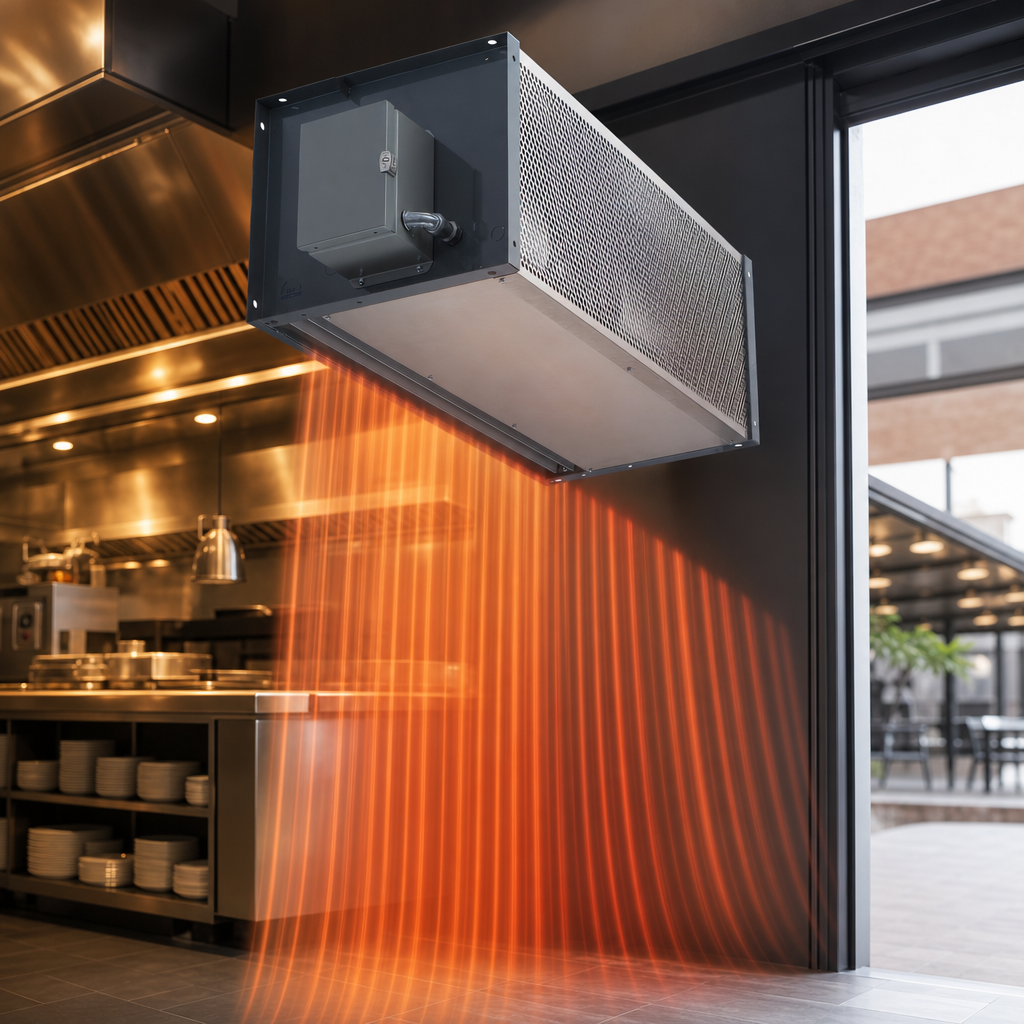

Electric Heated Operation

Factory electric heat configuration rated at 14 kW.

Door Coverage

Designed for mounting heights up to 14 feet for environmental separation and 12 feet for insect control.

Durable Construction

All-welded construction with a gray powder-coated exterior and mill aluminum inlet panel.

Inlet Screen Included

Includes an inlet screen assembly to help protect internal components.

Interior Mounting

Configured for interior mounting; the series supports wall and top mounting.

Control Options

Built-in or remote mounted control panels are available, with Basic and Deluxe packages for heated units.

Optional Accessories

Optional washable filters, mounting brackets, nozzle extensions, and a tamper-resistant correctional package are available.

Type Heated Air Curtain
Style Direct Drive
Installation Type Wall Mounted (Interior)
Heat Type Electric
Watts 14 kW
Horsepower Per Motor 1 HP
Motors 1
Maximum Opening Height 14 Feet
Controls Built-In or Remote Mounted
Finish Gray Powder-Coated
Shipping Width 42 Inches
Shipping Weight 155 lb.
Selling Unit Each
Units Per Case 1
Country of Origin USA

Certifications & Compliance

Warranty & Protection

2-year parts warranty on heated models.

Documents

PDF Cutsheet PDF Download PDF Air curtain flyer PDF Download PDF Terms & conditions PDF Download PDF Warranty PDF Download PDF Installation manual PDF Download PDF Replacement parts diagram PDF Download

Frequently Asked Questions

It is rated for doors up to 14 feet high for environmental separation and 12 feet for insect protection.
This model uses electric heat and is rated at 14 kW.
The unit is designed for interior mounting, with wall and top mounting options available in the series.
Yes, the documentation lists an inlet screen assembly as part of the unit.
Heated units can use built-in or remote mounted control panels, with Basic and Deluxe packages available.
