Berner Industrial Series IDC14-1036A-3 36 Inch Unheated Direct Drive Air Curtain, 1 HP

For Openings Up to 14 Feet High; Wall or Top Mount

Create a dependable air barrier that helps separate indoor and outdoor environments while doors stay open.

  • Ambient, unheated air curtain for environmental separation and insect control.
  • 36-inch unit with one 1 HP direct-drive motor.
  • Rated for openings up to 14 feet high, or 12 feet for insect protection.
  • Standard gray powder-coated exterior with inlet screen and high-efficiency Pro-V nozzle.
  • Wall and top mounting support flexible installation.
  • cULus listed, made in the USA, and backed by a 5-year limited warranty.

Overall Dimensions:

36.0"W

Product Weight:

143.0 lb

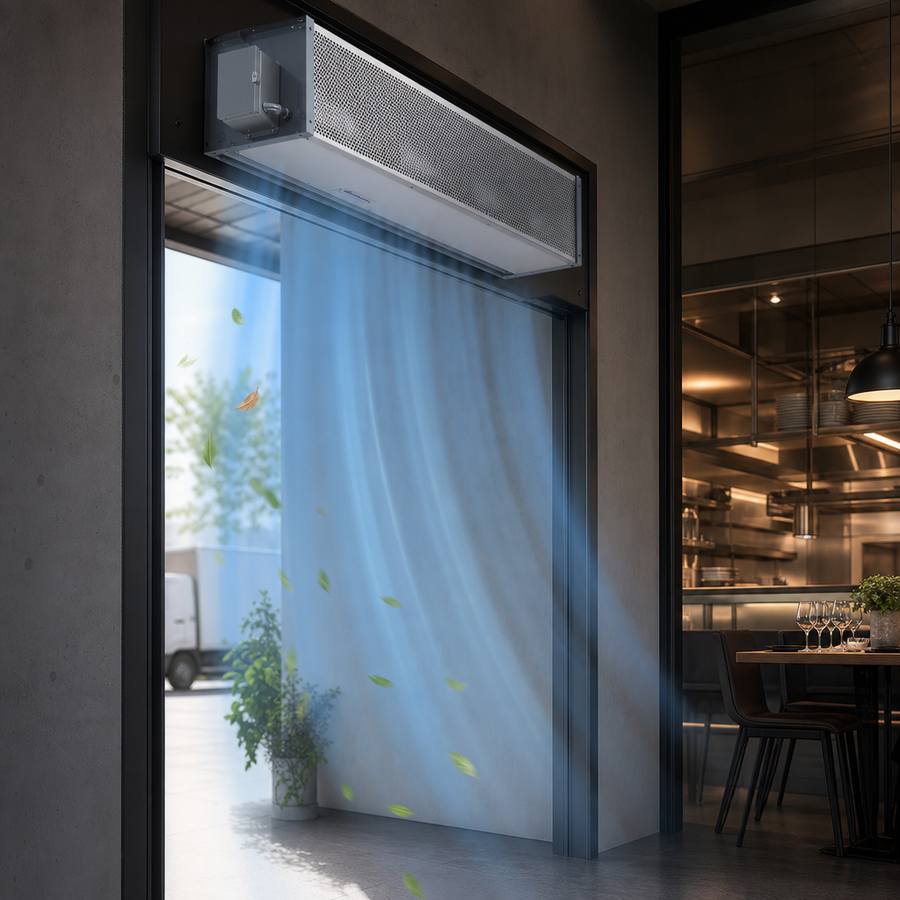

Ambient (Unheated) Operation

Moves air without heat to help maintain separation between interior and exterior environments.

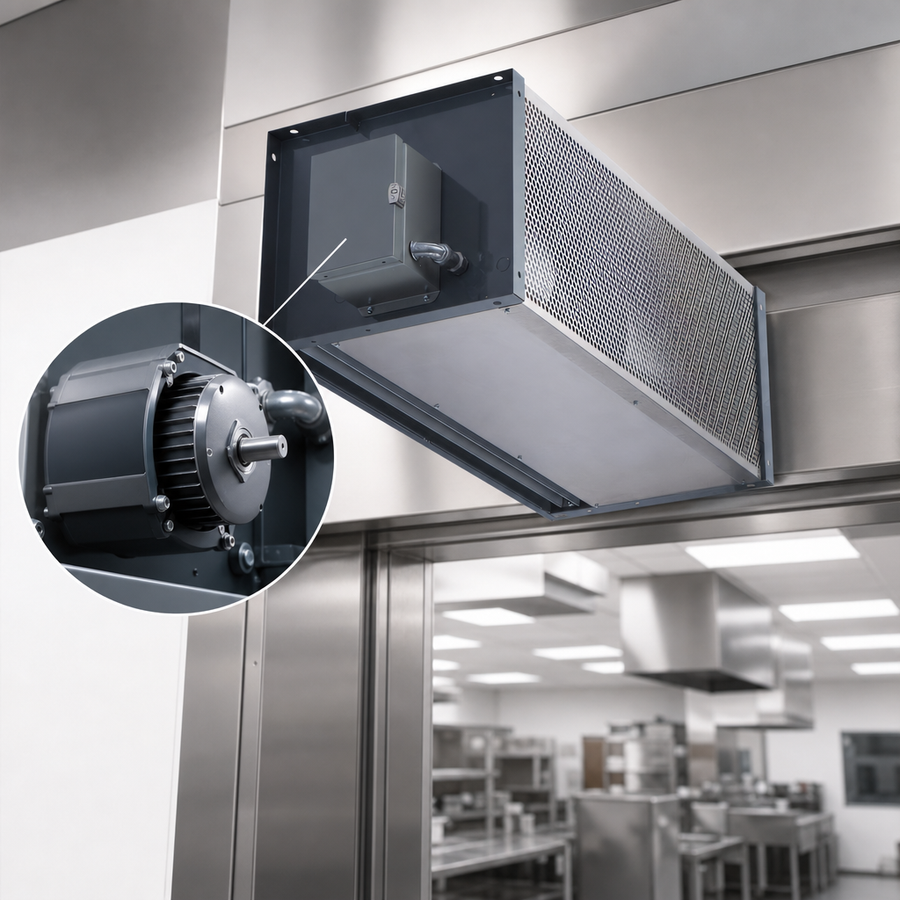

Direct-Drive Motor

Uses one 1 HP direct-drive motor for efficient, lower-maintenance operation.

High Mounting Capability

Designed for openings up to 14 feet high for environmental separation and 12 feet high for insect control.

High-Efficiency Pro-V Nozzle

Helps deliver a consistent air stream across the doorway.

Protective Inlet Screen

Includes an inlet screen to help protect internal components; optional filters are available.

Flexible Mounting

Supports wall and top mounting for a range of installation layouts.

Durable Standard Finish

Supplied with a gray powder-coated exterior; stainless steel or custom color finishes are available as options.

Five-Year Warranty

Unheated models are covered by a 5-year limited warranty from the original shipment date.

Type Ambient Air Curtain
Style Direct Drive
Installation Type Wall Mounted
Horsepower Per Motor 1 HP
Motors 1
Max Opening Height 14 Feet
Insect Control Height 12 Feet
Air Volume 2,396 CFM
Max Outlet Velocity 7,567 FPM
Average Outlet Velocity 2,738 FPM
Outlet Velocity Uniformity 87%
Power Rating 1.12 kW
Finish Gray Powder Coated
Country of Origin USA
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Warranty & Protection

5-year limited warranty

Documents

PDF Cutsheet PDF Download PDF Replacement parts diagram PDF Download PDF Air curtain flyer PDF Download PDF Warranty PDF Download PDF Installation manual PDF Download PDF Terms & conditions PDF Download

Frequently Asked Questions

It is rated for doors up to 14 feet high for environmental separation and 12 feet high for insect control.
No. It is an ambient, unheated air curtain.
It uses one 1 HP direct-drive motor and is standard single-speed.
Standard construction supports wall and top mounting.
It comes standard with a gray powder-coated exterior and mill aluminum screen and access panels; stainless steel or custom color are optional.
Unheated models are covered by a 5-year limited warranty from the original shipment date, provided the unit is properly installed and operated.
