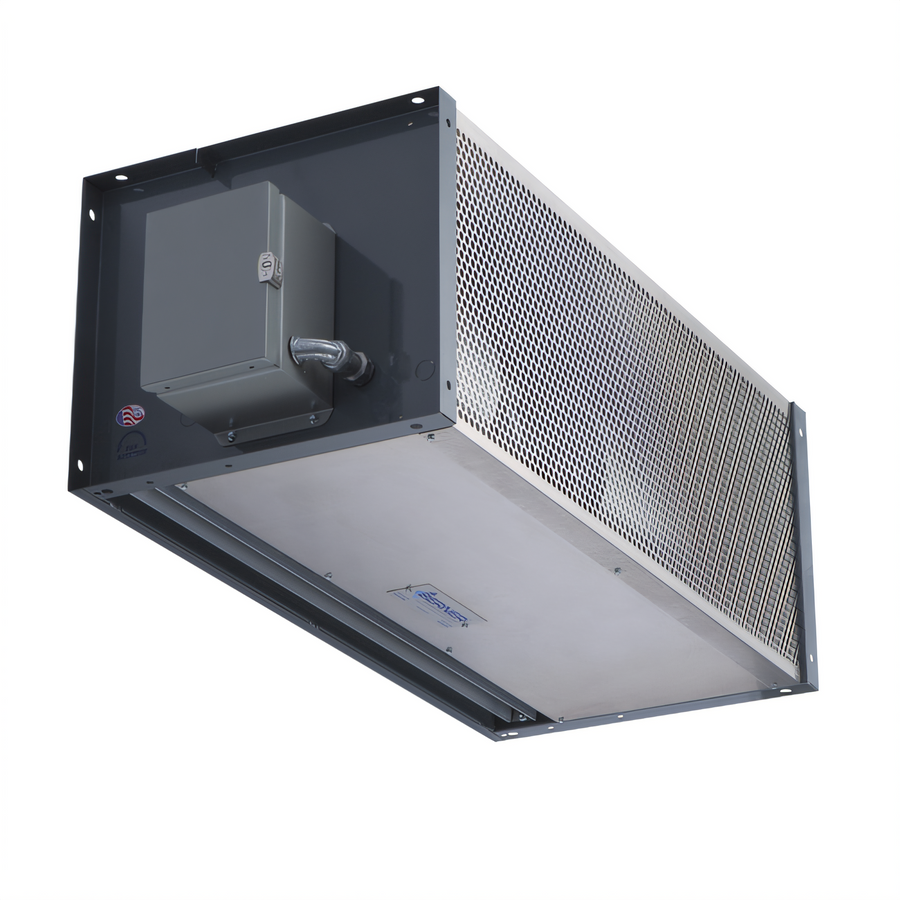

Berner Industrial Direct Drive 144" Electric Heated Air Curtain with 4 x 1/2 HP Motors

IDC12 Series, 56kW Electric Heat, for Doors up to 12 ft. High

Engineered for optimal climate control and insect protection, this Berner Industrial air curtain provides powerful, consistent performance for large doorways.

  • Equipped with four 1/2 hp direct drive motors for robust air delivery.
  • Generates 56 kW of electric heat to maintain comfortable indoor temperatures.
  • Ideal for environmental separation up to 12 feet high and insect protection up to 10 feet high.
  • Features high efficiency Pro-V Nozzle and adjustable vanes for precise air control.
  • Durable gray powder-coated exterior with an aluminized steel frame, built for longevity.
  • Designed for simple installation and maintenance, with wall and top mounting options.

Overall Dimensions:

144.0"W

Product Weight:

485.0 lb

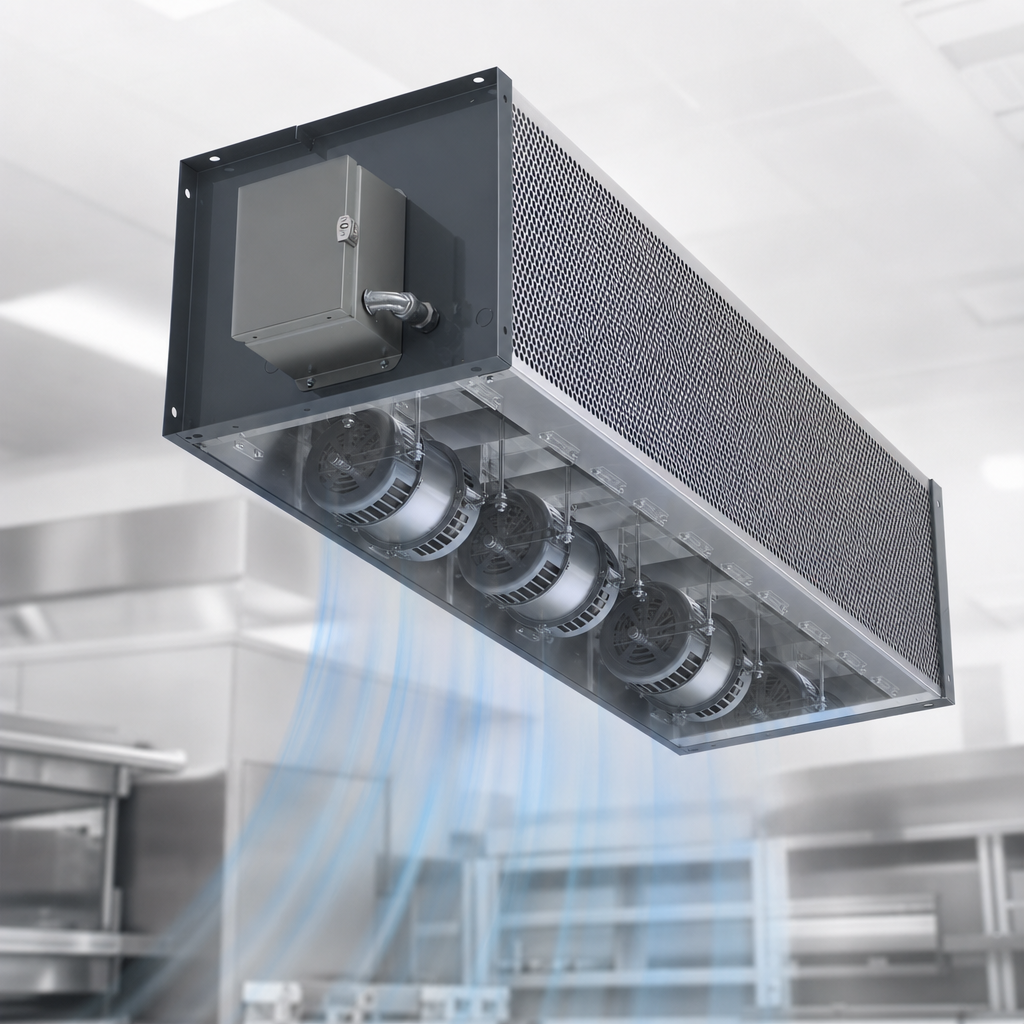

Direct Drive Motor System

Utilizes four 1/2 hp single-speed direct drive motors, ensuring reliable and powerful air circulation.

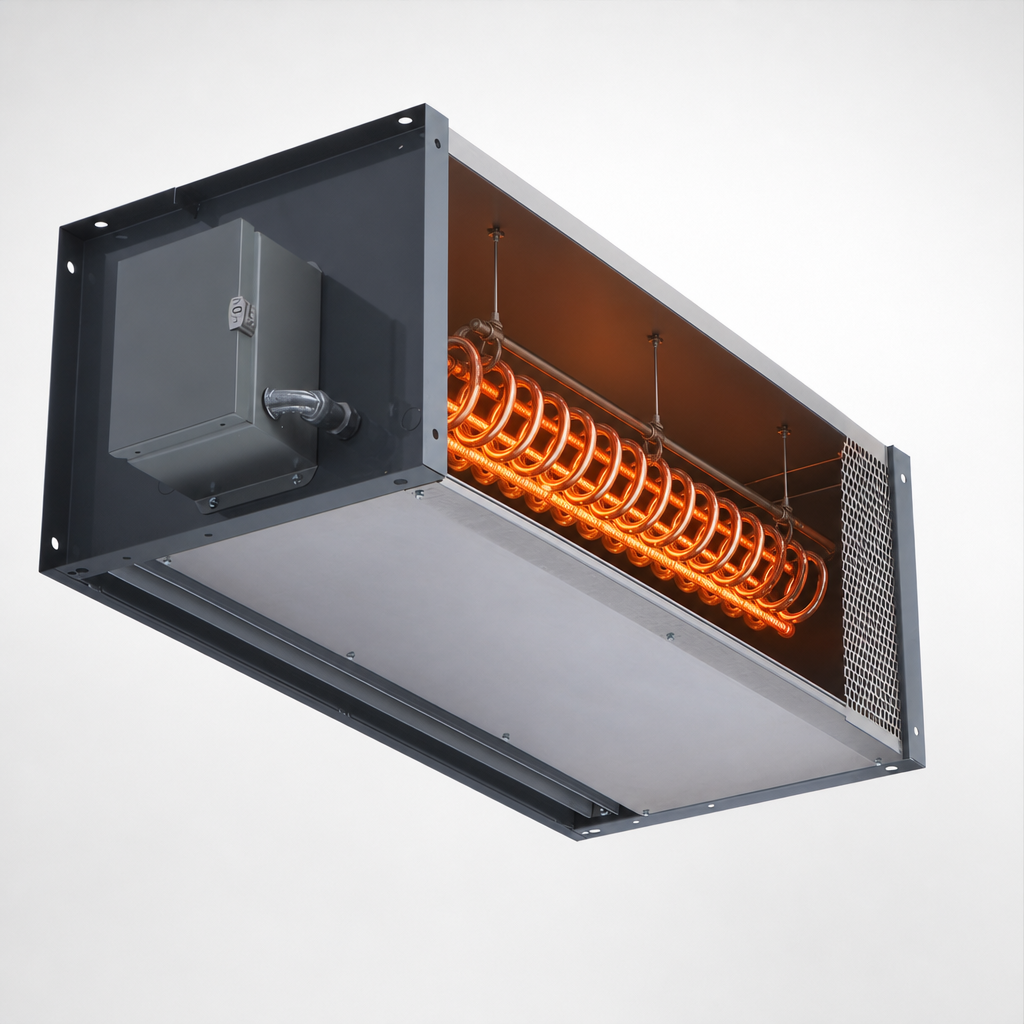

Electric Heating Element

Features a patented venturi open helical element with point suspension and thermal overload protection, providing 56 kW of electric heat to temper incoming air.

High Efficiency Airflow

Equipped with a high efficiency Pro-V Nozzle and adjustable nozzle vanes, allowing for precise control of the air stream and optimal performance.

Versatile Mounting Options

Designed for both wall and top mounting configurations to suit various installation requirements.

Durable Construction

Built with an aluminized steel frame and a gray powder-coated exterior with mill aluminum screen and access panels for long-lasting commercial use.

Factory Mounted Control Panel

Comes with a factory-mounted control panel for ease of operation, with options for remote mounting.

Front Air Intake

Standard configuration includes a front air intake, with an optional top air intake available.

Type Air Curtain
Style Direct Drive
Installation Type Wall Mounted, Top Mounted (Interior Mounting)
Heat Type Electric
Watts 56 kW
Motors 4
Horsepower 1/2 hp Per Motor
Max. Nozzle Width 144 Inches
Max. Air Velocity at Nozzle 5,166 fpm
Avg. Outlet Velocity 1,728 fpm
Air Volume 6,048 cfm
Air Temperature Rise 29 °F
Max. Door Height (Environmental) 12 Feet
Max. Door Height (Insect) 10 Feet
Material Aluminized Steel Frame
Finish Gray Powder Coated Exterior
Interior Finish Mill Aluminum
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Width 147.00 Inches
Shipping Depth 18.00 Inches
Shipping Height 15.00 Inches
Shipping Weight 390 lb.

Certifications & Compliance

Warranty & Protection

2-year limited warranty on heated models

Documents

PDF Cutsheet PDF Download PDF Replacement parts diagram PDF Download PDF Air curtain flyer PDF Download PDF Terms & conditions PDF Download PDF Installation manual PDF Download PDF Warranty PDF Download

Frequently Asked Questions

The Berner IDC12-4144E air curtain is designed for environmental separation for doors up to 12 feet high and provides effective insect protection for doors up to 10 feet high.
This unit features an aluminized steel frame, a gray powder-coated exterior, and mill aluminum screen and access panels for durability and a professional appearance.
Yes, while a factory-mounted control panel is standard, there are options for remote mounting, as well as left-hand or right-hand mounting.
The IDC12-4144E has an electric heating capacity of 56 kW and is available in multiple 3-phase voltage configurations, including 208V, 240V, 480V, 600V (all 60Hz), and 380V (50Hz).
The standard air intake is front-facing, but a top air intake option is also available to suit different installation needs.
