Berner Industrial IDC12-4144A-1 Ambient Unheated Direct Drive Air Curtain, 144 Inch, 4-Motor

For Doors Up to 12 Ft High; Wall/Top Mount Options

This unheated air curtain helps separate environments and reduce insect intrusion across wide openings with four 1/2 hp direct-drive motors.

  • Ambient, unheated air curtain for environmental separation and insect control.
  • Four 1/2 hp direct-drive motors provide reliable airflow for wide openings.
  • Rated for doors up to 12 ft high for environmental separation and 10 ft high for insect control.
  • Standard gray powder-coated exterior with mill aluminum screen and access panels.
  • Wall and top mounting options with front intake standard and top intake optional.
  • Protective inlet screen and optional washable filters support easier maintenance.
  • UL/cULus listed and made in the USA.

Overall Dimensions:

144.0"W

Product Weight:

461.0 lb

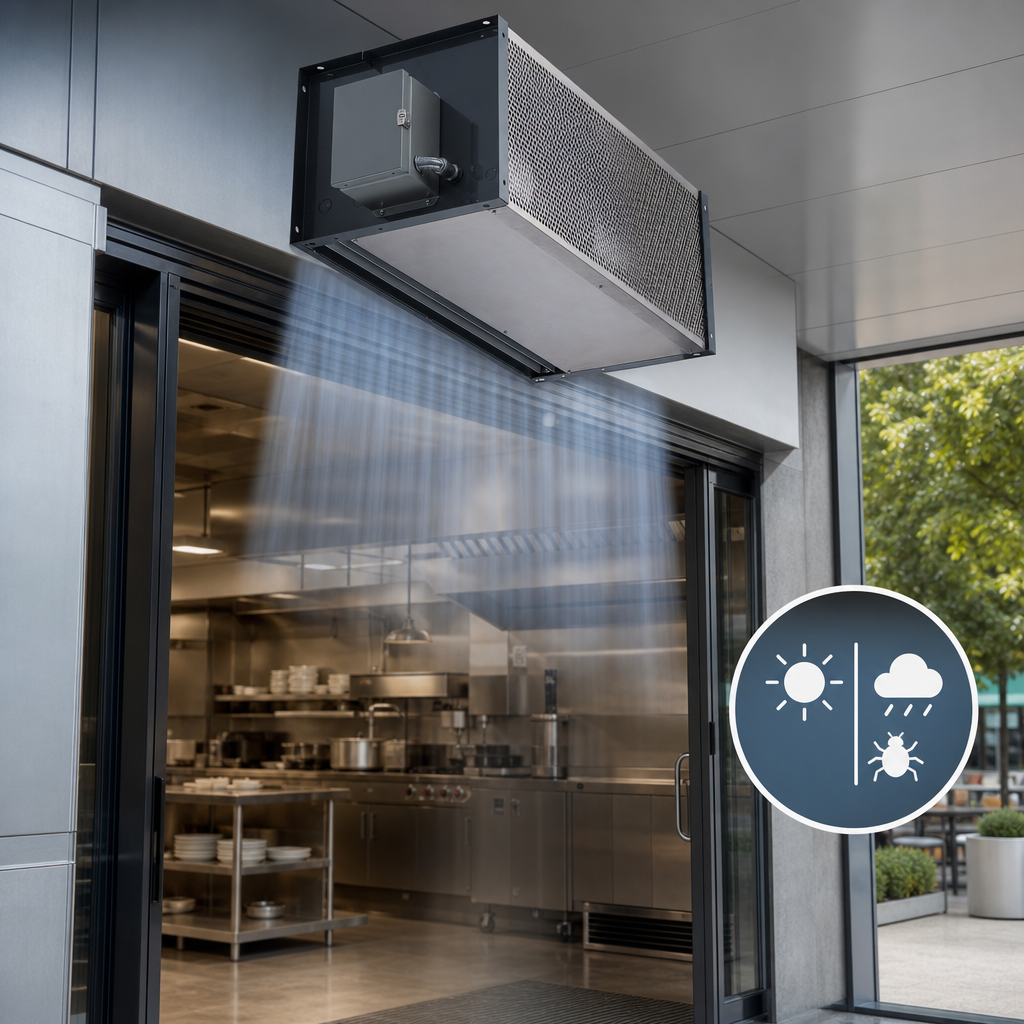

Ambient (Unheated) Operation

Designed to move air without added heat for environmental separation and insect control.

Ambient (Unheated) Operation

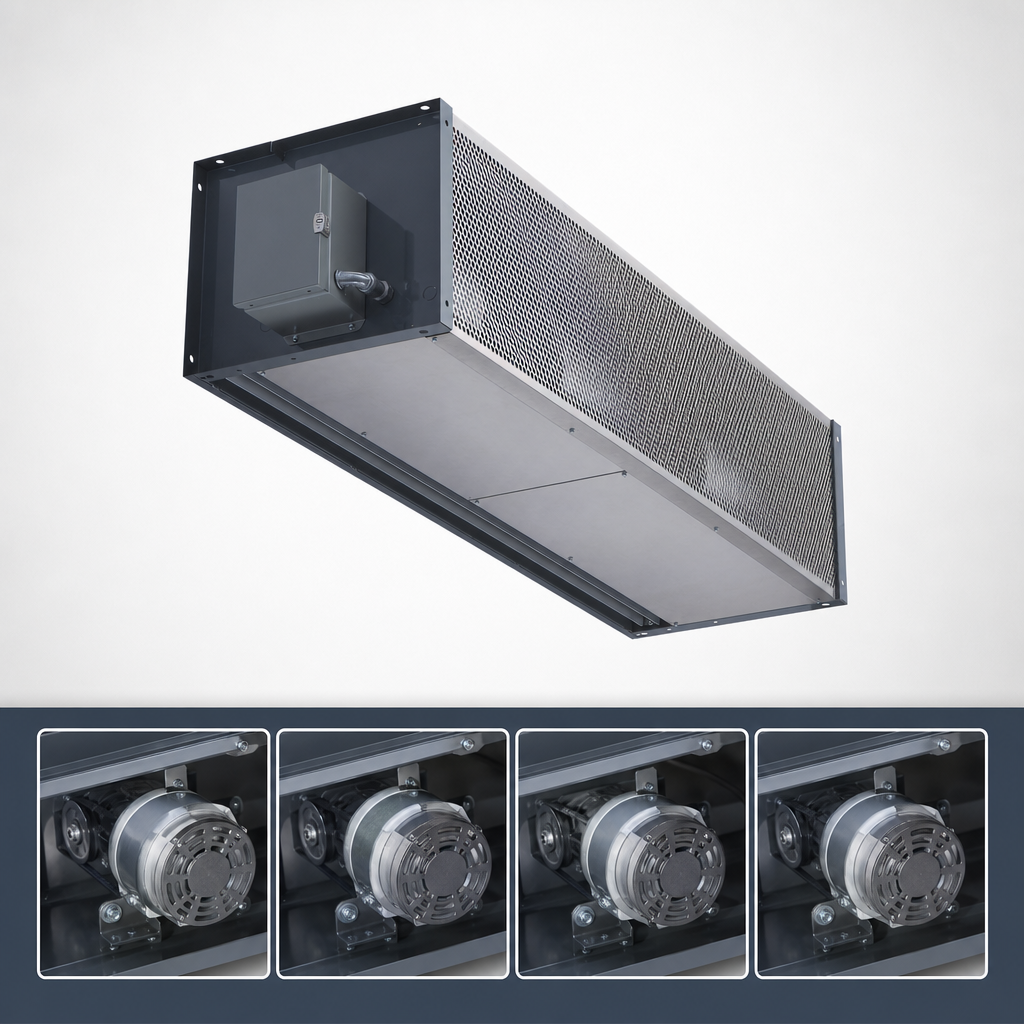

Four 1/2 HP Direct-Drive Motors

Uses four single-speed 1/2 hp motors with direct drive construction; optional three-speed is available.

Four 1/2 HP Direct-Drive Motors

Door Height Coverage

Suitable for doors up to 12 ft high for environmental separation and 10 ft high for insect protection.

Gray Powder-Coated Cabinet

Standard construction includes a gray powder-coated exterior with mill aluminum screen and access panels; custom color or stainless options are available.

Wall and Top Mounting

Configured for wall and top mounting, with front air intake standard and top intake optional.

High-Efficiency Pro-V Nozzle

Includes a high-efficiency Pro-V nozzle and adjustable nozzle vanes to help shape the air stream.

Protective Inlet Screen

Standard inlet screen helps protect internal components; optional filters are available.

UL / cULus Listed, Made in USA

Listed for commercial use and manufactured in the United States.

Type Ambient Air Curtain
Style Direct Drive
Installation Type Wall Mounted
Usage Environmental Separation / Insect Control
Horsepower Per Motor 1/2 HP
Motor Count 4
Maximum Opening Height 12 Feet
Color Gray
Finish Powder Coated
Country Of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Width 144 Inches
Shipping Weight 461 lb.

Certifications & Compliance

Certified badge of UL Certified
UL Certified

Warranty & Protection

5-year limited warranty on unheated models.

Documents

PDF Cutsheet PDF Download PDF Terms & conditions PDF Download PDF Warranty PDF Download PDF Installation manual PDF Download PDF Air curtain flyer PDF Download PDF Replacement parts diagram PDF Download

Frequently Asked Questions

No. This model is an ambient, unheated air curtain.
It is rated for doors up to 12 ft high for environmental separation and 10 ft high for insect control.
It uses four 1/2 hp direct-drive motors.
The unit is designed for wall and top mounting. Consult the factory for vertically mounted units.
The standard finish is a gray powder-coated exterior with mill aluminum screen and access panels.
Unheated models carry a 5-year limited warranty from the original shipment date.
