Berner

Berner Industrial Series IDC12-3144E 144-Inch Electric Heated Direct Drive Air Curtain, 3 x 1/2 HP Motors

SKU: IDC12-3144E
$7,098.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Air Doors Berner Best Sellers Kitchen Ventilation & Climate Control New Arrivals Restaurant Equipment

Berner Industrial Series IDC12-3144E 144-Inch Electric Heated Direct Drive Air Curtain, 3 x 1/2 HP Motors

For Openings Up to 12 Feet High; Interior Wall Mounting

This 144-inch heated air curtain helps maintain indoor comfort and block insects at large door openings with a powerful direct-drive design.

  • Designed for mounting heights up to 12 ft for environmental separation and 10 ft for insect protection.
  • Three 1/2 HP direct-drive motors deliver strong airflow across wide openings.
  • Electric heat output totals 42 kW for added comfort at entryways.
  • Factory-mounted control panel supports left-hand, right-hand, or remote mounting.
  • Protective inlet screen, optional filters, and thermal overload protection help support reliable operation.
  • Made in USA and cULus listed.

Overall Dimensions:

144.0"W

Product Weight:

438.0 lb

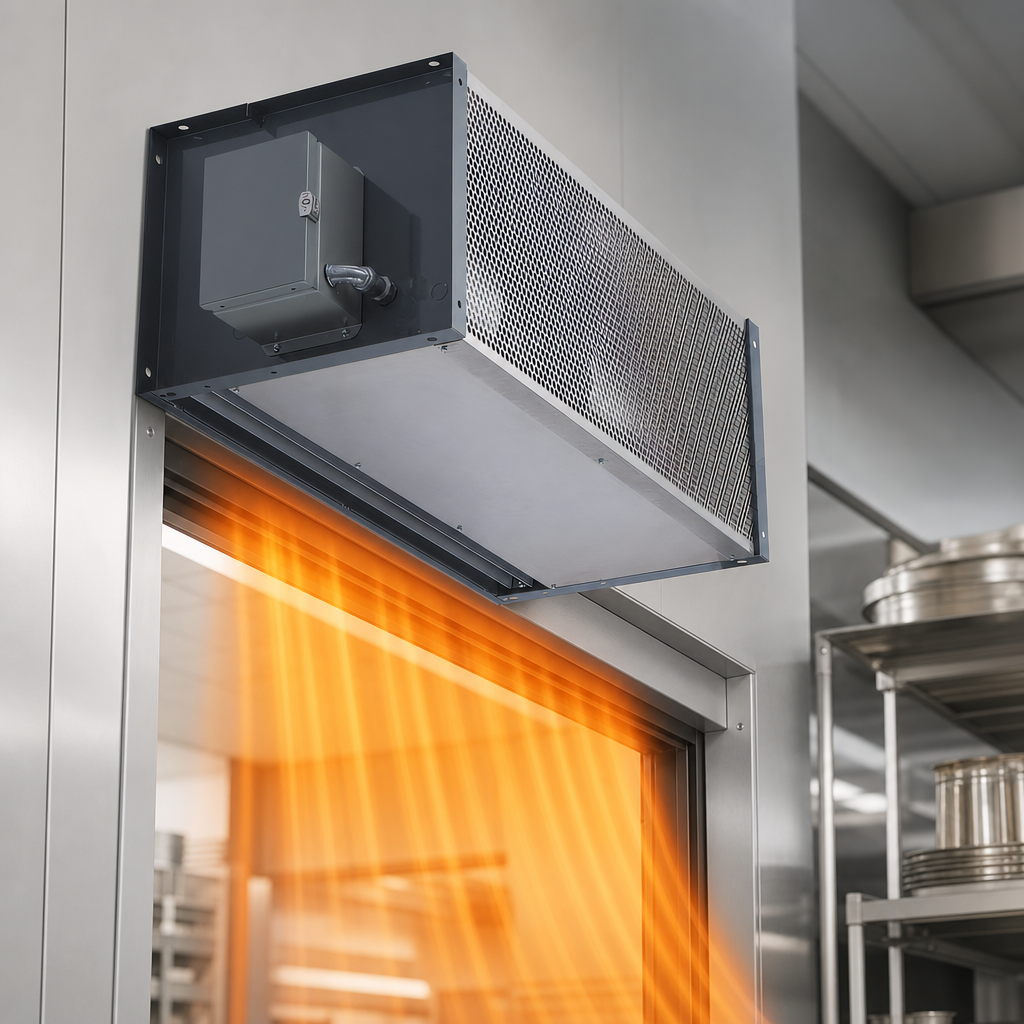

Electric Heated Design

The E in the model number designates an electric heated unit.

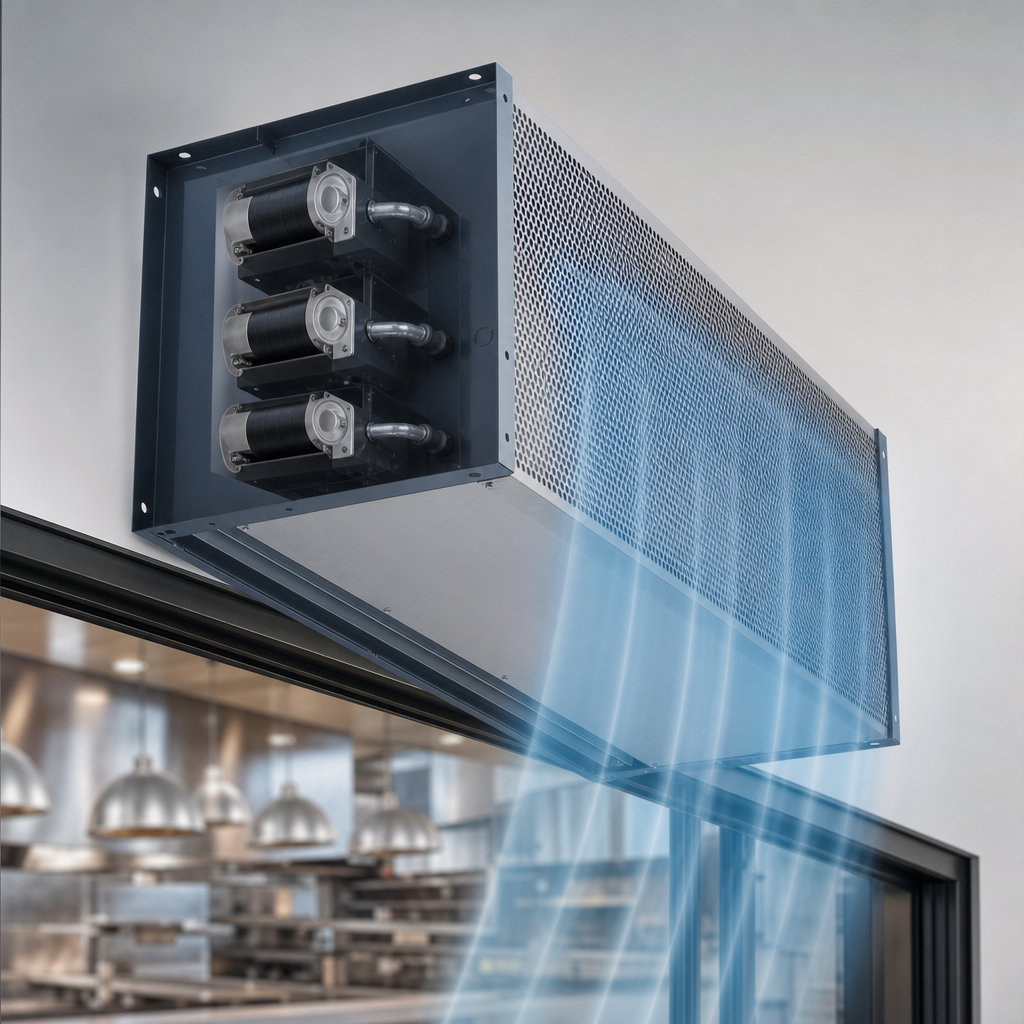

Direct-Drive Air Movement

Direct-drive construction with three 1/2 HP motors helps move air across large openings.

Openings Up To 12 Feet

Rated for mounting heights up to 12 ft for environmental separation and 10 ft for insect control.

High-Efficiency Pro-V Nozzle

Patented nozzle design with a venturi open helical element helps deliver uniform air flow.

Protective Inlet Screen

Standard inlet screen helps protect the intake; optional filters are available.

Factory-Mounted Control Panel

Standard left-hand mount with optional right-hand or remote mounting.

Durable Cabinet Construction

Gray powder-coated exterior with mill aluminum screen and access panels, plus an aluminized steel frame.

Thermal Overload Protection

Built-in protection helps guard the motors against overheating.

Made in USA

Manufactured in the USA; cULus listed.

Type Electric Heated Air Curtain
Style Direct Drive
Installation Type Wall Mounted
Material Aluminized Steel
Finish Gray Powder Coated
Color Gray
Watts 42 kW
Motor Count 3
Horsepower Per Motor 1/2 HP
Maximum Opening Height 12 Feet
Insect Protection Height 10 Feet
Country Of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Width 144 Inches
Shipping Weight 438 lb.

Certifications & Compliance

Warranty & Protection

2-year limited warranty on heated models.

Documents

PDF Cutsheet PDF Download PDF Terms & conditions PDF Download PDF Installation manual PDF Download PDF Air curtain flyer PDF Download PDF Warranty PDF Download PDF Replacement parts diagram PDF Download

Frequently Asked Questions

It is designed for mounting heights up to 12 ft for environmental separation and 10 ft for insect protection.
This model uses electric heat and has a 42 kW heating output.
It uses three direct-drive motors rated at 1/2 HP each.
Yes. A protective inlet screen is standard, and optional filters are also available.
The standard control panel mount is left-hand, with optional right-hand or remote mounting available.
Heated models carry a 2-year limited warranty from the original shipment date.
