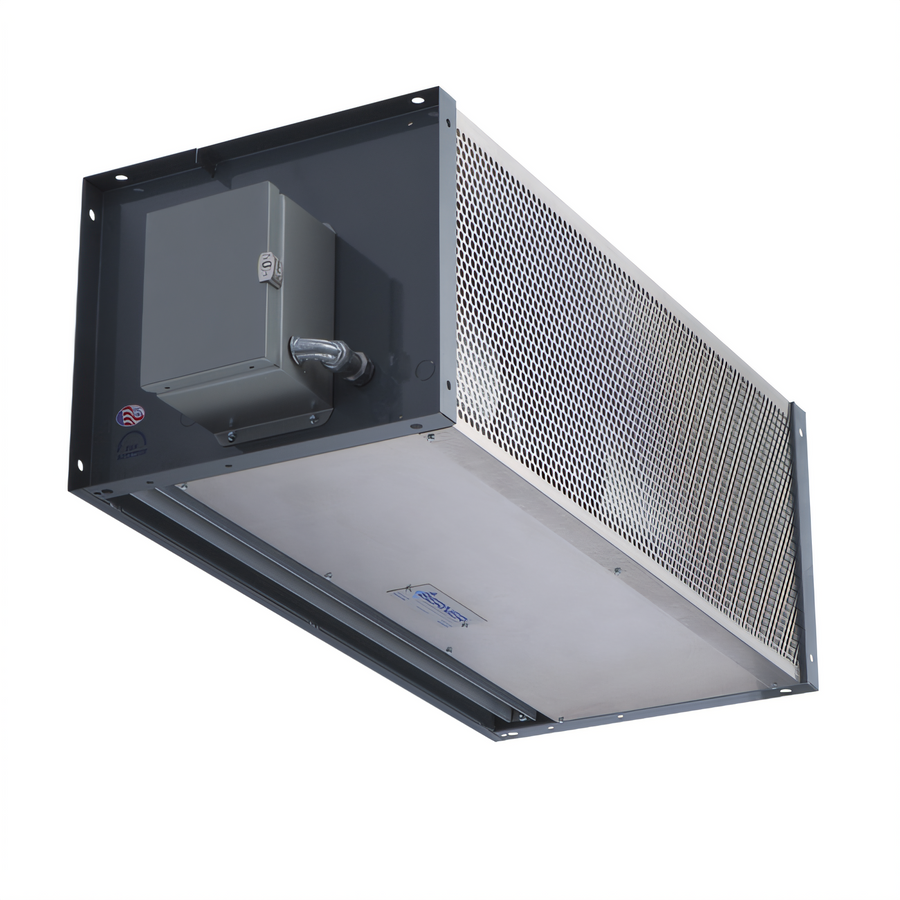

Berner Industrial Series IDC12-3132E 132-Inch Direct Drive Electric Heated Air Curtain

For Mounting Heights up to 12 ft (Environmental Separation) & 10 ft (Insect Protection)

Engineered for robust performance and durability, the Berner Industrial Series IDC12-3132E effectively maintains indoor temperatures and deters insects in large commercial openings with powerful electric heat.

  • Powerful 132-inch direct drive air curtain with three 1/2 hp motors for optimal performance.
  • Provides environmental separation for doors up to 12 feet high and insect protection up to 10 feet high.
  • Features a 42 kW electric heating system to temper incoming air and maintain comfortable indoor temperatures.
  • Durable gray powder-coated exterior with an aluminized steel frame and mill aluminum inlet screen for long-lasting use.
  • Versatile installation options, including wall and top mounting, with flexible air intake configurations.
  • Equipped with a high-efficiency Pro-V Nozzle and adjustable vanes for precise airflow control.
  • Made in the USA and cULus listed, ensuring commercial safety, quality, and reliability.

Overall Dimensions:

132.0"W

Product Weight:

424.0 lb

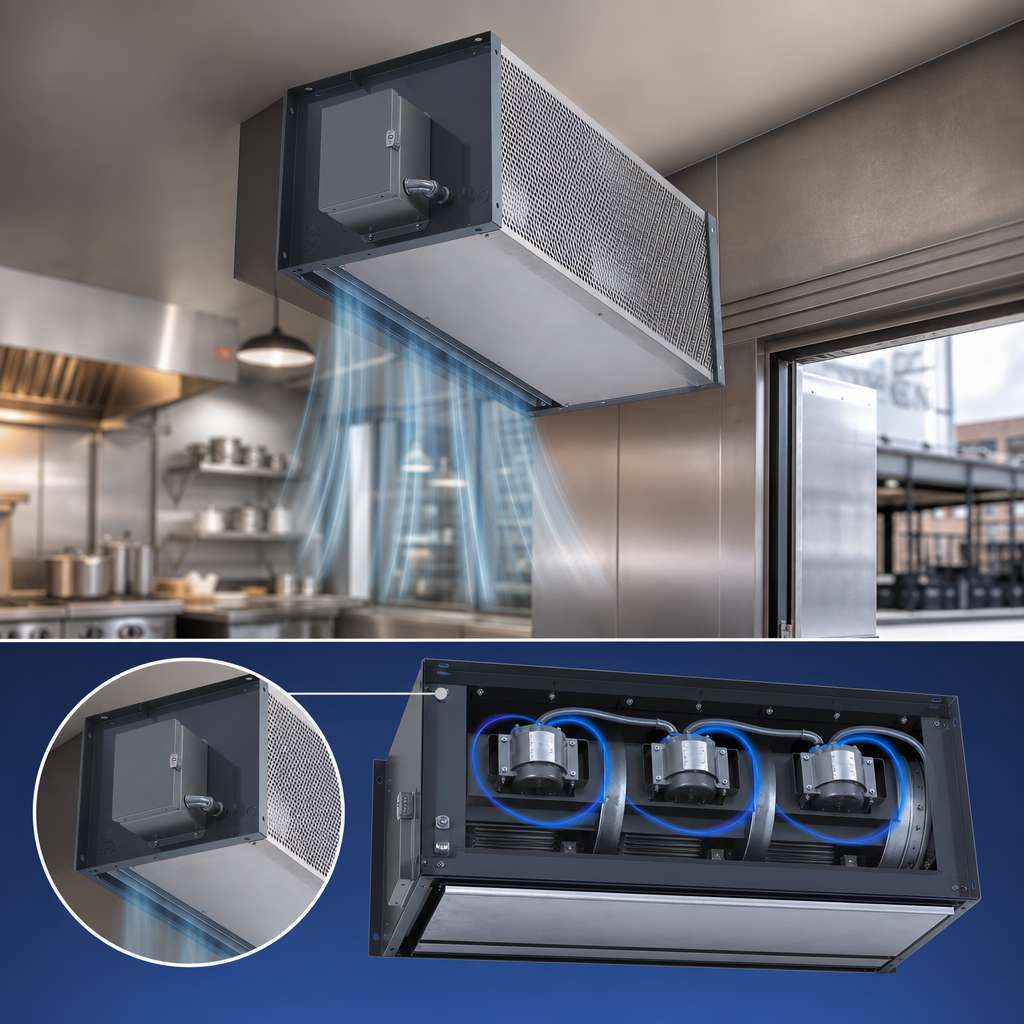

Direct Drive Motors

Equipped with three 1/2 hp single-speed direct drive motors for reliable and consistent air movement, ensuring powerful performance.

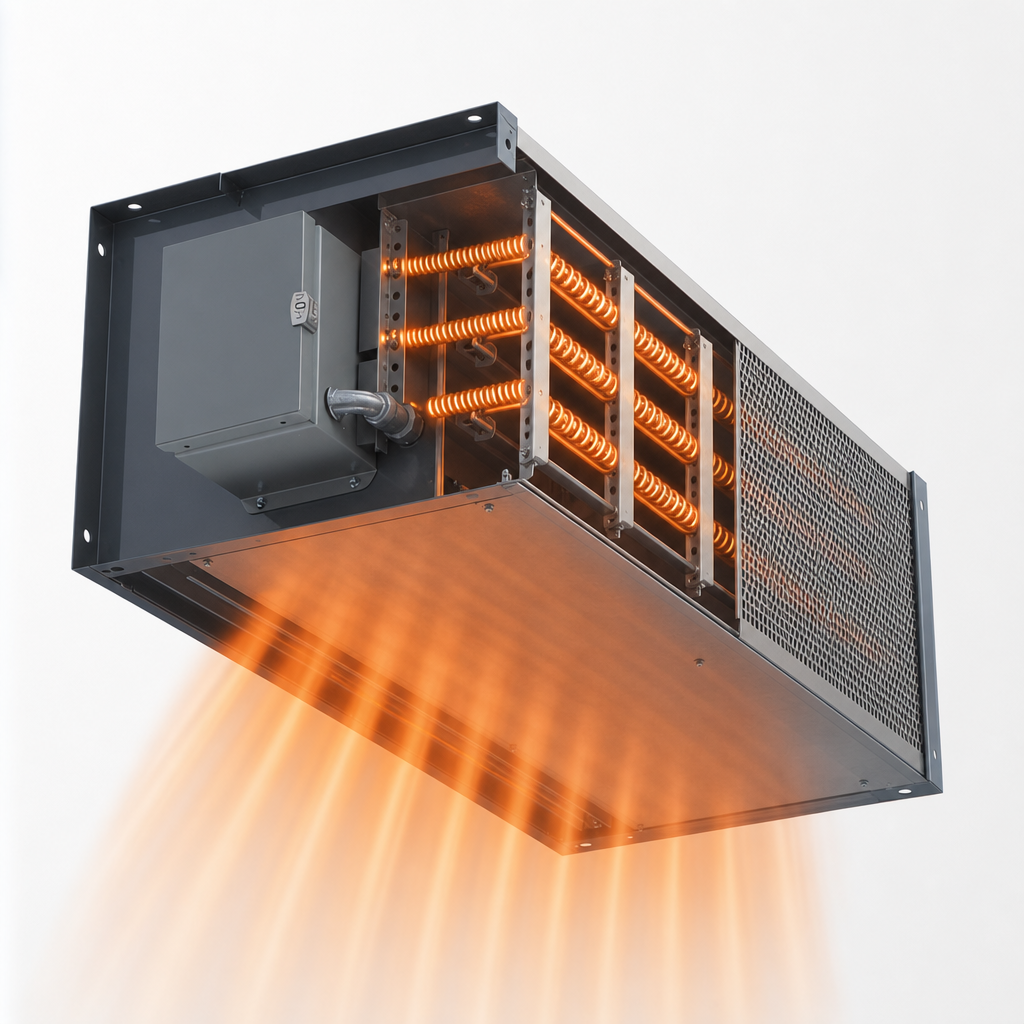

Electric Heating System

Features an integrated 42 kW electric heating system with patented venturi open helical elements and point suspension to provide tempered air, preventing heat loss or gain.

High-Efficiency Air Nozzle

Utilizes a Pro-V Nozzle with adjustable vanes to ensure uniform air velocity and precise direction of the air stream, optimizing energy savings and comfort.

Durable Construction

Constructed with a robust aluminized steel frame and a gray powder-coated exterior, complemented by a mill aluminum inlet screen and access panels for long-lasting durability in commercial environments.

Flexible Installation

Designed for versatile installation, allowing for both wall and top mounting configurations to suit various door openings and building designs.

Integrated Control Panel

Comes with a factory-mounted control panel, offering convenient operation. Options for remote mounting and various control packages (Basic, Deluxe) are available to meet specific operational needs.

Thermal Overload Protection

Includes thermal overload protection for the motors, enhancing operational safety and extending the lifespan of the unit.

Easy Maintenance

Features a protective inlet screen and a removable bottom cover, facilitating straightforward cleaning and maintenance.

Type Air Curtain
Style Direct Drive
Installation Type Wall Mounted, Top Mounted
Heat Type Electric
Heating Capacity 42 kW
Heater Output 143.3 MBH
Watts 42 kW
Motor Power 1.57 kW
Motors 3
Horsepower Per Motor 1/2 hp
Max. Opening Height (Environmental) 12 Feet
Max. Opening Height (Insect Control) 10 Feet
Max Nozzle Width 132.00 Inches
Unit Width 135.00 Inches
Air Volume 4,760 cfm
Max Air Velocity at Nozzle 5,292 fpm
Average Outlet Velocity 1,484 fpm
Air Temperature Rise 28°F
Material Aluminized Steel Frame
Finish Gray Powder Coated Exterior
Net Weight 424 lbs
Shipping Width 132 Inches
Shipping Weight 424 lbs
Country of Origin USA
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Warranty & Protection

2-year parts limited warranty for heated models.

Documents

PDF Cutsheet PDF Download PDF Replacement parts diagram PDF Download PDF Air curtain flyer PDF Download PDF Terms & conditions PDF Download PDF Warranty PDF Download PDF Installation manual PDF Download

Frequently Asked Questions

The Berner IDC12-3132E is designed for environmental separation for doors up to 12 feet high and provides effective insect protection for door openings up to 10 feet high.
This air curtain offers multiple electrical configurations including 208V 3-Phase, 240V 3-Phase, 480V 3-Phase, 600V 3-Phase, and 380V 3-Phase (50 Hz). Specific amperage and breaker ratings will vary depending on the chosen voltage and heater kW.
The standard configuration for this model features a front air intake. A top air intake option is also available.
The Berner IDC12-3132E, being a heated model, comes with a two-year (2 years) limited warranty on parts from the original date of shipment, provided it's properly cared for, installed, and operated.
Yes, while the standard finish is a gray powder-coated exterior, custom colors and stainless steel finishes are available as optional configurations.
Yes, optional accessories include 1/2 inch polyester or aluminum (recleanable) filters, available in various lengths (33, 36, 42, 48 inches) to help maintain air quality.
