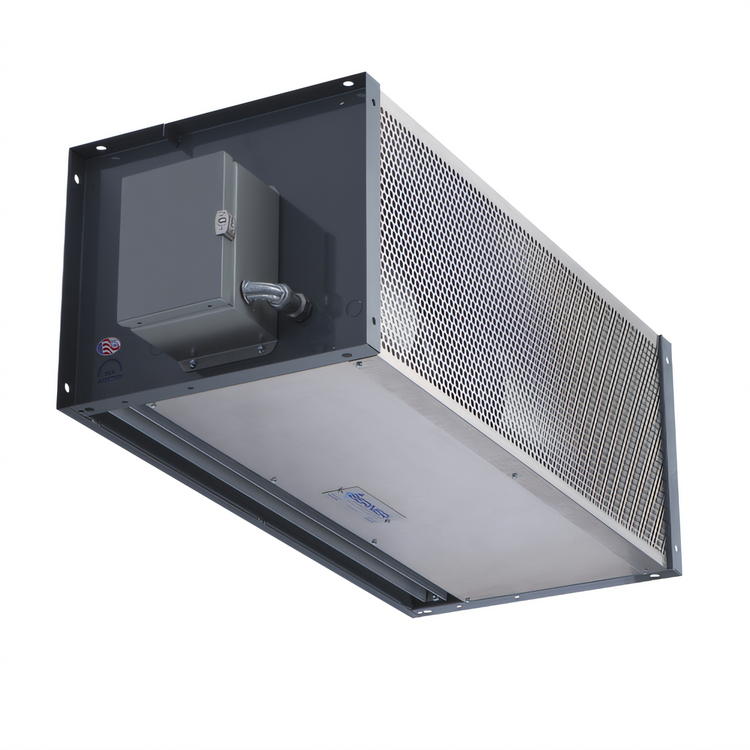

Berner Industrial IDC12 Ambient Unheated Direct-Drive Air Curtain, 132 Inch, 3-Motor

For doors up to 12 feet high; environmental separation and 10 feet insect control

This 132-inch ambient air curtain helps keep conditioned air in and insects out across openings up to 12 feet high with three direct-drive 1/2 HP motors.

  • Ambient, unheated air curtain for environmental separation and insect control.
  • Rated for door openings up to 12 feet high and 10 feet for insect control.
  • Three 1/2 HP direct-drive motors deliver high airflow without a heated coil.
  • Protective inlet screen, high-efficiency Pro-V nozzle, and wall/top mounting support installation.
  • Standard gray powder-coated exterior with optional stainless steel or custom color finish.
  • Front or top intake, filter, and control-panel options help tailor the unit to the opening.

Overall Dimensions:

132.0"W

Product Weight:

406.0 lb

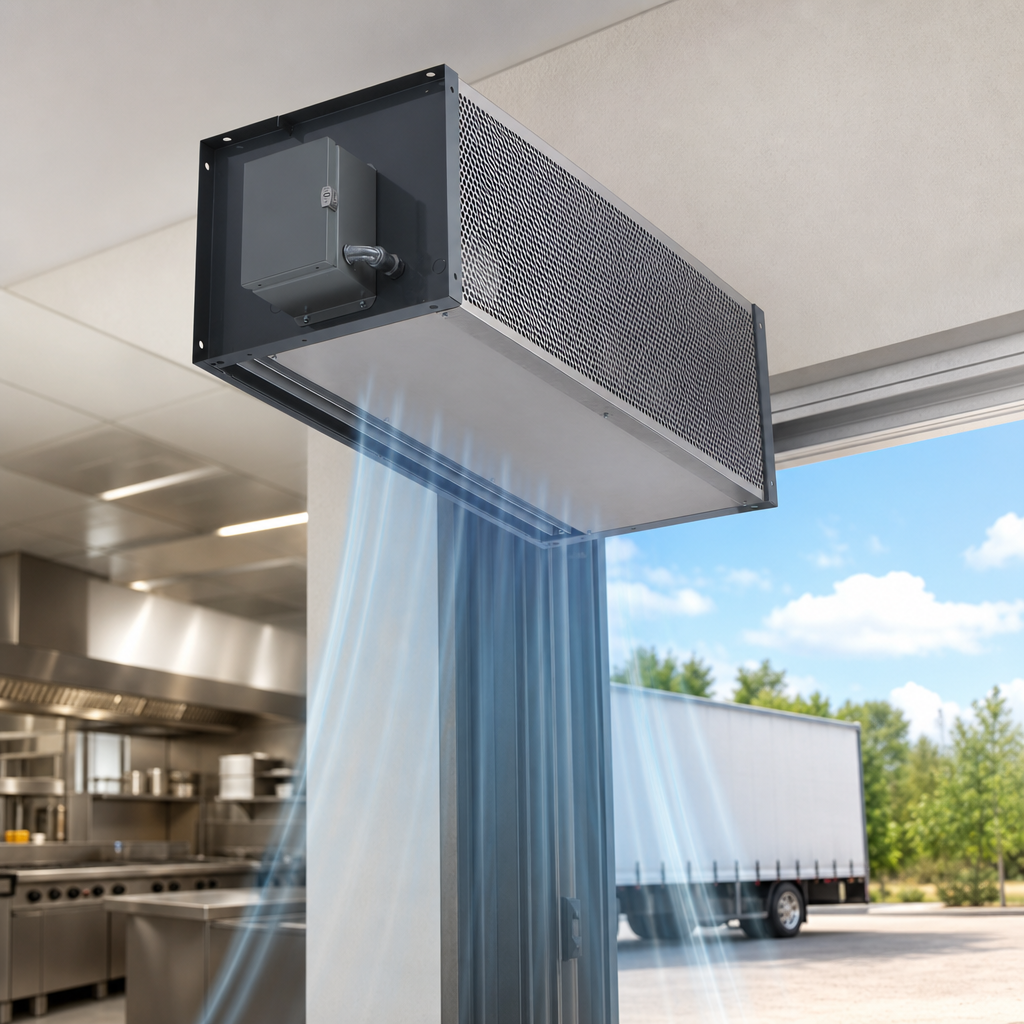

Ambient, Unheated Operation

Moves air without heat to help maintain indoor conditions at open doorways.

Ambient, Unheated Operation

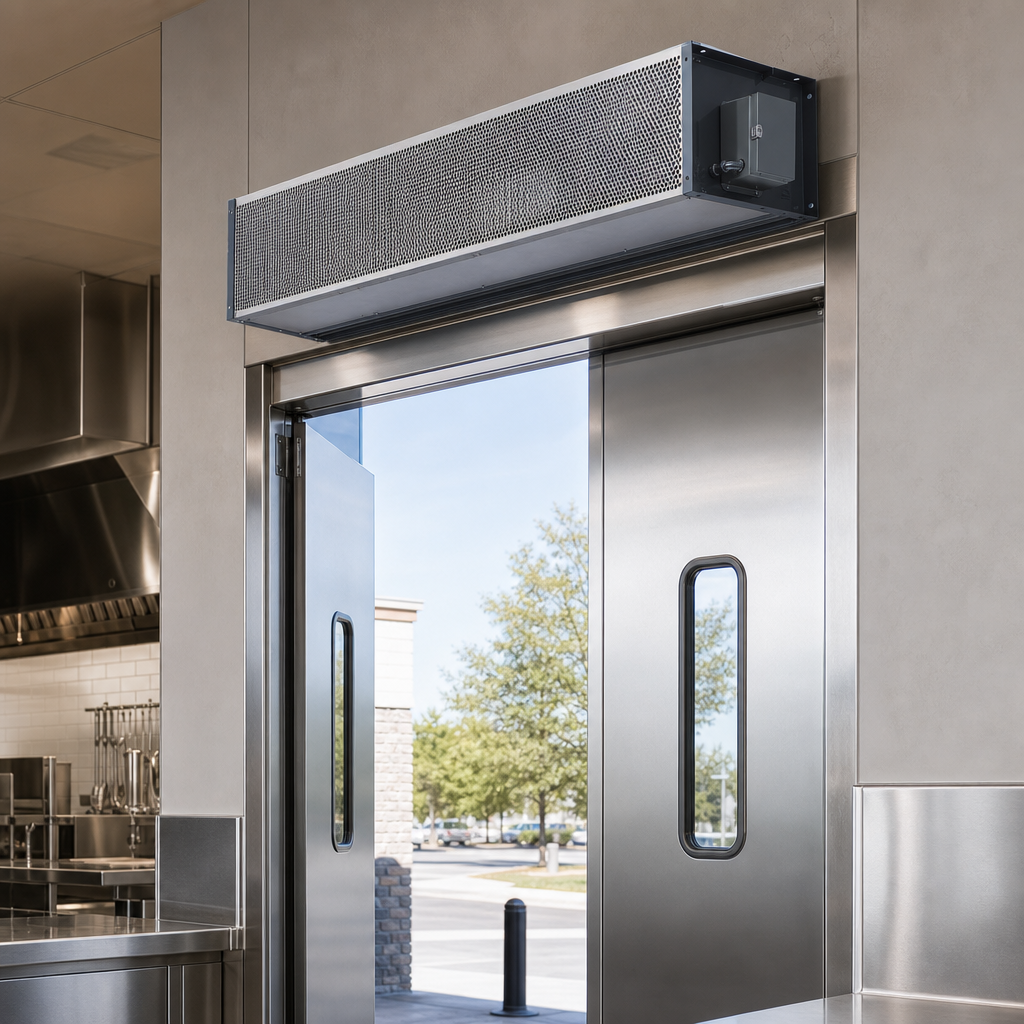

Coverage For Tall Openings

Designed for doors up to 12 feet high for environmental separation and 10 feet high for insect control.

Coverage For Tall Openings

Three 1/2 HP Direct-Drive Motors

Uses three single-speed direct-drive motors; three-speed operation is available as an option.

Protective Inlet Screen

Includes a protective inlet screen, with optional filter accessories available.

High-Efficiency Pro-V Nozzle

Engineered to deliver a uniform air stream across the opening.

Wall and Top Mounting

Built for wall and top mounting; consult factory for vertically mounted applications.

Gray Powder-Coated Cabinet

Standard gray powder-coated exterior with mill aluminum screen and access panels; stainless steel or custom color options are available.

Flexible Intake And Control Options

Front intake is standard with top intake available as an option, and control panels can be left-hand, right-hand, or remote mounted.

Type Air Curtain
Style Ambient
Drive Type Direct Drive
Installation Type Wall Mounted
Motors 3
Horsepower Per Motor 1/2 HP
Maximum Opening Height 12 Feet
Insect Control Height 10 Feet
Finish Gray Powder Coated
Air Volume 4,760 CFM
Maximum Velocity At Nozzle 5,292 FPM
Average Outlet Velocity 1,484 FPM
Outlet Velocity Uniformity 78%
Power Rating 1.57 kW
Shipping Width 132 Inches
Shipping Weight 406 lb.
Selling Unit Each
Units Per Case 1
Country Of Origin USA

Certifications & Compliance

Certified badge of UL Certified
UL Certified

Warranty & Protection

5-year limited warranty on unheated models.

Documents

PDF Cutsheet PDF Download PDF Air curtain flyer PDF Download PDF Replacement parts diagram PDF Download PDF Installation manual PDF Download PDF Terms & conditions PDF Download PDF Warranty PDF Download

Frequently Asked Questions

No. This model is an ambient, unheated air curtain.
It is rated for door heights up to 12 feet for environmental separation and 10 feet for insect control.
This model uses three 1/2 HP direct-drive motors.
The unit is designed for wall and top mounting. Standard control panel mounting is left-hand, with right-hand or remote mounting available; consult factory for vertical mounting.
Available voltage options shown in the documentation are 120/1/60, 208/1/60, 240/1/60, 220/1/50, 208/3/60, 240/3/60, 480/3/60, 600/3/60, and 380/3/50.
Yes. Optional washable polyester or aluminum filters are available.
