Berner Industrial Series 96-Inch Ambient Direct-Drive Air Curtain, 3 x 1/2 HP

Unheated, wall/top-mount, for doors up to 12 ft high

This ambient direct-drive air curtain uses three 1/2 hp motors to help stabilize open doorways up to 12 feet high while helping keep flying insects out.

  • Ambient, unheated design provides environmental separation without adding heat.
  • Three 1/2 hp direct-drive motors deliver strong airflow for wide openings.
  • Rated for doors up to 12 feet high for environmental separation and 10 feet for insect control.
  • Protective inlet screen and high-efficiency Pro-V nozzle support dependable air delivery.
  • Wall and top mounting options make installation more flexible.
  • Standard gray powder-coated construction with optional stainless steel or custom color finishes.

Overall Dimensions:

96.0"W

Product Weight:

302.0 lb

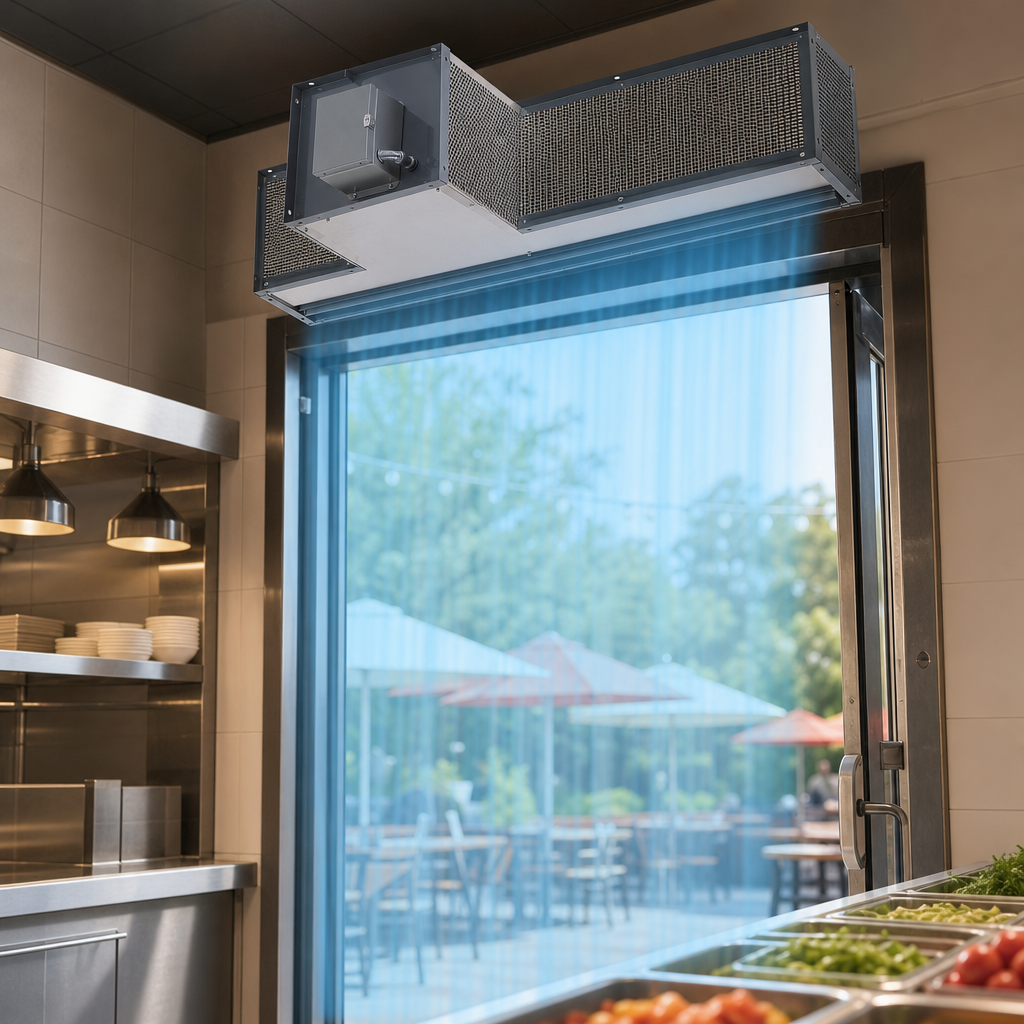

Ambient (Unheated) Operation

Designed for environmental separation without heat, making it ideal for open-door temperature control.

Ambient (Unheated) Operation

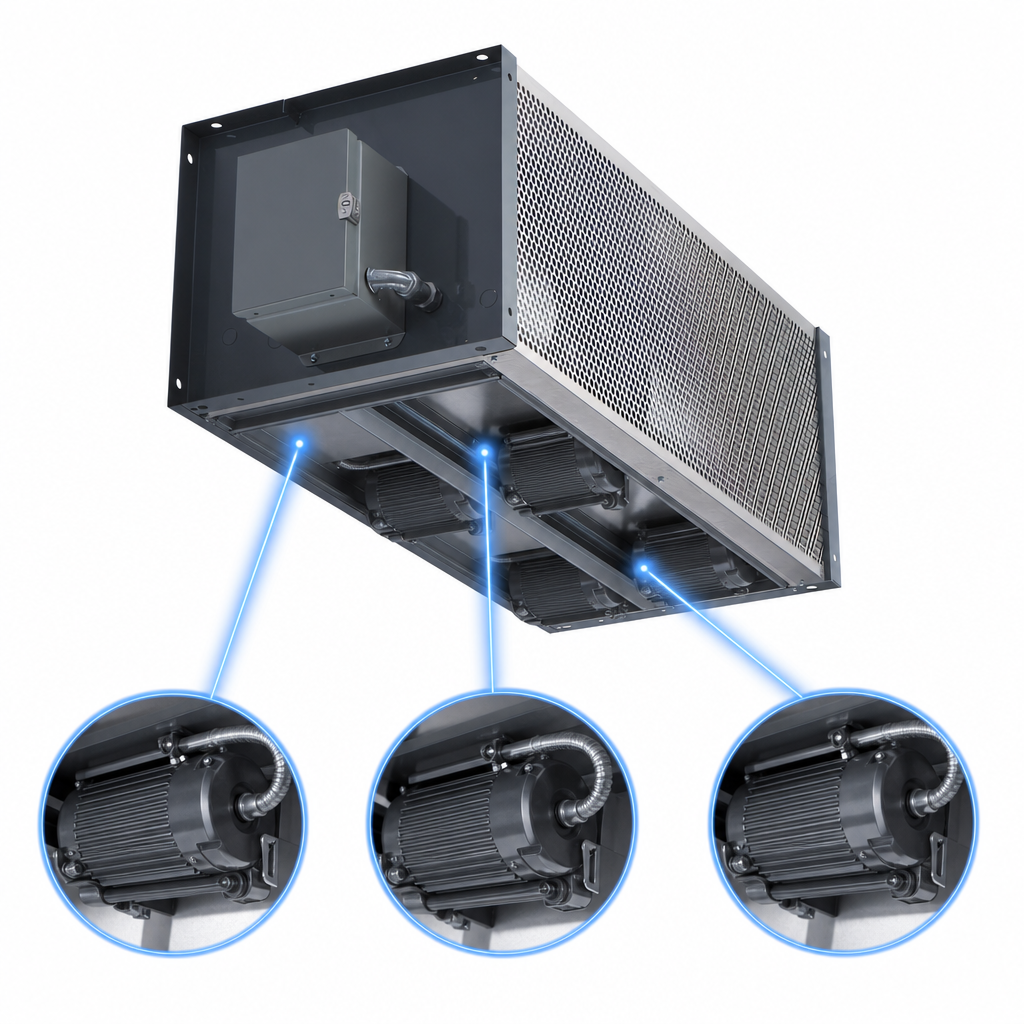

Three 1/2 HP Direct-Drive Motors

Uses three direct-drive motors for powerful air movement across wider openings.

Three 1/2 HP Direct-Drive Motors

Door Coverage to 12 Feet

Suitable for doors up to 12 feet high for environmental separation and 10 feet high for insect control.

Protective Inlet Screen

Helps protect the intake area; optional filters are available.

High-Efficiency Pro-V Nozzle

Engineered to deliver a focused air stream, with adjustable nozzle vanes for airflow tuning.

Wall and Top Mounting

Standard construction supports wall and top mounting for flexible installation.

Front or Top Air Intake

Front air intake is standard, with top intake available as an option.

Gray Powder-Coated Exterior

Standard finish includes a gray powder-coated cabinet with optional stainless steel or custom color options.

Type Ambient Air Curtain
Style Direct Drive
Installation Type Wall Mounted
Motor Count 3
Horsepower Per Motor 1/2 HP
Max Opening Height 12 Feet
Color Gray
Finish Powder Coated
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Width 96 Inches
Shipping Weight 302 lb.

Certifications & Compliance

Certified badge of UL Certified
UL Certified

Warranty & Protection

5-year limited warranty on ambient models

Documents

PDF Cutsheet PDF Download PDF Terms & conditions PDF Download PDF Installation manual PDF Download PDF Replacement parts diagram PDF Download PDF Air curtain flyer PDF Download PDF Warranty PDF Download

Frequently Asked Questions

It is rated for doors up to 12 feet high for environmental separation and 10 feet high for insect control.
No. It is an ambient (unheated) air curtain.
The unit uses three 1/2 hp direct-drive motors.
Standard construction supports wall and top mounting, and vertically mounted units should be consulted with the factory.
Yes. The model configuration includes front or top intake options, and the control panel can be left-hand, right-hand, or remote mounted.
The documentation notes that operation at 50 Hz will reduce air performance by approximately 17%.
