Berner Industrial Direct Drive 12 Electric Heated Air Curtain, 120-Inch, 2 x 1/2 HP Motors

SKU: IDC12-2120E
$5,281.90
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Air Doors Berner Best Sellers Kitchen Ventilation & Climate Control New Arrivals Restaurant Equipment

Berner Industrial Direct Drive 12 Electric Heated Air Curtain, 120-Inch, 2 x 1/2 HP Motors

For openings up to 12 feet high; 28 kW electric heat

This 120-inch electric heated air curtain helps keep conditioned air in and insects out at large door openings up to 12 feet high.

  • Electric-heated direct-drive air curtain for large commercial openings.
  • Two 1/2 HP motors provide dependable airflow in a 120-inch-wide unit.
  • Rated for openings up to 12 feet high for environmental separation and 10 feet for insect protection.
  • Standard gray powder-coated cabinet with mill aluminum screen and aluminized steel frame.
  • High-efficiency Pro-V nozzle, protective inlet screen, and adjustable nozzle vanes.
  • Wall and top mounting support with left-hand, right-hand, or remote control panel options.
  • Made in USA and cULus listed; backed by a 2-year limited warranty on heated models.

Overall Dimensions:

120.0"W

Product Weight:

346.0 lb

Electric Heated Direct-Drive Design

Industrial Direct Drive 12 air curtain with electric heat for conditioned-air retention at wide door openings.

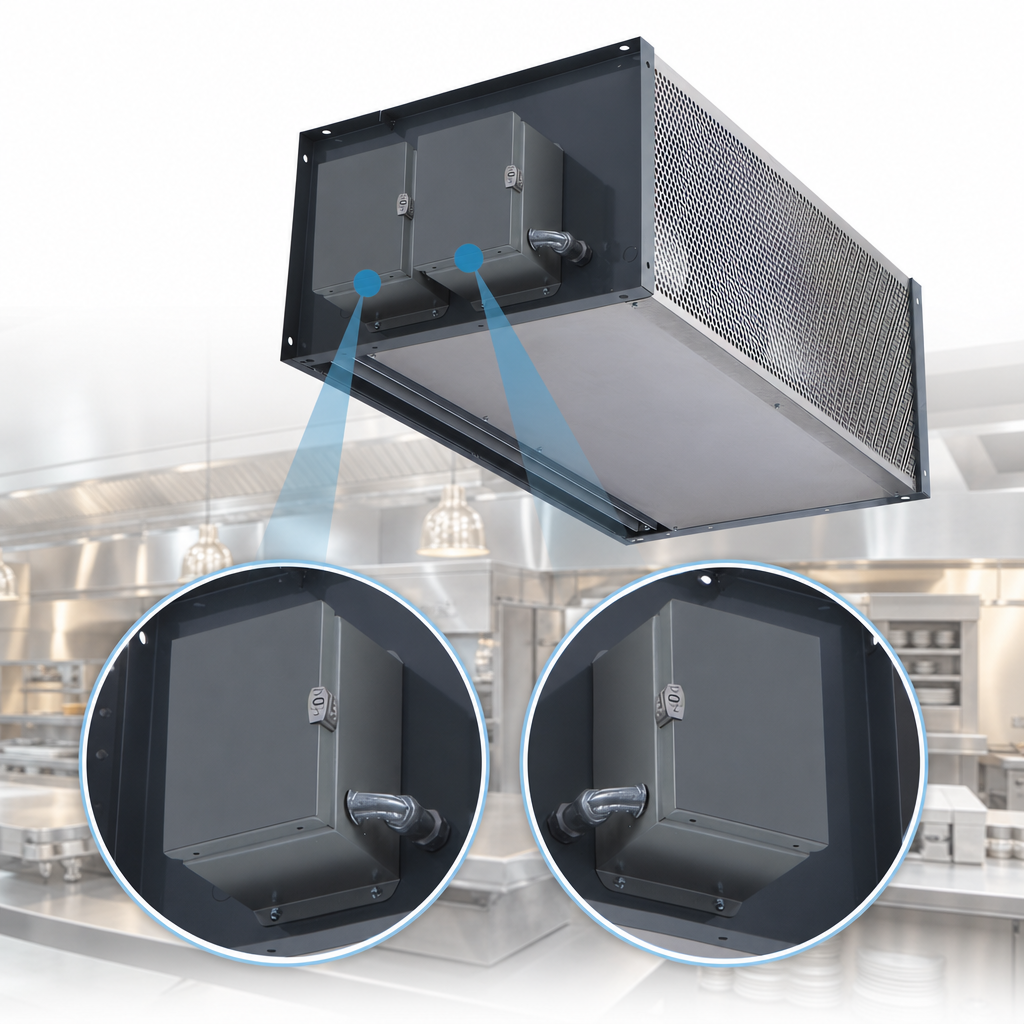

Dual 1/2 HP Motors

Uses two single-speed 1/2 hp direct-drive motors for the standard heated configuration; three-speed operation is optional.

Coverage for Tall Openings

Designed for mounting heights up to 12 feet for environmental separation and 10 feet for insect protection.

Durable Cabinet Construction

Gray powder-coated exterior with mill aluminum screen and access panels, plus an aluminized steel frame.

High-Efficiency Air Delivery

Includes a high-efficiency Pro-V nozzle, patented venturi open helical element, adjustable nozzle vanes, and a protective inlet screen.

Flexible Mounting and Controls

Supports wall and top mounting; control panel can be left-hand mounted, right-hand mounted, or remote mounted.

Made in USA / cULus Listed

Built in the USA and listed for use as a commercial air curtain.

Type Air Curtain
Style Heated
Installation Type Wall Mounted
Heat Type Electric
Phase 3-Phase
Horsepower Per Motor 1/2 HP
Motors 2
Max Opening Height 12 Feet
Watts 28 kW
Material Aluminized Steel
Finish Gray Powder Coated
Color Gray
Country of Origin USA
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Warranty & Protection

2-year limited warranty on heated models

Documents

PDF Cutsheet PDF Download PDF Installation manual PDF Download PDF Replacement parts diagram PDF Download PDF Warranty PDF Download PDF Terms & conditions PDF Download PDF Air curtain flyer PDF Download

Frequently Asked Questions

It is rated for mounting heights up to 12 feet for environmental separation and 10 feet for insect protection.
This model is electric heated and uses 28 kW of electric capacity.
The unit uses two 1/2 hp motors in the standard configuration.
The unit supports wall and top mounting, and the control panel can be left-hand mounted, right-hand mounted, or remote mounted.
Standard construction includes a gray powder-coated exterior with mill aluminum screen and access panels, plus an aluminized steel frame.
Heated models carry a 2-year limited warranty from the original shipment date when properly installed and operated.
