Berner Industrial IDC12-2120A-3 120-Inch Ambient Direct Drive Air Curtain

Unheated, 2 x 1/2 HP Motors, For Openings Up to 12 Feet High

Create a strong environmental barrier at large openings with this 120-inch ambient air curtain designed to help keep conditioned air in and insects out.

  • Ambient, unheated design provides environmental separation without added heat.
  • Two 1/2 HP direct-drive motors deliver dependable airflow for large door openings.
  • Rated for doors up to 12 feet high for environmental separation and 10 feet high for insect control.
  • High-efficiency Pro-V nozzle with adjustable vanes helps shape the air stream.
  • Protective inlet screen and wall/top mounting support practical installation.
  • Optional cabinet finishes, intake positions, and filters provide application flexibility.

Overall Dimensions:

120.0"W

Product Weight:

334.0 lb

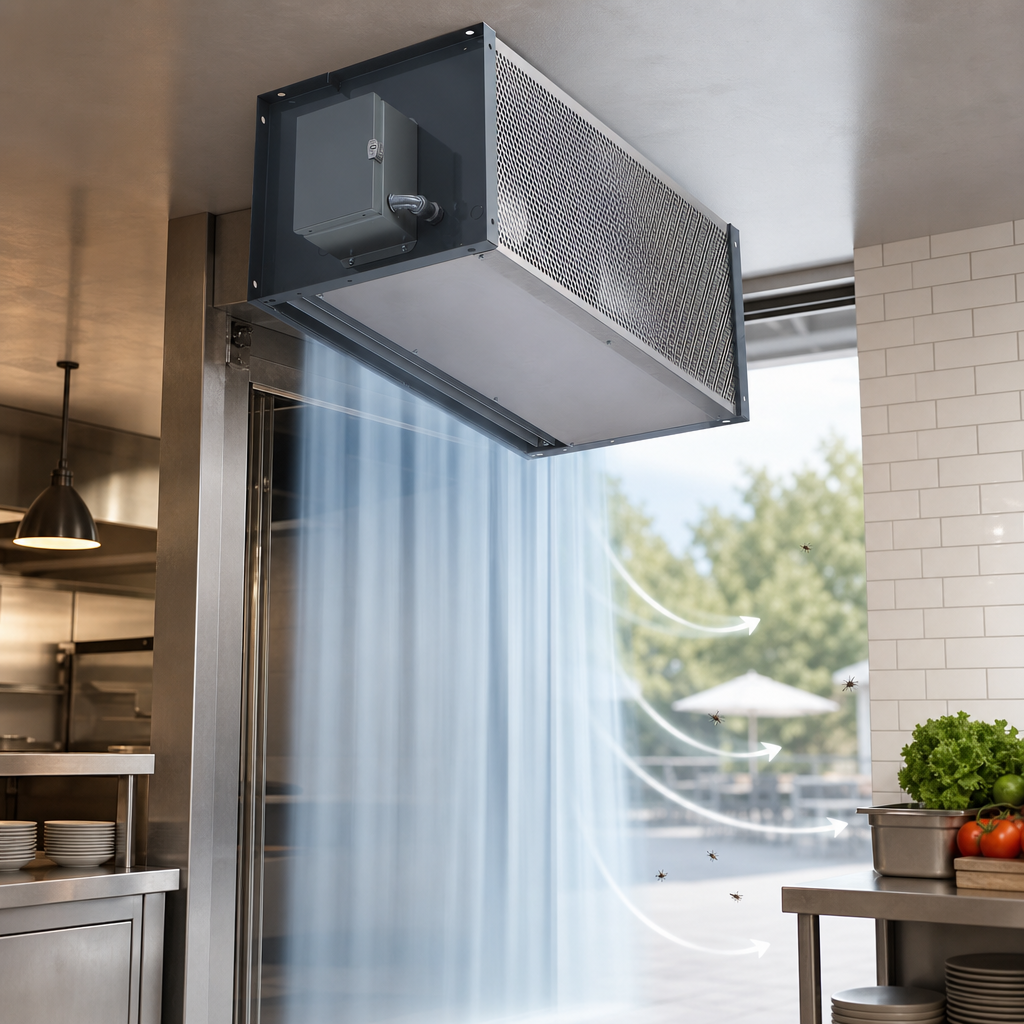

Ambient, Unheated Operation

Designed to create an air barrier without heat, making it suitable for temperature separation and insect control applications.

Ambient, Unheated Operation

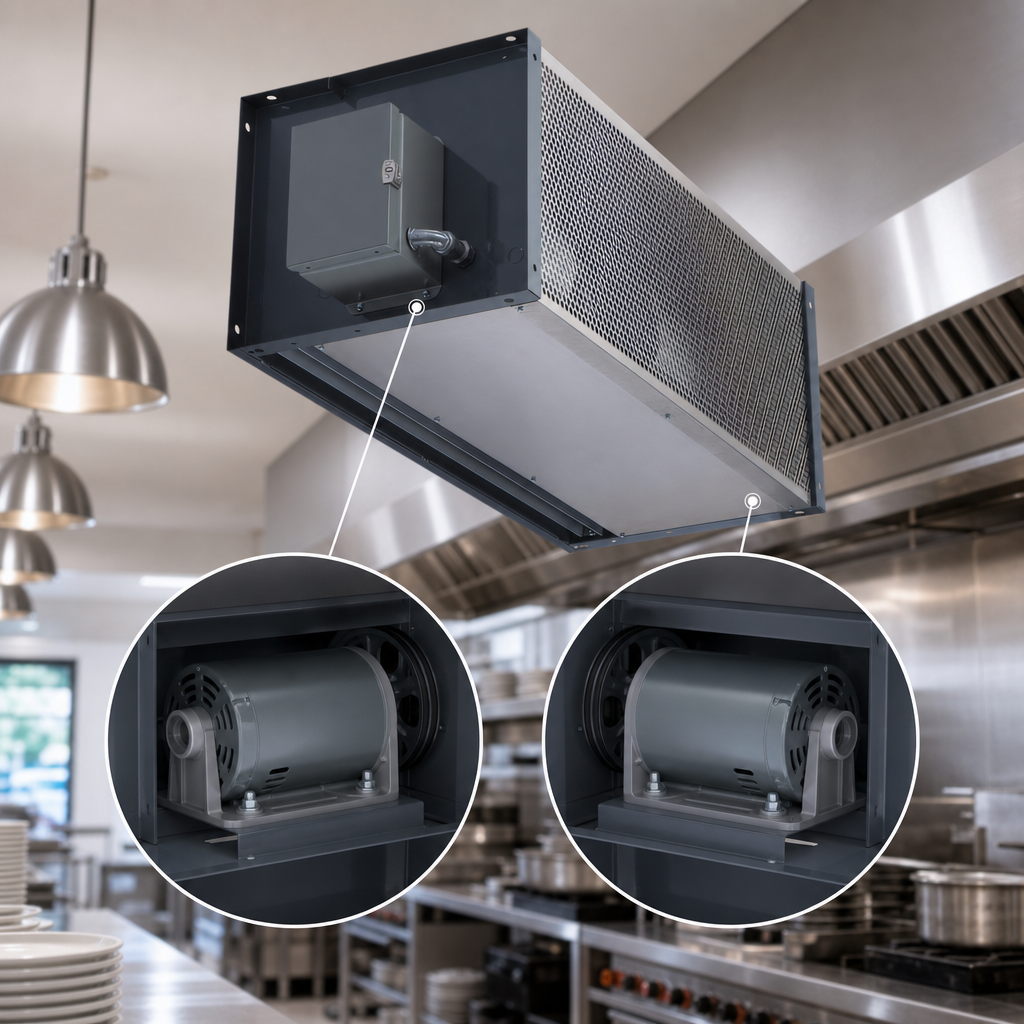

Two 1/2 HP Direct-Drive Motors

Uses dual direct-drive motors for dependable airflow with reduced drive-side maintenance.

Two 1/2 HP Direct-Drive Motors

Sized For Tall Openings

Recommended for doors up to 12 feet high for environmental separation and 10 feet high for insect protection.

High-Efficiency Pro-V Nozzle

The nozzle design and adjustable vanes help direct and smooth the discharged air stream.

Protective Inlet Screen

Factory inlet screening helps protect internal components; optional filters are available.

Wall And Top Mounting

Standard mounting options support installation above openings in a variety of layouts.

Finish And Intake Options

Documentation shows optional stainless steel or custom color cabinet finishes, plus front or top intake configurations.

Made In USA

Built in the United States.

Type Ambient Air Curtain
Style Direct Drive
Installation Type Wall Mounted
Number Of Motors 2
Horsepower Per Motor 1/2 HP
Maximum Opening Height 12 Feet
Insect Protection Height 10 Feet
Finish Gray Powder Coated
Selling Unit Each
Units Per Case 1
Country of Origin USA
Shipping Width 120 Inches
Shipping Weight 334 lb.

Certifications & Compliance

Certified badge of UL Certified
UL Certified

Warranty & Protection

5-year limited warranty on unheated models

Documents

PDF Cutsheet PDF Download PDF Warranty PDF Download PDF Terms & conditions PDF Download PDF Installation manual PDF Download PDF Air curtain flyer PDF Download PDF Replacement parts diagram PDF Download

Frequently Asked Questions

No. This is an ambient, unheated air curtain.
It is designed for doors up to 12 feet high for environmental separation and 10 feet high for insect control.
It uses two 1/2 HP direct-drive motors.
The documentation shows wall and top mounting options.
Unheated models carry a 5-year limited warranty from the original shipment date.
Yes. Optional recleanable and polyester filters are listed in the documentation.
