Berner Industrial IDC12-2096E 96-Inch Electric Heated Direct Drive Air Curtain, 2 x 1/2 HP Motors, 28 kW, Up to 12-Ft Openings
- Phase
- 3-Phase
- Dimensions
- 96.0"W
- Type
- Heated Air Curtain
- Style
- Direct Drive
- Installation Type
- Wall Mounted
- Material
- Aluminized Steel
Specifications
Description
Berner Industrial IDC12-2096E 96-Inch Electric Heated Direct Drive Air Curtain
2 x 1/2 HP Motors, 28 kW Heat, For Openings Up to 12 Ft.
This USA-made electric heated air curtain helps hold conditioned air in and insects out at open doorways up to 12 feet high.
- Electric-heated direct drive air curtain for environmental separation at openings up to 12 feet high and insect protection up to 10 feet high.
- Two 1/2 HP motors deliver dependable airflow for commercial doorways.
- 28 kW electric heat helps maintain indoor comfort at busy entrances.
- Factory-mounted control panel, inlet screen, and adjustable nozzle vanes support straightforward operation.
- Durable gray powder-coated construction with aluminized steel frame is built for commercial use.
- Made in USA and cULus listed, with a 2-year limited warranty on heated models.
Overall Dimensions:
96.0"WProduct Weight:

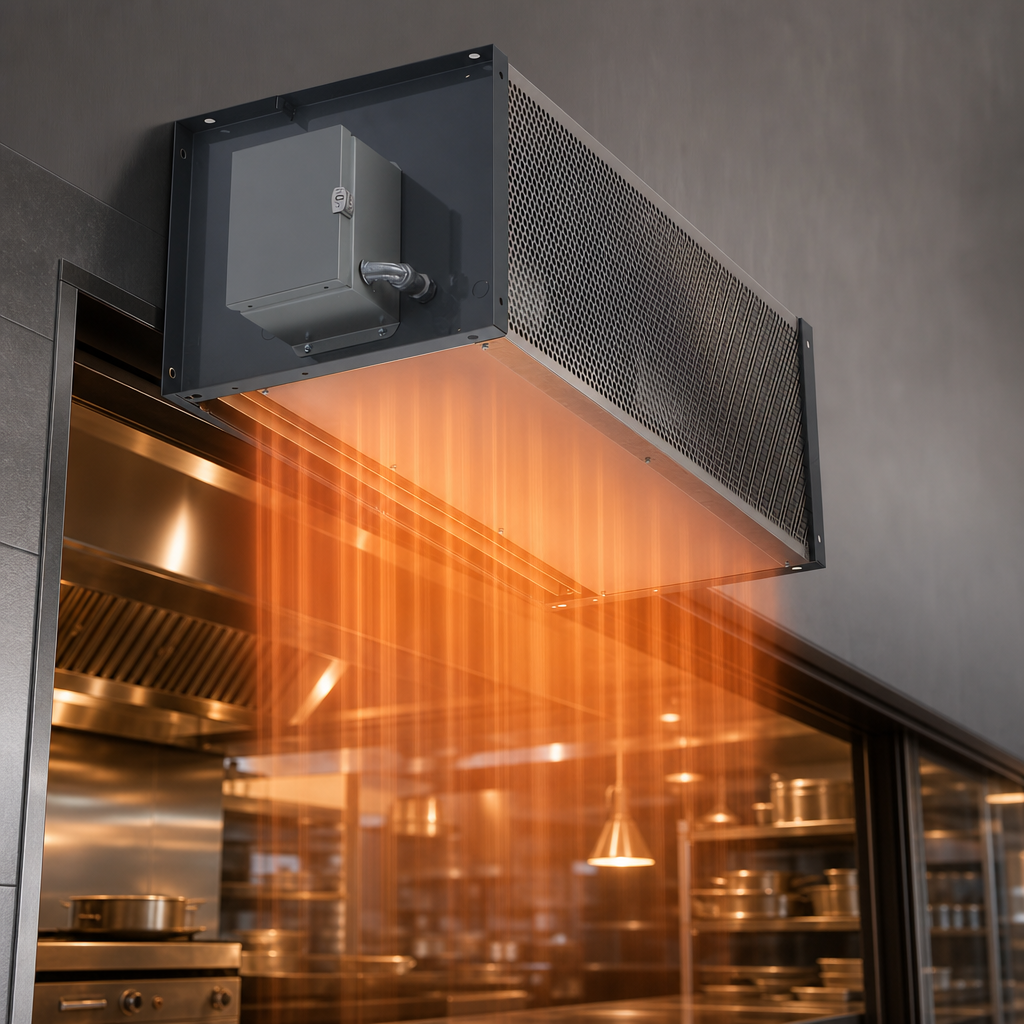

273.0 lbElectric Heated Design
Uses electric heat to create a conditioned air barrier across the opening.

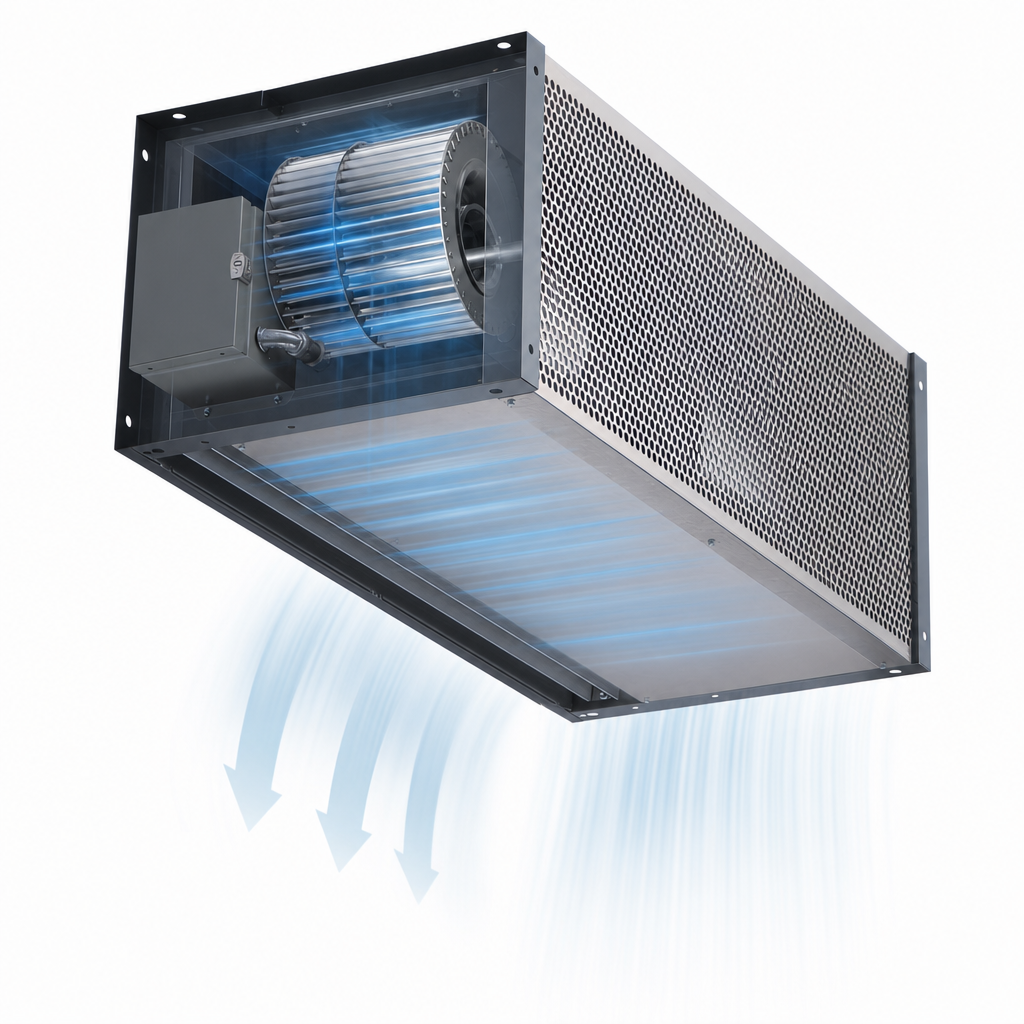

Direct Drive Air Movement
Direct-drive blower design helps deliver consistent airflow with fewer drive components.
Dual 1/2 HP Motors
Equipped with two 1/2 horsepower motors for this model.
Coverage for Tall Openings
Designed for mounting heights up to 12 feet for environmental separation and 10 feet for insect protection.
Factory-Mounted Control Panel
Includes a factory-mounted control panel; left-hand mount is standard, with right-hand or remote mounting available.
High-Efficiency Pro-V Nozzle
The nozzle design helps shape and distribute the air stream efficiently across the doorway.
Protective Inlet Screen
Standard inlet screen helps protect the intake, with optional filters available.
Durable Commercial Construction
Gray powder-coated exterior with aluminized steel frame for rugged commercial-duty use.
Made in USA and cULus Listed
Built in the USA and listed for commercial application use.
