Berner Industrial IDC12-2096A-3 Ambient (Unheated) Direct Drive Air Curtain, 96 Inch, Dual 1/2 HP Motors

For Doors to 12 Ft, Wall/Top Mount, 10 Ft Insect Control

A durable ambient air curtain that helps separate indoor and outdoor environments and reduce flying insects without added heat.

  • Ambient, unheated air curtain for environmental separation and insect control.
  • Dual 1/2 hp direct-drive motors deliver dependable airflow.
  • Rated for doors up to 12 ft high and 10 ft insect protection.
  • Gray powder-coated exterior with mill aluminum screen and access panels.
  • Wall and top mounting with protective inlet screen and Pro-V nozzle.
  • UL/cULus listed, made in USA, and backed by a 5-year limited warranty.

Overall Dimensions:

96.0"W

Product Weight:

261.0 lb

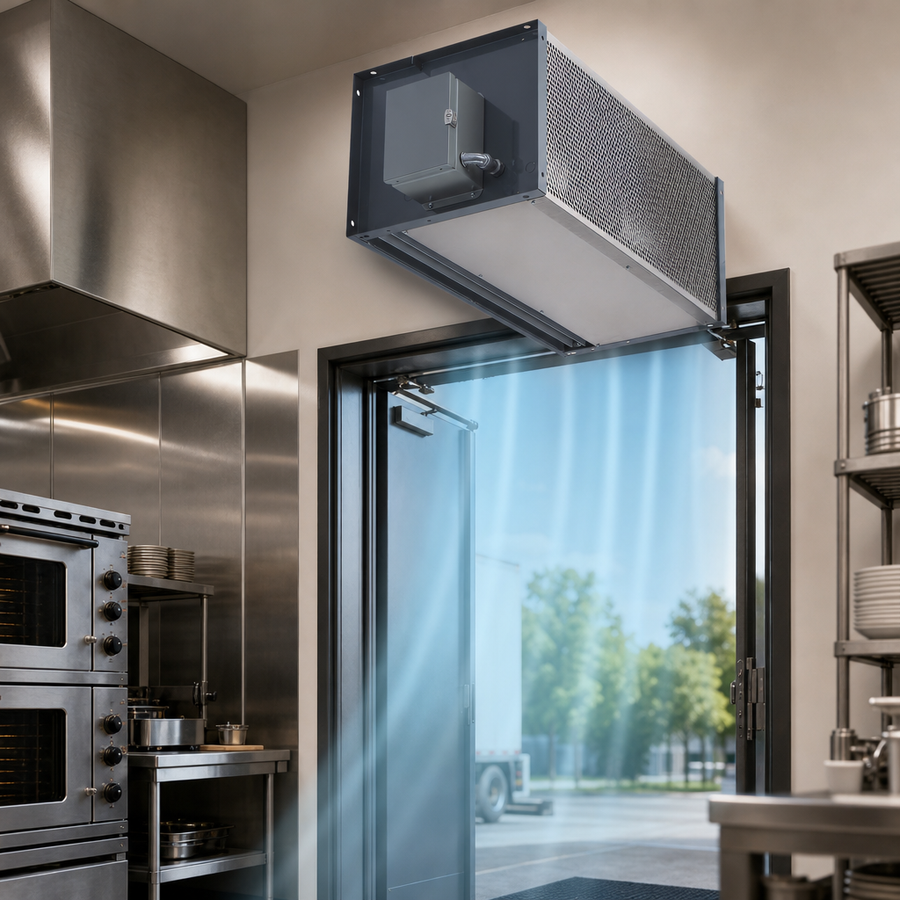

Ambient Operation

Unheated design helps maintain indoor conditions without adding heat at the doorway.

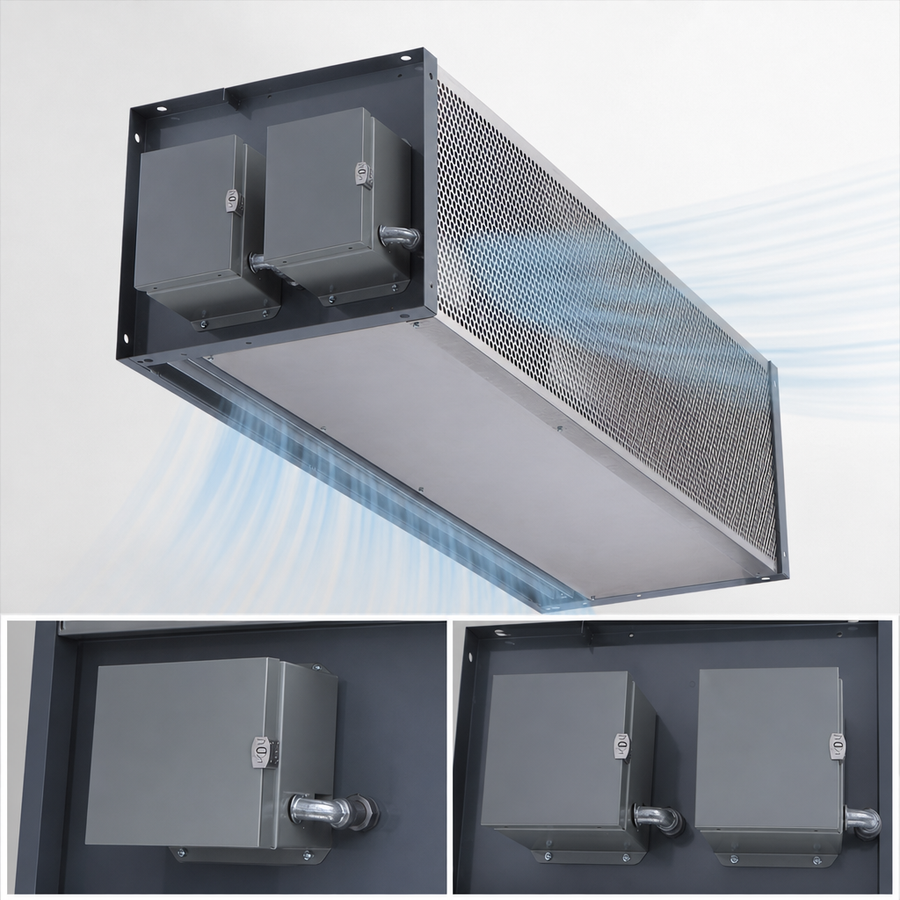

Dual 1/2 HP Direct-Drive Motors

Two single-speed motors provide reliable airflow for large openings.

Door Coverage

Designed for doors up to 12 feet high for environmental separation and 10 feet high for insect control.

Durable Cabinet Construction

Gray powder-coated exterior with mill aluminum screen and access panels for long service life.

Protective Inlet Screen

Standard inlet screen helps protect the unit; optional filters are available.

High-Efficiency Pro-V Nozzle

Helps direct the air stream for effective doorway coverage.

Mounting and Intake Options

Series options include wall and top mounting, plus front or top intake choices.

Warranty

Ambient models are covered by a 5-year limited warranty from the original date of shipment.

Type Ambient Air Curtain
Style Direct Drive
Installation Type Wall Mounted
Finish Gray Powder-Coated
Motors 2
Horsepower Per Motor 1/2 HP
Maximum Opening Height 12 Feet
Insect Control Height 10 Feet
Shipping Width 96 Inches
Shipping Weight 261 lb.
Country of Origin USA
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of UL Certified
UL Certified

Warranty & Protection

5-year limited warranty

Documents

PDF Cutsheet PDF Download PDF Air curtain flyer PDF Download PDF Terms & conditions PDF Download PDF Replacement parts diagram PDF Download PDF Warranty PDF Download PDF Installation manual PDF Download

Frequently Asked Questions

No. IDC12-2096A-3 is an ambient, unheated air curtain.
It is rated for doors up to 12 feet high for environmental separation and 10 feet high for insect control.
A protective inlet screen is standard. Optional washable polyester or aluminum filters are available.
The series supports wall and top mounting, and offers front or top intake options.
Ambient models carry a 5-year limited warranty from the original shipment date.
