Berner Industrial Series 96-Inch Long Ambient Direct Drive Air Curtain for Doors Up to 12 Feet High, 2 x 1/2 HP Motors

Unheated model with front intake, wall/top mounting, and gray powder-coated cabinet.

This ambient air curtain helps maintain environmental separation and keep insects out at open doors up to 12 feet high.

  • Ambient, unheated direct-drive design for environmental separation and insect control.
  • Two 1/2 HP motors deliver the specified 2-motor configuration.
  • Rated for doors up to 12 feet high, with 10-foot insect-control coverage.
  • Standard wall and top mounting with a front air intake and protective inlet screen.
  • Gray powder-coated exterior with optional stainless steel or custom color finish.
  • Made in USA and backed by a 5-year limited warranty on ambient models.

Overall Dimensions:

96.0"W

Product Weight:

261.0 lb

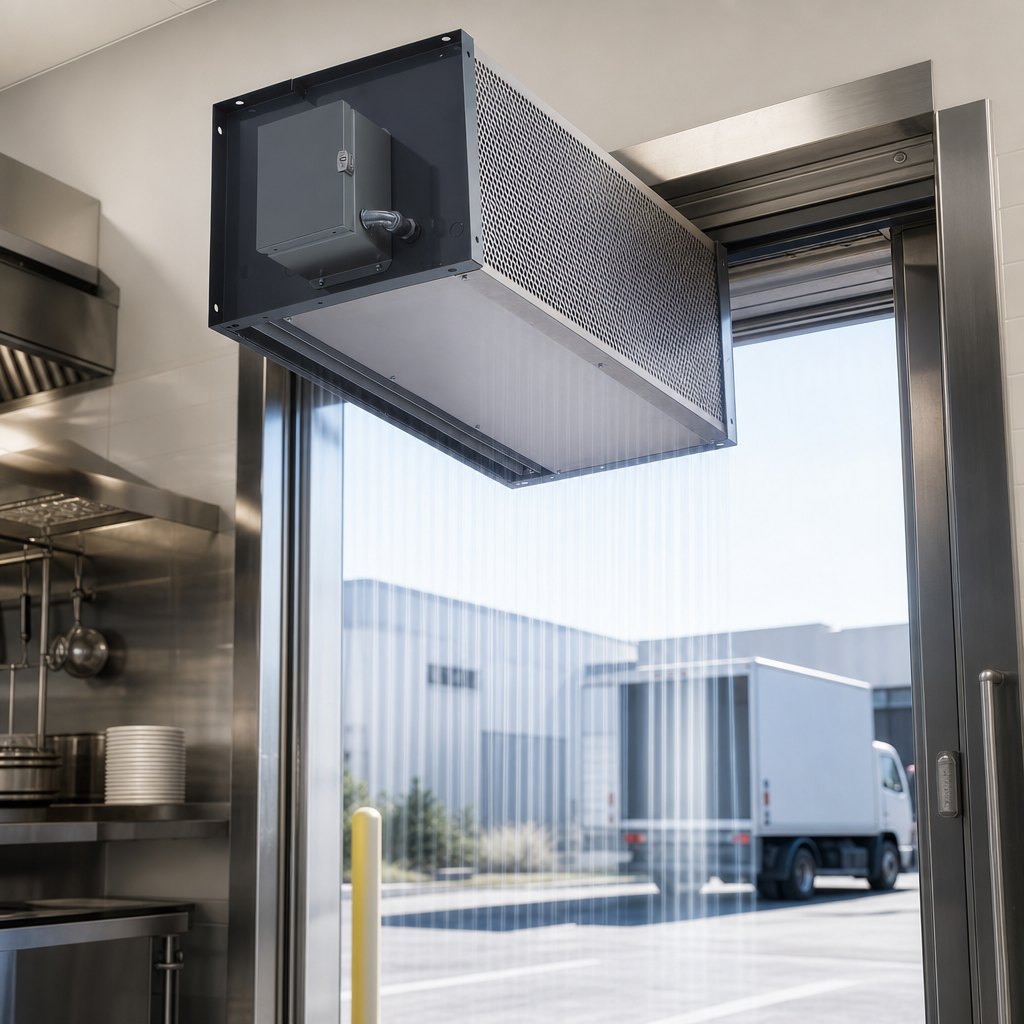

Ambient (Unheated) Operation

Designed as an unheated air curtain for environmental separation and insect control.

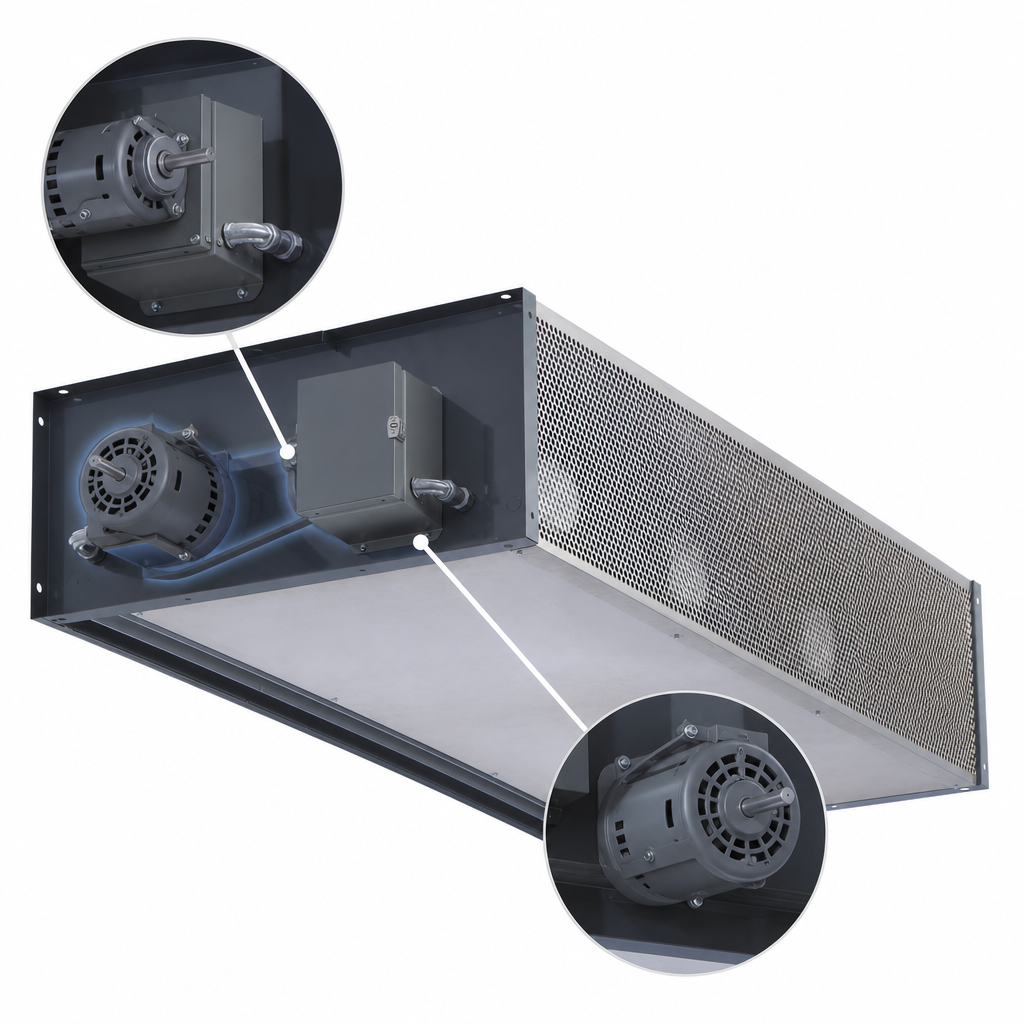

Direct-Drive, Two-Motor Design

Uses two direct-drive 1/2 HP motors for dependable air delivery.

12-Foot Door Rating

Suitable for doors up to 12 feet high for environmental separation and 10 feet high for insect protection.

Wall and Top Mounting

Standard construction supports wall and top mounting; horizontal and vertical mounting brackets are also noted.

Front Air Intake with Protective Screen

Includes a protective inlet screen; top intake and filters are optional.

High-Efficiency Pro-V Nozzle

The adjustable nozzle design helps direct airflow across the opening.

Durable Cabinet Construction

Gray powder-coated exterior with mill aluminum screen and access panels; stainless steel and custom color options are available.

Made in USA; UL/cULus Listed

Built in the USA and documented as UL and cULus listed.

Type Unheated Air Curtain
Style Direct Drive
Installation Type Wall Mounted
Horsepower Per Motor 1/2 HP
Motor Count 2
Maximum Opening Height 12 Feet
Insect Control Height 10 Feet
Air Intake Front
Finish Gray Powder Coated
Selling Unit Each
Units Per Case 1
Country Of Origin USA
Shipping Width 96 Inches
Shipping Weight 261 lb.

Certifications & Compliance

Certified badge of UL Certified
UL Certified

Warranty & Protection

5-year limited warranty on ambient/unheated models.

Documents

PDF Cutsheet PDF Download PDF Replacement parts diagram PDF Download PDF Installation manual PDF Download PDF Terms & conditions PDF Download PDF Air curtain flyer PDF Download PDF Warranty PDF Download

Frequently Asked Questions

It is an ambient (unheated) air curtain.
It is rated for doors up to 12 feet high for environmental separation and 10 feet high for insect control.
This configuration uses two 1/2 HP motors.
The standard construction supports wall and top mounting, and the documentation also notes optional horizontal and vertical mounting brackets.
The model configuration chart lists 120/1/60, 208/1/60, 240/1/60, 220/1/50, 208/3/60, 240/3/60, 480/3/60, 600/3/60, and 380/3/50 options.
Ambient models carry a 5-year limited warranty from the original shipment date, provided the unit is properly cared for, installed, and operated.
