Berner

Berner Industrial Series IDC12-2084E 84-Inch Electric Heated Direct-Drive Air Curtain

SKU: IDC12-2084E
$4,772.95
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Air Doors Berner Best Sellers Equipment Facility Equipment Kitchen Ventilation & Climate Control New Arrivals Restaurant Equipment

Berner Industrial Series IDC12-2084E 84-Inch Electric Heated Direct-Drive Air Curtain

Dual 1/2 HP Motors, For Openings Up to 12 Feet High

This 84-inch electric heated air curtain helps maintain indoor comfort and insect control across openings up to 12 feet high.

  • 84-inch direct-drive air curtain designed for environmental separation and insect protection.
  • Dual 1/2 HP motors deliver strong air movement for large openings.
  • 28 kW electric heat supports heated operation for challenging doorway conditions.
  • Rated for openings up to 12 feet high, with insect protection up to 10 feet high.
  • Standard gray powder-coated construction with protective inlet screen and adjustable nozzle vanes.
  • Wall or top mounting options and front or optional top intake help match the installation.
  • Factory-mounted control panel with left-hand, right-hand, or remote options available.

Overall Dimensions:

84.0"W

Product Weight:

251.0 lb

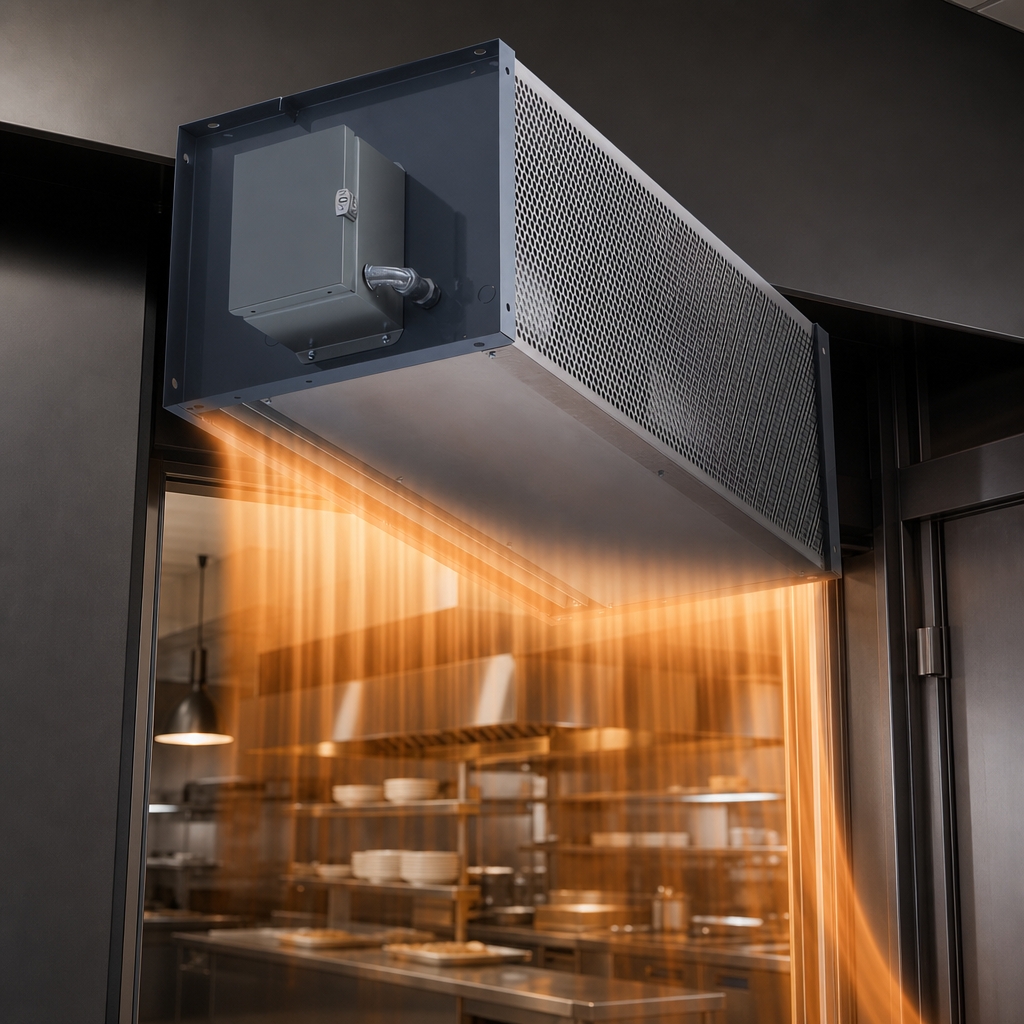

Electric Heated Design

This model uses electric heat and is identified by the E suffix in the model number.

Electric Heated Design

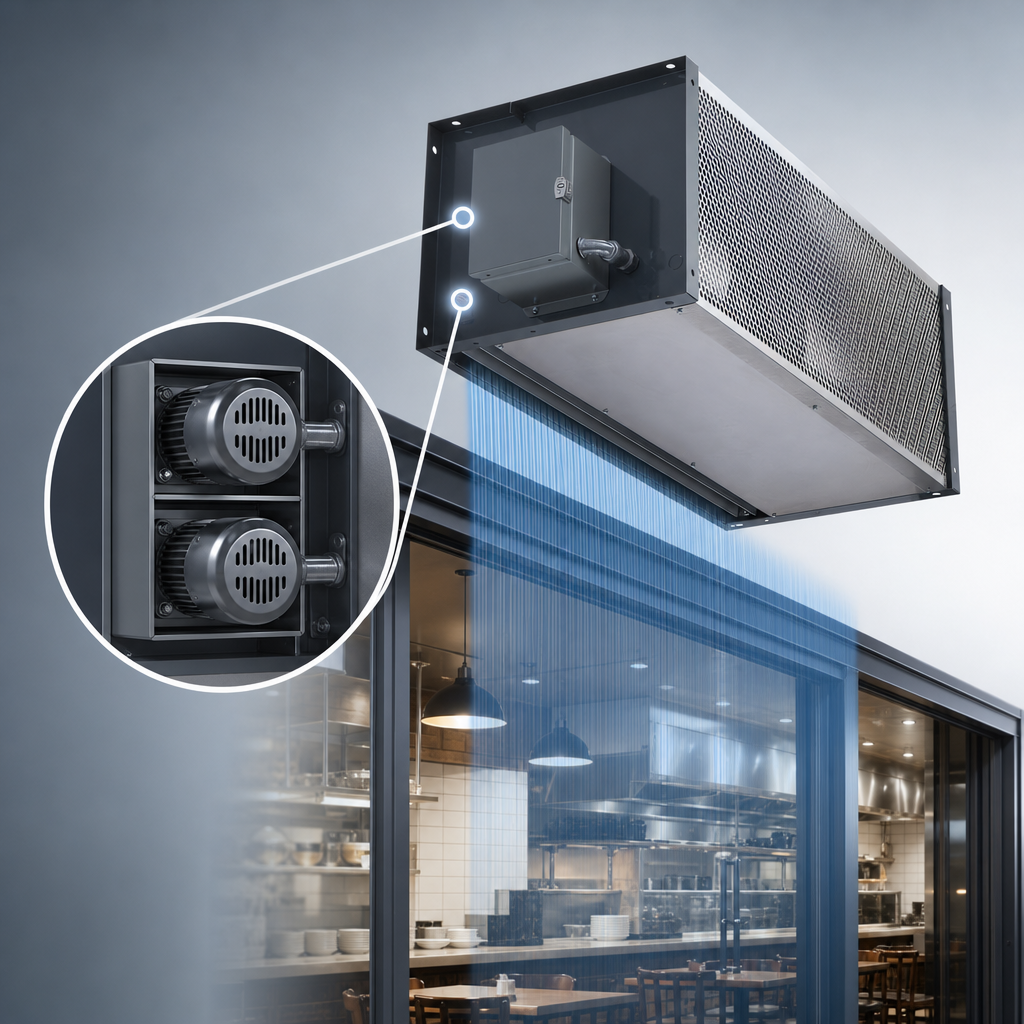

Dual 1/2 HP Motors

The unit uses two 1/2 hp direct-drive motors for air delivery across wider openings.

Dual 1/2 HP Motors

28 kW Electric Capacity

Model IDC12-2084E is rated at 28 kW electric capacity.

For 12-Foot Mounting Heights

Designed for environmental separation at openings up to 12 feet high and insect protection up to 10 feet high.

High-Efficiency Pro-V Nozzle

The nozzle design helps create a more uniform air stream across the doorway.

Protective Inlet Screen

Standard inlet screen helps protect internal components; optional filters are available.

Wall and Top Mounting

Standard construction supports wall and top mounting to suit different installation needs.

Factory-Mounted Control Panel

The control panel is factory mounted, with left-hand standard, optional right-hand, or remote mounting available.

Gray Powder-Coated Exterior

Standard construction includes a gray powder-coated exterior with mill aluminum screen and access panels.

Type Heated Air Curtain
Style Direct Drive
Installation Type Wall Mounted
Heat Type Electric
Motors 2
Horsepower Per Motor 1/2 HP
Watts 28 kW
Air Volume 3,166 CFM
Maximum Opening Height 12 Feet
Insect Protection Height 10 Feet
Material Aluminized Steel
Color Gray
Finish Powder Coated
Selling Unit Each
Units Per Case 1
Country of Origin USA

Certifications & Compliance

Warranty & Protection

2-year limited warranty on heated models.

Documents

PDF Cutsheet PDF Download PDF Replacement parts diagram PDF Download PDF Warranty PDF Download PDF Air curtain flyer PDF Download PDF Terms & conditions PDF Download PDF Installation manual PDF Download

Frequently Asked Questions

It is designed for mounting heights up to 12 feet for environmental separation and 10 feet for insect protection.
Yes. This model is an electric heated air curtain.
This model uses two 1/2 hp direct-drive motors.
Standard construction supports wall and top mounting. The control panel can be left-hand mounted, right-hand mounted, or remote mounted.
Heated models include a 2-year limited warranty from the original date of shipment.
