Berner Industrial Series IDC12-2078E 78-Inch Electric Heated Direct Drive Air Curtain

Dual 1/2 HP Motors, 28 kW Heat, Front or Top Intake Options

This 78-inch electric heated air curtain helps create a strong barrier over wide doorways to hold conditioned air in and insects out.

  • 78-inch industrial air curtain for environmental separation on wide commercial doorways.
  • Dual 1/2 hp direct-drive motors and 28 kW electric heat support strong performance.
  • Rated for openings up to 12 feet high; insect protection up to 10 feet high.
  • Protective inlet screen, high-efficiency Pro-V nozzle, and adjustable vanes help shape airflow.
  • Gray powder-coated aluminized steel construction with Made in USA build quality.

Overall Dimensions:

78.0"W

Product Weight:

246.0 lb

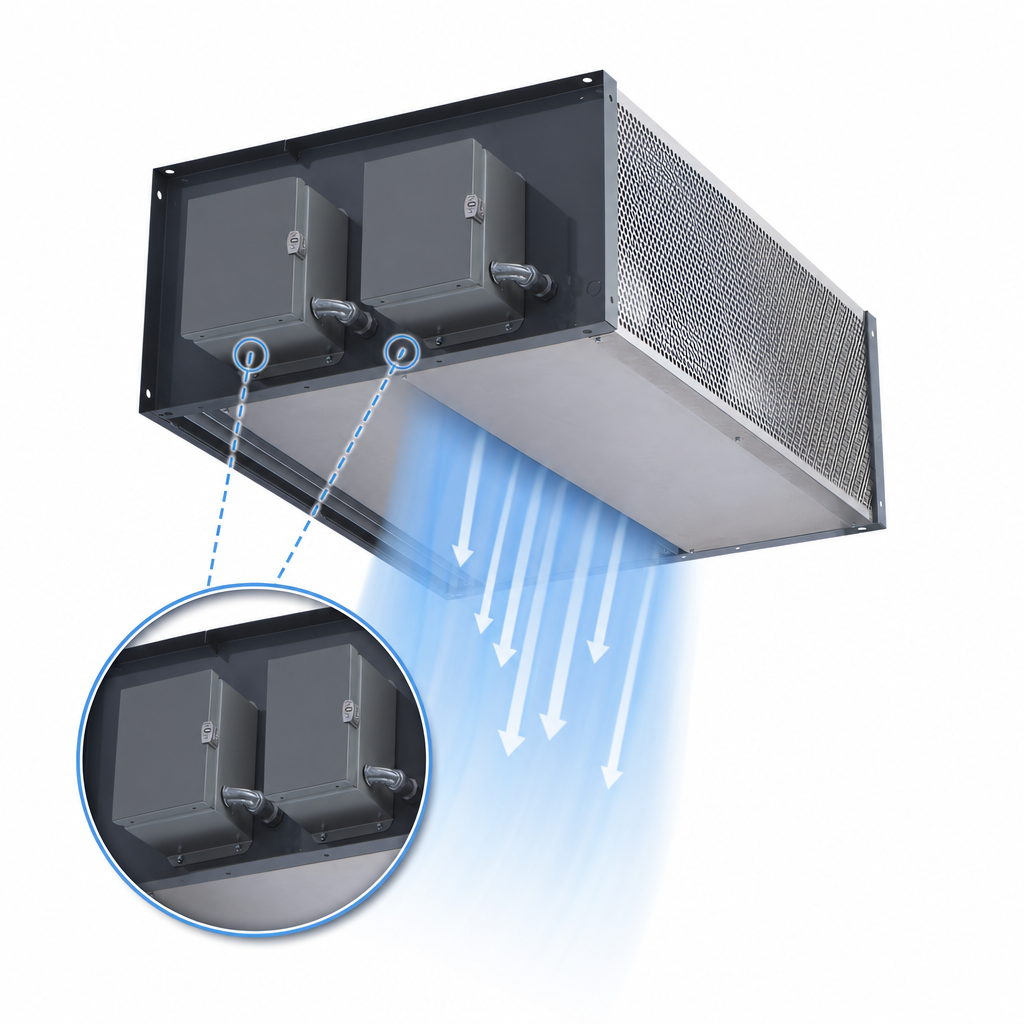

Dual 1/2 HP Direct-Drive Motors

Two 1/2 hp motors power the air stream across the full opening.

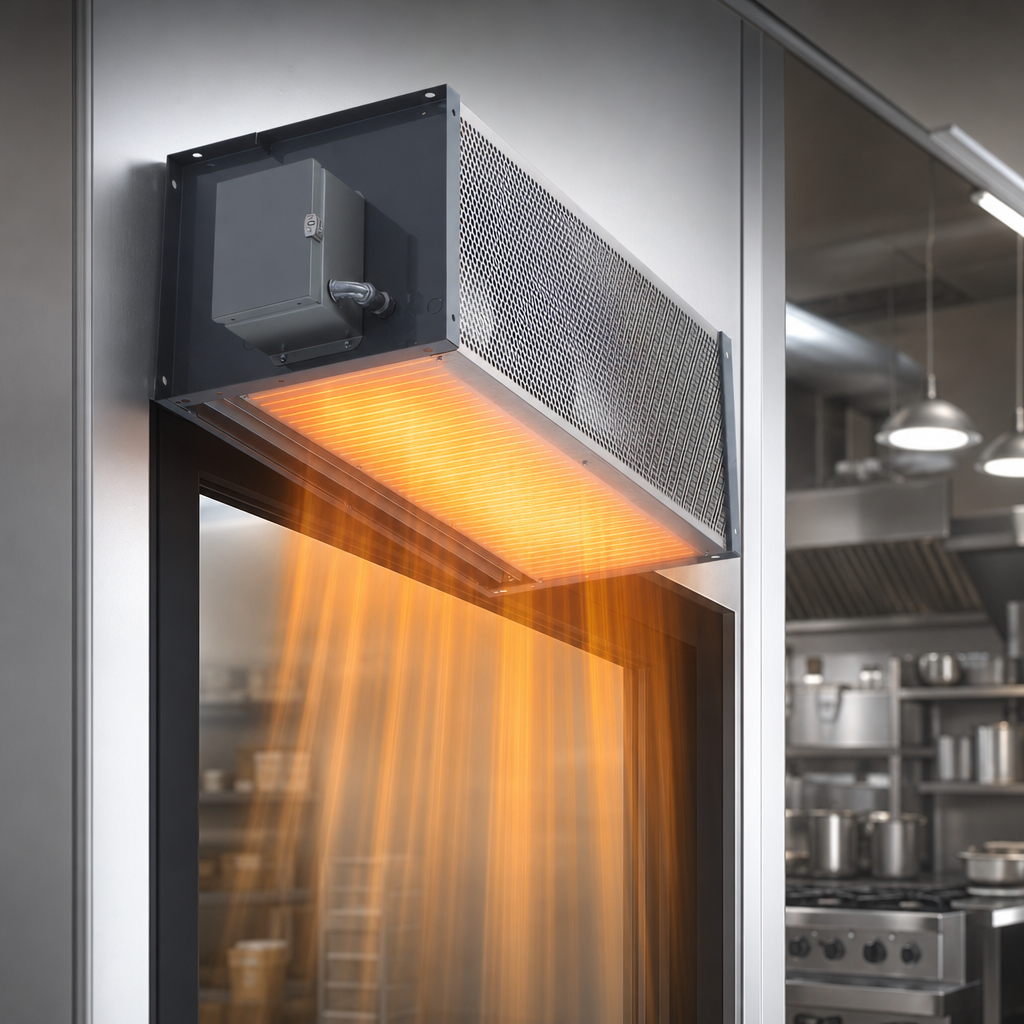

28 kW Electric Heat

Electric heated design provides 28 kW of heating capacity.

Up To 12-Foot Environmental Separation

Designed for mounting heights up to 12 feet for environmental separation.

Up To 10-Foot Insect Protection

Suitable for insect control on openings up to 10 feet high.

High-Efficiency Pro-V Nozzle And Adjustable Vanes

Patented nozzle design and adjustable vanes help form a uniform air curtain.

Protective Inlet Screen

Mill aluminum inlet screen helps protect the intake; optional washable filters are available.

Factory-Mounted Control Panel

Standard left-hand mount with optional right-hand or remote mounting.

Durable Gray Powder-Coated Construction

Aluminized steel frame with a gray powder-coated exterior for industrial durability.

Thermal Overload Protection

Built-in thermal overload protection helps safeguard the unit.

Made In USA

Manufactured in the United States.

Type Air Curtain
Style Direct Drive
Heat Type Electric
Motor Count 2
Horsepower Per Motor 1/2 HP
Watts 28 kW
BTU 95,600 BTU/h
Max Opening Height 12 Feet
Max Insect Protection Height 10 Feet
Material Aluminized Steel
Color Gray
Finish Powder Coated
Installation Type Wall Mounted
Country of Origin USA
Shipping Width 78 Inches
Shipping Weight 246 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Warranty & Protection

2 years on heated models from the original date of shipment.

Documents

PDF Cutsheet PDF Download PDF Warranty PDF Download PDF Air curtain flyer PDF Download PDF Replacement parts diagram PDF Download PDF Installation manual PDF Download PDF Terms & conditions PDF Download

Frequently Asked Questions

It is rated for mounting heights up to 12 feet for environmental separation and up to 10 feet for insect protection.
Yes. The letter "E" in the model designation identifies it as an electric heated unit.
This model uses two 1/2 hp direct-drive motors.
Front air intake is standard, with top intake optional. The control panel can be left-hand mounted, right-hand mounted, or remote.
Heated models carry a 2-year limited warranty from the original date of shipment.
