Berner Industrial Series 78-Inch Ambient Direct Drive Air Curtain with 2 x 1/2 HP Motors

Unheated model for doors up to 12 feet high

This unheated air curtain helps maintain indoor comfort and block flying insects at open doorways with a durable direct-drive design.

  • Ambient, unheated air curtain for environmental separation and insect control.
  • Rated for doors up to 12 feet high for separation and 10 feet high for insect protection.
  • Two direct-drive 1/2 HP motors deliver dependable airflow with low-maintenance operation.
  • Protective inlet screen and high-efficiency Pro-V nozzle help support effective air movement.
  • Wall and top mounting design with configurable intake and control-panel placement.
  • Gray powder-coated exterior with mill aluminum screen and access panels.

Overall Dimensions:

78.0"W

Product Weight:

234.0 lb

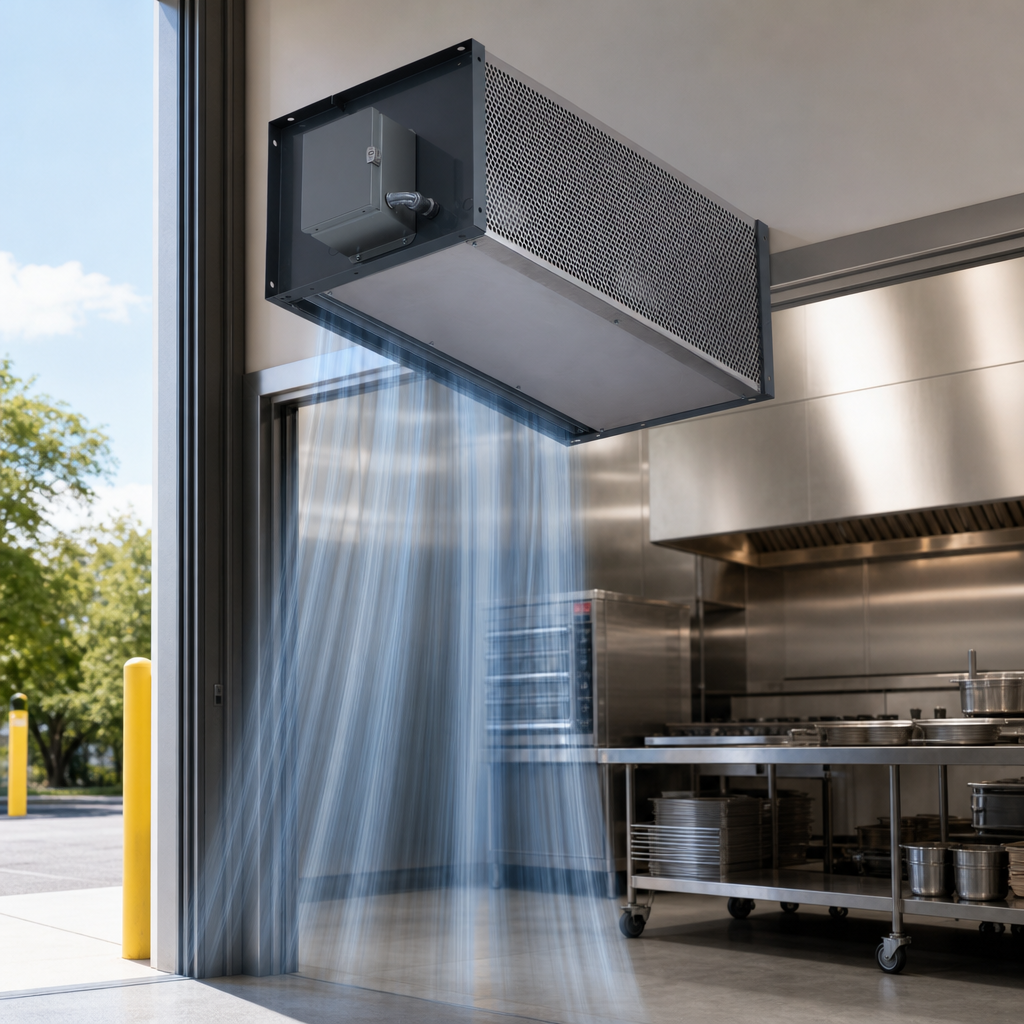

Ambient Unheated Design

Designed for unheated applications to help reduce energy loss and maintain indoor conditions at open doors.

Ambient Unheated Design

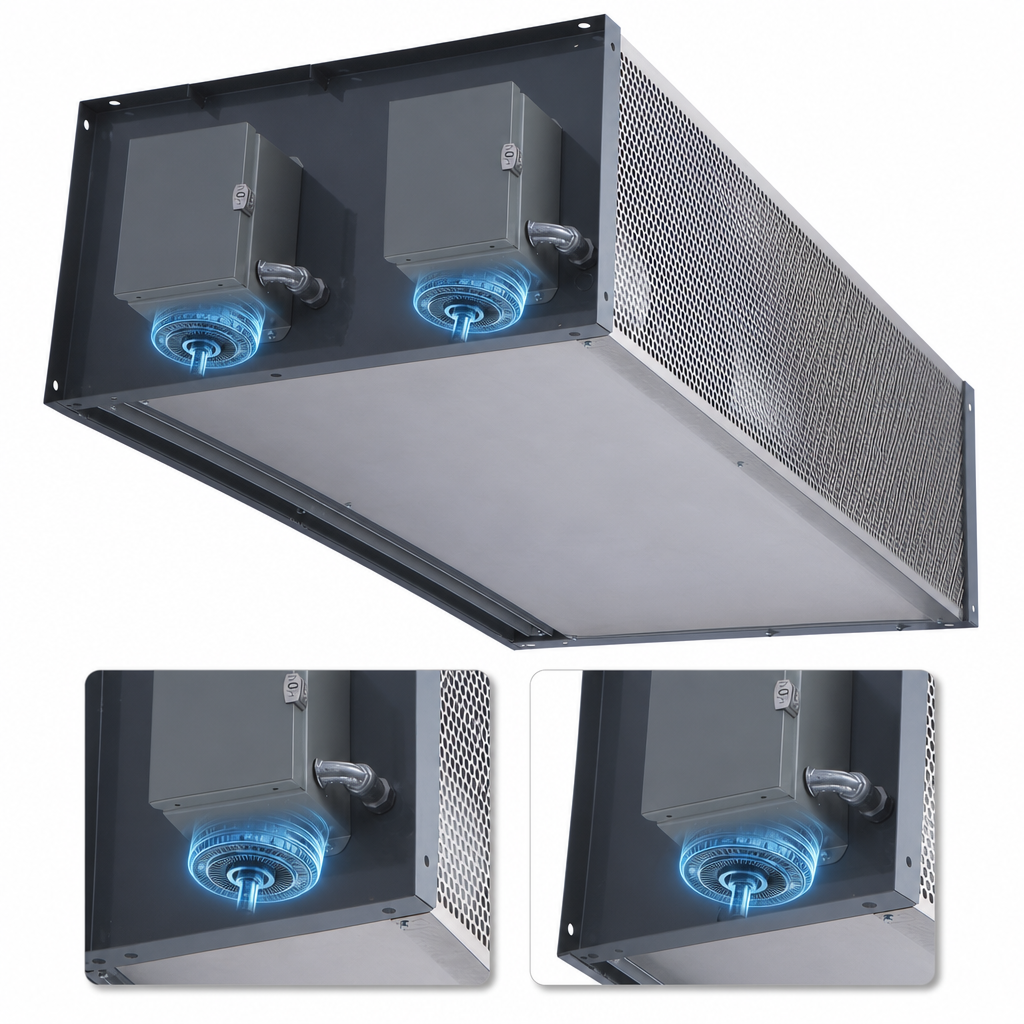

Dual 1/2 HP Direct-Drive Motors

Uses two direct-drive motors for reliable airflow and reduced maintenance compared with belt-driven systems.

Dual 1/2 HP Direct-Drive Motors

Door Coverage Rating

Suitable for environmental separation at doors up to 12 feet high and insect control at doors up to 10 feet high.

High-Efficiency Pro-V Nozzle

Helps create a strong, controlled air stream across the opening.

Protective Inlet Screen

Standard inlet screen helps protect the intake area and supports optional filter use.

Wall and Top Mounting

Mounting design supports wall and top mounting, with optional vertical mounting consultable from the factory.

Standard Exterior Construction

Gray powder-coated exterior with mill aluminum screen and access panels for a durable industrial appearance.

Type Ambient Air Curtain
Style Direct Drive
Installation Type Wall Mounted
Motor Count 2
Horsepower Per Motor 1/2 HP
Max Opening Height 12 Feet
Insect Control Height 10 Feet
Color Gray
Finish Powder Coated
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Width 78 Inches
Shipping Weight 234 lb.

Certifications & Compliance

Certified badge of UL Certified
UL Certified

Warranty & Protection

5-year limited warranty on unheated models

Documents

PDF Cutsheet PDF Download PDF Installation manual PDF Download PDF Warranty PDF Download PDF Terms & conditions PDF Download PDF Replacement parts diagram PDF Download PDF Air curtain flyer PDF Download

Frequently Asked Questions

It is designed for doors up to 12 feet high for environmental separation and 10 feet high for insect control.
No. This is an ambient, unheated air curtain.
This model uses two 1/2 HP direct-drive motors.
The unit supports wall and top mounting. The documents also note optional horizontal and vertical mounting brackets.
Yes. Optional recleanable filters and poly filters are listed in the documentation.
Yes. The standard control panel is left-hand mounted, with optional right-hand or remote mounting.
