Berner

Berner Industrial Direct Drive 12 72-Inch Ambient (Unheated) Air Curtain, 2 x 1/2 HP

SKU: IDC12-2072A-1
$2,011.10
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Air Doors Berner Best Sellers Kitchen Ventilation & Climate Control New Arrivals Restaurant Equipment

Berner Industrial Direct Drive 12 72-Inch Ambient (Unheated) Air Curtain, 2 x 1/2 HP

For doors up to 12 ft high; 10 ft insect control

Create a dependable air barrier over wide openings with a durable, unheated air curtain built for environmental separation and insect control.

  • Ambient air curtain provides environmental separation without added heat.
  • Two 1/2 hp direct-drive motors deliver dependable airflow.
  • Rated for doors up to 12 feet high for environmental separation and 10 feet for insect control.
  • Protective inlet screen is standard, with optional filter choices available.
  • Wall and top mounting with front or top intake options support flexible installation.
  • Gray powder-coated cabinet with a 5-year limited warranty on unheated models.

Overall Dimensions:

72.0"W

Product Weight:

228.0 lb

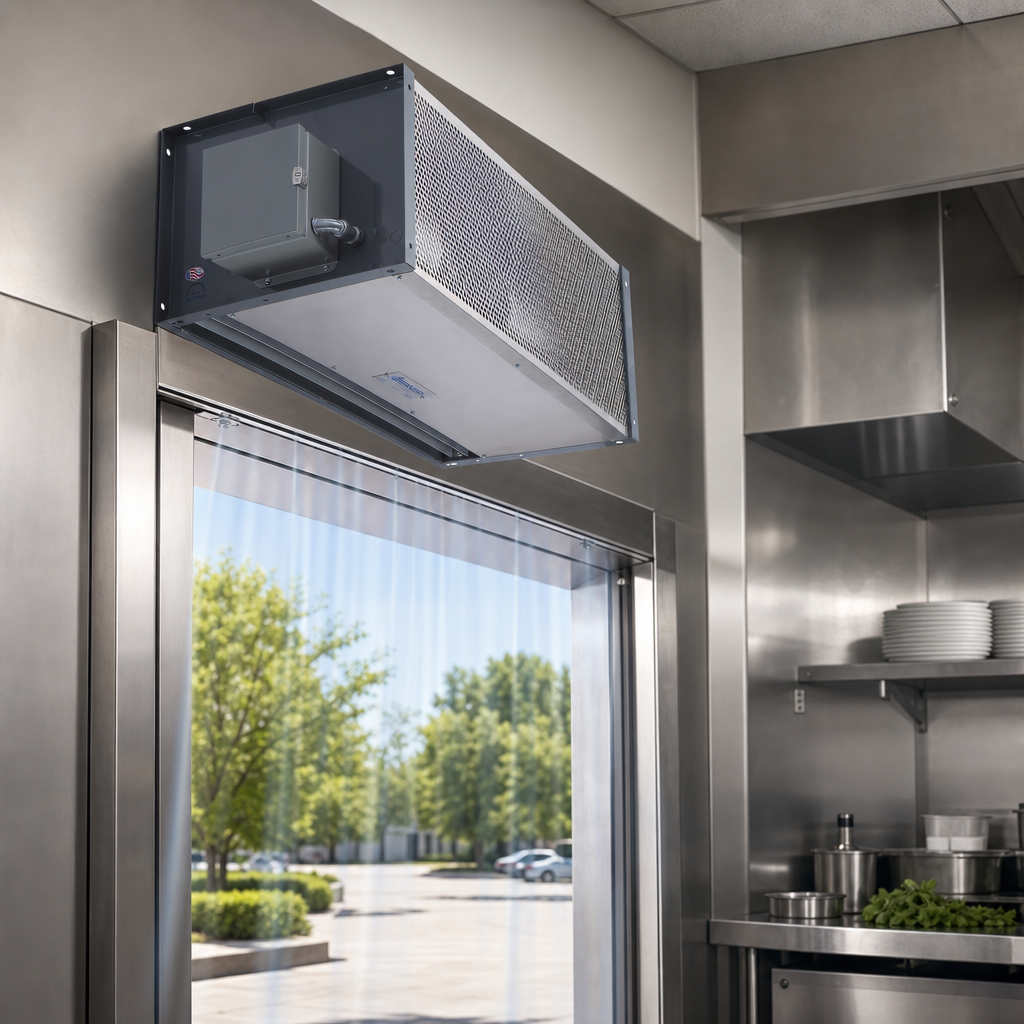

Ambient (Unheated) Operation

Creates an air barrier without heat, making it ideal for separation between indoor and outdoor environments.

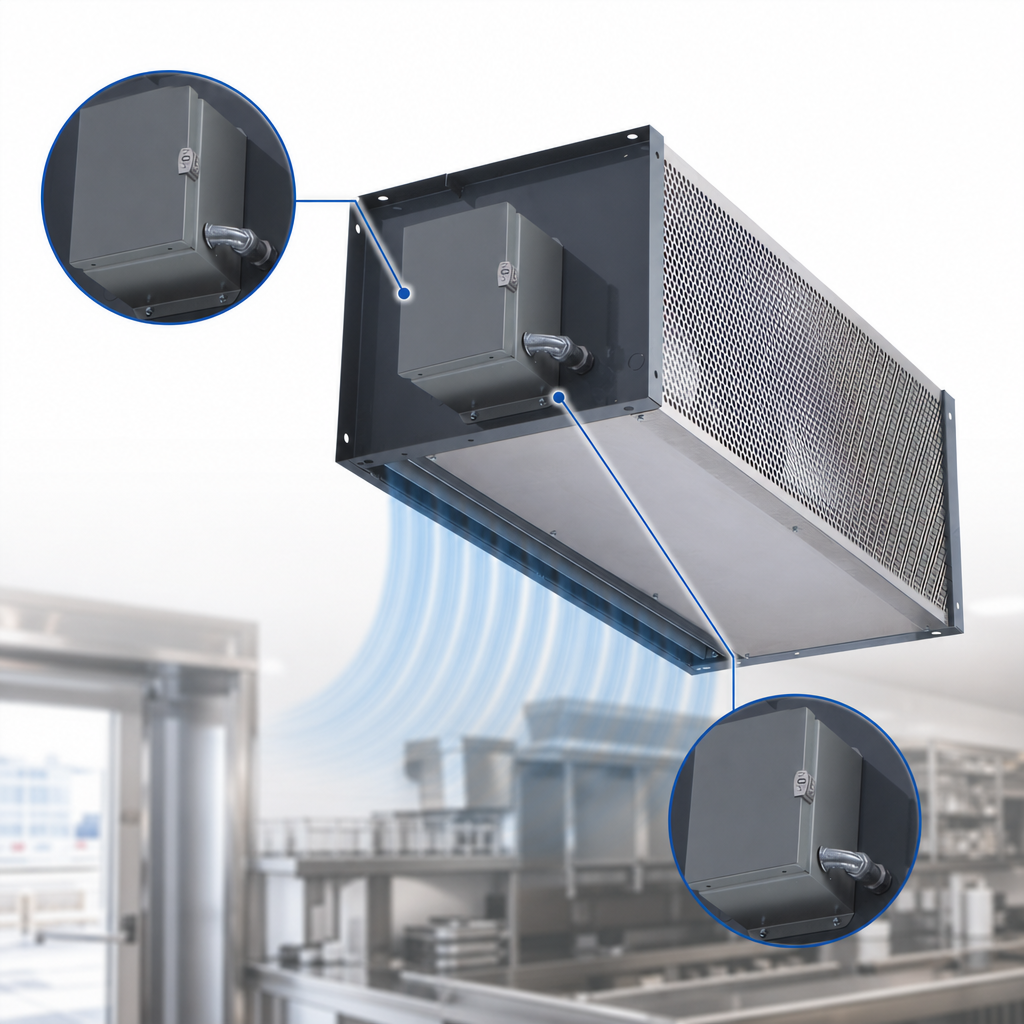

Dual 1/2 HP Direct-Drive Motors

Uses two single-speed direct-drive motors for reliable airflow; three-speed motors are optional.

Door Coverage Up To 12 Feet

Designed for doors up to 12' high for environmental separation and up to 10' high for insect control.

Protective Inlet Screen

Standard inlet screen helps protect the intake; optional recleanable and poly filters are available.

High-Efficiency Pro-V Nozzle

Adjustable nozzle vanes help produce a more consistent air stream across the opening.

Flexible Mounting and Intake Options

Supports wall and top mounting, with front intake standard and top intake optional.

Durable Gray Powder-Coated Cabinet

Features a gray powder-coated exterior with mill aluminum screen and access panels; custom color and stainless steel finishes are available.

Five-Year Limited Warranty

Unheated models include a 5-year limited warranty from the original shipment date.

Type Ambient (Unheated) Air Curtain
Style Direct Drive
Installation Type Wall Mounted (Interior)
Motor Count 2
Horsepower Per Motor 1/2 HP
Maximum Opening Height 12 Feet
Opening Width 72 Inches
Mounting Width 73.5 Inches
Air Volume 3,024 CFM
Max Velocity at Nozzle 5,166 FPM
Average Outlet Velocity 1,728 FPM
Outlet Velocity Uniformity 87%
Power Rating 1.02 kW
Sound Level 66 dBA
Finish Gray Powder Coated
Color Gray
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Width 72 Inches
Shipping Weight 228 lb.

Certifications & Compliance

Certified badge of UL Certified
UL Certified

Warranty & Protection

5-year limited warranty on unheated models

Documents

PDF Cutsheet PDF Download PDF Replacement parts diagram PDF Download PDF Warranty PDF Download PDF Terms & conditions PDF Download PDF Air curtain flyer PDF Download PDF Installation manual PDF Download

Frequently Asked Questions

It is rated for doors up to 12 feet high for environmental separation and 10 feet high for insect control.
No. This is an ambient, unheated air curtain.
This model uses two 1/2 hp direct-drive motors.
Wall and top mounting are standard. Front air intake is standard and top intake is optional; consult the factory for vertically mounted units.
Unheated models include a 5-year limited warranty from the original date of shipment.
Sound level is listed at 66 dBA measured 10 feet from the unit in a free field for the 2-motor version.
