Berner Industrial Direct Drive 12 60-Inch Electric Heated Air Curtain

2 x 1/2 HP Motors, 28 kW, For Up To 12-Ft Openings

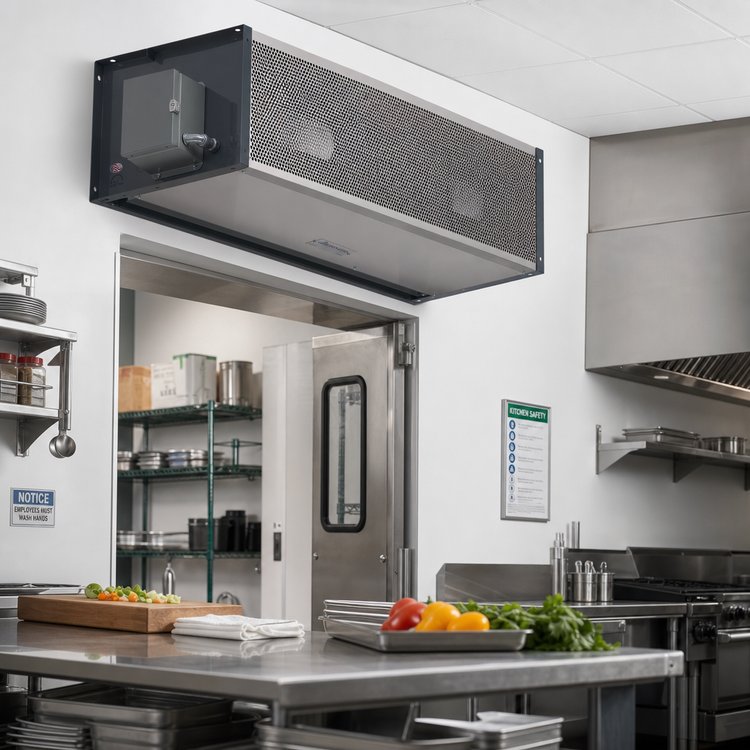

This rugged electric air curtain helps keep conditioned air in and flying insects out on door openings up to 12 feet high.

  • 60-inch nominal electric-heated air curtain for commercial doorway climate control.
  • Dual 1/2 HP direct-drive motors and 28 kW heating capacity deliver strong airflow and heat.
  • Rated for openings up to 12 feet high for environmental separation and 10 feet for insect protection.
  • Industrial gray powder-coated construction with aluminized steel frame and protective inlet screen.
  • Wall and top mounting options with a factory-mounted control panel and remote control placement options.
  • Made in USA, cULus certified, and backed by a 2-year limited warranty on heated models.

Overall Dimensions:

60.0"W

Product Weight:

231.0 lb

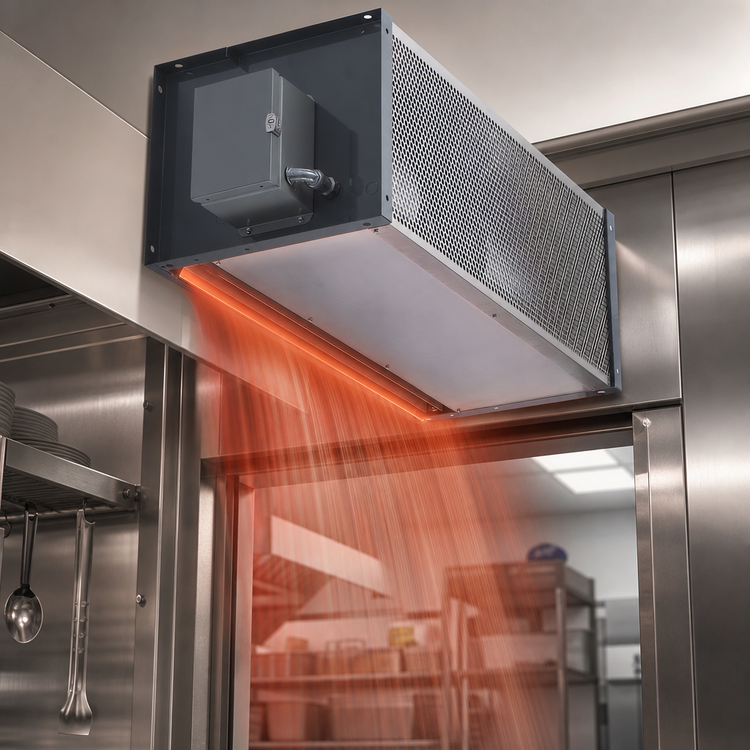

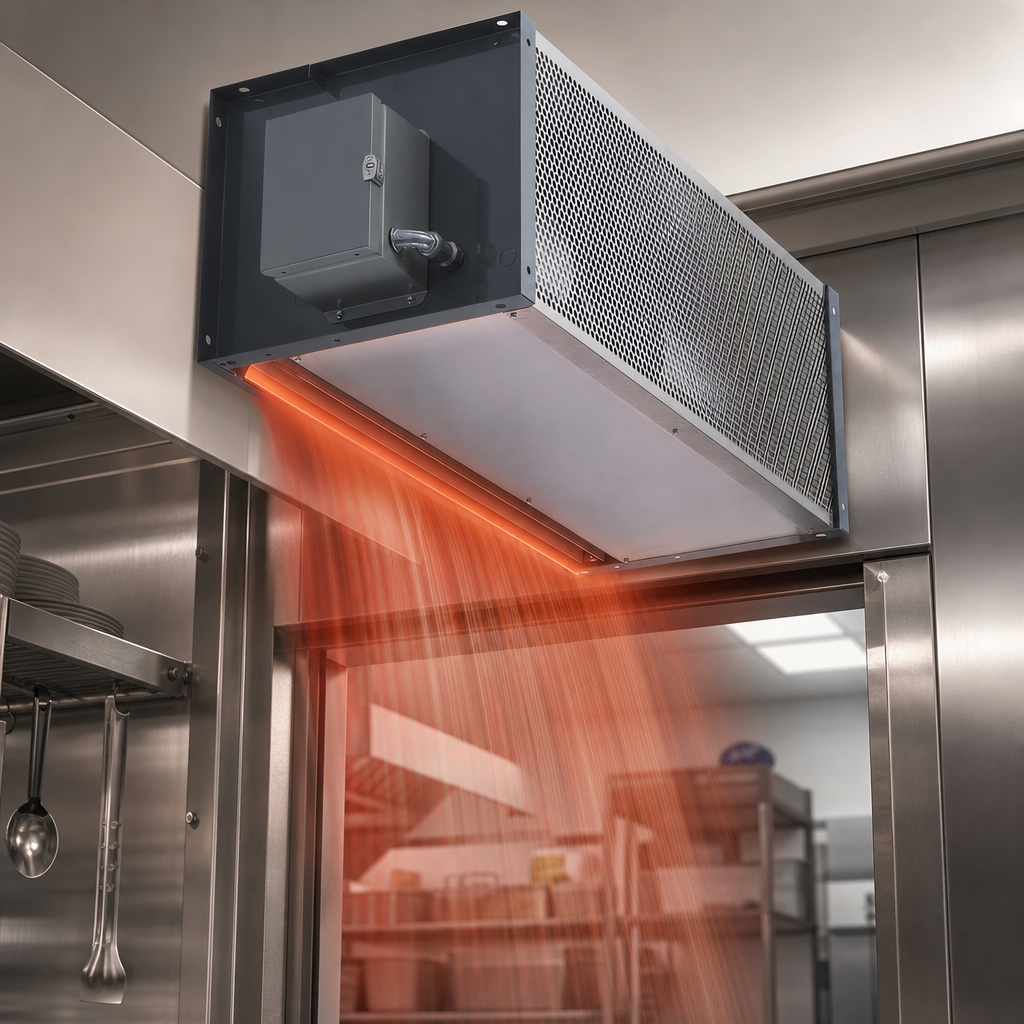

Electric Heated Direct-Drive Design

Uses electric heat with direct-drive blower motors to create a heated air barrier at open doorways.

Electric Heated Direct-Drive Design

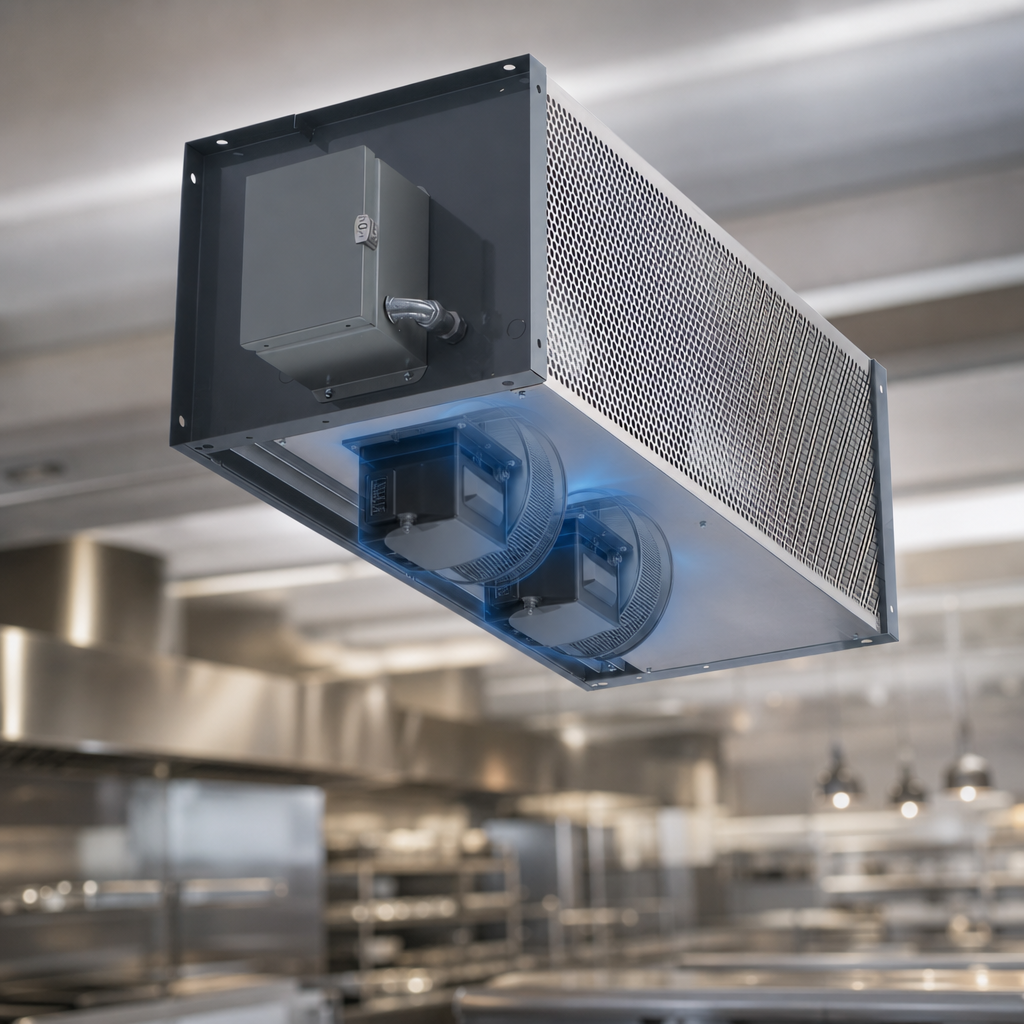

Dual 1/2 HP Motors

Two single-speed 1/2 HP motors provide the airflow needed for environmental separation and insect control.

Dual 1/2 HP Motors

12-Foot Opening Rating

Designed for mounting heights up to 12 feet for environmental separation and 10 feet for insect protection.

High-Efficiency Pro-V Nozzle

Helps produce a uniform air stream across the opening for consistent air curtain performance.

Industrial Construction

Features an aluminized steel frame, gray powder-coated exterior, and mill aluminum screen and access panels.

Flexible Mounting And Controls

Wall and top mounting are supported, with standard left-hand control panel mounting and optional right-hand or remote placement.

Protective Intake Screen

A protective inlet screen is standard, with optional filters available for added intake protection.

Made In USA / cULus

Manufactured in the USA and listed as cULus.

Type Heated Air Curtain
Style Direct Drive
Installation Type Wall Mounted
Material Aluminized Steel
Color Gray
Finish Powder Coated
Watts 28 kW
Horsepower Per Motor 1/2 HP
Motors 2
Max Opening Height 12 Feet
Insect Protection Height 10 Feet
Air Volume 2,931 CFM
Outlet Velocity 2,010 FPM
Outlet Velocity Uniformity 85%
Temperature Rise 30°F
Sound Level 66 dBA
Shipping Width 60 Inches
Shipping Weight 231 lb.
Country of Origin USA
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Warranty & Protection

2-year limited warranty on heated models.

Documents

PDF Cutsheet PDF Download PDF Replacement parts diagram PDF Download PDF Warranty PDF Download PDF Terms & conditions PDF Download PDF Air curtain flyer PDF Download PDF Installation manual PDF Download

Frequently Asked Questions

It is rated for mounting heights up to 12 feet for environmental separation and 10 feet for insect protection.
Yes. The model uses electric heat with a 28 kW heating capacity.
It uses 2 direct-drive motors, each rated at 1/2 HP.
The series supports wall and top mounting, and the control panel can be left-hand mounted, right-hand mounted, or remote mounted.
Yes. Optional filters are available for the inlet screen system.
Heated models are covered by a 2-year limited warranty from the original date of shipment.
