Berner Industrial Series IDC12-1060A Ambient Direct Drive Air Curtain for 60-Inch Openings, Unheated, 1/2 HP, 1 Motor

Ambient, Single-Speed, Wall/Top Mount

This rugged unheated air curtain helps maintain indoor comfort and keep flying insects out across open doors up to 12 feet high.

  • Ambient (unheated) air curtain for environmental separation at open doorways.
  • Designed for door openings up to 12 feet high, with insect control coverage to 10 feet.
  • Standard 1/2 HP direct-drive motor with single-speed operation; three-speed optional.
  • Gray powder-coated exterior with protective inlet screen and high-efficiency Pro-V nozzle.
  • Standard wall and top mounting with front air intake; top intake available.
  • Built in the USA and backed by a 5-year limited warranty on unheated models.

Overall Dimensions:

60.0"W

Product Weight:

172.0 lb

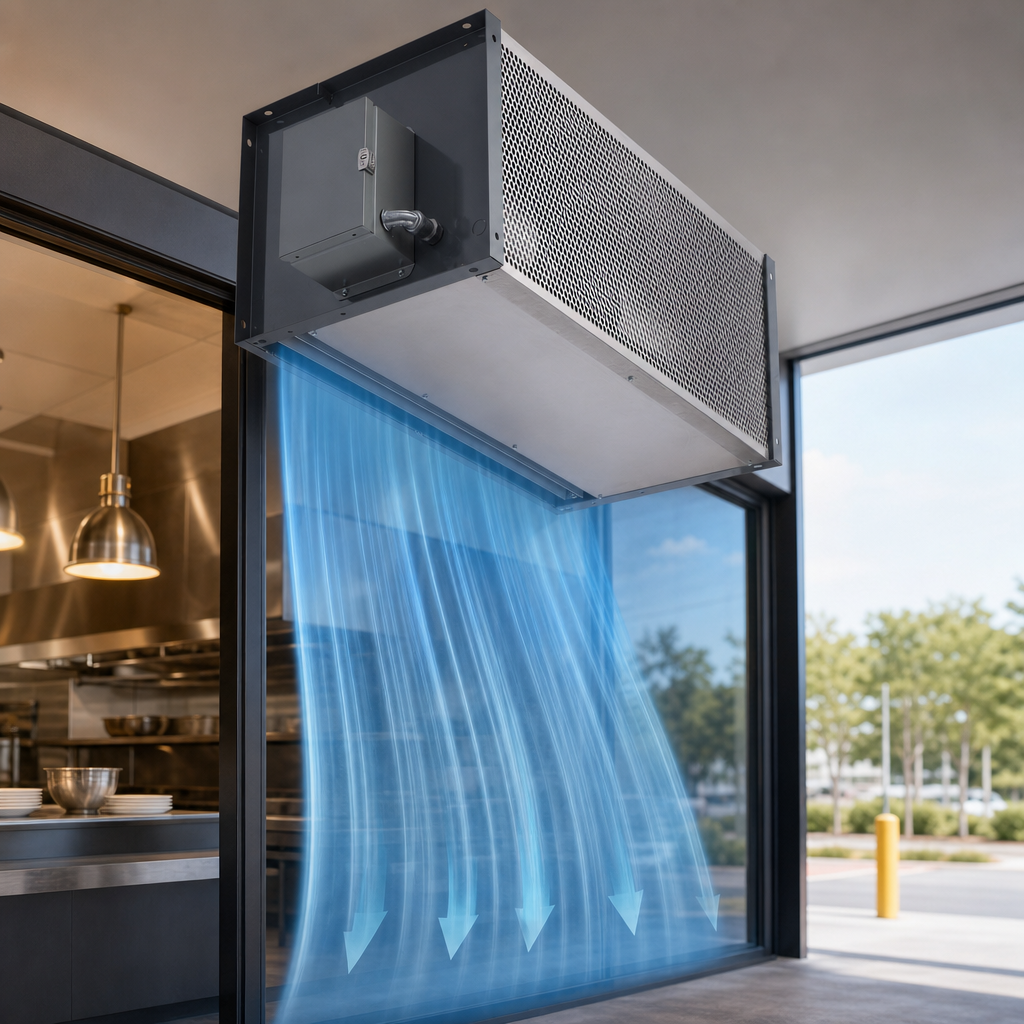

Ambient, Unheated Operation

Delivers a protective air barrier without added heat for energy savings and environmental separation.

Ambient, Unheated Operation

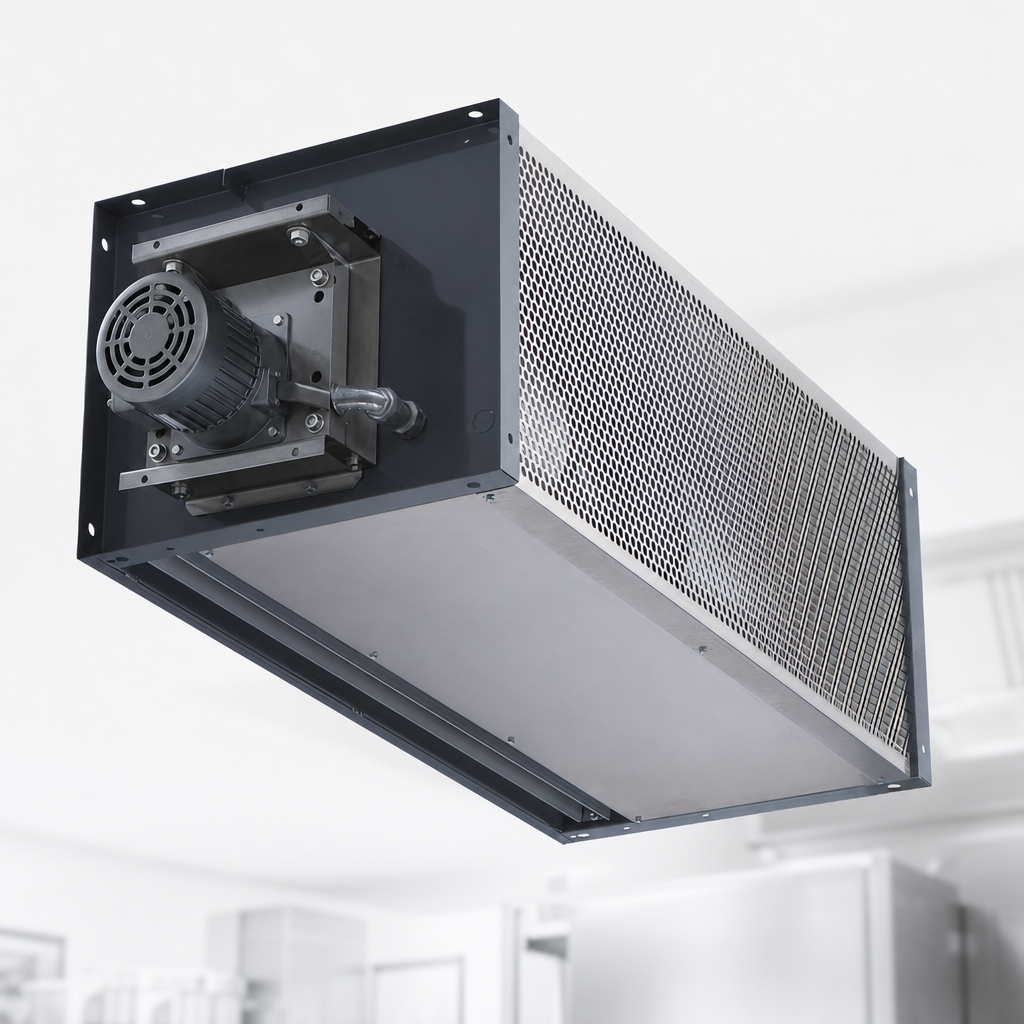

1/2 HP Direct-Drive Motor

Standard single-speed motor setup provides dependable airflow; three-speed is optional.

1/2 HP Direct-Drive Motor

12-Foot Door Coverage

Rated for doors up to 12 feet high for environmental separation and 10 feet for insect protection.

Protective Inlet Screen

Standard inlet screen helps shield the internal components; optional filters are available.

High-Efficiency Pro-V Nozzle

Adjustable nozzle vanes help focus and direct the air stream across the opening.

Wall and Top Mounting

Flexible mounting options support a range of installation needs, including front or top intake configurations.

Gray Powder-Coated Exterior

Durable finish with mill aluminum screen and access panels for commercial environments.

Made in USA / UL Listed

Built in the USA and documented as UL and cULus listed.

Type Ambient Air Curtain
Style Direct Drive
Installation Type Wall Mounted
Horsepower 1/2 HP
Motors 1
Controls Single Speed
Maximum Opening Height 12 Feet
Insect Protection Height 10 Feet
Color Gray
Finish Powder Coated
Shipping Weight 172 lb.
Country of Origin USA
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of UL Certified
UL Certified

Warranty & Protection

5-year limited warranty on unheated models.

Documents

PDF Cutsheet PDF Download PDF Terms & conditions PDF Download PDF Warranty PDF Download PDF Replacement parts diagram PDF Download PDF Air curtain flyer PDF Download PDF Installation manual PDF Download

Frequently Asked Questions

No. This model is an ambient, unheated air curtain.
It is rated for doors up to 12 feet high for environmental separation and 10 feet high for insect control.
This unit uses one 1/2 HP direct-drive motor.
Yes. A protective inlet screen is standard, and optional filters are available.
Unheated models carry a 5-year limited warranty from the original shipment date.
Yes. Standard construction includes wall and top mounting, and the control panel can be specified for left-hand, right-hand, or remote mounting.
