Berner Industrial Series IDC12-1048A-3 48-Inch Ambient Direct Drive Air Curtain, 1/2 HP, for Doors up to 12 Feet High

Unheated, 1 Motor, Wall- or Top-Mount

Keep open doorways protected without adding heat with this 48-inch ambient air curtain built for 12-foot openings.

  • Ambient, unheated design helps maintain environmental separation without added heat.
  • 48-inch model is rated for doors up to 12 feet high and insect control up to 10 feet.
  • One 1/2 HP direct-drive motor delivers dependable airflow with low-maintenance operation.
  • Standard inlet screen and high-efficiency Pro-V nozzle help support air performance.
  • Wall/top mounting and configurable intake and finish options simplify installation and ordering.
  • Made in the USA and backed by a 5-year limited warranty on unheated models.

Overall Dimensions:

48.0"W

Product Weight:

151.0 lb

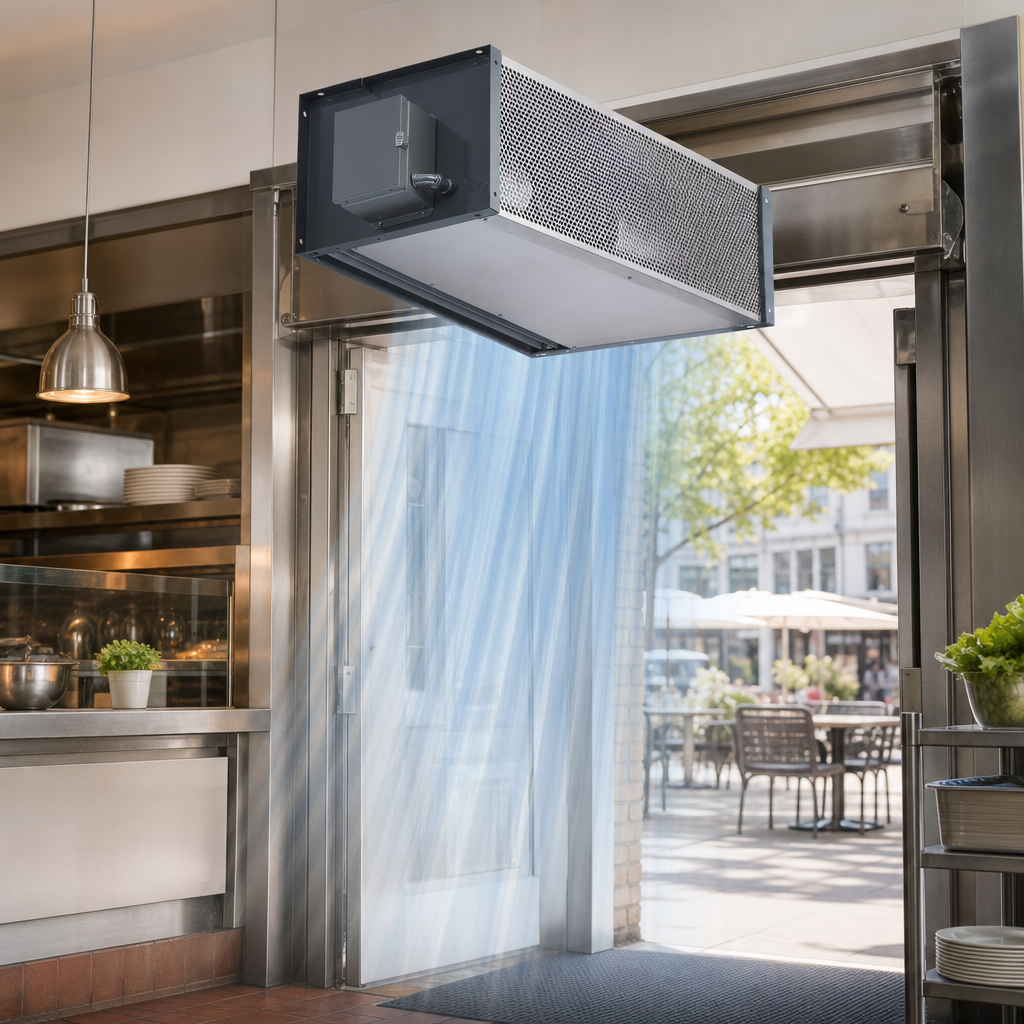

Ambient Unheated Operation

Provides environmental separation and insect control without adding heat.

Ambient Unheated Operation

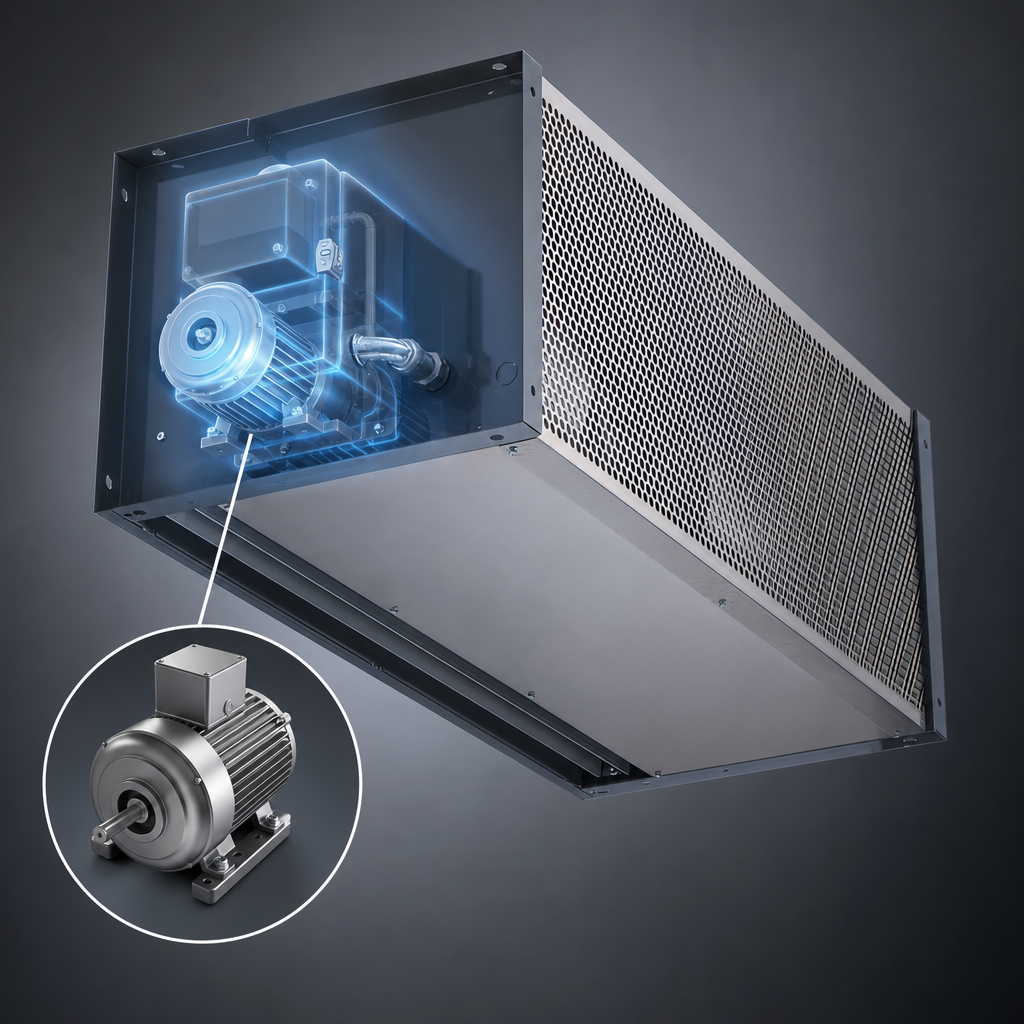

Direct-Drive Motor System

One 1/2 HP motor uses a direct-drive design for dependable operation and reduced maintenance.

Direct-Drive Motor System

Door Coverage

Rated for doors up to 12 feet high for environmental separation and 10 feet high for insect control.

Protective Inlet Screen

Standard inlet screen helps protect internal components; optional recleanable and poly filters are available.

High-Efficiency Pro-V Nozzle

Designed to help create a uniform air curtain across the doorway.

Flexible Mounting And Intake Options

Supports wall and top mounting, with front intake standard and optional top intake.

Cabinet Finish Options

Gray powder-coated exterior with optional stainless steel or custom color cabinet finishes.

Factory Approvals

UL and cULus listed; made in the USA.

Type Air Curtain
Style Ambient
Installation Type Wall Mounted
Horsepower Per Motor 1/2 HP
Motor Count 1
Controls Single Speed
Max Opening Height 12 Feet
Insect Protection Height 10 Feet
Air Volume 1,594 CFM
Power Rating 0.53 kW
Color Gray
Finish Powder Coated
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Width 48 Inches
Shipping Weight 151 lb.

Certifications & Compliance

Certified badge of UL Certified
UL Certified

Warranty & Protection

5-year limited warranty on unheated models

Documents

PDF Cutsheet PDF Download PDF Replacement parts diagram PDF Download PDF Terms & conditions PDF Download PDF Warranty PDF Download PDF Air curtain flyer PDF Download PDF Installation manual PDF Download

Frequently Asked Questions

No. This is an ambient, unheated model.
It is rated for doors up to 12 feet high for environmental separation and 10 feet high for insect control.
The series offers multiple single-phase and three-phase voltage configurations; specify the required voltage when ordering.
Yes. Optional 48-inch recleanable and poly filters are listed in the documentation.
Berner offers a 5-year limited warranty on unheated models from the original shipment date.
