Berner

Berner industrial series ambient direct drive air curtain, 42 inch, 1/2 hp, unheated

SKU: IDC12-1042A-3
$1,294.15
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Air doors Berner Best sellers Kitchen ventilation & climate control New arrivals Restaurant equipment

Berner Industrial Series Ambient Direct Drive Air Curtain, 42 Inch, 1/2 HP, Unheated

Model IDC12-1042A-3; For Doors Up to 12 Feet High

A durable ambient air curtain that helps maintain environmental separation and keep insects out at open commercial doorways without adding heat.

  • 42-inch ambient air curtain for commercial doorway protection.
  • Rated for openings up to 12 feet high for environmental separation and 10 feet for insect control.
  • Uses one 1/2 HP direct drive motor for dependable airflow.
  • Protective inlet screen and high-efficiency Pro-V nozzle help manage intake and discharge.
  • Gray powder-coated exterior with mill aluminum screen and access panels.
  • Wall and top mounting options are shown in the documentation, with optional finishes and filters available.
  • 5-year limited warranty on unheated models; documentation notes UL/cULus and Made in USA.

Overall Dimensions:

42.0"W

Product Weight:

146.0 lb

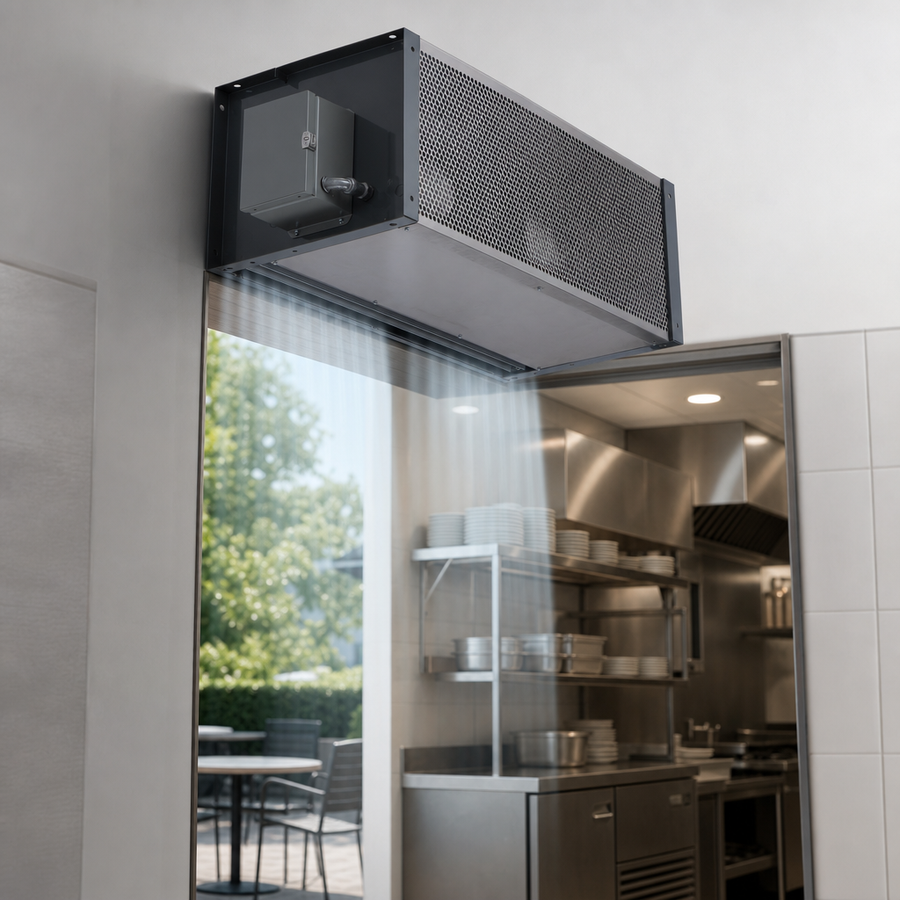

Ambient, Unheated Operation

Designed for environmental separation and insect control without adding heat.

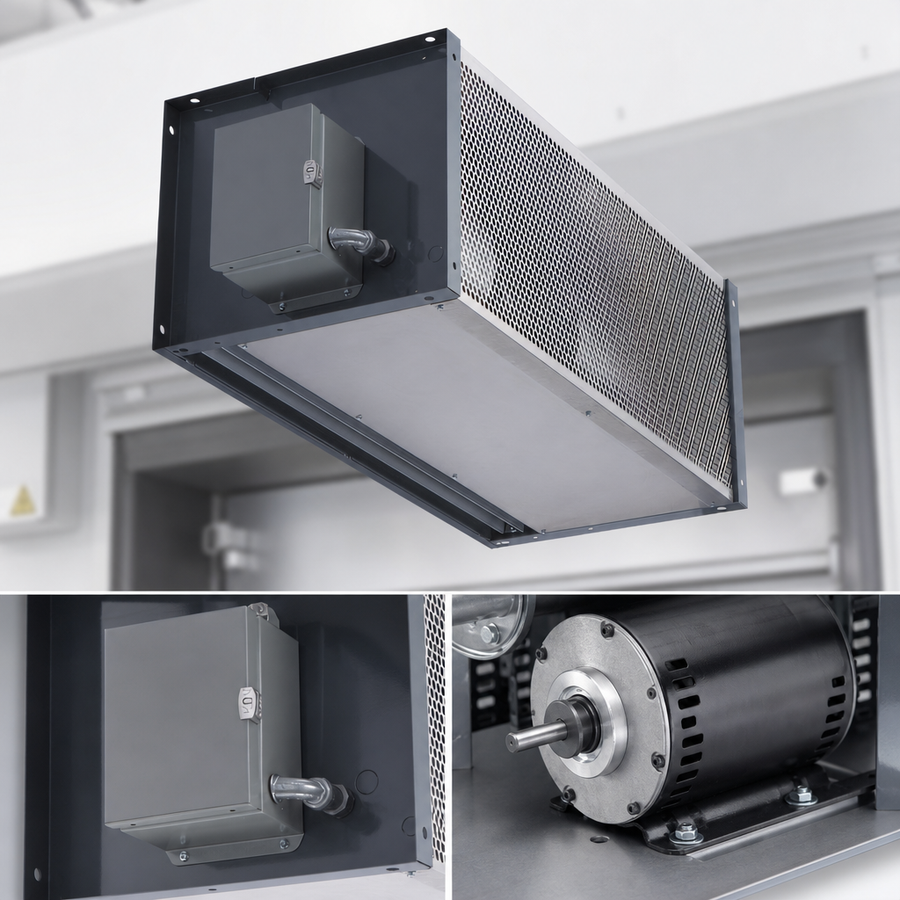

1/2 HP Direct Drive Motor

Uses a direct-drive motor for simple, low-maintenance operation.

Door Coverage

Rated for doors up to 12 feet high for environmental separation and 10 feet for insect control.

Protective Inlet Screen

Includes inlet screening; optional filters are shown in the documentation.

High-Efficiency Pro-V Nozzle

Helps deliver controlled airflow across the opening.

Durable Cabinet Finish

Gray powder-coated exterior with mill aluminum screen and access panels.

Mounting And Control Options

Wall and top mounting are shown; the documentation also notes left-hand standard control panel mounting with optional right-hand or remote placement.

Made In USA

The documentation also notes UL and cULus listings and domestic manufacture.

Type Ambient Air Curtain
Style Direct Drive
Installation Type Wall Mounted
Horsepower Per Motor 1/2 HP
Motors 1
Maximum Opening Height 12 Feet
Insect Protection Height 10 Feet
Color Gray
Finish Powder Coated
Country of Origin USA
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of UL Certified
UL Certified

Warranty & Protection

5-year limited warranty on unheated models.

Documents

PDF Cutsheet PDF Download PDF Replacement parts diagram PDF Download PDF Warranty PDF Download PDF Air curtain flyer PDF Download PDF Terms & conditions PDF Download PDF Installation manual PDF Download

Frequently Asked Questions

No. It is an ambient (unheated) model.
The documentation rates it for doors up to 12 feet high for environmental separation and 10 feet for insect control.
It uses one 1/2 HP direct drive motor.
The documentation shows wall and top mounting. It also notes that vertically mounted units should be confirmed with the factory.
Unheated models carry a 5-year limited warranty from the original shipment date.
Yes. The documentation lists 42-inch re-cleanable and poly filter options.
