Berner Industrial Series IDC12-1036E 36-Inch Electric Heated Direct Drive Air Curtain

14 kW, 1/2 HP, Interior Mount, For Openings Up to 12 Feet High

Maintain temperature control and help block flying insects with a durable 36-inch heated air curtain designed for commercial openings up to 12 feet high.

  • 36-inch Industrial Series direct-drive air curtain for commercial door openings.
  • 14 kW electric heat with a 1/2 HP single-speed motor.
  • Designed for openings up to 12 feet high for environmental separation and 10 feet for insect protection.
  • Protective inlet screen and high-efficiency Pro-V nozzle help deliver uniform airflow.
  • Gray powder-coated cabinet with mill aluminum screen and access panels; stainless steel or custom color options are available.
  • cULus listed and made in the USA.

Overall Dimensions:

36.0"W

Product Weight:

146.0 lb

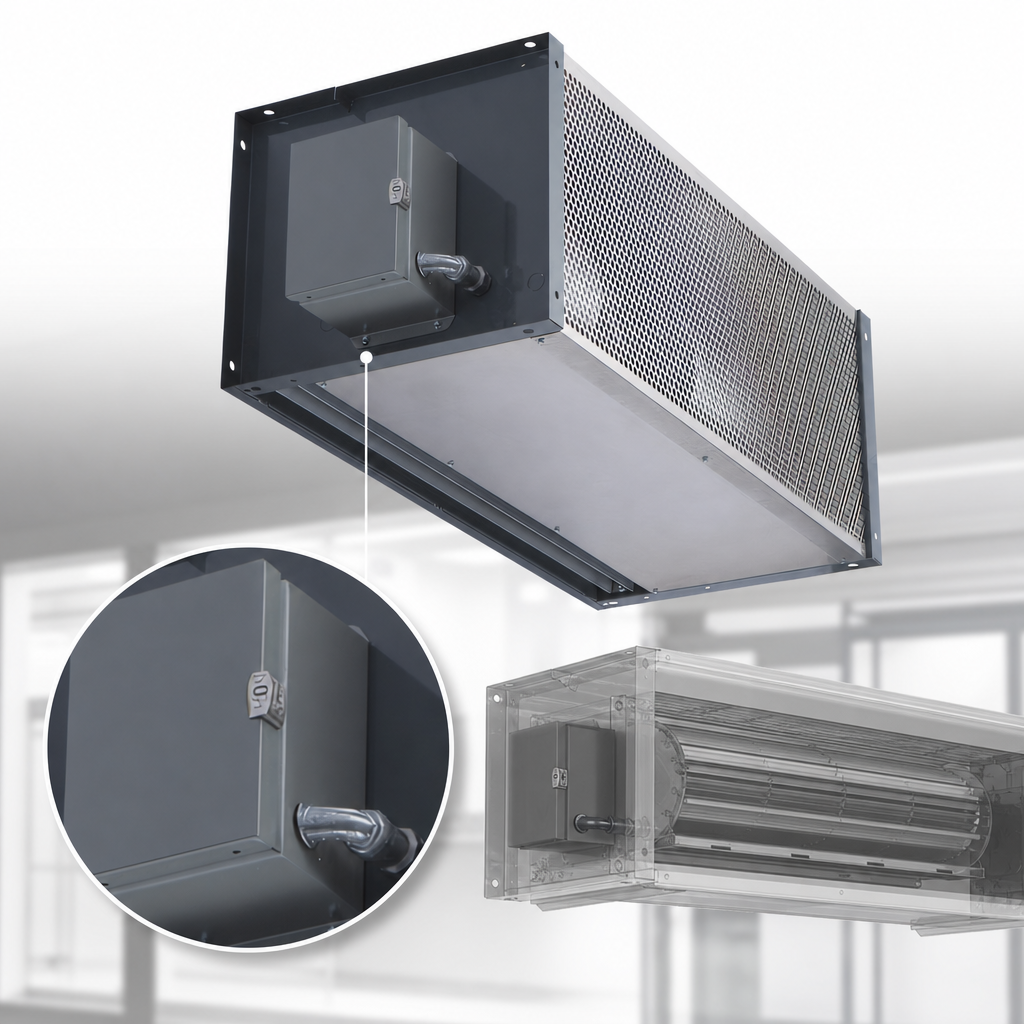

Direct Drive Construction

Single direct-drive motor configuration helps simplify the drive train and reduce maintenance needs.

Direct Drive Construction

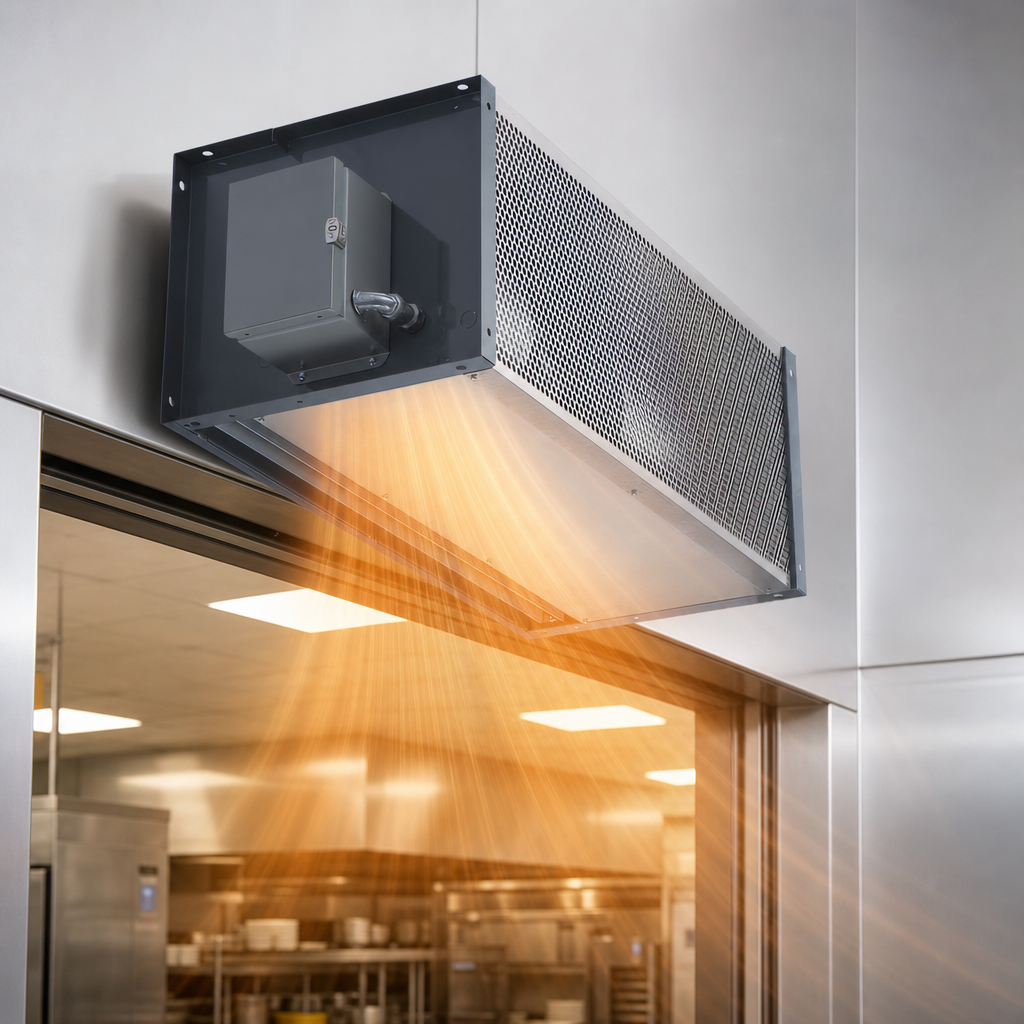

Electric Heated Design

Built with electric heat for temperature control at commercial doorways and entry openings.

Electric Heated Design

1/2 HP Motor

Uses a 1/2 horsepower motor with single-speed operation.

High-Coverage Application

Designed for mounting heights up to 12 feet for environmental separation and 10 feet for insect protection.

High-Efficiency Pro-V Nozzle

Helps deliver a focused, uniform air stream across the opening.

Protective Inlet Screen

Standard inlet screen protects the intake; optional filters are available.

Cabinet Construction

Gray powder-coated exterior with mill aluminum screen and access panels; stainless steel or custom color finishes are optional.

USA Made

Manufactured in the USA.

Type Heated Air Curtain
Style Direct Drive
Installation Type Wall Mounted
Controls Single Speed
Motor Horsepower 1/2 HP
Motor Count 1
Heat Type Electric
Watts 14 kW
Air Volume 1,512 CFM
Max Velocity At Nozzle 5,166 FPM
Avg Outlet Velocity 1,728 FPM
Outlet Velocity Uniformity 87%
Heater Output 47.8 MBH
Maximum Mounting Height 12 Feet
Insect Protection Height 10 Feet
Material Aluminized Steel
Color Gray
Finish Powder Coated
Country of Origin USA
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Warranty & Protection

2-year limited warranty on heated models

Documents

PDF Cutsheet PDF Download PDF Replacement parts diagram PDF Download PDF Air curtain flyer PDF Download PDF Warranty PDF Download PDF Installation manual PDF Download PDF Terms & conditions PDF Download

Frequently Asked Questions

It is designed for mounting heights up to 12 feet for environmental separation and up to 10 feet for insect protection.
Yes. This is an electric heated air curtain with a 14 kW heating rating.
It uses one 1/2 HP single-speed direct-drive motor.
Yes. A protective inlet screen is standard, and optional filters are available.
Standard construction supports wall and top mounting, and the control panel can be left-hand mounted, right-hand mounted, or remote mounted.
Heated models carry a 2-year limited warranty from the original date of shipment.
