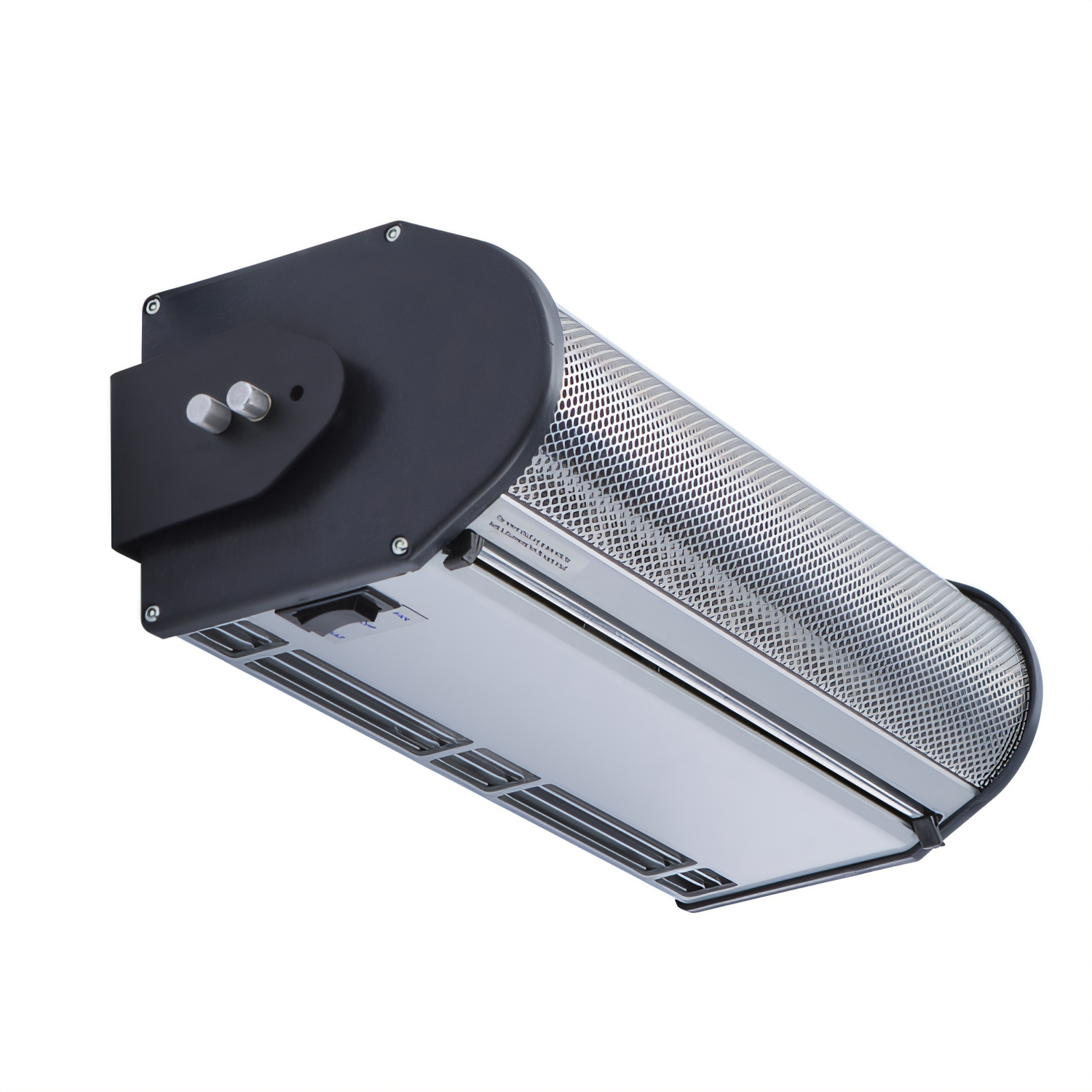

Berner Drive-Thru Unit 3 Ambient Unheated Air Curtain, 26-Inch, 120V, for Drive-Thru Windows Up to 3 Ft High

Interior Mount, Dual Motor, Mount-Anywhere Brackets

This ambient drive-thru air curtain helps separate indoor and outdoor air while reducing insects, dust, and exhaust at openings up to 3 feet high.

  • Designed specifically for drive-thru windows, pass-thru windows, and concession windows.
  • Ambient, unheated operation provides environmental separation without added heat.
  • Dual motors help create a consistent air barrier against dust, airborne particles, flying insects, and exhaust.
  • Factory-installed Mount Anywhere brackets and interior mounting simplify installation.
  • Washable filter with no-tool removal makes routine maintenance easier.
  • Includes a 6-foot plug-in power cord for straightforward electrical hookup.

Overall Dimensions:

28.13"W x 7.75"D x 7.0"H

Product Weight:

16.0 lb

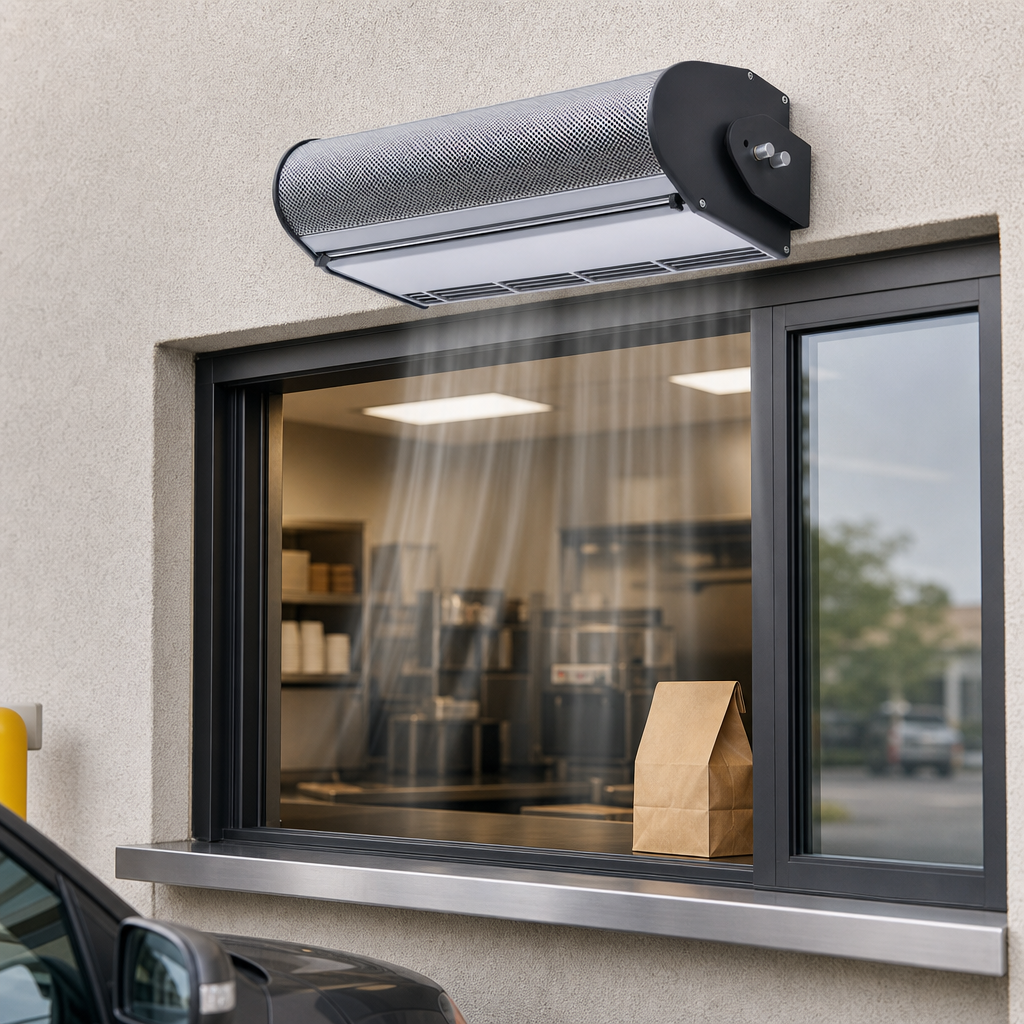

Ambient (Unheated) Operation

Delivers air separation without added heat for drive-thru and pass-thru openings.

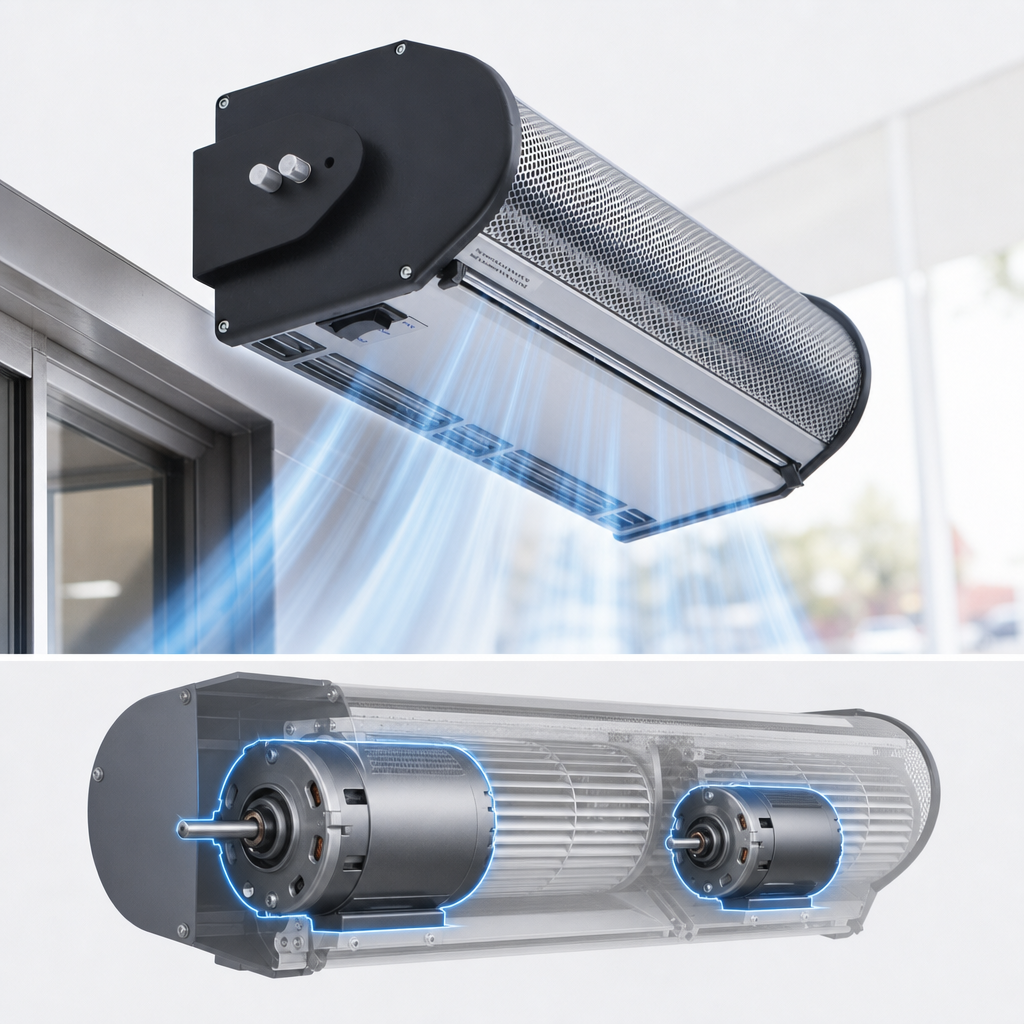

Dual Motor Configuration

Uses two motors, including 1/12 hp and 1/20 hp units, to support the air stream.

Designed For Drive-Thru Openings

Built for openings up to 3 feet high and suited to drive-thru window applications.

Mount Anywhere Bracket System

Factory-installed brackets support flexible interior mounting above the opening.

No-Tool Filter Removal

Filter service is simplified with tool-free removal for faster cleaning.

Washable Intake Filter

Reusable filter helps reduce maintenance and keeps upkeep simple.

6-Foot Plug-In Cord

Includes a plug-in power cord for easier electrical connection.

Outdoor-Use Rated Ambient Model

Ambient models are listed for outdoor use.

Made In USA

Manufactured in the United States.

Type Air Curtain
Style Ambient
Installation Type Wall Mounted
Controls On/Off Switch
Opening Width 26 Inches
Max Opening Height 3 Feet
Motor Count 2
Horsepower Per Motor 1/12 HP & 1/20 HP
Voltage 120 Volts
Amps 2.2 Amps
Phase 1-Phase
Hertz 60 Hz
Breaker Size 15 Amps
Plug Type Plug-In
Cord Length 6 Feet
Material Aluminum
Country of Origin USA
Shipping Width 29 Inches
Shipping Depth 8 Inches
Shipping Height 7 Inches
Shipping Weight 16 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of UL Certified
UL Certified

Warranty & Protection

Documents list a 1-year limited warranty on the cutsheet and a separate Berner warranty sheet that states 5 years on unheated models.

Documents

PDF Cutsheet PDF Download PDF Terms & conditions PDF Download PDF Air curtain flyer PDF Download PDF Warranty PDF Download PDF Replacement parts diagram PDF Download PDF Installation manual PDF Download

Frequently Asked Questions

It is designed for openings up to 3 feet high.
No. This is an ambient, unheated model.
The filter is washable and can be removed without tools.
It uses 120V, 1-phase, 60 Hz power and includes a 6-foot plug-in cord; a 15-amp receptacle is required.
It uses a factory-installed Mount Anywhere bracket system and is intended for interior mounting.
It helps provide environmental separation and insect control, and can help reduce dust, airborne particles, and exhaust infiltration at drive-thru windows.
