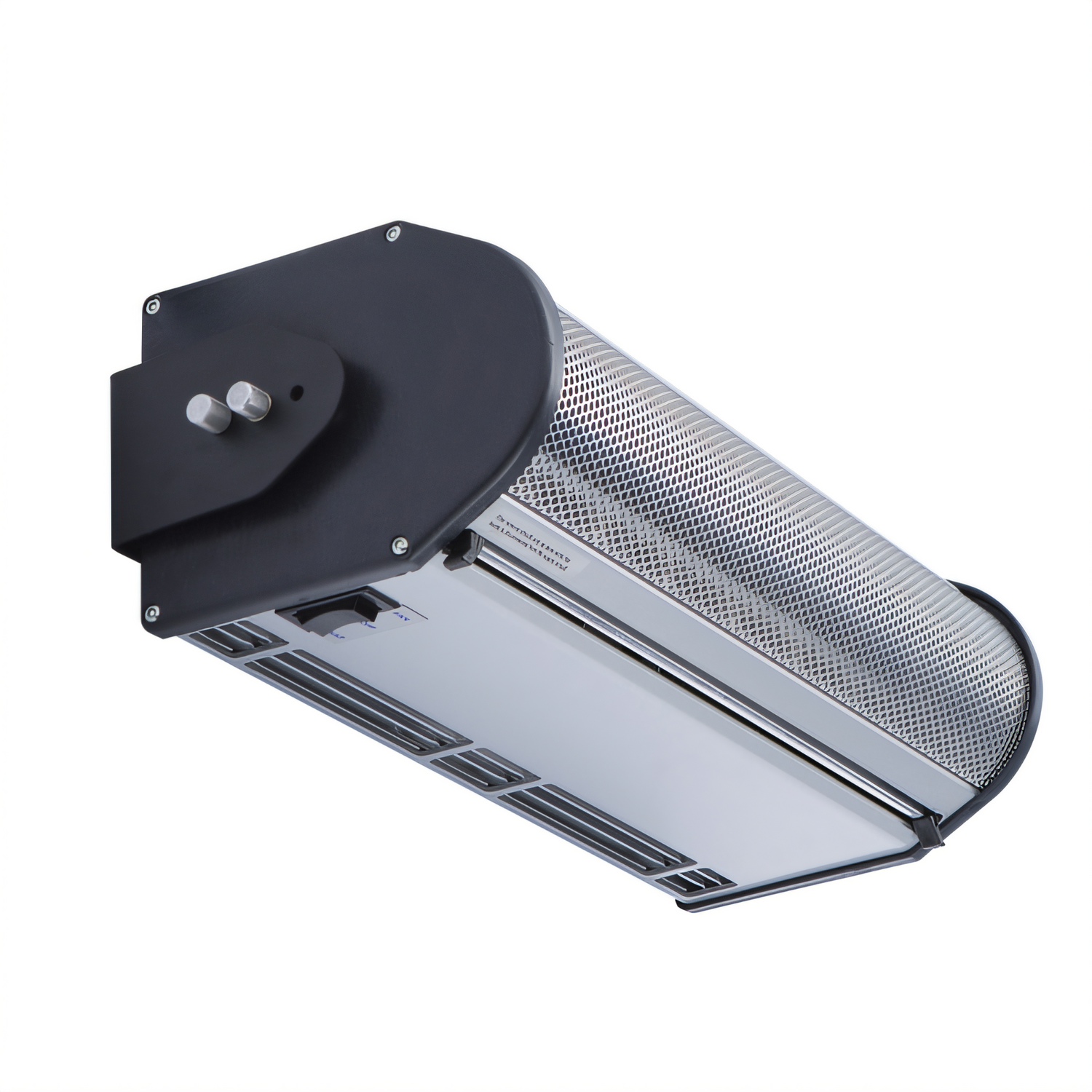

Berner Drive-Thru DTU03-1018EA 18-Inch Electric-Heated Drive-Thru Air Curtain, Interior Mount, For Windows Up to 3 Feet High
$819.00
/each
Ships in 16–19 business days
- Product type
- Drive-Thru Air Curtain
- Nominal length
- 18 in
- Heat type
- Electric heated
- Heater capacity
- 2 kW
- Motor quantity
- 1 motor
- Motor horsepower
- 1/12 hp
Specifications
Product type
Drive-Thru Air Curtain
Nominal length
18 in
Heat type
Electric heated
Heater capacity
2 kW
Motor quantity
1 motor
Motor horsepower
1/12 hp
Maximum opening height
Up to 3 ft
Mounting
Interior
Filter removal
No Tool
Exterior cabinet
Powder-coated extruded aluminum
Electrical rating
120 V, 1 phase, 60 Hz
Description
The Berner DTU03-1018EA is an electric-heated drive-thru air curtain designed for interior mounting at windows up to 3 feet high.
- Supports environmental separation and insect control at drive-thru windows.
- Uses one 1/12 hp motor and 2 kW electric heat.
- Includes a Mount Anywhere bracket system and No Tool filter removal.
- Features a powder-coated extruded aluminum exterior cabinet.
Overall Dimensions:
20.13"W x 7.75"D x 7.0"HProduct Weight:
14.0 lbElectric heat

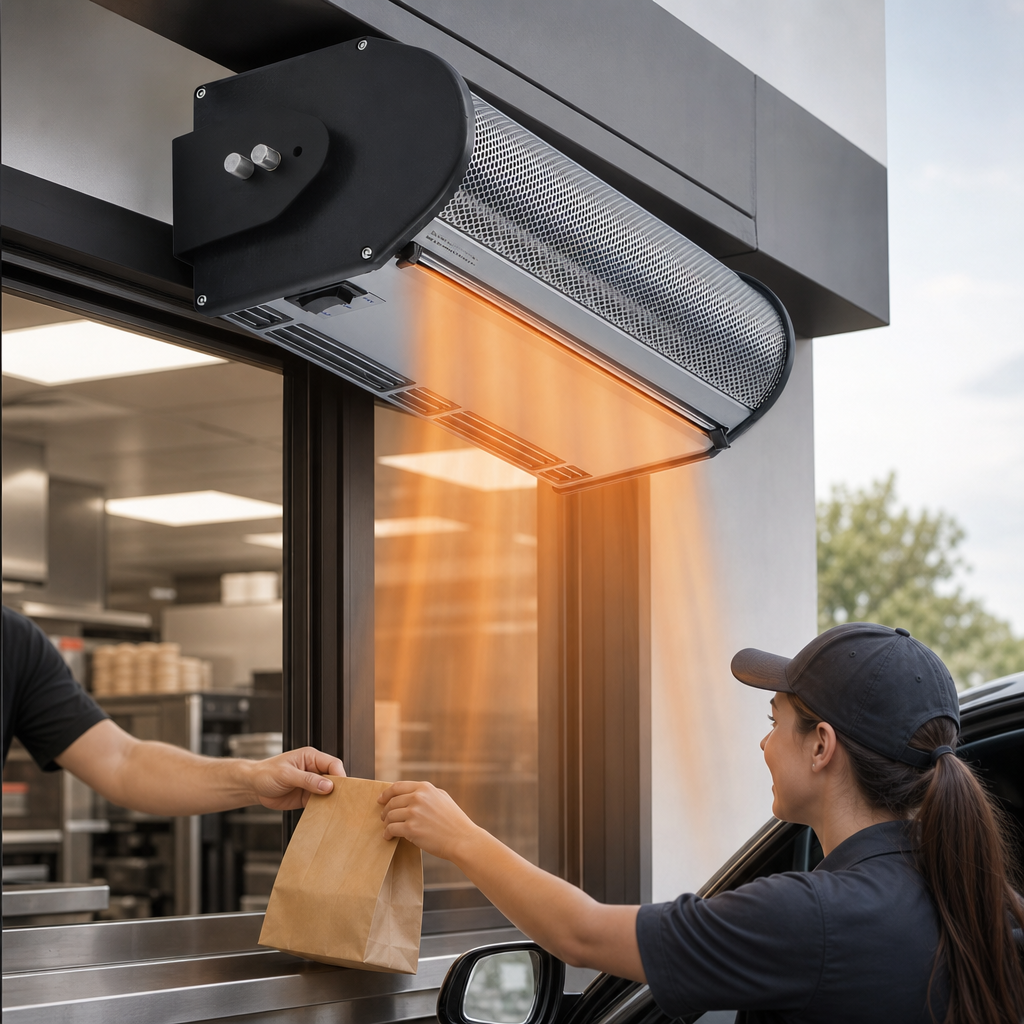

Provides 2 kW of electric heating.

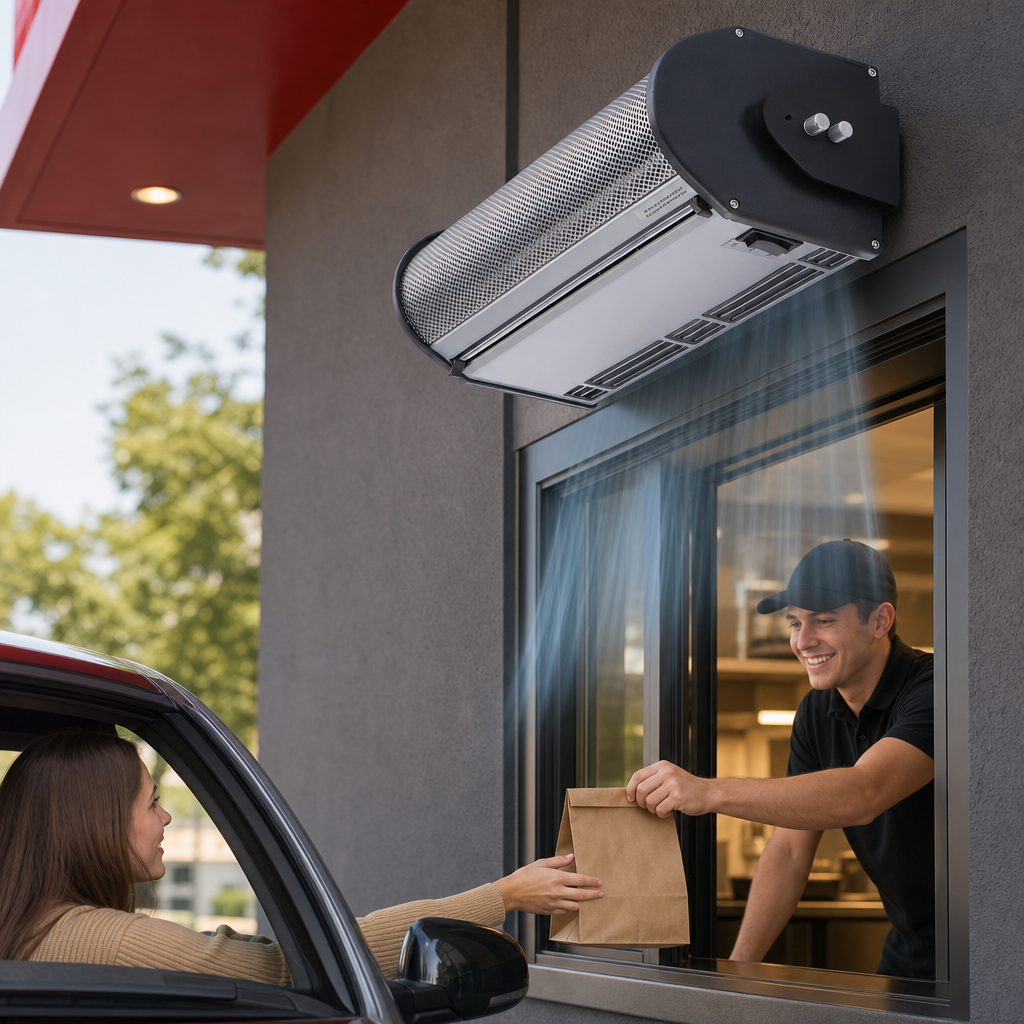

Drive-thru window application
Designed for environmental separation and insect control at drive-thru windows up to 3 feet high.

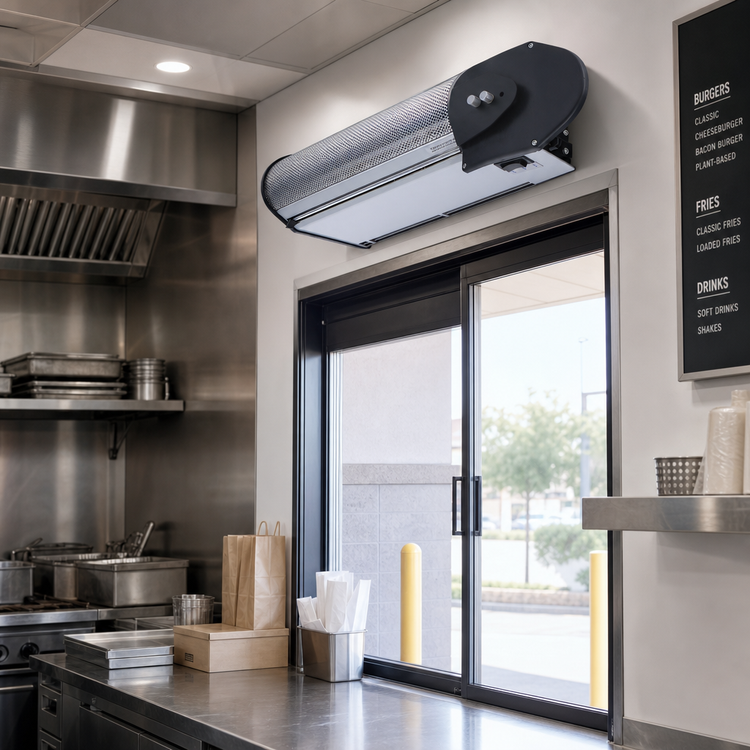

Interior mounting
Configured for interior installation.
Mount Anywhere bracket system
Includes the specified Mount Anywhere bracket system.
No Tool filter removal
Allows filter removal without tools.
Single motor
Uses one 1/12 hp motor.
Exterior cabinet
Powder-coated extruded aluminum exterior cabinet.
Documentation
Cutsheet
PDF Download
Terms & conditions
PDF Download
Warranty
PDF Download
Replacement parts diagram
PDF Download
Installation manual
PDF Download
Air curtain flyer
PDF Download
Certifications & Compliance
Frequently Asked Questions
Yes. It is an electric-heated air curtain with 2 kW heat.
It is specified for drive-thru windows up to 3 feet high.
It is configured for interior mounting and includes a Mount Anywhere bracket system.
It uses one 1/12 hp motor.
The listed dimensions are 20.13 inches wide, 7.75 inches deep, and 7 inches high, with a listed weight of 14 pounds.
