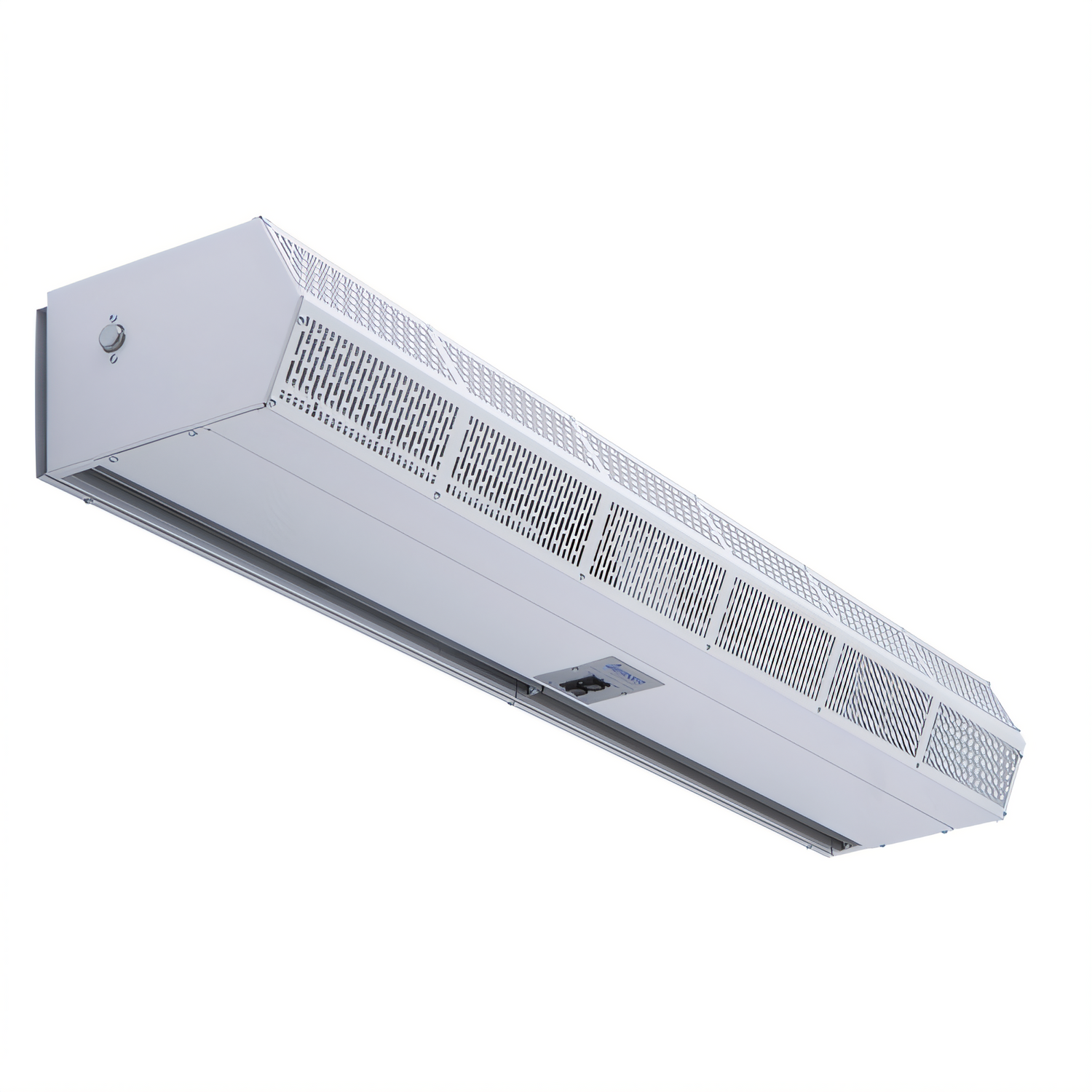

Berner Commercial CLC08-2120E Low Profile Heated Electric Air Curtain, 120-Inch Wide, for Doors Up to 8 Feet High
$4,327.05
/each
Ships in 16–19 business days
- Series
- Commercial Low Profile 8
- Product type
- Electric heated air curtain
- Length
- 120 in
- Heat type
- Electric
- Motors
- 2
- Horsepower per motor
- 1/5 hp
Specifications
Series
Commercial Low Profile 8
Product type
Electric heated air curtain
Length
120 in
Heat type
Electric
Motors
2
Horsepower per motor
1/5 hp
Motor speeds
2
Maximum opening height
8 ft
Mounting
Interior only
Standard construction height
8.5 in
Standard construction depth
13.5 in
Air volume
3,263 cfm
Nozzle width
118.50 in
Maximum nozzle velocity
2,940 fpm
Average outlet velocity
1,670 fpm
Outlet velocity uniformity
95%
Heater output
98.3 MBH
Air temperature rise
28 °F
Sound level
56/57 dBA at 10 ft, low/high speed in free field
Description
The CLC08-2120E is a Commercial Low Profile 8 electric heated air curtain with a 120-inch length for interior door openings up to 8 feet high.
- Electric heat with two 1/5 hp, two-speed motors.
- Standard construction is 8.5 inches high by 13.5 inches deep.
- Designed for interior wall or top mounting.
- Factory-installed fan speed/heat switch and thermal overload protection.
- Made in the USA and cULus certified.
Product Weight:

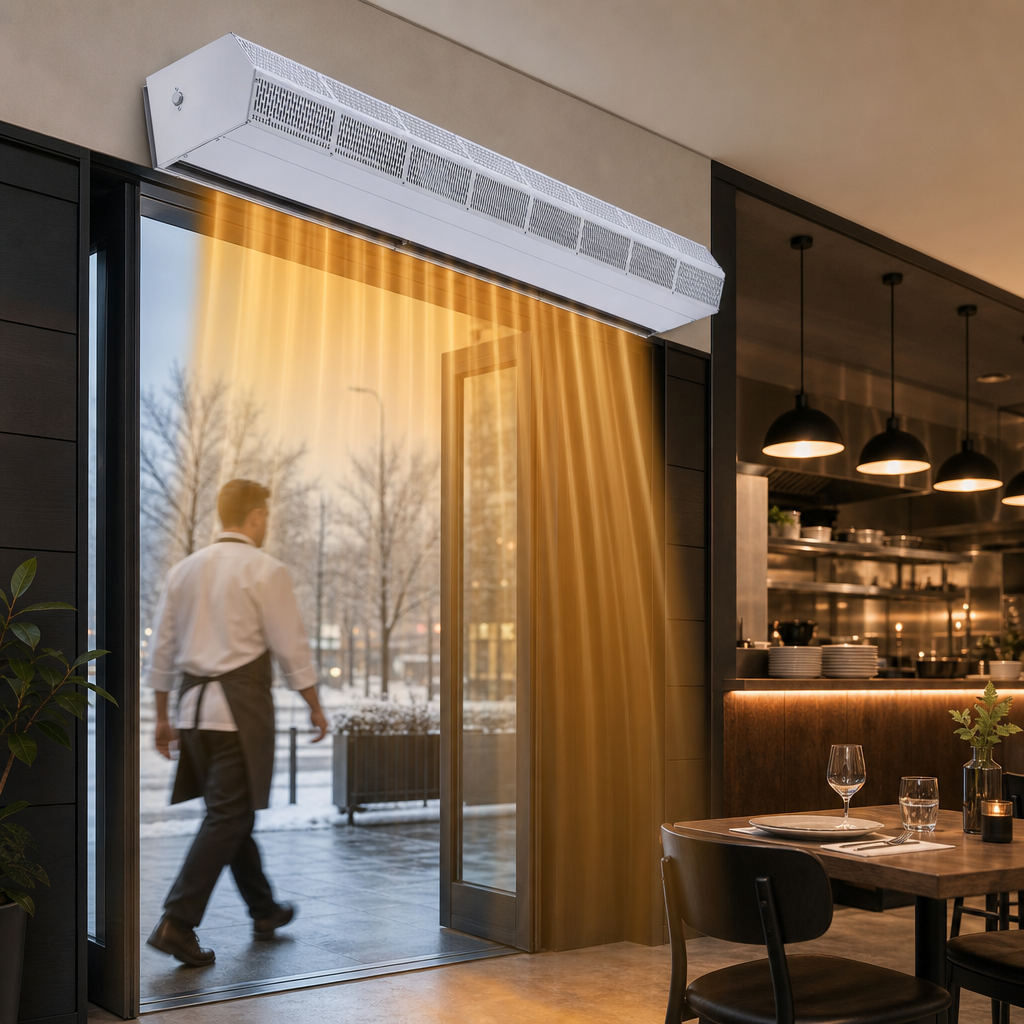

157.0 lbElectric heat
The CLC08-2120E uses an electric heating configuration.
Two-speed motor system
Two 1/5 hp motors provide low- and high-speed operation.

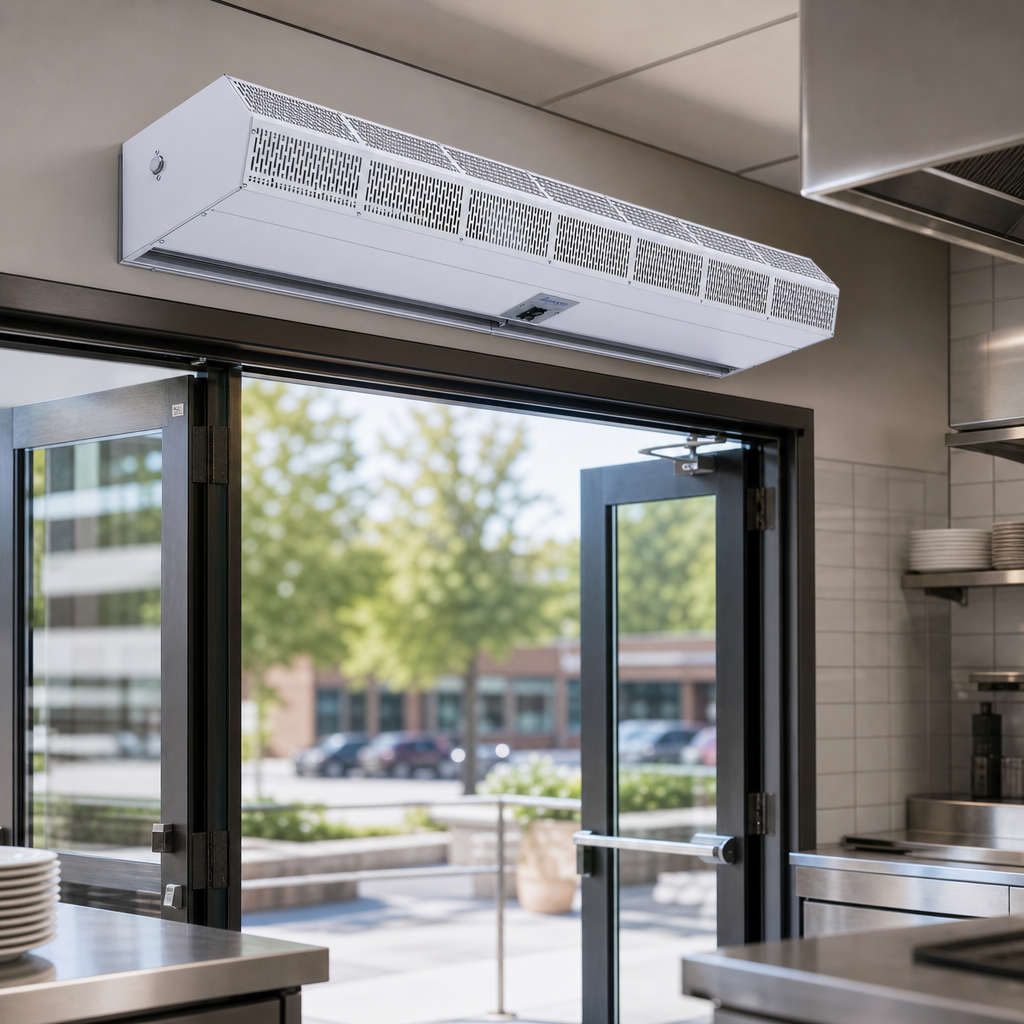

Low-profile construction
The standard cabinet construction is 8.5 inches high by 13.5 inches deep.
Opening height
Designed for door openings up to 8 feet high.
Mounting
Specified for interior mounting, with wall and top mounting supported by the series construction.
Factory-installed controls
Includes a factory-installed fan speed/heat switch.
Thermal protection
Standard construction includes thermal overload protection.
Documentation
Frequently Asked Questions
Yes. It is an electric heated air curtain.
It has two 1/5 hp, two-speed motors.
The model is specified for door openings up to 8 feet high.
The authoritative specifications identify it for interior mounting only. Series construction supports wall and top mounting.
Heated models have a two-year limited warranty, subject to Berner's warranty terms.
It is made in the USA and carries a cULus listing.
