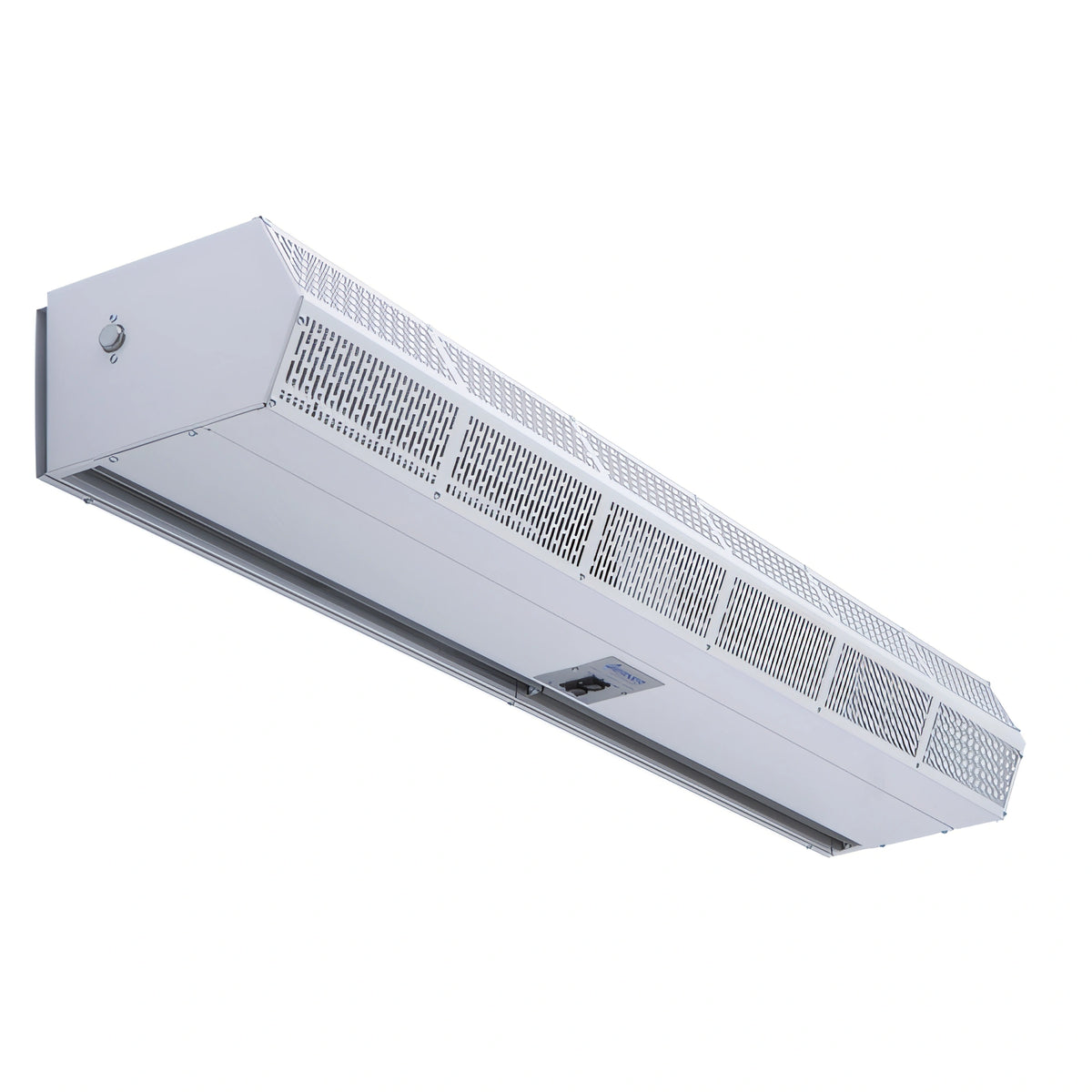

Berner Commercial Low Profile 8 Ambient Air Curtain, 96 Inch, Unheated, 2 x 1/5 HP

For Openings Up to 8 Feet High, Interior Mount Only

Keep conditioned air in and outside air out with a compact 96-inch ambient air curtain built for openings up to 8 feet high.

  • Ambient, unheated design helps separate indoor and outdoor air without adding heat.
  • Low-profile 96-inch cabinet fits openings up to 8 feet high.
  • Two 1/5 HP, two-speed motors deliver strong airflow performance.
  • Factory-installed fan speed switch simplifies everyday operation.
  • Wall-mounted design with bottom access panel for easier service.
  • Standard white powder-coated cabinet; black, stainless steel, and custom color options are available.
  • Optional washable filter is available for added intake protection.

Product Weight:

125.0 lb

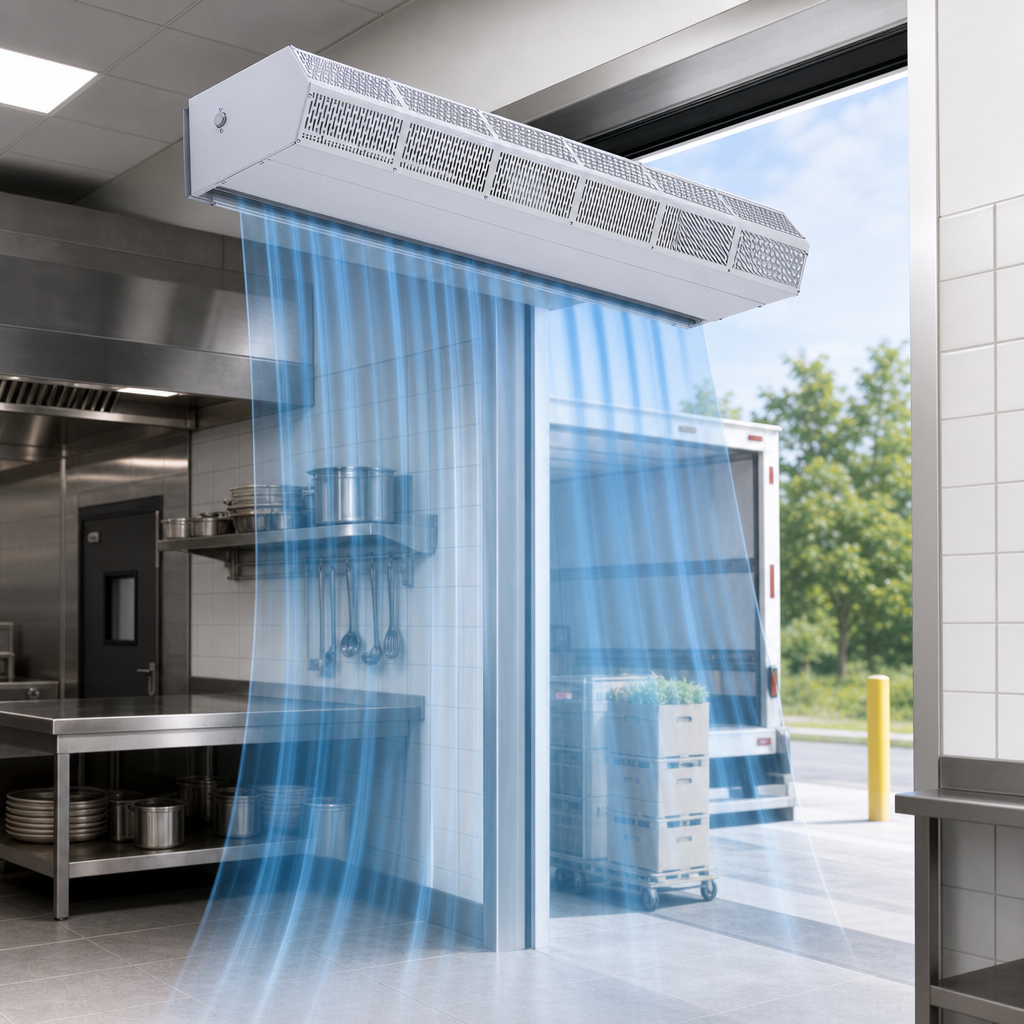

Ambient, Unheated Operation

Creates an air barrier without heat for environmental separation.

Ambient, Unheated Operation

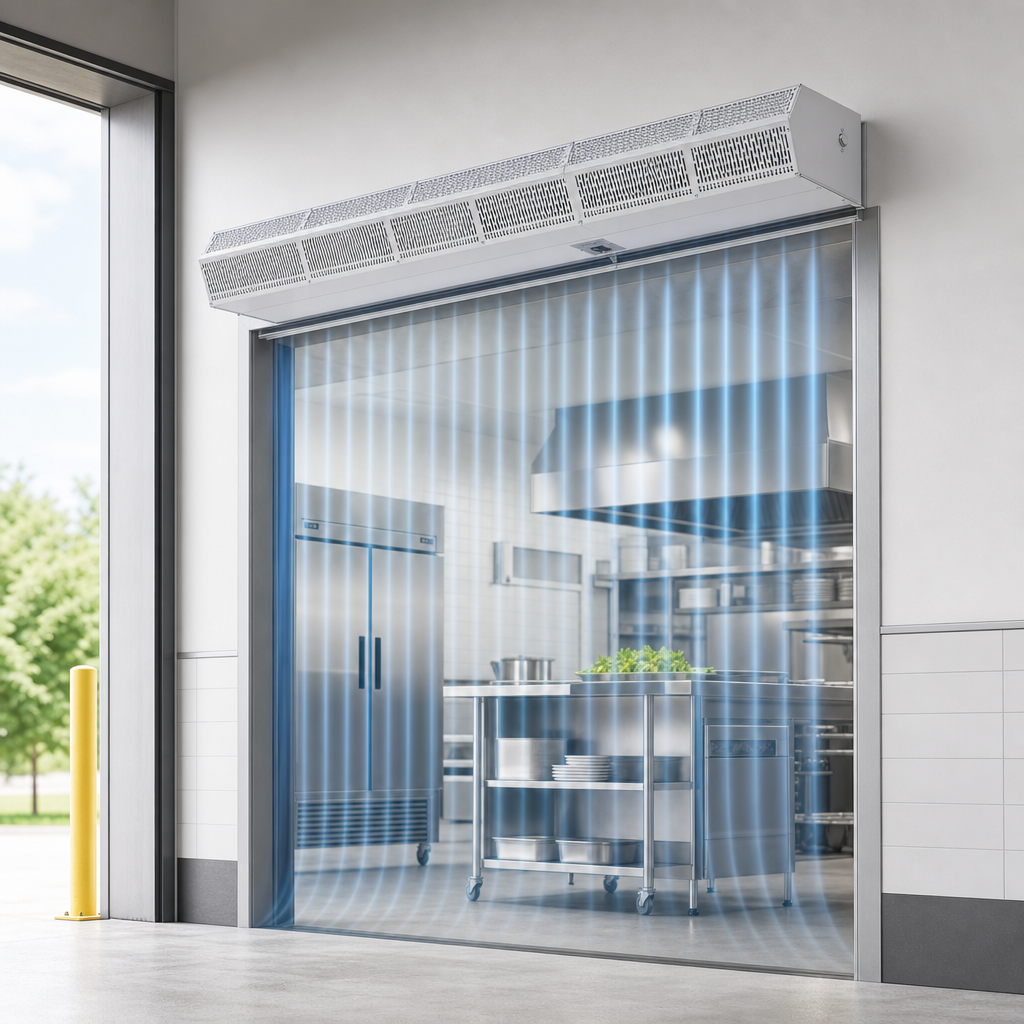

Designed for 8-Foot Openings

Built for mounting heights up to 8 feet; also suitable for 7-foot insect control applications.

Designed for 8-Foot Openings

Dual 1/5 HP Two-Speed Motors

Uses two 1/5 HP motors with two-speed operation for reliable airflow.

Factory-Installed Fan Speed Switch

Built-in fan speed control allows quick low/high operation.

Low-Profile Cabinet

Compact 8.5-inch-high by 13.5-inch-deep housing helps the unit fit discreetly above the opening.

Wall and Top Mounting

Supports wall and top mounting and includes a wall plate; interior mounting only.

Optional Washable Filter

A washable 1-inch aluminum filter is available as an option.

Finish Options

Standard white powder-coated exterior with black, stainless steel, and custom color options available.

Type Ambient Air Curtain
Style Low Profile
Installation Type Wall Mounted
Voltage 120 Volts
Phase 1-Phase
Hertz 60 Hz
Amps 6.8 Amps
Breaker Size 15 Amps
Controls Fan Speed Switch
Motor Count 2
Horsepower Per Motor 1/5 HP
Maximum Opening Height 8 Feet
Air Volume 2,679 CFM
Maximum Velocity At Nozzle 3,226 FPM
Average Outlet Velocity 1,701 FPM
Outlet Velocity Uniformity 94%
Color White
Finish Powder Coated
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Weight 125 Pounds

Certifications & Compliance

Warranty & Protection

5-year limited warranty on unheated models.

Documents

PDF Cutsheet PDF Download PDF Warranty PDF Download PDF Terms & conditions PDF Download PDF Replacement parts diagram PDF Download PDF Air curtain flyer PDF Download PDF Installation manual PDF Download

Frequently Asked Questions

No. This is an ambient, unheated model.
It is designed for mounting heights up to 8 feet for environmental separation and 7 feet for insect control.
The documented configuration for this model is 120/1/60, with 6.8 amps and a 15-amp breaker per circuit.
The standard cabinet finish is white powder coat, with black, stainless steel, and custom color options available.
Yes. An optional washable 1-inch aluminum filter is available.
