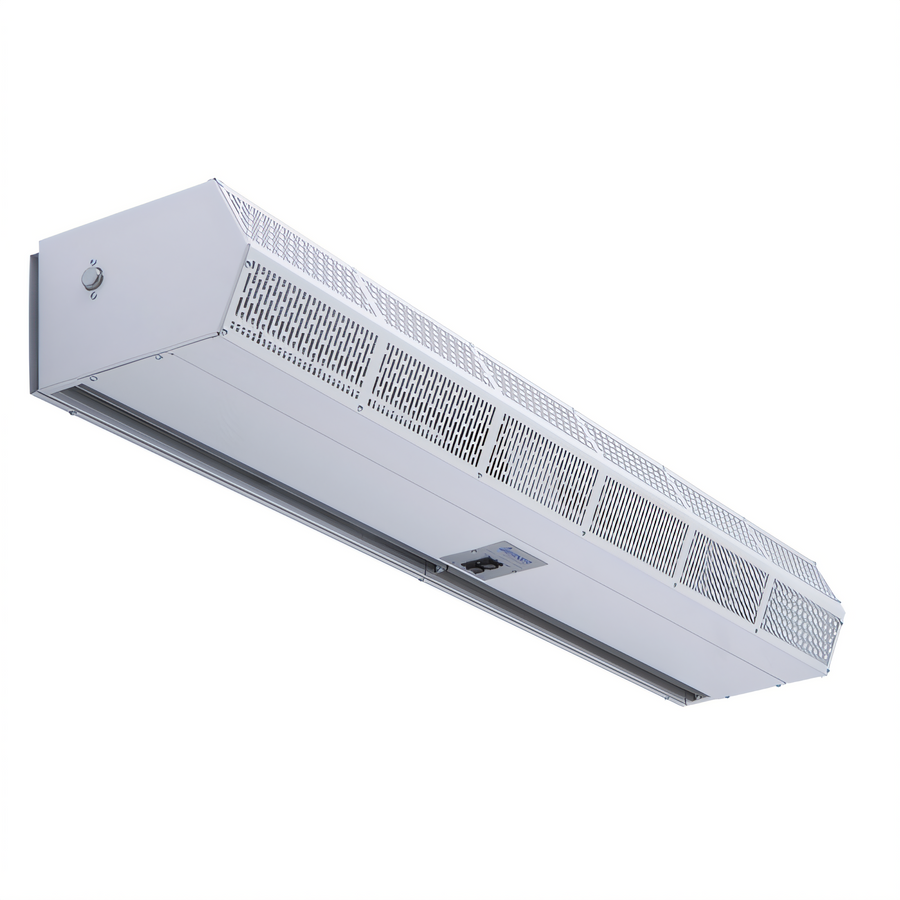

Berner Commercial Low Profile 8 Ambient Unheated Air Curtain, 84-Inch, 2 x 1/5 HP

Interior Wall or Top Mount, for Openings up to 8 Feet High

A compact ambient air curtain that helps seal commercial doorways up to 8 feet high without adding heat.

  • Low-profile 8.5-inch-high cabinet fits above the doorway without dominating the opening.
  • Ambient, unheated airflow helps reduce energy loss and maintain comfort at entrances.
  • Two 1/5 HP, 2-speed motors provide the airflow needed for openings up to 8 feet high.
  • Wall and top mounting options support flexible interior installation.
  • Standard white powder-coated cabinet with black, stainless steel, and custom-color options available.
  • Optional washable filter and a 5-year limited warranty on unheated models add long-term value.

Product Weight:

115.0 lb

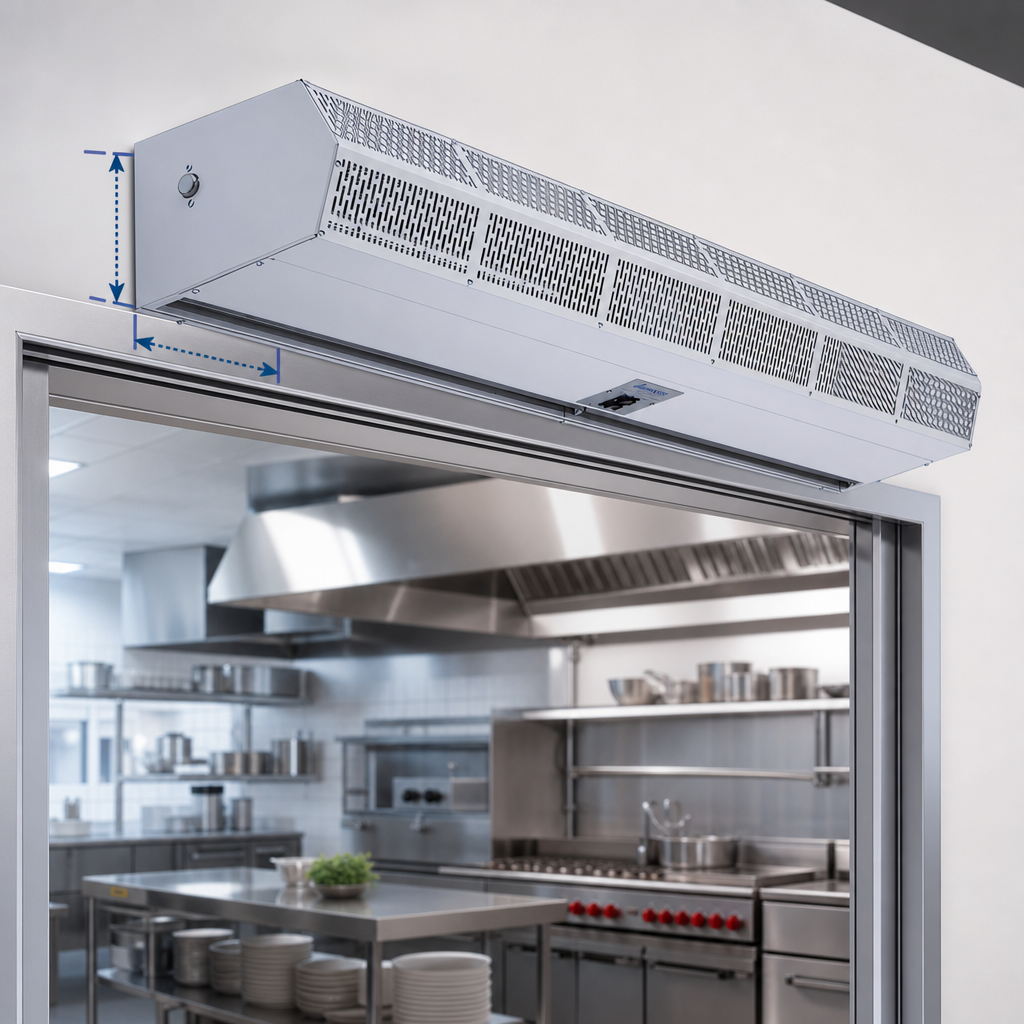

Low Profile Cabinet

8.5-inch-tall by 13.5-inch-deep cabinet keeps the unit compact above the opening.

Low Profile Cabinet

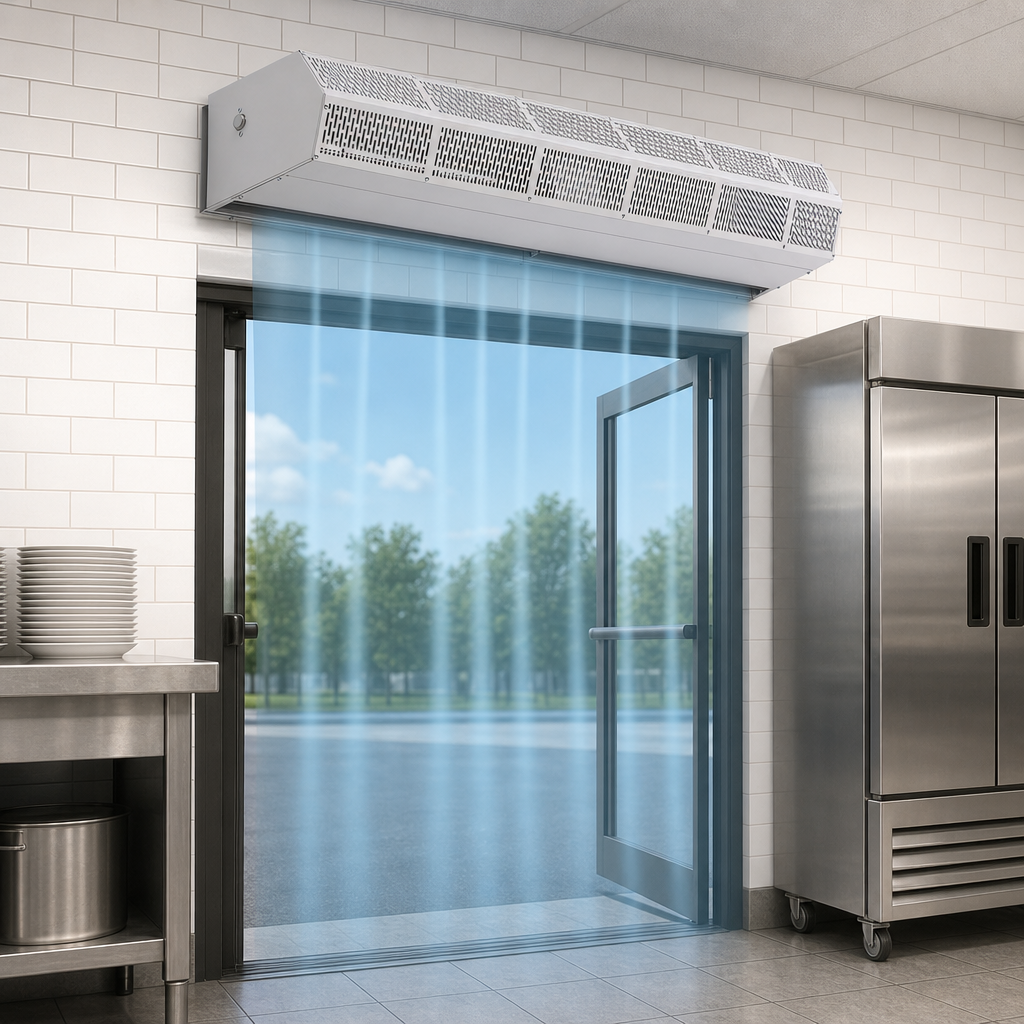

Ambient, Unheated Operation

Creates an air barrier without electric, steam, or hot-water heat.

Ambient, Unheated Operation

Dual 1/5 HP Motors

Two-speed motors are sized for doors up to 8 feet high.

Flexible Mounting

Designed for wall and top mounting; wall plate is included and threaded inserts support top mounting.

High/Off/Low Switch

Factory-installed fan speed switch simplifies everyday operation.

Optional Washable Filter

A 1-inch aluminum washable filter is available for added maintenance convenience.

Finish Options

Standard white or black powder-coated cabinet with optional custom color or stainless steel.

Made in USA

Built in the USA for commercial entrances and climate separation applications.

Type Ambient Air Curtain
Style Low Profile
Installation Type Wall Mounted
Voltage 120 Volts
Phase 1-Phase
Hertz 60 Hz
Amps 6.8 Amps
Watts 640 Watts
Motors 2
Horsepower Per Motor 1/5 HP
Controls High/Off/Low Switch
Max Opening Height 8 Feet
Finish Powder Coated
Color White
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Weight 115 Pounds

Certifications & Compliance

Warranty & Protection

5-year limited warranty on unheated models.

Documents

PDF Cutsheet PDF Download PDF Replacement parts diagram PDF Download PDF Air curtain flyer PDF Download PDF Installation manual PDF Download PDF Warranty PDF Download PDF Terms & conditions PDF Download

Frequently Asked Questions

This model is configured for 120 Volts, 1-Phase, 60 Hz.
No. This is the ambient, unheated version of the CLC08 series.
It is designed for mounting heights up to 8 feet for environmental separation, and 7 feet for insect control.
It supports wall and top mounting, and a wall plate is included.
Yes. An optional 1-inch washable aluminum filter is available.
Unheated models include a 5-year limited warranty from the original shipment date.
