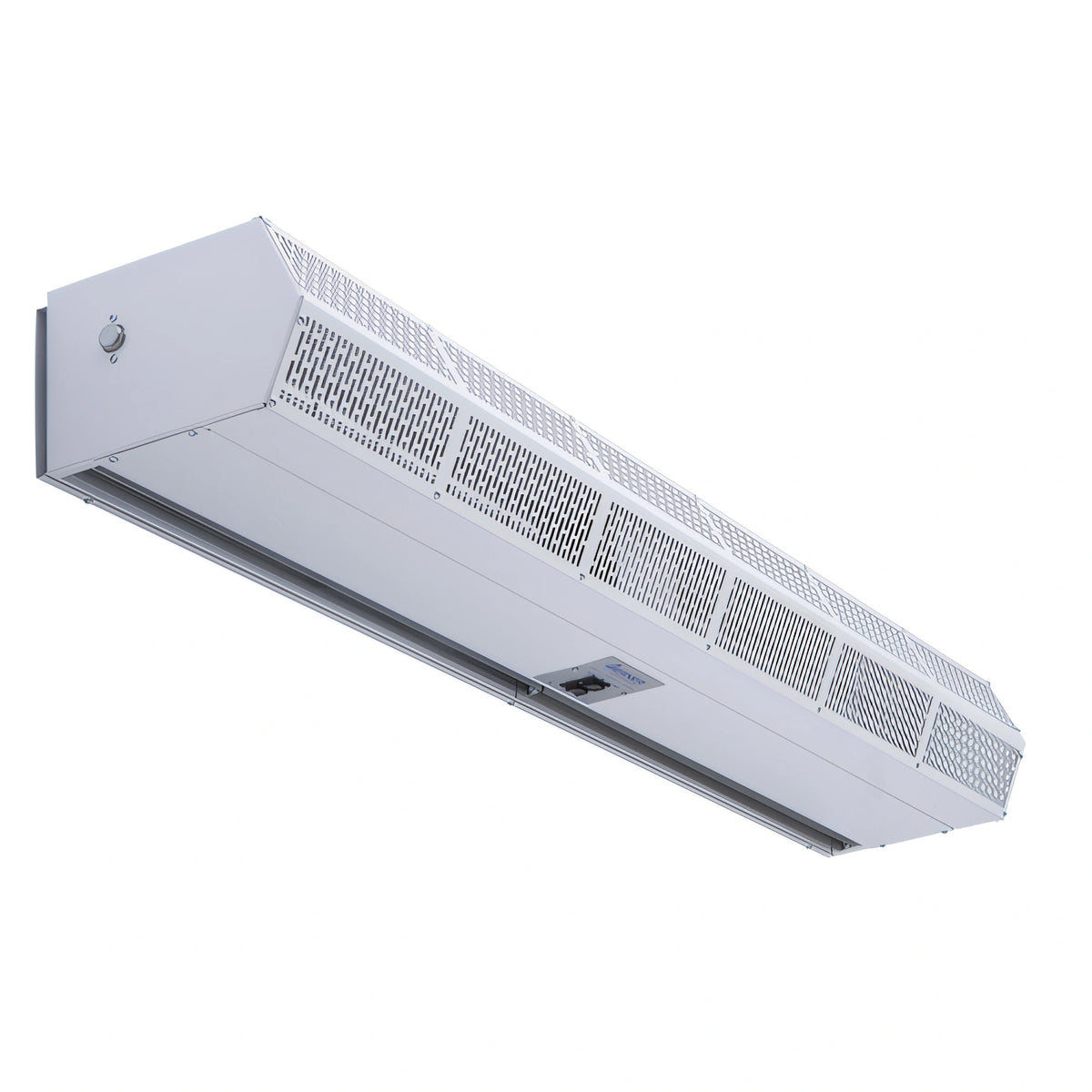

Berner Commercial CLC08-1072E Heated Electric Air Curtain, 72-Inch, Low Profile, for Openings Up to 8 Feet
- Series
- Commercial Low Profile 8 Air Curtain
- Heat Type
- Electric
- Length
- 72 in
- Nozzle Width
- 71.37 in
- Maximum Opening Height
- 8 ft
- Motor
- 1 × 1/5 hp, 2-speed
Specifications
Description
The CLC08-1072E is a Commercial Low Profile 8 electric-heated air curtain with a 72-inch length and a listed 71.37-inch nozzle width.
It is specified for interior mounting at doors or openings up to 8 feet high and uses one 1/5 hp two-speed motor. The documented cabinet is 8.5 inches high by 13.5 inches deep.
- Electric heat with a maximum listed capacity of 20.0 kW
- One 1/5 hp two-speed motor
- 2,010 cfm listed air volume
- 2-year limited warranty for heated models
Product Weight:
88.0 lbElectric heat

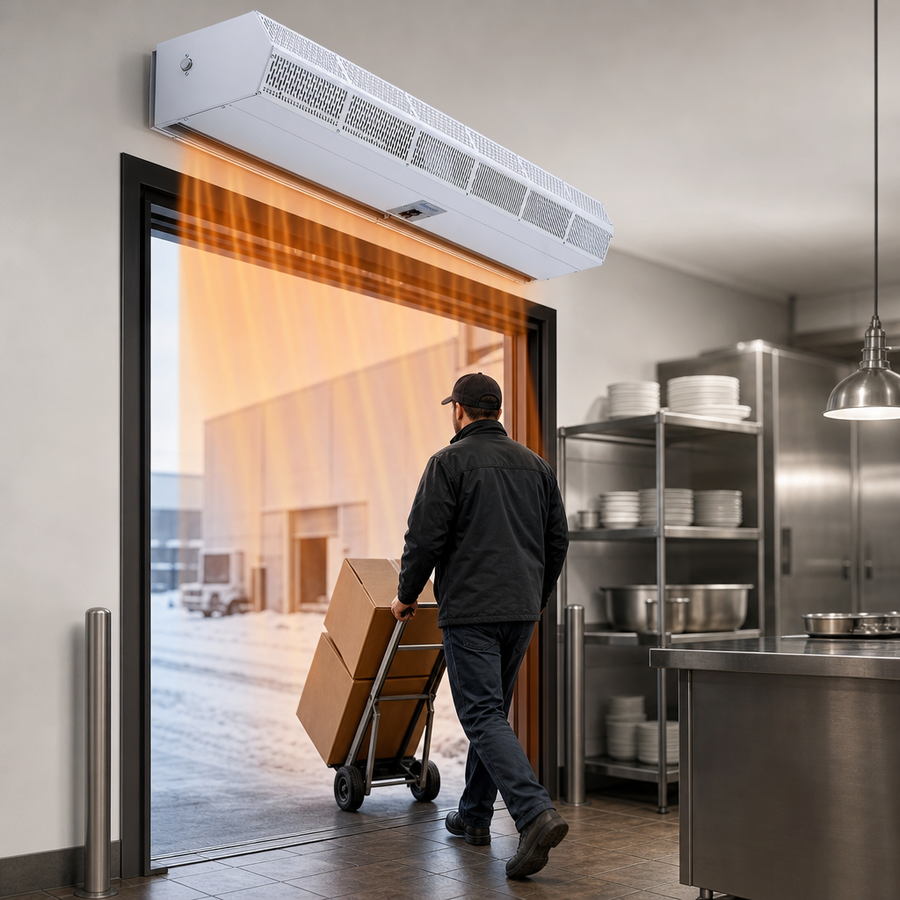

The CLC08-1072E is an electrically heated air curtain.
72-inch length
The model is specified at 72 inches long and has a listed 71.37-inch nozzle width.
8-foot opening height
It is specified for doors or openings up to 8 ft high.
Two-speed motor
The unit uses one 1/5 hp two-speed motor.

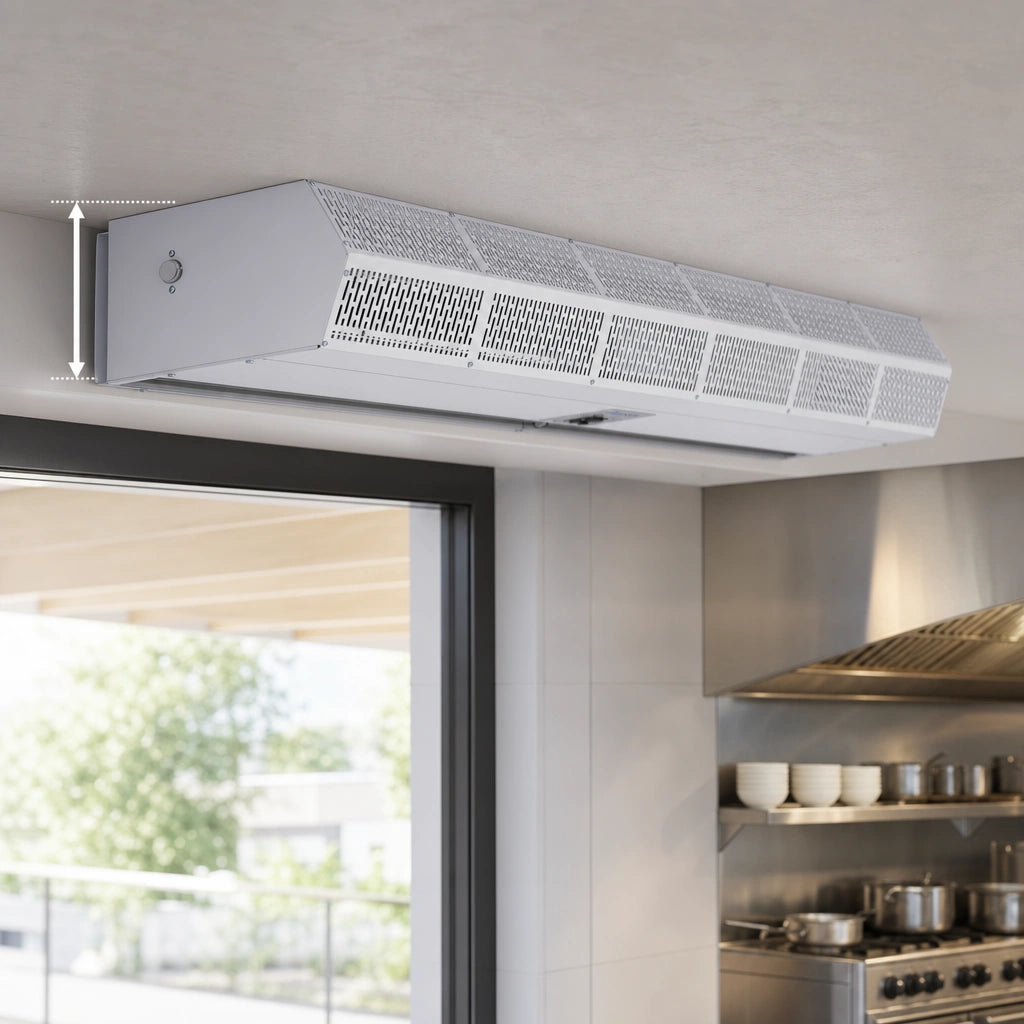

Low-profile construction
The documented cabinet measures 8.5 inches high by 13.5 inches deep.
Interior mounting
The authoritative product specification identifies this model for interior mounting only.
Thermal overload protection
Thermal overload protection is listed as part of the standard construction.
Factory-installed control
A factory-installed fan speed and heat switch is listed in the product documentation.
