Berner

Berner Commercial Low Profile 8 Ambient Unheated Air Curtain, 60-Inch, 1/5 HP, 120V

SKU: CLC08-1060A
$1,199.90
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Air Doors Berner Best Sellers Equipment Facility Equipment Kitchen Ventilation & Climate Control New Arrivals Restaurant Equipment

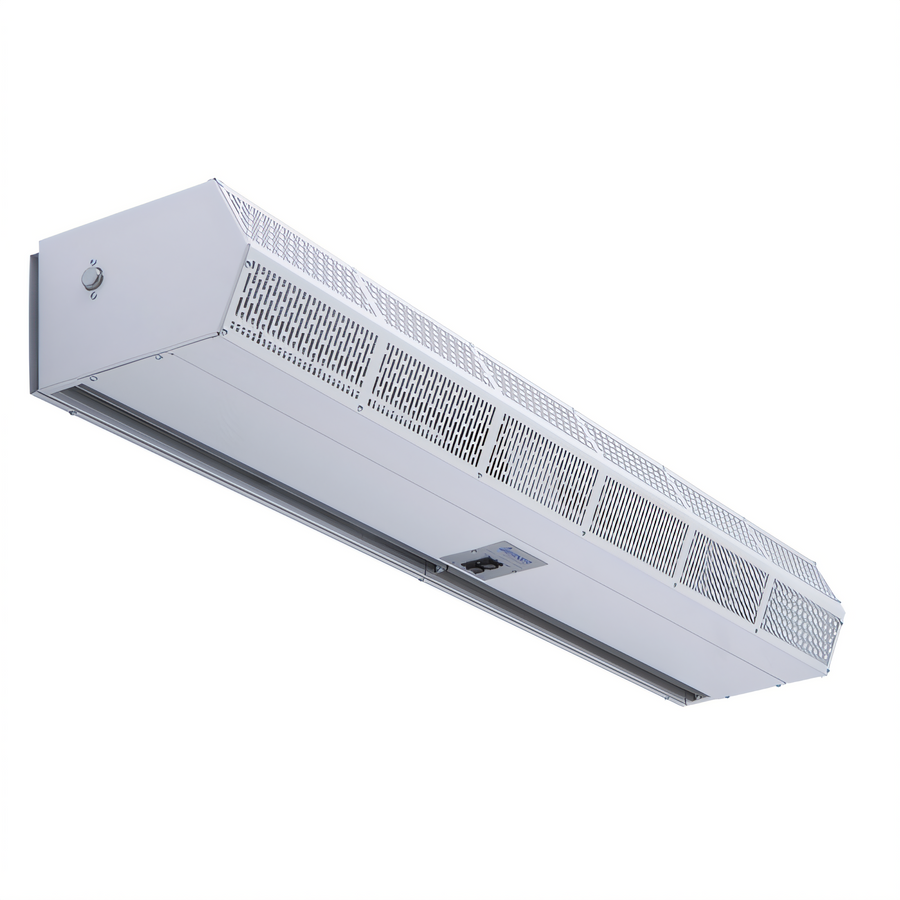

Berner Commercial Low Profile 8 Ambient Unheated Air Curtain, 60-Inch, 1/5 HP, 120V

For Doors Up to 8 Feet High; Interior Mounting Only

A slim, low-profile air curtain that helps separate indoor and outdoor environments across 60-inch openings without adding heat.

  • Unheated ambient air curtain for openings up to 8 feet high; also suitable for insect control up to 7 feet.
  • Low-profile cabinet measures 8.5 inches high by 13.5 inches deep to fit tight spaces.
  • Single 1/5 HP two-speed motor with factory-installed fan speed switch.
  • Designed for wall or top mounting in interior applications; wall plate included and no assembly required.
  • Standard powder-coated cabinet with white or black finish options, plus stainless steel or custom color options.
  • Optional washable 1-inch aluminum filter available.

Product Weight:

72.0 lb

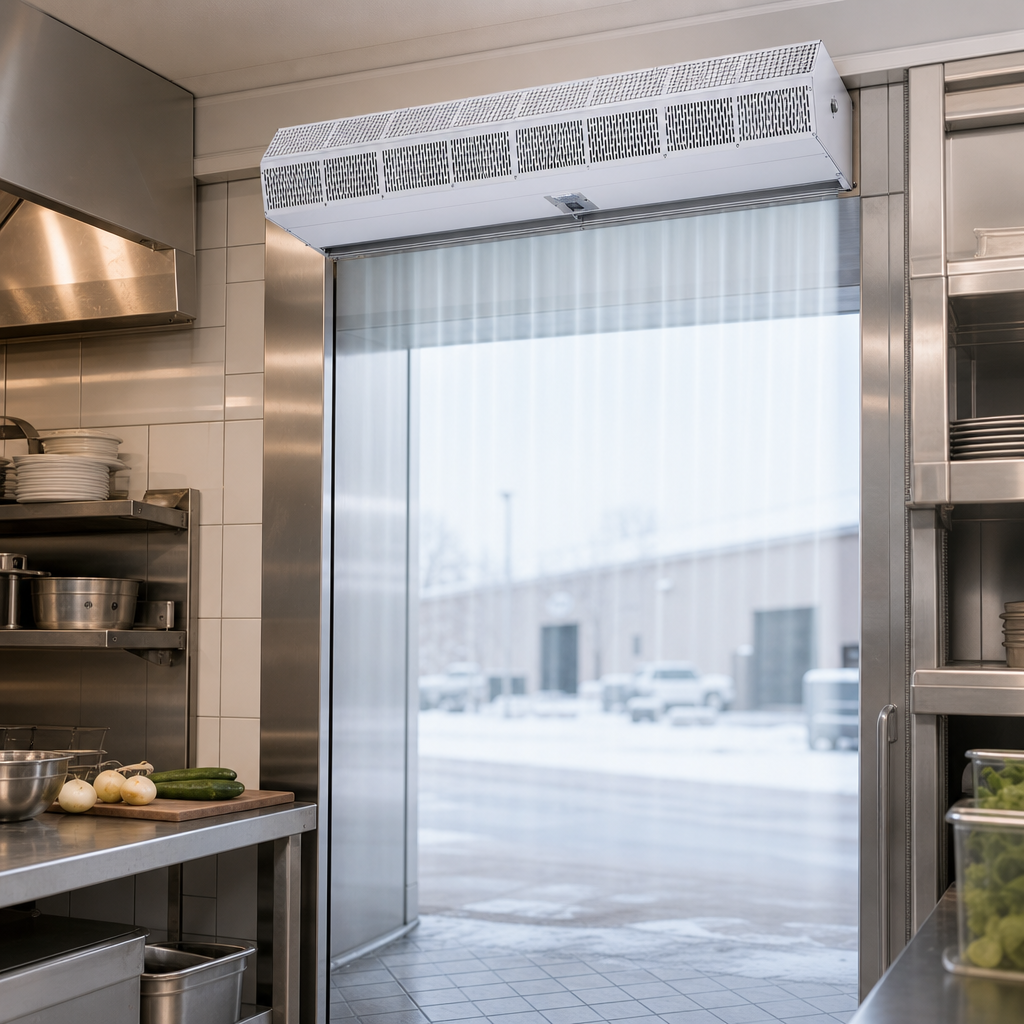

Ambient Unheated Operation

Provides environmental separation without added heat.

Ambient Unheated Operation

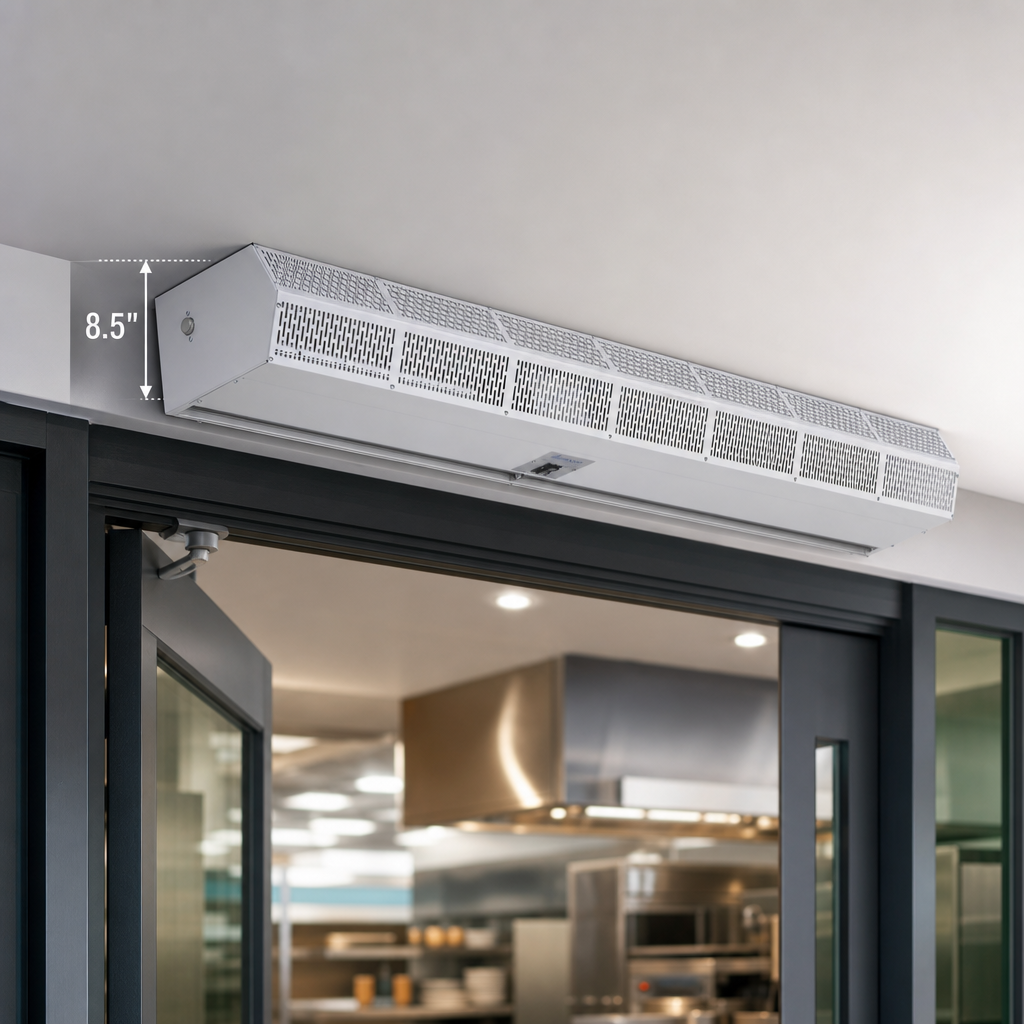

Low-Profile Cabinet

The compact 8.5-inch-high design helps the unit blend into the installation area.

Low-Profile Cabinet

Two-Speed Motor

Includes a 1/5 HP motor with two-speed operation for adjustable air delivery.

Factory-Installed Fan Speed Switch

Built-in switch simplifies operation and speed selection.

Wall And Top Mounting

Supports wall and top mounting for interior installation.

Powder-Coated Cabinet Options

Standard white or black powder-coated exterior is available, with optional stainless steel or custom color finishes.

Optional Washable Filter

A washable 1-inch aluminum filter is available as an option.

Made For Tall Openings

Suitable for doors up to 8 feet high for environmental separation and 7 feet for insect control.

Type Ambient (Unheated) Air Curtain
Style Low Profile
Installation Type Wall Mounted
Voltage 120 Volts
Amps 3.4 Amps
Watts 320 Watts
Hertz 60 Hz
Phase 1-Phase
Breaker Size 15 Amps
Controls Two-Speed Switch
Horsepower Per Motor 1/5 HP
Motors 1
Max Opening Height 8 Feet
Air Volume 1,632 CFM
Max Velocity At Nozzle 2,940 FPM
Average Outlet Velocity 1,702 FPM
Outlet Velocity Uniformity 95%
Finish Powder Coated
Country of Origin USA
Shipping Weight 72 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Warranty & Protection

5-year limited warranty on unheated models.

Documents

PDF Cutsheet PDF Download PDF Air curtain flyer PDF Download PDF Installation manual PDF Download PDF Replacement parts diagram PDF Download PDF Terms & conditions PDF Download PDF Warranty PDF Download

Frequently Asked Questions

No. This is an ambient, unheated model.
It is designed for mounting heights up to 8 feet for environmental separation and 7 feet for insect control.
This model uses 120 Volts, 1-Phase, 60 Hz power and draws 3.4 amps.
It supports wall and top mounting and is intended for interior installation only.
No. A washable 1-inch aluminum filter is optional.
Unheated models carry a 5-year limited warranty from the original shipment date.
