Berner Commercial Low Profile 8 48-Inch Ambient Air Curtain, Unheated, 1/5 HP, 120V, Wall/Top Mount

SKU: CLC08-1048A
$1,129.70
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Air Doors Berner Best Sellers Equipment Facility Equipment Kitchen Ventilation & Climate Control New Arrivals Restaurant Equipment

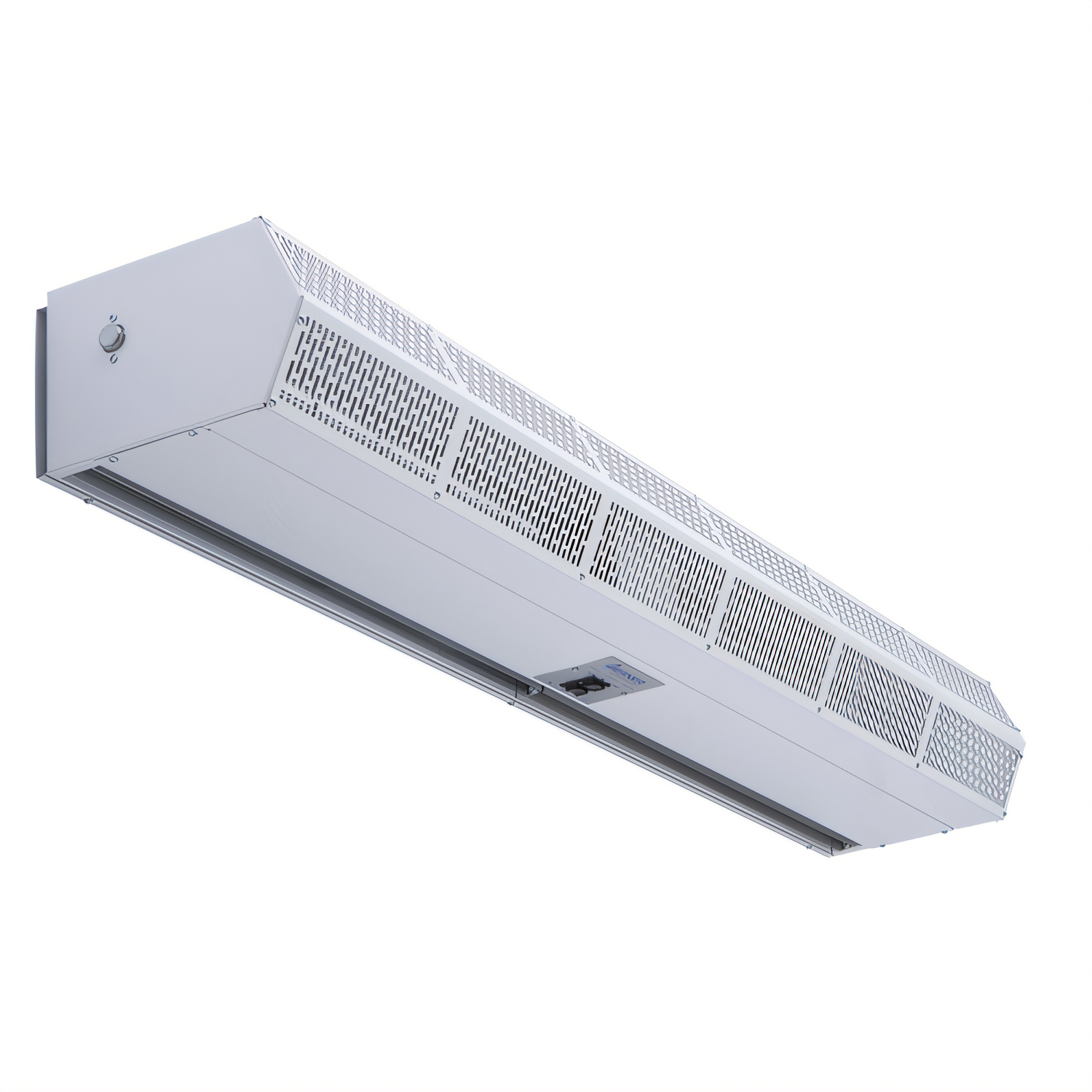

Berner Commercial Low Profile 8 48-Inch Ambient Air Curtain, Unheated, 1/5 HP, 120V, Wall/Top Mount

Interior mount for doors up to 8 ft high

Keep conditioned air in and insects out with a compact, unheated air curtain designed for 8-foot doorways.

  • Ambient, unheated air curtain for environmental separation and insect control.
  • Low-profile cabinet fits tight openings at just 8.5 inches high and 13.5 inches deep.
  • One 1/5 hp two-speed motor provides adjustable airflow performance.
  • Wall and top mounting options with wall plate included; no assembly required.
  • Optional washable 1-inch aluminum filter and multiple cabinet finish options.
  • Made in USA with a 5-year limited warranty on unheated models.

Product Weight:

61.0 lb

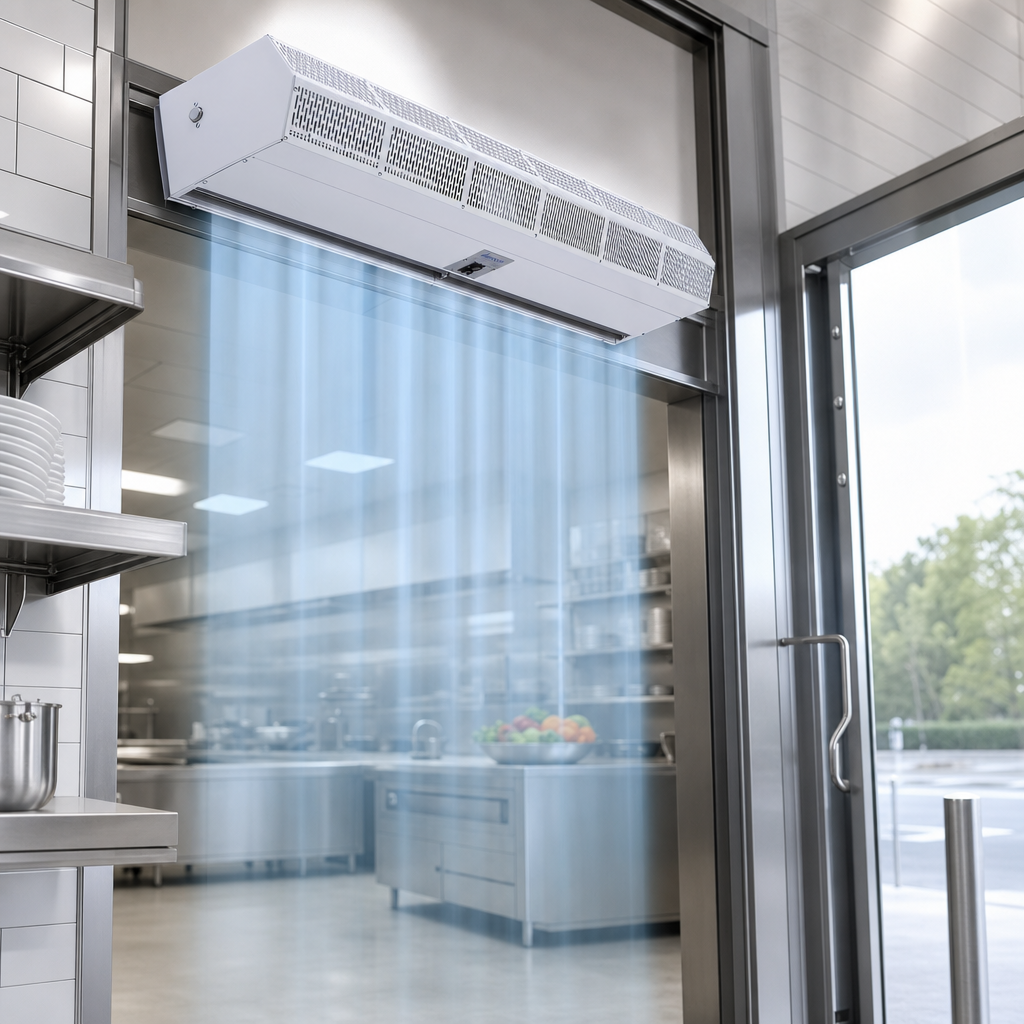

Ambient / Unheated Operation

Creates an air barrier without heat, making it ideal for energy savings and insect control at door openings.

Ambient / Unheated Operation

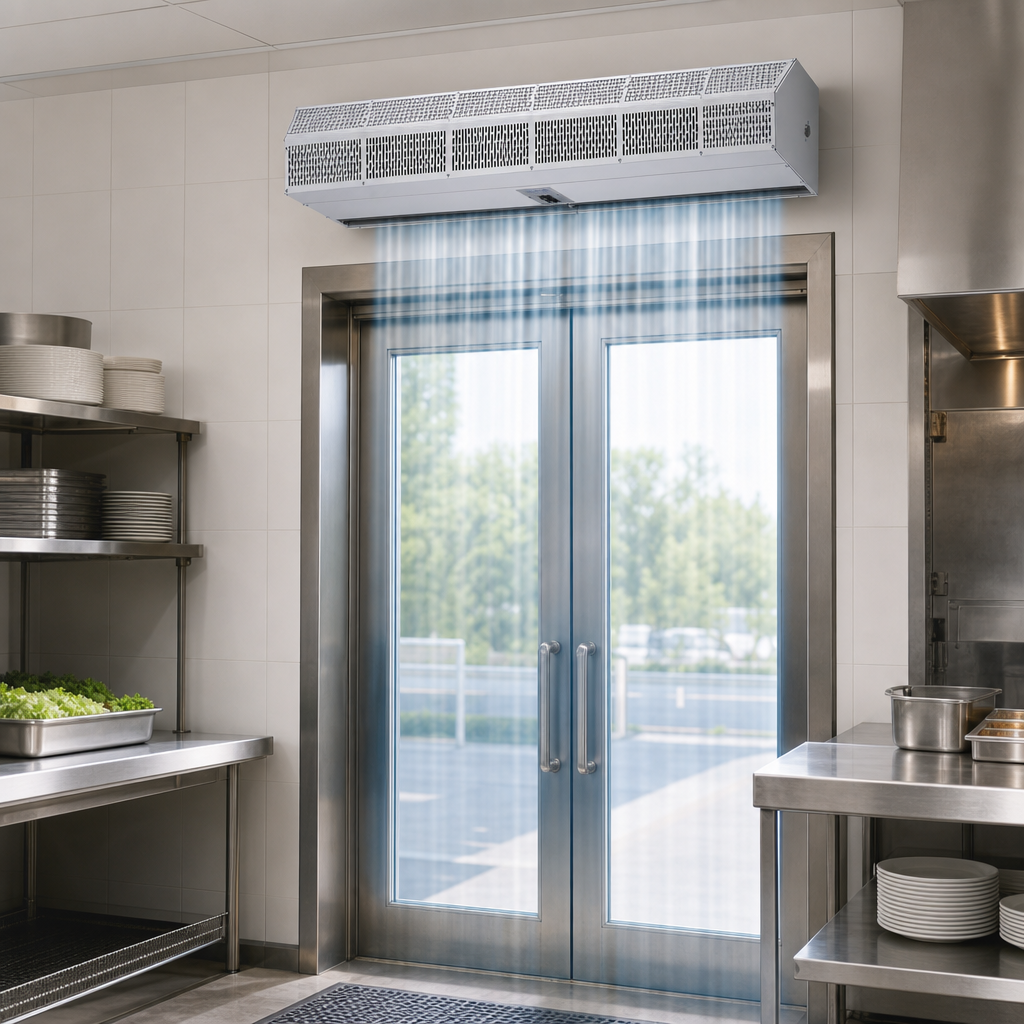

Designed for 8-Foot Mounting Heights

Suitable for environmental separation at doors up to 8 feet high and insect control at 7 feet.

Designed for 8-Foot Mounting Heights

One 1/5 HP Two-Speed Motor

Single motor design delivers airflow performance with low and high speed settings.

Factory-Installed Fan Speed Switch

Built-in fan speed control simplifies operation right out of the box.

Low-Profile Cabinet

Compact 8.5 inch high by 13.5 inch deep construction helps the unit fit in limited spaces.

Wall and Top Mounting

Supports wall and top mounting, with a wall plate included for easier installation.

Optional Washable Filter

A washable 1-inch aluminum filter is available as an option.

Made in USA

Manufactured in the USA.

Type Air Curtain
Style Low Profile
Heat Type Unheated
Installation Type Wall Mounted
Maximum Opening Height 8 Feet
Motors 1
Horsepower Per Motor 1/5 HP
Controls Fan Speed Switch
Voltage 120 Volts
Amps 3.4 Amps
Phase 1-Phase
Hertz 60 Hz
Breaker Size 15 Amps
Color White
Finish Powder Coated
Country of Origin USA
Shipping Weight 61 Pounds
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Warranty & Protection

5-year limited warranty on unheated models.

Documents

PDF Cutsheet PDF Download PDF Warranty PDF Download PDF Air curtain flyer PDF Download PDF Terms & conditions PDF Download PDF Replacement parts diagram PDF Download PDF Installation manual PDF Download

Frequently Asked Questions

No. This model is ambient and unheated.
It is designed for mounting heights up to 8 feet for environmental separation and 7 feet for insect control.
This model uses one 1/5 hp two-speed motor.
The unit supports wall and top mounting, and a wall plate is included.
Yes. The cabinet is available in white or black powder coat, with optional custom color or stainless steel, and an optional washable 1-inch aluminum filter.
Unheated models carry a 5-year limited warranty from the original date of shipment.
