Berner

Berner Commercial Low Profile 8 Heated Electric Air Curtain, 36 Inch, 1/5 HP, Interior Mount

SKU: CLC08-1036E
$2,236.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Air Doors Berner Best Sellers Equipment Facility Equipment Kitchen Ventilation & Climate Control New Arrivals Restaurant Equipment

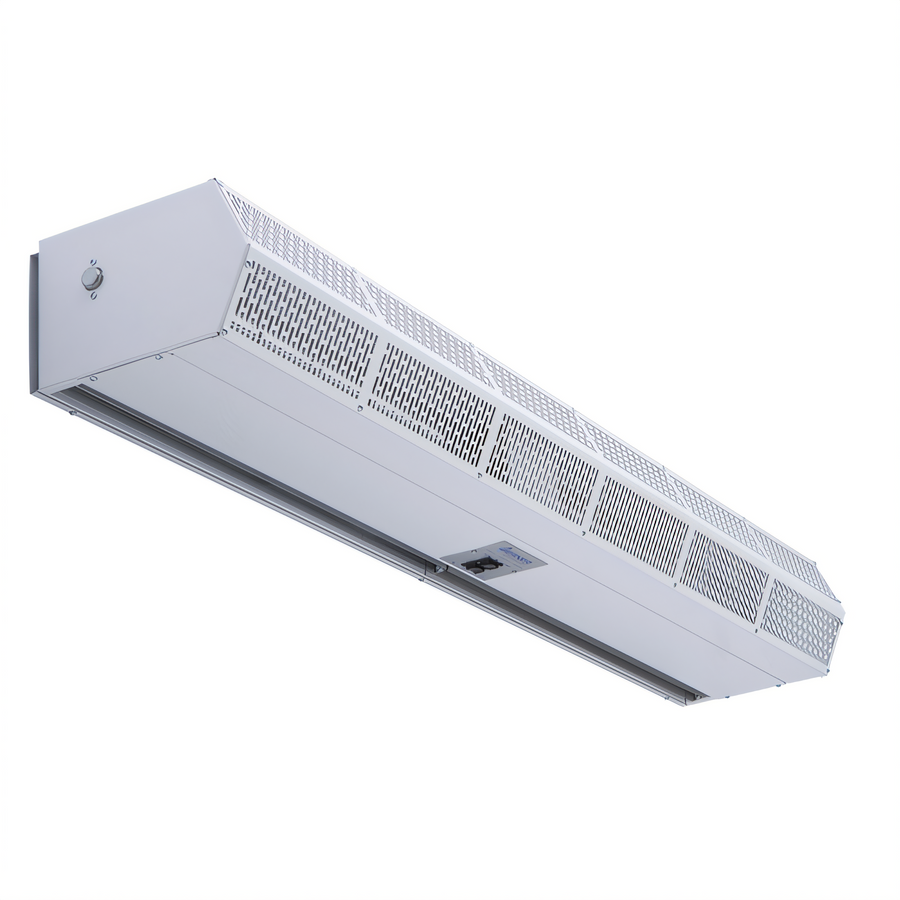

Berner Commercial Low Profile 8 Heated Electric Air Curtain, 36 Inch, 1/5 HP, Interior Mount

Low-profile, interior-mount model for doors up to 8 ft high.

This compact 36-inch heated air curtain helps hold conditioned air inside while covering doorways up to 8 feet high.

  • 36-inch heated air curtain for service doors, employee entrances, and similar openings.
  • Low-profile cabinet stands just 8.5 inches high for a cleaner install above the doorway.
  • One 1/5 HP, two-speed motor with a factory-installed fan speed switch.
  • Designed for doors up to 8 feet high for environmental separation and 7 feet for insect control.
  • Wall and top mounting with included wall plate; interior mounting only and no assembly required.
  • White or black powder-coated cabinet; custom colors and stainless steel are also available.
  • Optional washable 1-inch aluminum filter is available.
  • cULus listed and made in the USA.

Product Weight:

58.0 lb

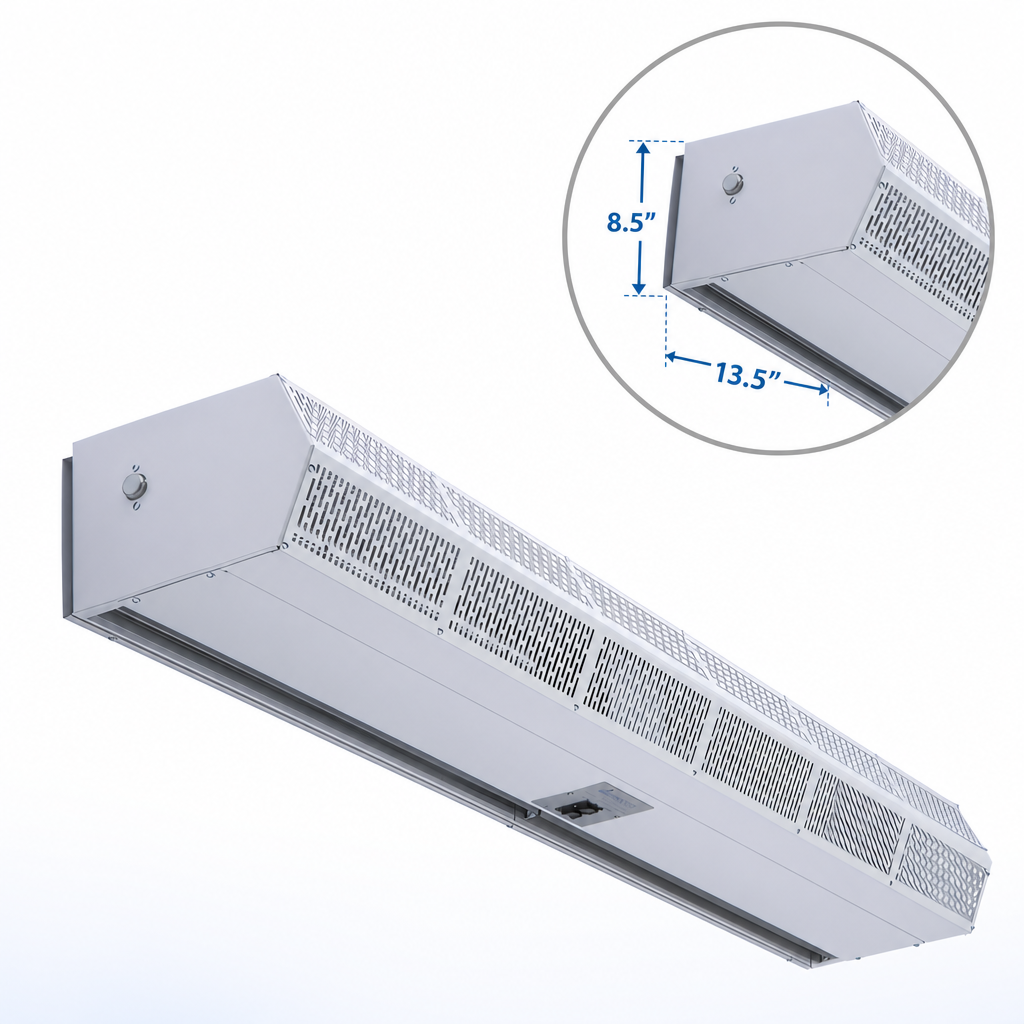

Low Profile Cabinet

Compact cabinet measures 8.5 inches high x 13.5 inches deep for installation in tighter overhead spaces.

Low Profile Cabinet

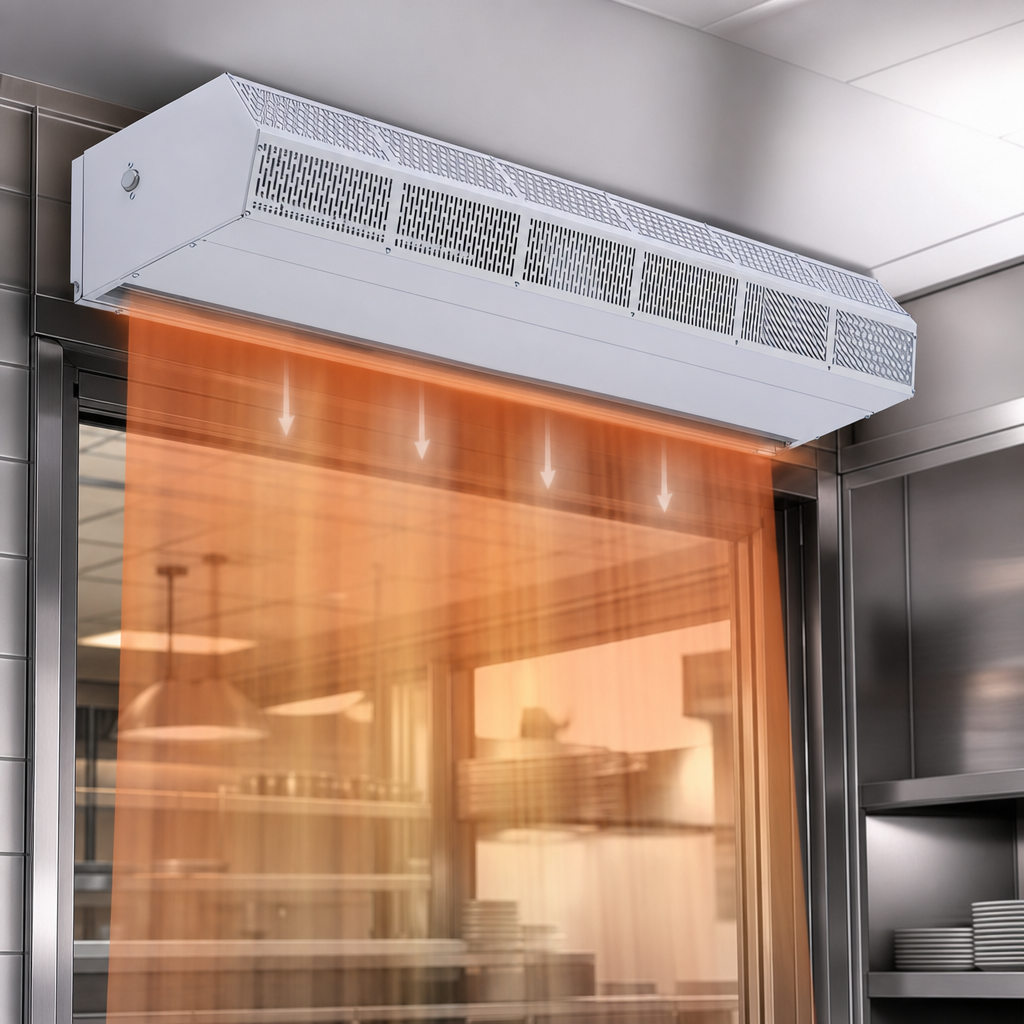

Electric Heat

Electric heat helps create a comfortable air barrier at the doorway.

Electric Heat

Two-Speed Motor

Includes one 1/5 HP motor with two-speed operation and a factory-installed fan speed switch.

Door Coverage

Designed for mounting heights up to 8 feet for environmental separation and 7 feet for insect control.

Mounting

Wall and top mounting are supported; wall plate is included and interior mounting only is specified.

Finish Options

Standard cabinet finish is white or black powder coat, with custom colors and stainless steel available.

Optional Filter

Optional 1-inch aluminum filter is washable for easier maintenance.

Warranty and Compliance

Heated models carry a two-year parts warranty; the unit is cULus listed and made in the USA.

Type Air Curtain
Style Low Profile
Installation Type Wall Mounted
Heat Type Electric
Motors 1
Motor Speed 2-Speed
Horsepower Per Motor 1/5 HP
Max Opening Height 8 Feet
Finish Powder Coated
Country of Origin USA
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Warranty & Protection

2-year parts warranty on heated models.

Documents

PDF Cutsheet PDF Download PDF Air curtain flyer PDF Download PDF Warranty PDF Download PDF Installation manual PDF Download PDF Terms & conditions PDF Download PDF Replacement parts diagram PDF Download

Frequently Asked Questions

It is designed for doors up to 8 feet high for environmental separation and 7 feet high for insect control.
This model uses electric heat.
It is specified for interior mounting only.
The standard cabinet is available in white or black powder-coated finish, with custom colors and stainless steel also available.
Heated models carry a two-year parts warranty from the original date of shipment.
Yes, a 1-inch aluminum filter is available as an optional washable filter.
