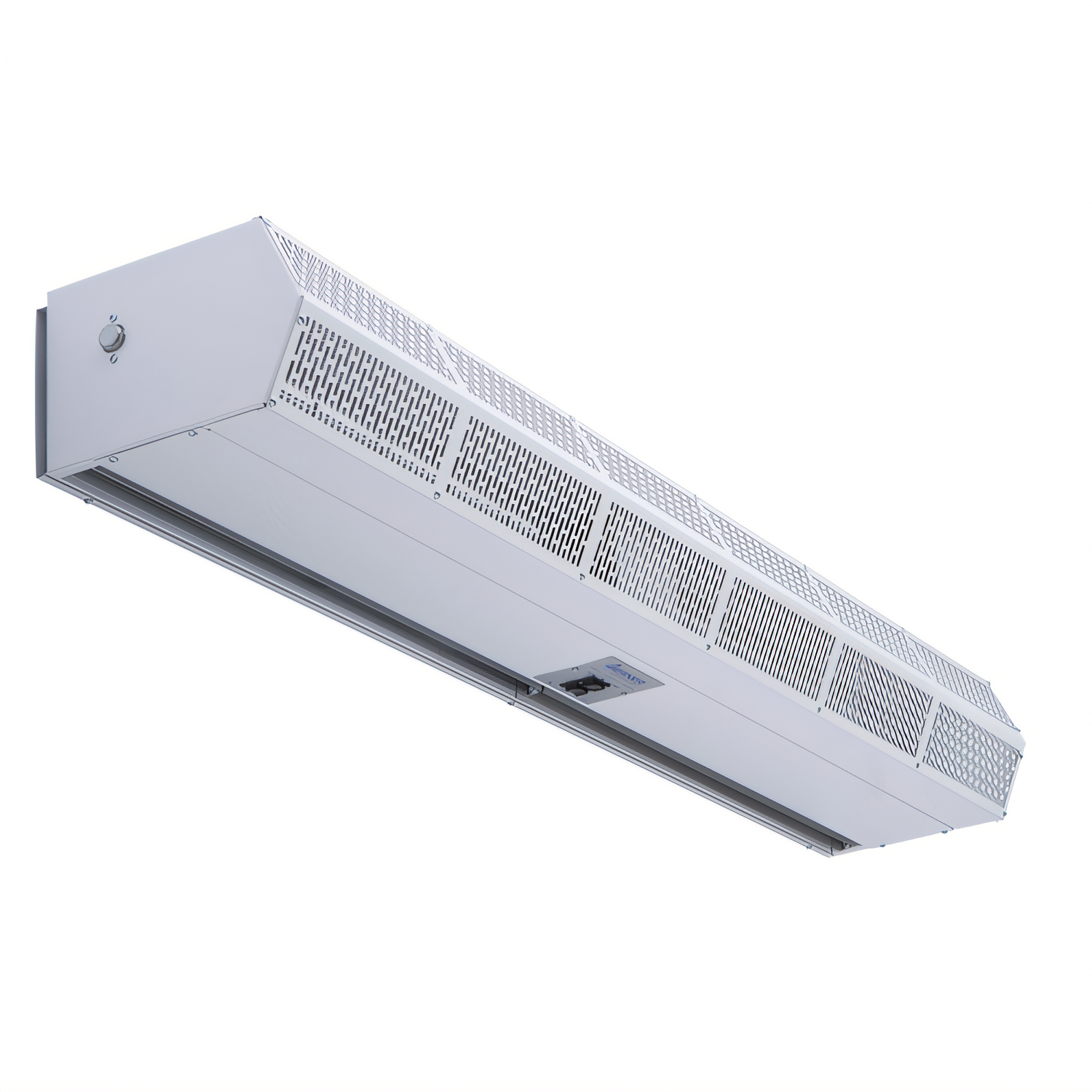

Berner Commercial Low Profile 8 36-Inch Ambient Air Curtain, 120V, 1/5 HP

Interior wall or top mount; for openings up to 8 ft high

This low-profile ambient air curtain helps separate indoor and outdoor air at openings up to 8 feet high without adding heat.

  • Ambient, unheated design for environmental separation and insect control support.
  • Fits doors up to 8 feet high and installs on the interior wall or top mount.
  • Compact 8.5-inch high cabinet with a 36-inch class opening width.
  • Single 1/5 HP two-speed motor with factory-installed fan speed switch.
  • Standard white powder-coated exterior; black, stainless steel, and custom color options available.
  • Optional washable 1-inch aluminum filter available.
  • Backed by a 5-year limited warranty on ambient models.

Product Weight:

52.0 lb

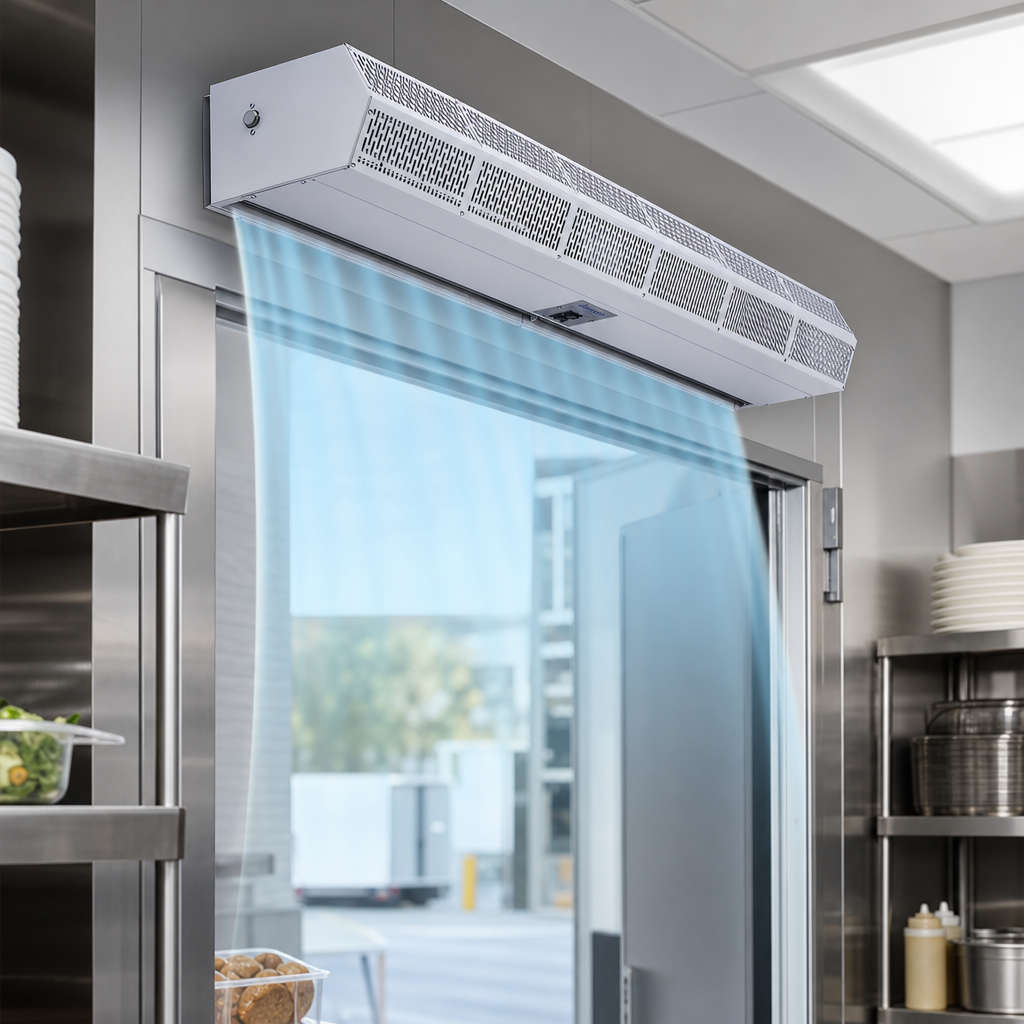

Ambient, Unheated Operation

Provides air separation without heat, making it ideal for energy savings and comfort at doorways.

Ambient, Unheated Operation

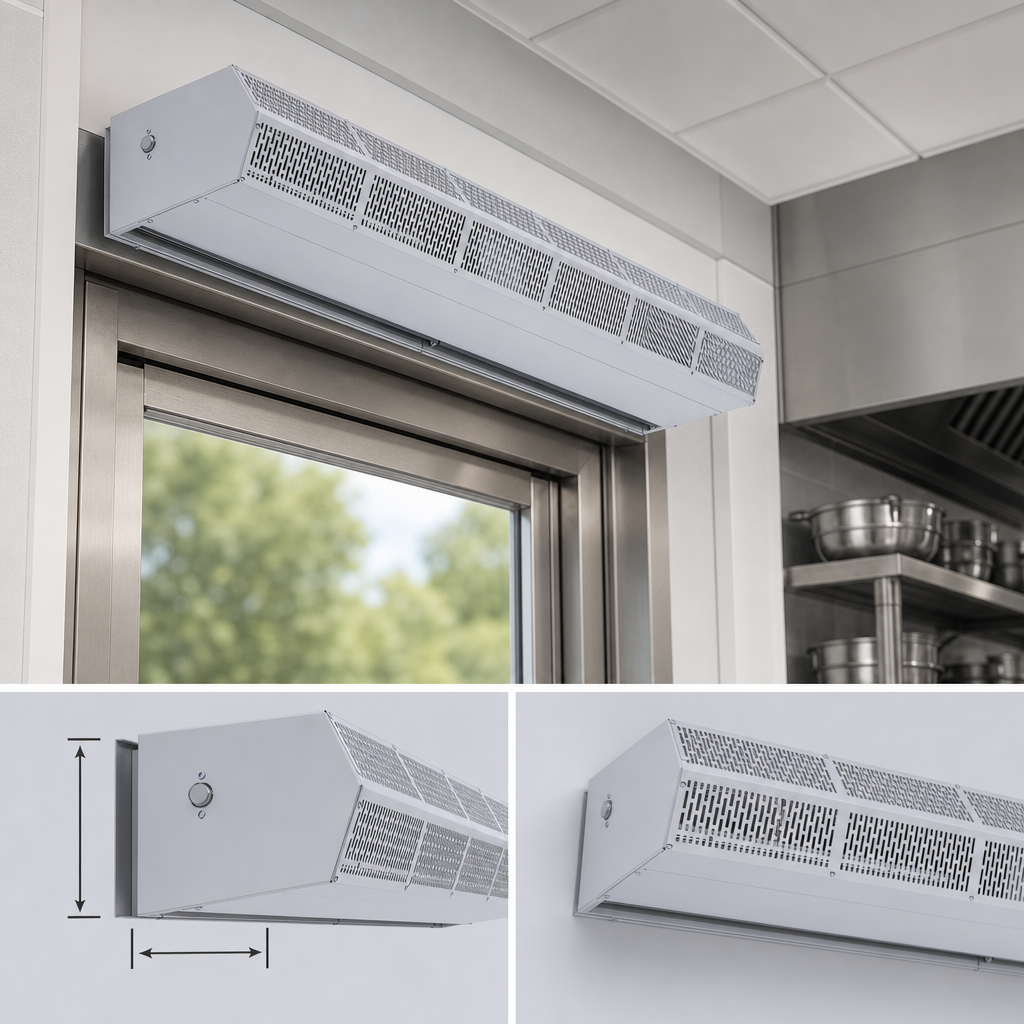

Low-Profile Cabinet

Slim 8.5-inch high by 13.5-inch deep design helps the unit fit tight architectural spaces.

Low-Profile Cabinet

1/5 HP Two-Speed Motor

Single motor design delivers adjustable airflow with factory-installed fan speed control.

For Openings Up To 8 Feet High

Designed for mounting heights up to 8 feet for environmental separation and 7 feet for insect control.

Interior Wall or Top Mounting

Built for interior mounting with wall plate and top-mount inserts for flexible installation.

Standard Powder-Coated Finish

Standard white powder-coated cabinet is supplied; black, stainless steel, and custom colors are available.

Optional Washable Filter

A washable 1-inch aluminum filter is available as an option.

5-Year Limited Warranty

Ambient models are covered by a five-year limited warranty from the date of shipment.

Type Ambient Air Curtain
Style Low Profile
Installation Type Wall Mounted
Maximum Opening Height 8 Feet
Voltage 120 Volts
Amps 3.4 Amps
Hertz 60 Hz
Phase 1-Phase
Horsepower Per Motor 1/5 HP
Motor Count 1
Controls Fan Speed Switch
Color White
Finish Powder Coated
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Weight 52 lb.

Certifications & Compliance

Warranty & Protection

5-year limited warranty on ambient models.

Documents

PDF Cutsheet PDF Download PDF Air curtain flyer PDF Download PDF Terms & conditions PDF Download PDF Installation manual PDF Download PDF Warranty PDF Download PDF Replacement parts diagram PDF Download

Frequently Asked Questions

No. This model is an ambient, unheated air curtain.
It is designed for mounting heights up to 8 feet for environmental separation and 7 feet for insect control.
It is intended for interior wall or top mounting, and a wall plate is included.
No. The flyer states that no assembly is required.
Ambient models include a 5-year limited warranty.
Yes. An optional 1-inch washable aluminum filter is available.
