Berner Commercial Low Profile 8 Heated Electric Air Curtain, 30-Inch, Interior Mount Only

SKU: CLC08-1030E
$2,087.80
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Air Doors Berner Best Sellers Equipment Facility Equipment Kitchen Ventilation & Climate Control New Arrivals Restaurant Equipment

Berner Commercial Low Profile 8 Heated Electric Air Curtain, 30-Inch, Interior Mount Only

Low-profile, electric-heated unit for doors up to 8 ft high

A compact heated air curtain that helps maintain comfortable indoor conditions while fitting a slim profile above entryways.

  • 8.5-inch high low-profile cabinet is designed for space-constrained entrances.
  • Electric heated air curtain for doors up to 8 feet high for environmental separation.
  • One 1/5 HP, two-speed motor with a factory-installed fan speed switch.
  • Interior mounting only with wall and top mounting support.
  • No assembly required for faster installation.
  • Optional washable aluminum filter and multiple control package options available.
  • Made in USA.

Product Weight:

52.0 lb

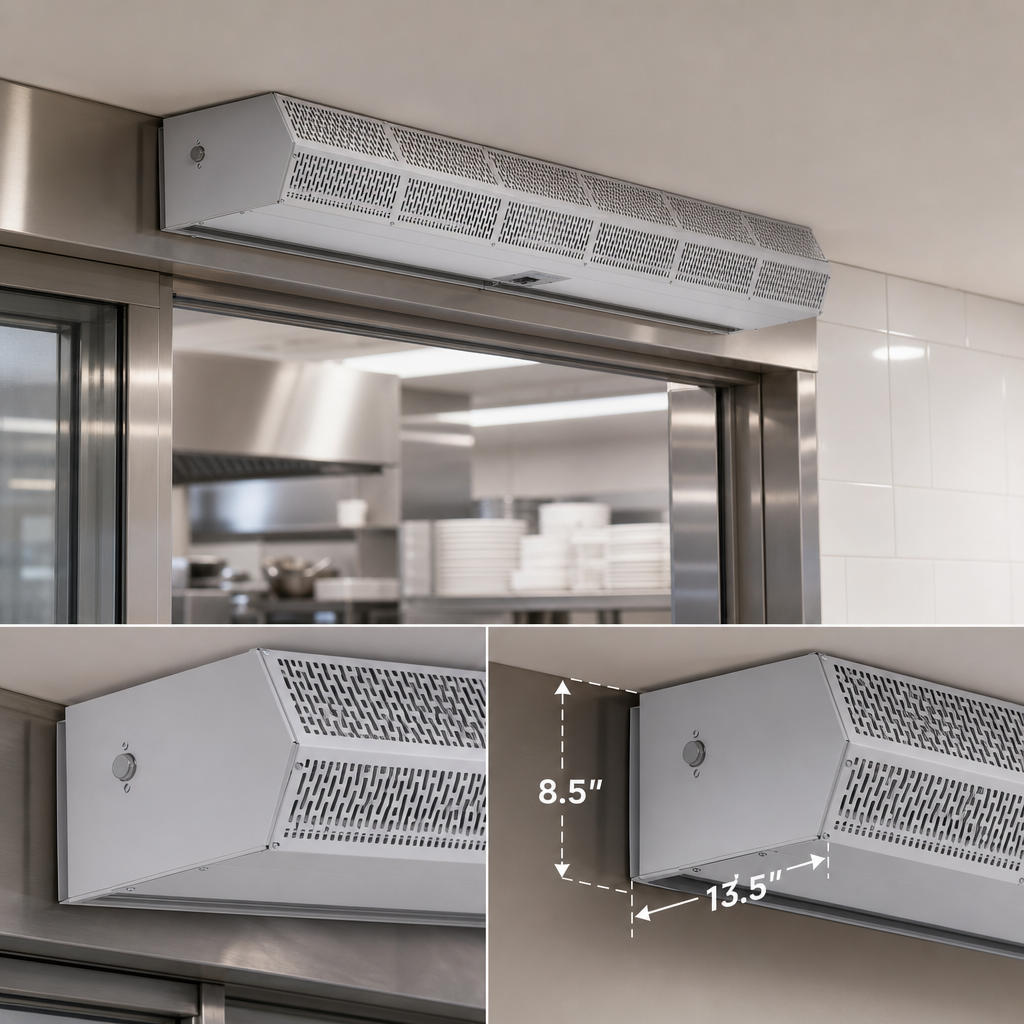

Low-Profile Cabinet

Compact 8.5-inch-high by 13.5-inch-deep cabinet fits tighter entrance spaces.

Low-Profile Cabinet

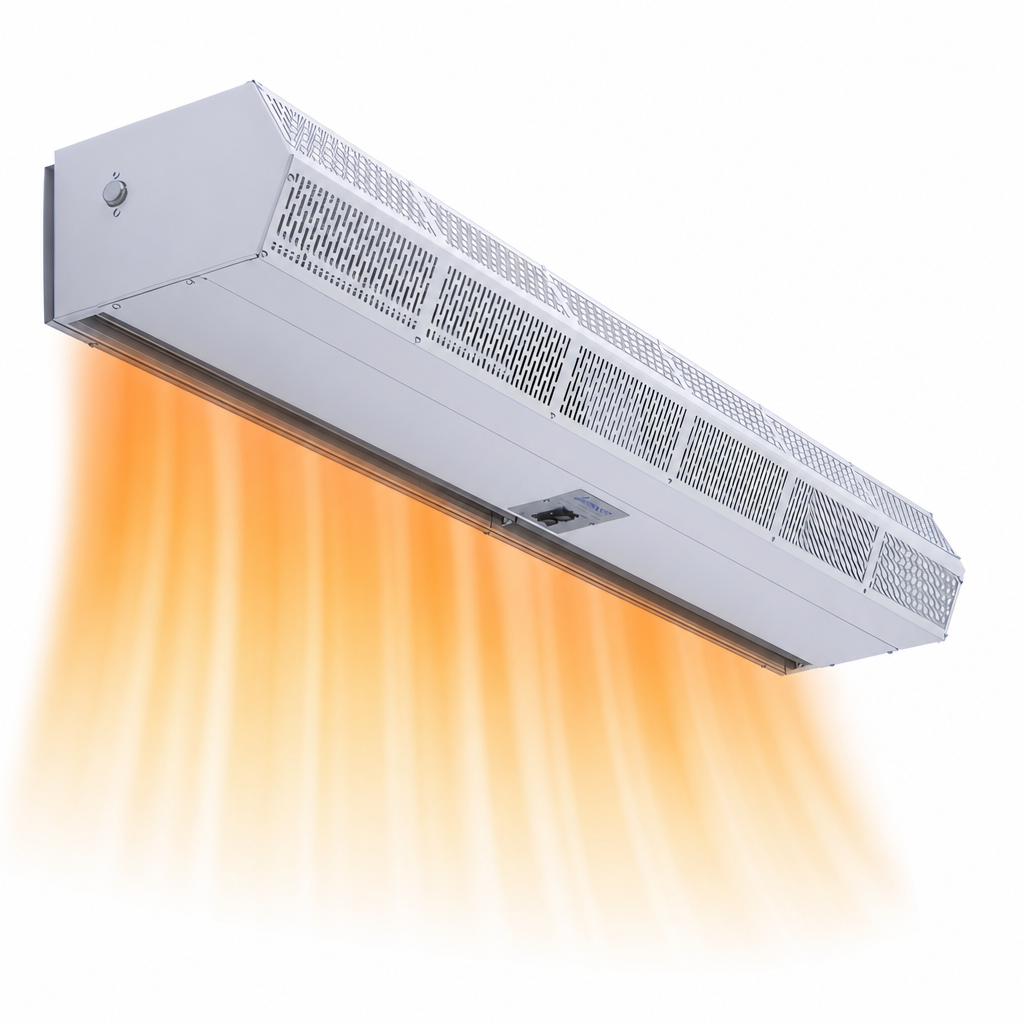

Electric Heat

Heated air curtain configuration with electric heat.

Electric Heat

1/5 HP Two-Speed Motor

Includes one motor with two-speed operation and a factory-installed fan speed switch.

Interior Mount Only

Designed for interior installation only.

Mounting Height Coverage

Suitable for mounting heights up to 8 feet for environmental separation and 7 feet for insect control.

Wall and Top Mounting

Wall plate is included, and the unit also supports top mounting via threaded inserts.

Optional Washable Filter

A 1-inch aluminum inlet filter is available as an optional washable accessory.

Control Options

Basic and Deluxe control packages are available, along with building automation and door controller versions.

Finish Options

Standard white or black powder-coated exterior with custom colors and stainless steel available.

Made in USA

Manufactured in the United States.

Type Heated Air Curtain
Style Low Profile
Installation Type Wall Mounted
Heat Type Electric
Motor Count 1
Motor Horsepower 1/5 HP
Motor Speed 2-Speed
Max Opening Height 8 Feet
Shipping Weight 52 Pounds
Country of Origin USA
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Warranty & Protection

2 years on heated models; 5 years on unheated models.

Documents

PDF Cutsheet PDF Download PDF Installation manual PDF Download PDF Warranty PDF Download PDF Air curtain flyer PDF Download PDF Terms & conditions PDF Download PDF Replacement parts diagram PDF Download

Frequently Asked Questions

It is designed for mounting heights up to 8 feet for environmental separation and 7 feet for insect control.
Yes, it uses electric heat.
No. This model is for interior mounting only.
No assembly is required.
Heated models carry a 2-year warranty from the original shipment date.
