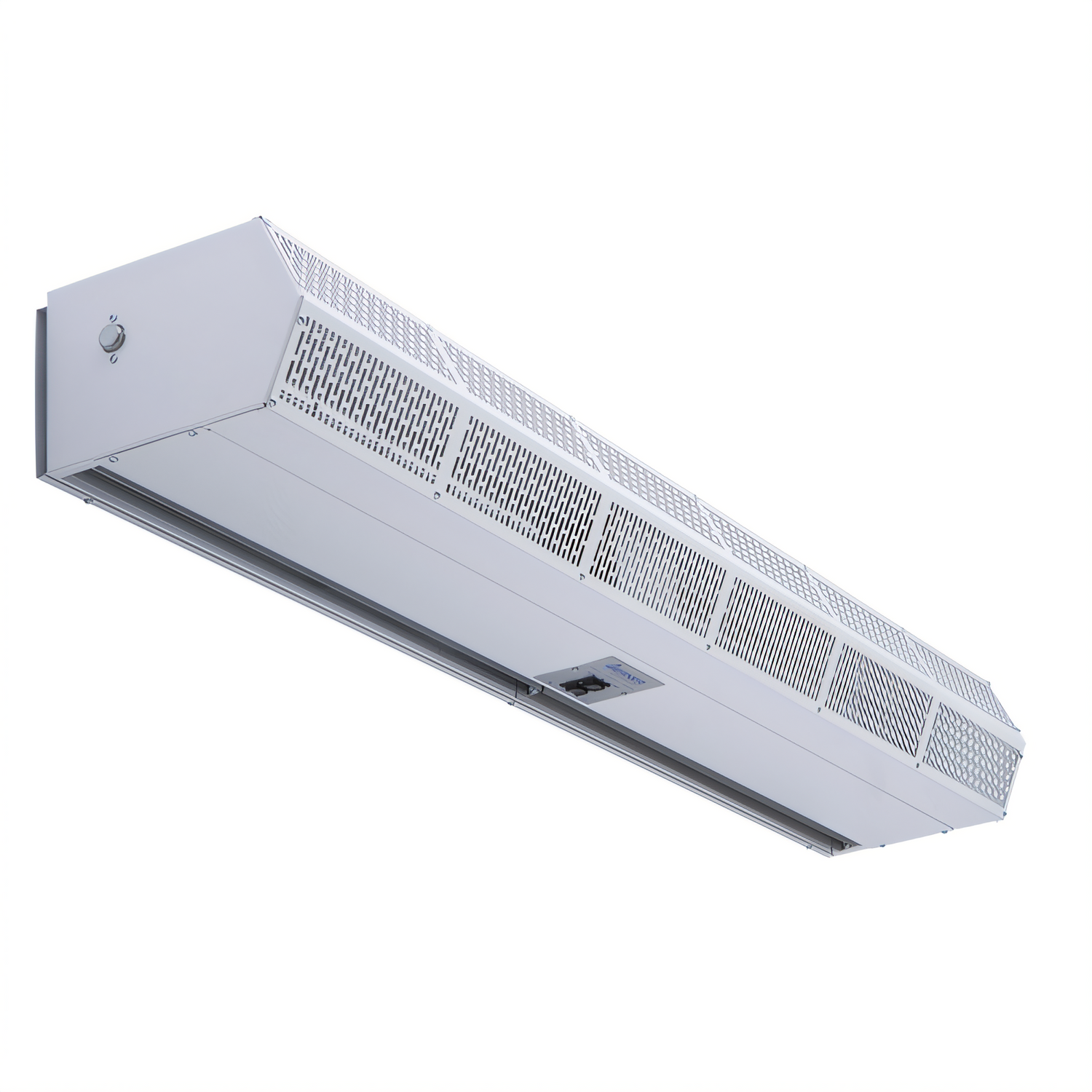

Berner Commercial Low Profile 8 Ambient Air Curtain for 30-Inch Doors, Unheated, 1/5 HP, 120V

Interior mount only; wall or top mounting.

A compact, unheated air curtain that helps keep conditioned air in and outside air out at 30-inch doorways.

  • Ambient, unheated air curtain for 30-inch openings and interior mounting.
  • One 1/5 HP two-speed motor with a factory-installed fan speed switch.
  • Designed for mounting heights up to 8 feet for environmental separation and 7 feet for insect control.
  • Low-profile cabinet fits tight overhead spaces and includes wall plate and top-mount capability.
  • Standard white powder-coated cabinet; black, stainless steel, and custom colors are available.
  • Optional washable filter and multiple control package options help tailor the install.
  • 5-year limited warranty on unheated models; made in USA.

Product Weight:

46.0 lb

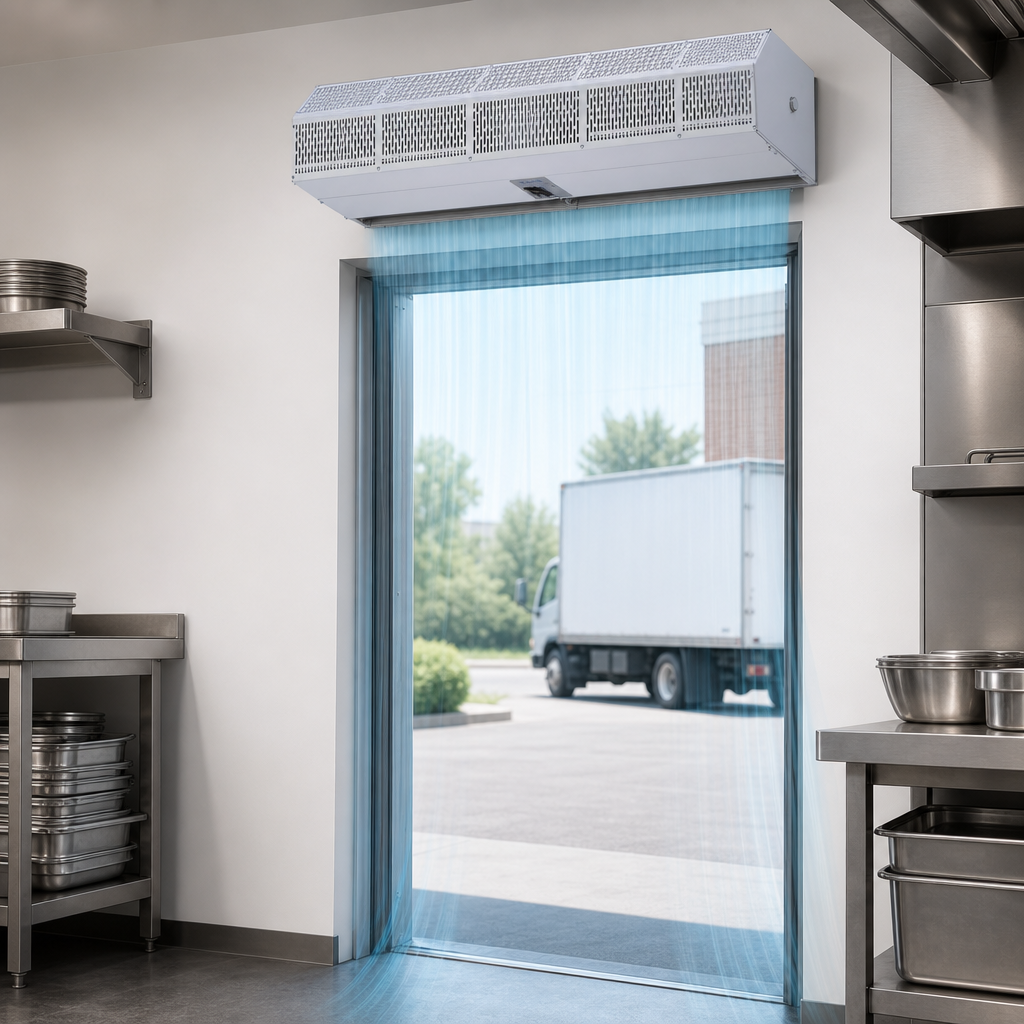

Ambient, Unheated Operation

Air-only separation with no heat, ideal for standard doorway applications.

Ambient, Unheated Operation

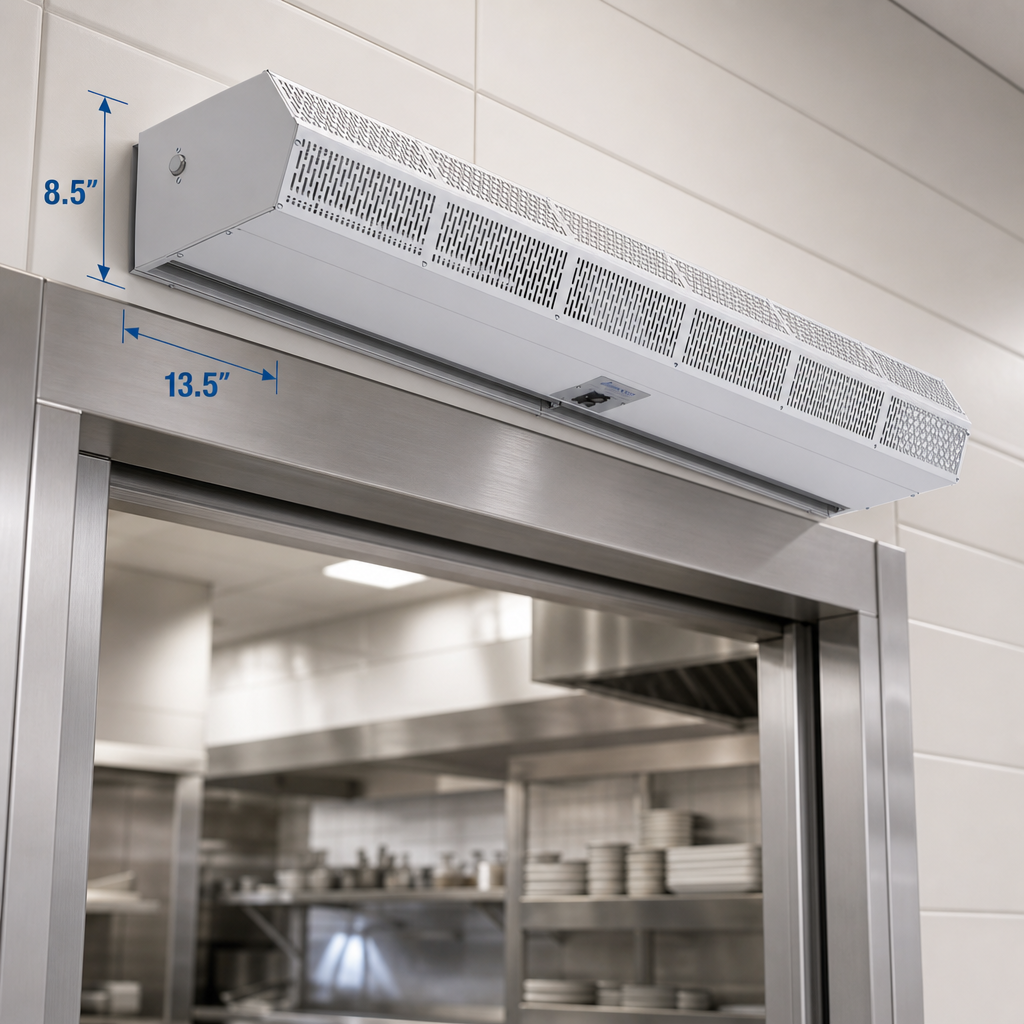

Low-Profile Cabinet

Compact 8.5-inch high by 13.5-inch deep housing fits tight overhead spaces.

Low-Profile Cabinet

One 1/5 HP Two-Speed Motor

Single motor design with a factory-installed fan speed switch for adjustable airflow.

Rated For Up To 8-Foot Mounting Heights

Designed for environmental separation at mounting heights up to 8 feet and insect control up to 7 feet.

Wall and Top Mounting

Wall plate is included, and 1/4-inch threaded inserts support top mounting; interior mounting only.

White Powder-Coated Cabinet

Standard white finish with black, stainless steel, and custom color options available.

Optional Washable Filter

A 1-inch aluminum washable filter is available for easier maintenance.

No Assembly Required

Ships ready to install with bottom access to internal components.

Control Packages Available

Basic and deluxe control packages, plus building automation and door controller versions, are available.

Made in USA

Manufactured in the United States.

Type Ambient Air Curtain
Style Low Profile
Installation Type Wall Mounted
Opening Width 30 Inches
Max Opening Height 8 Feet
Horsepower Per Motor 1/5 HP
Motors 1
Controls Two-Speed
Voltage 120 Volts
Phase 1-Phase
Hertz 60 Hz
Amps 3.4 Amps
Air Volume 670 CFM
Max Velocity At Nozzle 3,071 FPM
Average Outlet Velocity 1,478 FPM
Outlet Velocity Uniformity 89%
Sound Level 53/54 dBA at 10 Feet
Color White
Finish Powder Coated
Country of Origin USA
Shipping Weight 46 Pounds
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Warranty & Protection

5-year limited warranty on unheated models.

Documents

PDF Cutsheet PDF Download PDF Terms & conditions PDF Download PDF Replacement parts diagram PDF Download PDF Air curtain flyer PDF Download PDF Warranty PDF Download PDF Installation manual PDF Download

Frequently Asked Questions

It is designed for mounting heights up to 8 feet for environmental separation and 7 feet for insect control.
No. This is an ambient, unheated air curtain.
It uses one 1/5 HP two-speed motor with a factory-installed fan speed switch.
Yes. It supports wall and top mounting, and it is intended for interior mounting only.
One motor is rated at 53/54 dBA low/high speed when measured 10 feet from the unit in a free field.
It includes a 5-year limited warranty on unheated models from the original shipment date.
