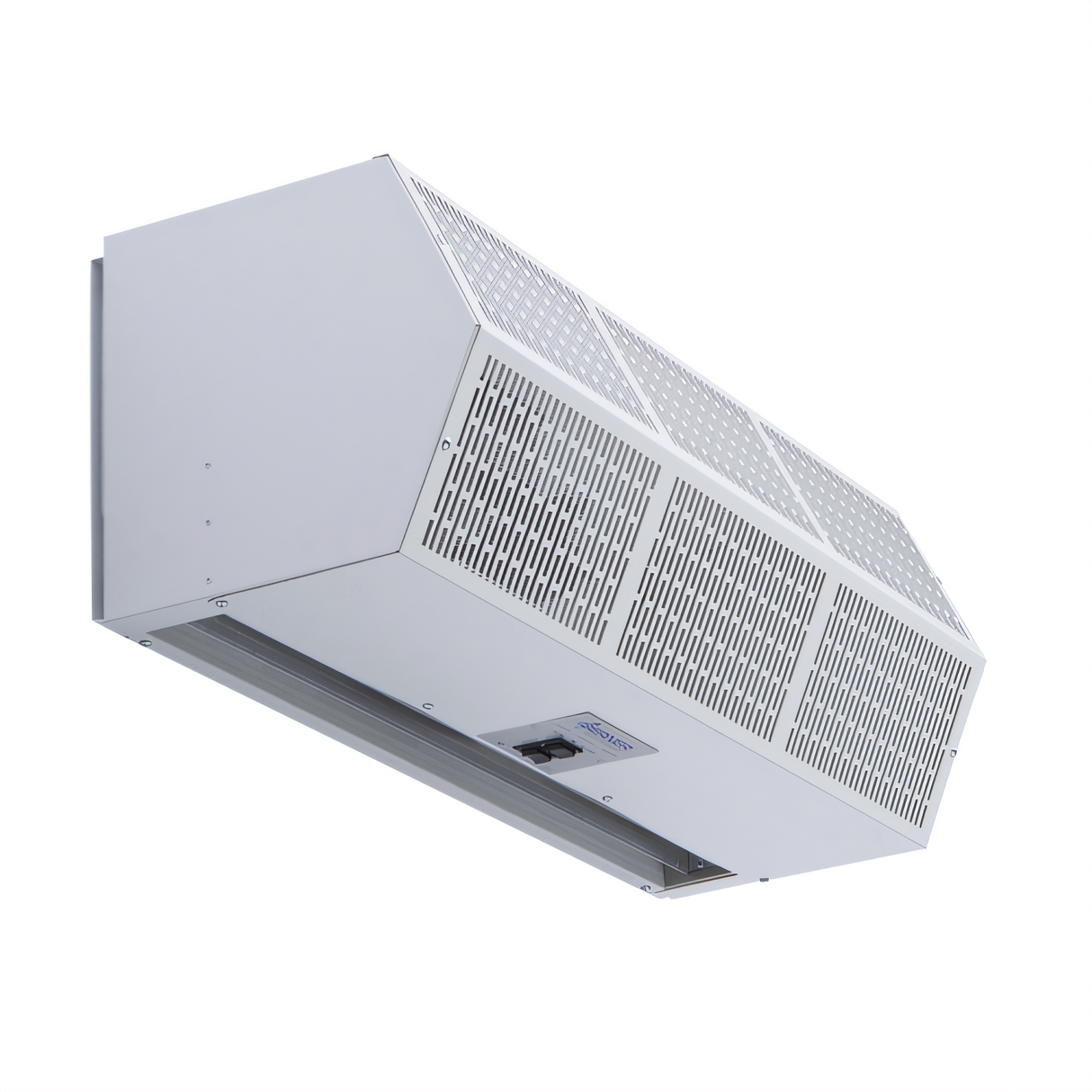

Berner Commercial High Performance 10 120-Inch Heated Electric Air Curtain with 3 Motors

Indoor Mounting Only, For Openings Up to 10 Feet High

Built for large commercial doorways, this heated air curtain uses three 1/2 hp motors and 42 kW electric heat to help hold conditioned air inside.

  • 120-inch heated air curtain for large commercial door openings.
  • Three 1/2 hp three-speed motors provide strong, adjustable airflow.
  • 42 kW electric heat helps maintain comfort at the doorway.
  • Designed for openings up to 10 feet high and indoor mounting only.
  • Wall and top mounting options with no assembly required.
  • Aluminum exterior with white or black powder-coated finish options.

Product Weight:

221.0 lb

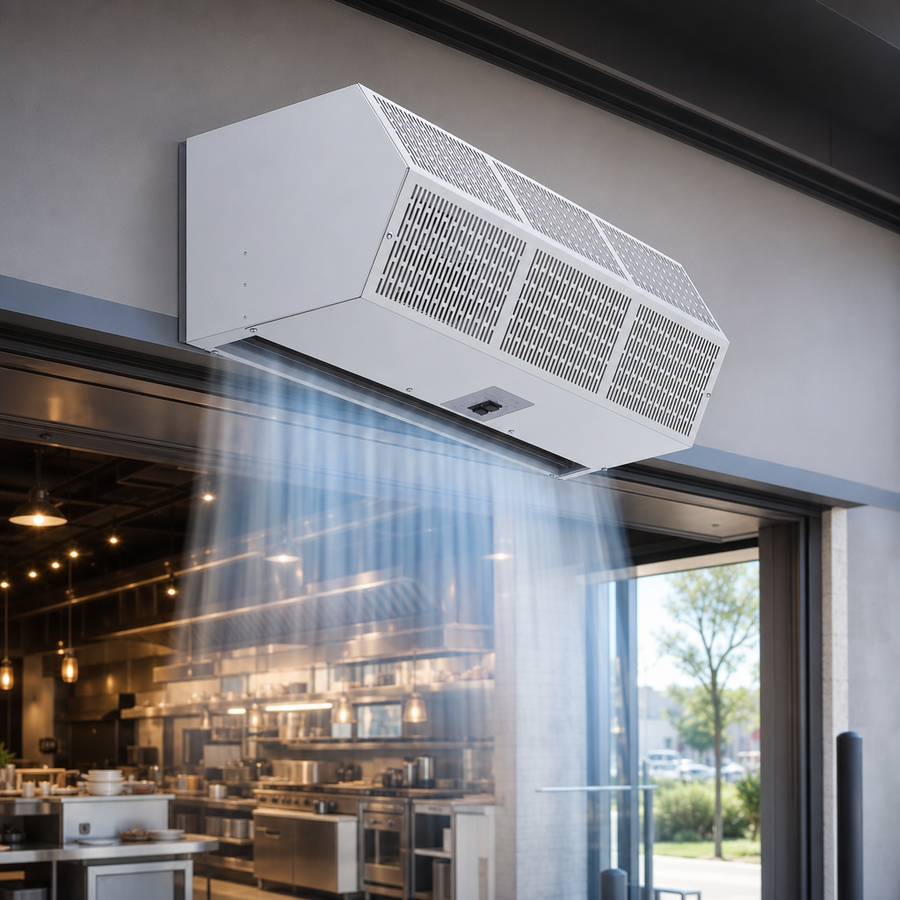

High Performance Series

Commercial air curtain designed for service doors, employee entrances, main entrances, conveyors, and shipping and receiving openings.

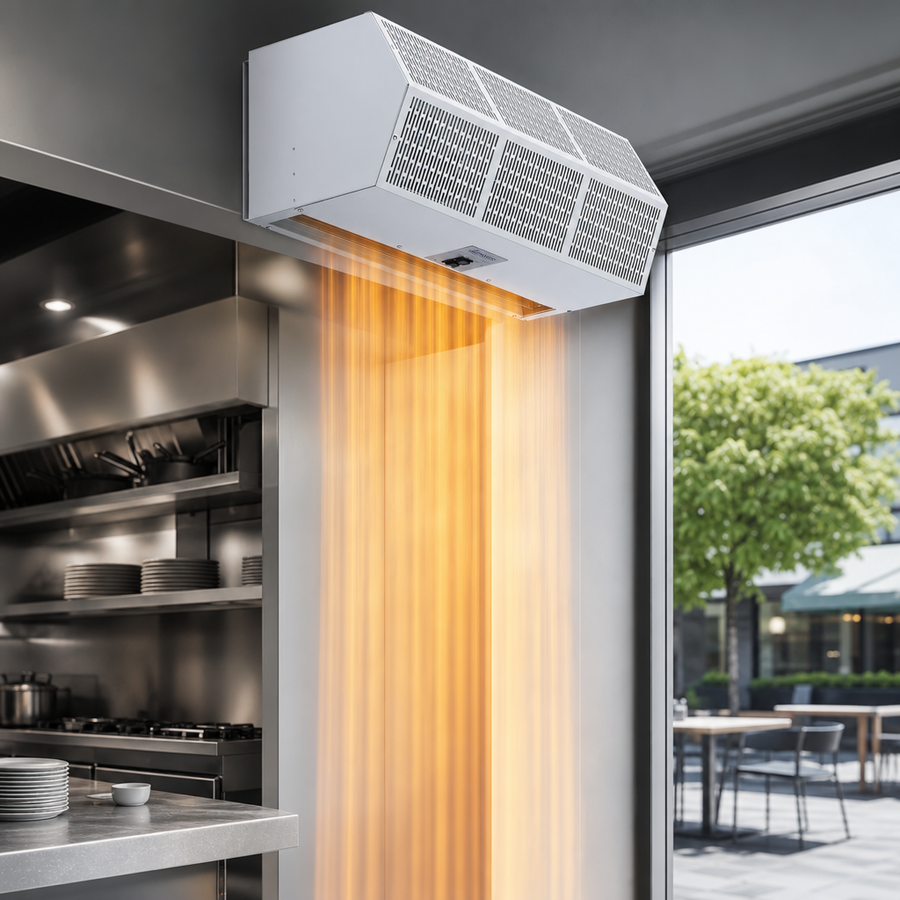

Electric Heat

Provides 42.0 kW of electric heat for heated air separation at the doorway.

Three-Speed Airflow

Uses three 1/2 hp motors with three-speed operation to deliver consistent airflow across the opening.

Door Coverage

Suitable for mounting heights up to 10 feet high for environmental separation and 8 feet for insect control.

Indoor Wall or Top Mounting

Indoor mounting only, with wall keyhole slots and threaded inserts for top mounting; no assembly required.

Exterior Construction

Standard 14-inch high by 15-inch deep construction with an aluminum exterior cover and white or black powder-coated finish options.

USA-Made Construction

Manufactured in the USA.

Optional Accessories

Optional washable 3/8-inch aluminum filter and wall mounting plate are available.

Type Air Curtain
Style Heated
Heat Type Electric
Watts 42 kW
Motor Count 3
Horsepower Per Motor 1/2 HP
Maximum Opening Height 10 Feet
Installation Type Wall Mounted
Material Aluminum
Finish Powder Coated
Country of Origin USA
Shipping Weight 221 lb
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Warranty & Protection

2-year warranty on heated models

Documents

PDF Cutsheet PDF Download PDF Replacement parts diagram PDF Download PDF Terms & conditions PDF Download PDF Warranty PDF Download PDF Installation manual PDF Download PDF Air curtain flyer PDF Download

Frequently Asked Questions

It is designed for door heights up to 10 feet high for environmental separation and 8 feet high for insect control.
The unit uses electric heat.
It uses three 1/2 hp motors.
No. This model is for indoor mounting only.
A washable 3/8-inch aluminum filter and a wall mounting plate are available.
