Berner Commercial High Performance 10 120-Inch Ambient Air Curtain with 3 Motors

SKU: CHD10-3120A
$3,132.35
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?

Berner Commercial High Performance 10 120-Inch Ambient Air Curtain with 3 Motors

Unheated, Up to 10-Foot Mounting Height, Indoor Wall or Top Mount

Move conditioned air across wide openings with a powerful 120-inch ambient air curtain built for doors up to 10 feet high.

  • Unheated ambient air curtain designed to create environmental separation without adding heat.
  • 120-inch nominal length for large openings up to 10 feet high.
  • Three 1/2 HP three-speed motors deliver 5,392 CFM of air movement.
  • Factory-installed fan speed switch makes operation straightforward.
  • Indoor wall or top mounting helps fit the installation space.
  • Made in the USA, cULus listed, and backed by a 5-year limited warranty on unheated models.

Product Weight:

195.0 lb

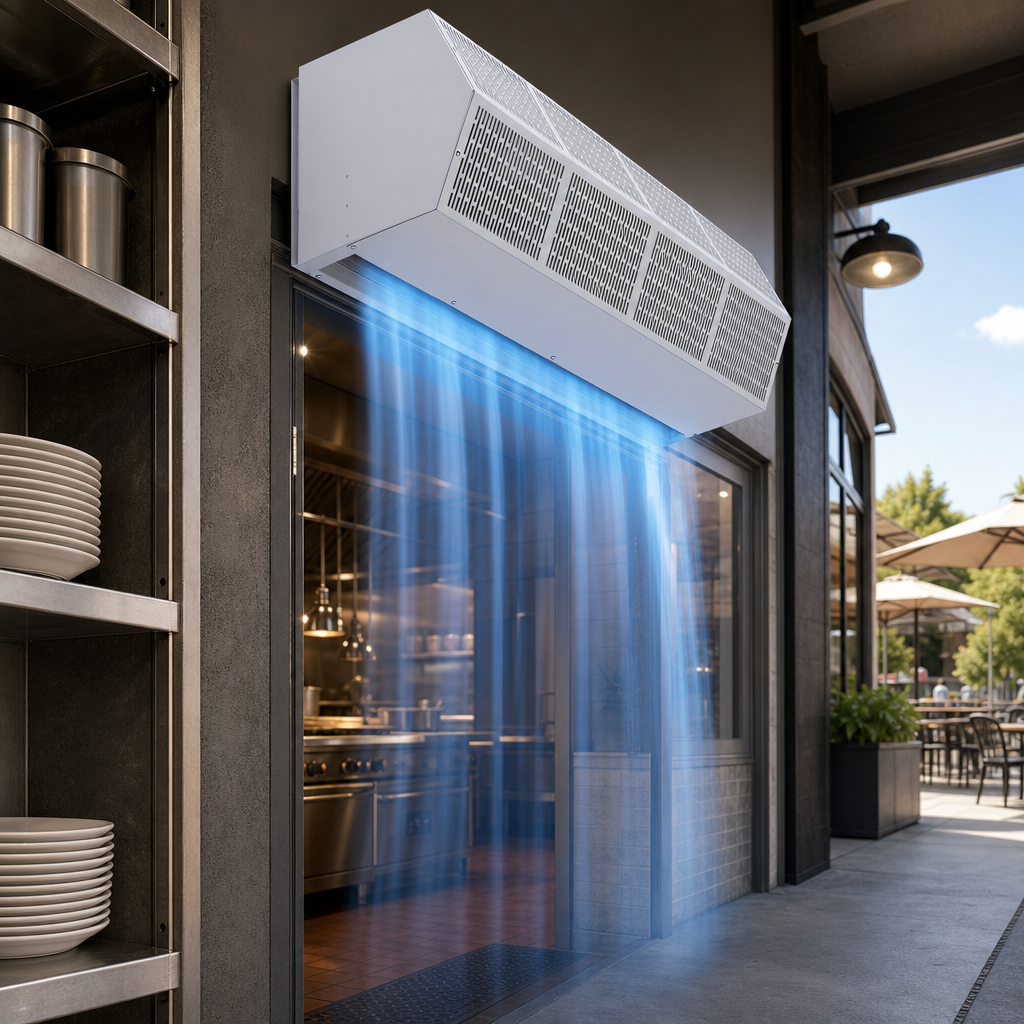

Ambient Unheated Operation

Moves ambient air to create an air barrier without adding heat.

Ambient Unheated Operation

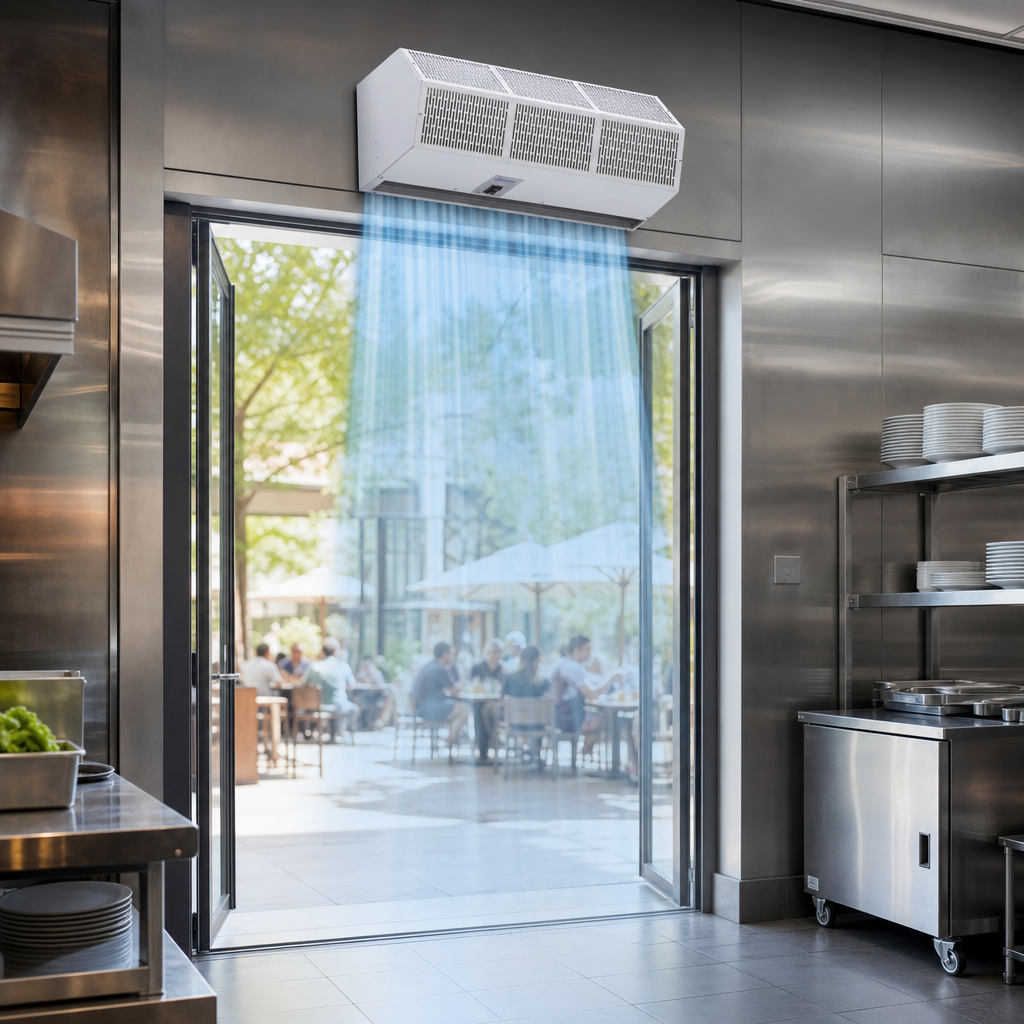

Designed for Tall Openings

Rated for mounting heights up to 10 feet for environmental separation and 8 feet for insect control.

Designed for Tall Openings

Three 1/2 HP Motors

Three-speed motor package provides strong air movement across wide doorways.

5,392 CFM Air Volume

High airflow output helps maintain separation at large openings.

Factory-Installed Fan Speed Switch

Built-in high/medium/low speed control is included on the unit.

Indoor Wall or Top Mounting

Designed for indoor applications with wall and top mounting flexibility.

Aluminum Exterior Cover

Standard white or black aluminum cover; stainless steel or custom color options are available.

Made in USA / cULus Listed

Manufactured in the USA and listed for compliance.

Type Air Curtain
Style Ambient
Installation Type Wall Mounted
Maximum Opening Width 120 Inches
Maximum Opening Height 10 Feet
Motors 3
Motor Horsepower 1/2 HP Each
Air Volume 5,392 CFM
Controls Three-Speed Switch
Voltage 120 Volts
Phase 1-Phase
Hertz 60 Hz
Amps 19.5 Amps
Material Aluminum
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Weight 195 lb.

Frequently Asked Questions

No. This model is ambient and unheated.
It is rated for mounting heights up to 10 feet for environmental separation and 8 feet for insect control.
This model uses three 1/2 HP motors.
It supports indoor wall and top mounting.
Unheated models carry a 5-year limited warranty from the original shipment date.
Yes. A washable filter and a wall mounting plate are listed as options.
