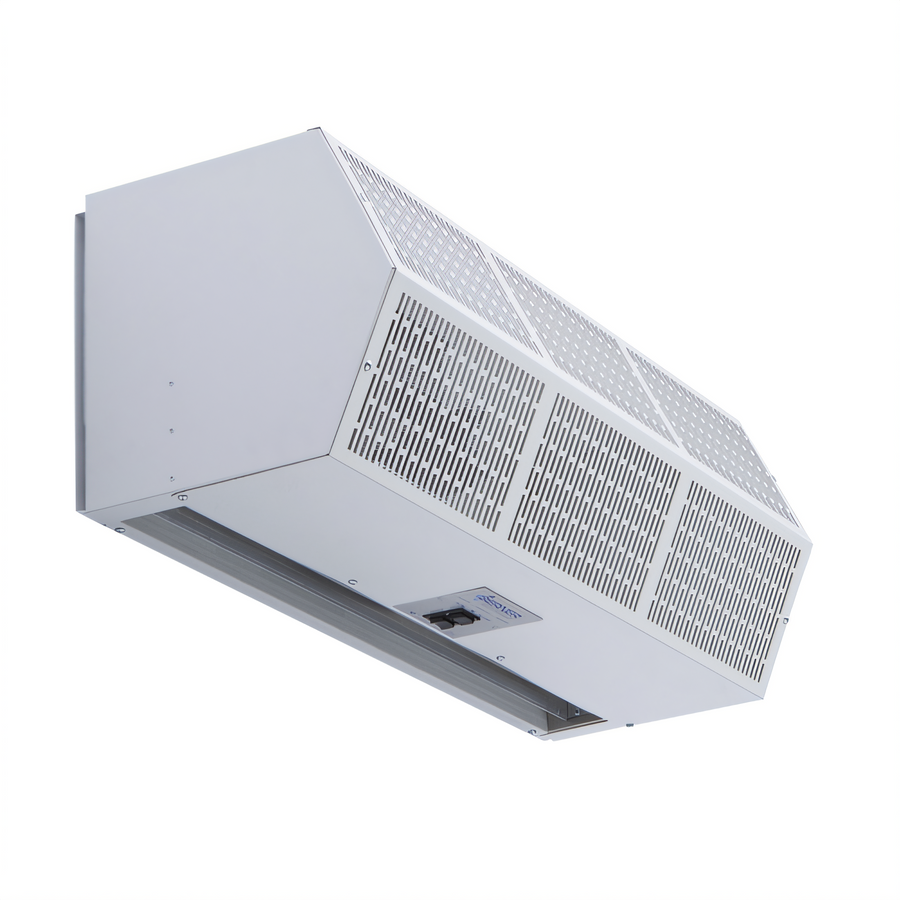

Berner Commercial High Performance Series 108-Inch Heated Electric Air Curtain

3 x 1/2 HP Three-Speed Motors, 42.0 kW, Up to 10-Foot Door Height

This 108-inch heated air curtain combines 42.0 kW electric heat with three 1/2 HP three-speed motors for large commercial openings up to 10 feet high.

  • 108-inch heated air curtain for large commercial door openings
  • 42.0 kW electric heat for heated air delivery
  • Three 1/2 HP three-speed motors for strong airflow
  • Designed for mounting heights up to 10 feet high
  • Indoor mounting only with wall or top mounting options
  • Optional washable aluminum filter and wall mounting plate available

Product Weight:

218.0 lb

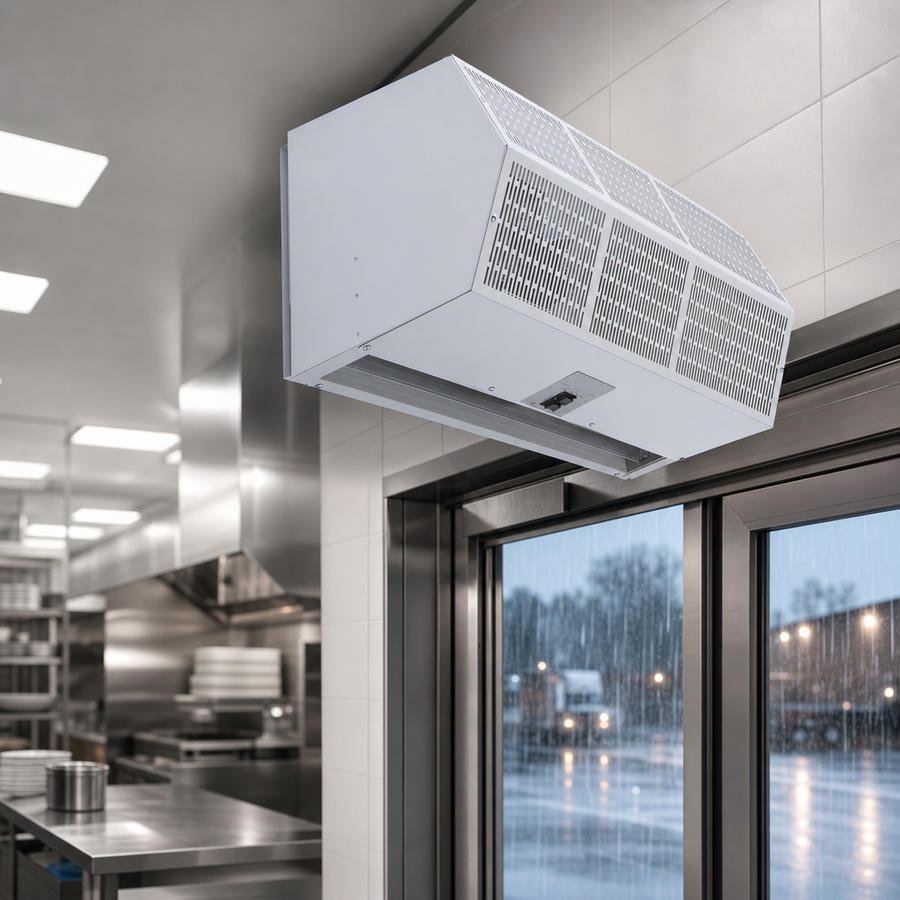

High Performance Series

Commercial air curtain designed for demanding openings and environmental separation.

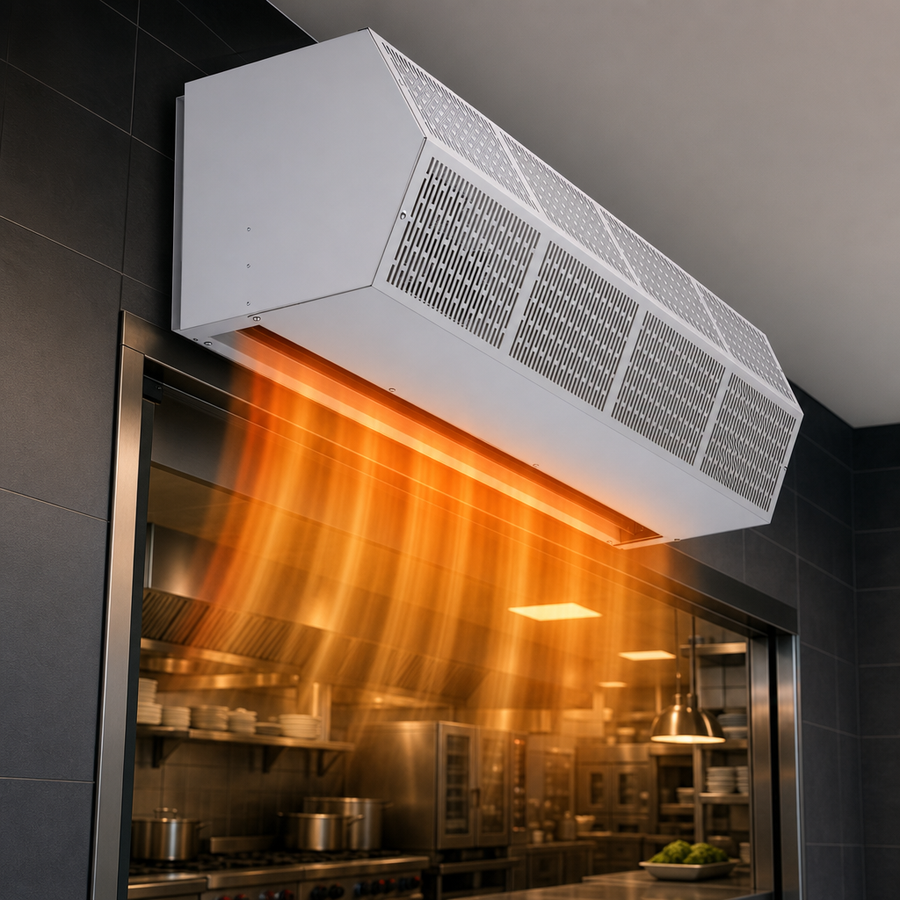

Electric Heat

42.0 kW electric heating supports heated applications.

Three 1/2 HP Motors

Three three-speed motors help deliver strong air movement across the opening.

Up To 10-Foot Mounting Height

Designed for openings up to 10 feet high; the flyer also notes 8 feet for insect control.

Indoor Mounting Only

Intended for protected interior installation above commercial door openings.

Wall Or Top Mounting

Simple installation with no assembly required.

Factory-Installed Fan Speed Switch

Helps simplify setup and daily operation.

Optional Accessories

A washable 3/8-inch aluminum filter and a wall mounting plate are available.

Type Heated Air Curtain
Style High Performance
Installation Type Wall Mounted
Controls Fan Speed Switch
Motor Count 3
Horsepower Per Motor 1/2 HP
Motor Speed Three-Speed
Watts 42.0 kW
Maximum Opening Height 10 Feet
Material Aluminum
Finish Powder Coated
Country Of Origin USA
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Warranty & Protection

2 years on heated models

Documents

PDF Cutsheet PDF Download PDF Installation manual PDF Download PDF Terms & conditions PDF Download PDF Replacement parts diagram PDF Download PDF Warranty PDF Download PDF Air curtain flyer PDF Download

Frequently Asked Questions

It is designed for mounting heights up to 10 feet high for environmental separation, and the flyer also notes 8 feet for insect control.
It uses electric heat rated at 42.0 kW.
It has three 1/2 HP three-speed motors.
Yes. Wall and top mounting are supported.
No assembly is required.
Heated models are covered for 2 years from the original date of shipment, subject to proper care, installation, and operation.
