Berner

Berner Commercial High Performance 10 96-Inch Ambient Air Curtain, 3-Motor, 1/2 HP

SKU: CHD10-3096A
$2,971.80
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Air Doors Berner Best Sellers Equipment Facility Equipment Kitchen Ventilation & Climate Control New Arrivals Restaurant Equipment

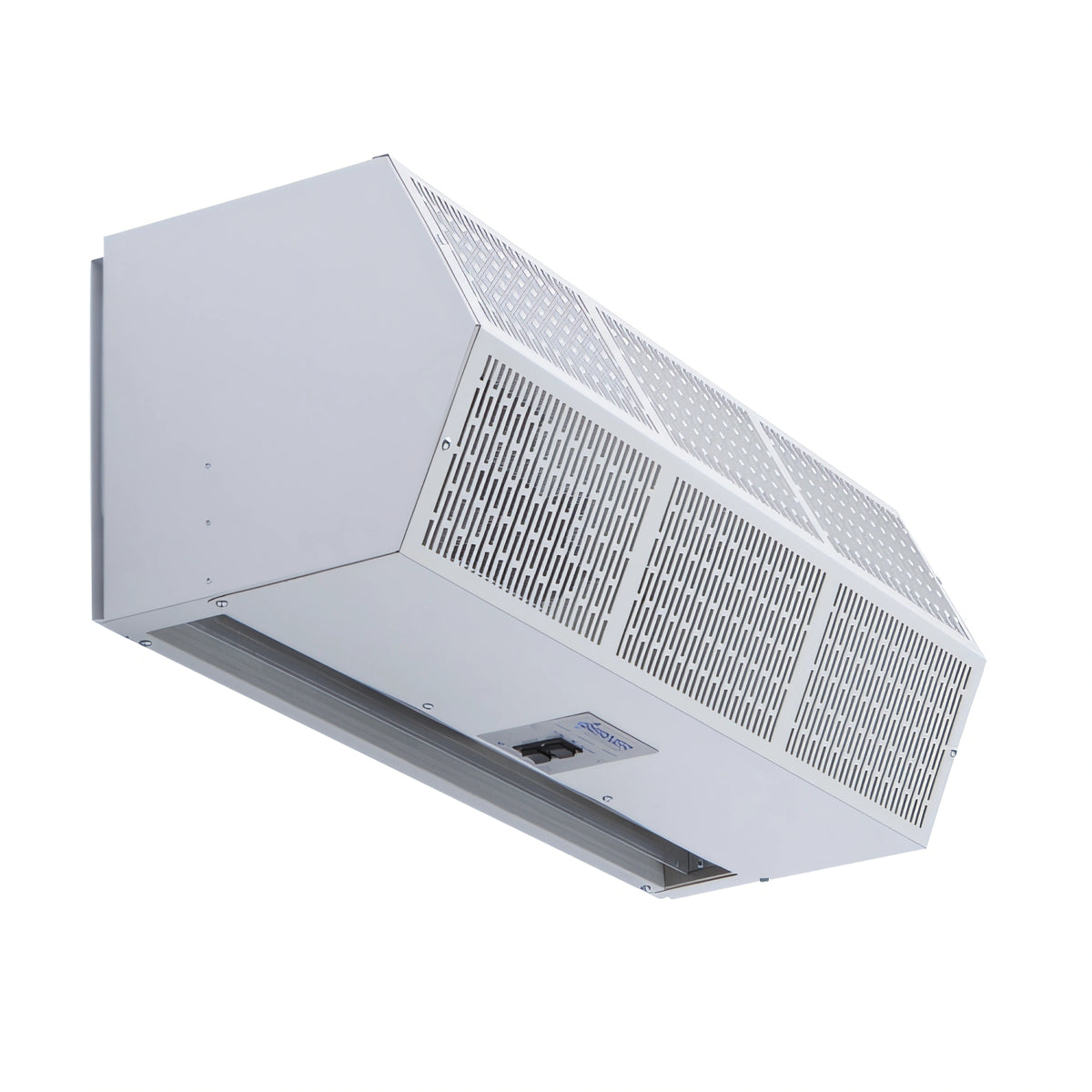

Berner Commercial High Performance 10 96-Inch Ambient Air Curtain, 3-Motor, 1/2 HP

Unheated, 120V, Indoor Mounting Only, Up to 10-Foot Door Height

Create a strong air barrier over doorways up to 10 feet high with this unheated 96-inch air curtain built for high-performance environmental separation.

  • Ambient, unheated air curtain for environmental separation and insect control.
  • Three 1/2 HP, three-speed motors deliver powerful airflow for wider openings.
  • Rated for doors up to 10 feet high; indoor mounting only.
  • Factory-installed controls make operation simple and straightforward.
  • Wall or top mounting flexibility with no assembly required.
  • cULus listed and Made in USA.

Product Weight:

154.0 lb

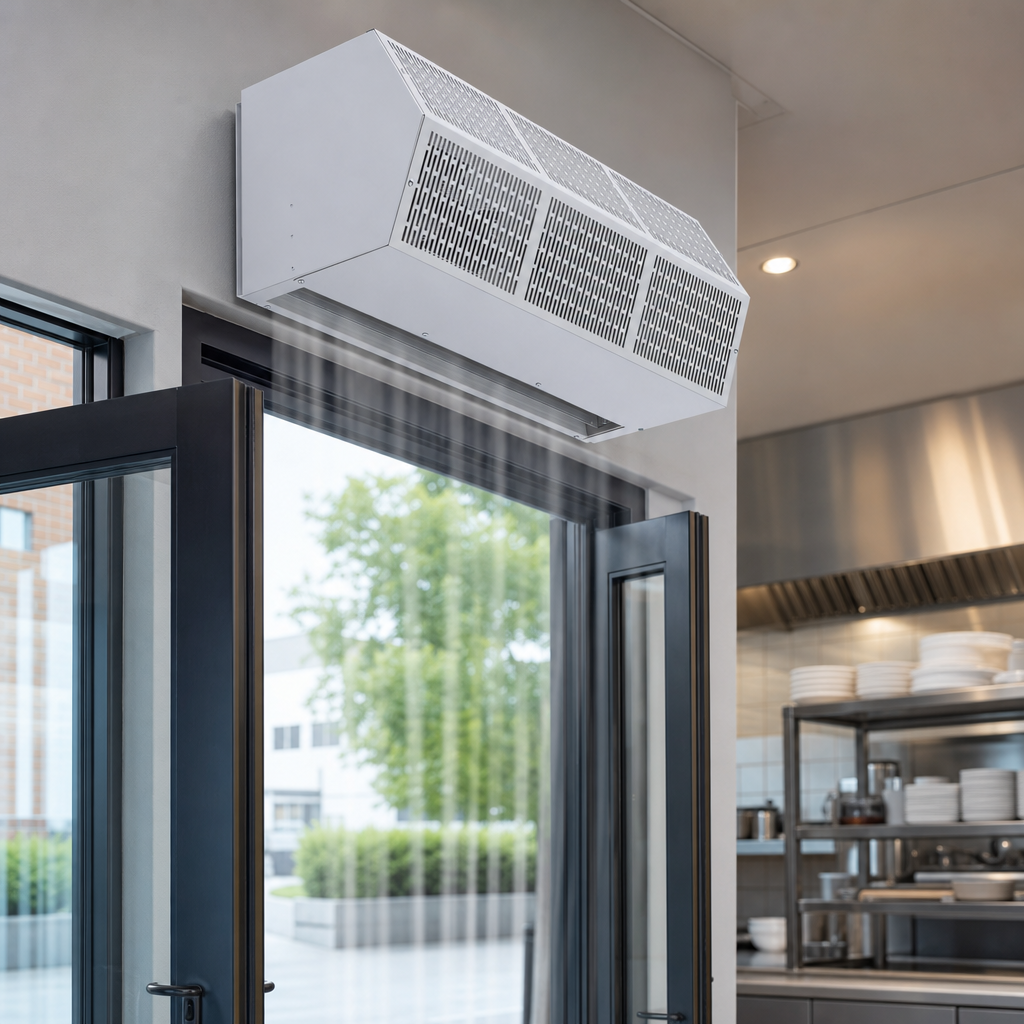

Ambient Unheated Operation

Delivers an air barrier without added heat for energy-saving door protection.

Ambient Unheated Operation

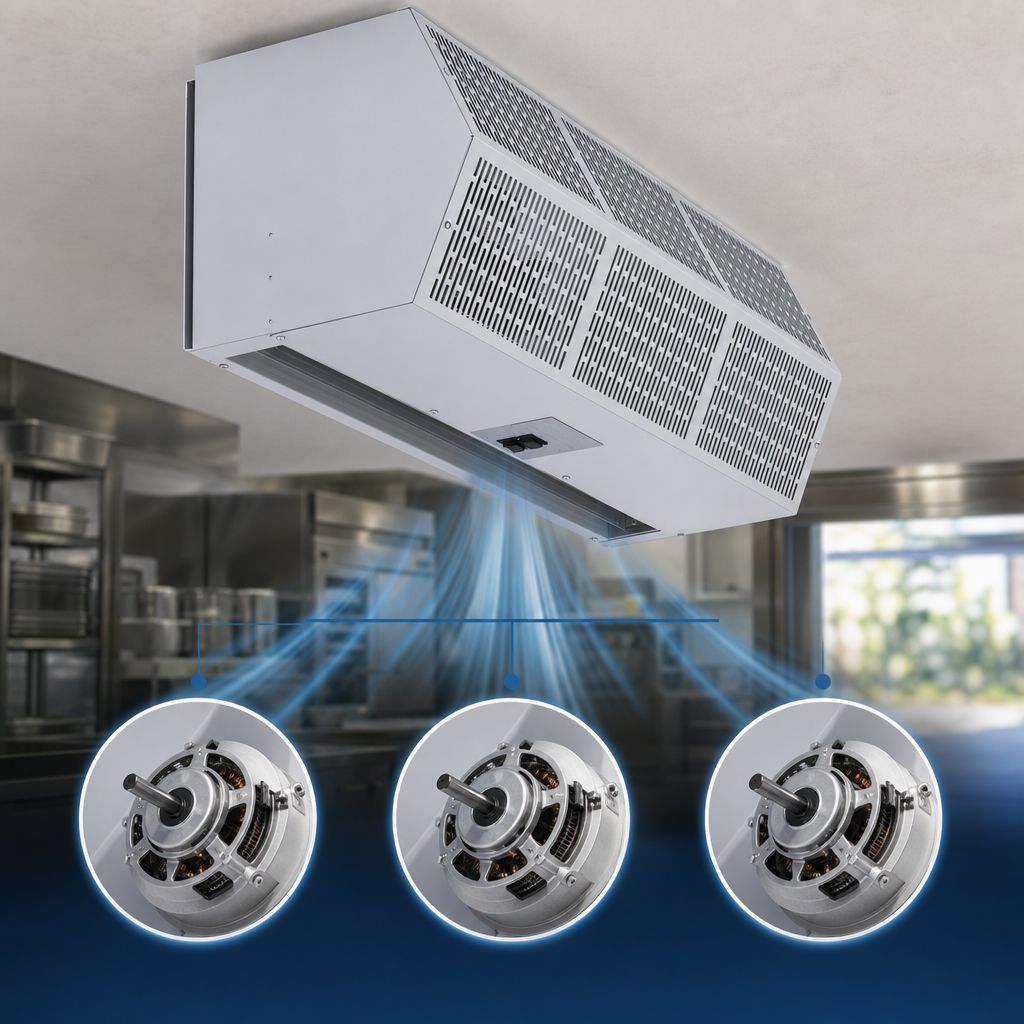

Three 1/2 HP Motors

Three motors provide high-performance airflow for larger commercial openings.

Three 1/2 HP Motors

Up to 10-Foot Mounting Height

Designed for environmental separation at openings up to 10 feet high.

Factory-Installed Switches

Includes a built-in fan speed switch and fan on/off switching for easy control.

Wall and Top Mounting

Supports flexible indoor installation with wall and top mounting options.

Aluminum Exterior Cover

Standard white or black aluminum cover; custom color or stainless steel finishes are also available.

Optional Washable Filter

A washable aluminum filter is available as an optional accessory.

Certified Performance

AMCA certified ratings, with cULus listing and USA manufacture noted in the documentation.

Quiet 3-Motor Performance Data

For the 3-motor unit, sound levels are listed at 67/68/69 dBA on low, medium, and high speed at 10 feet.

Type Ambient Air Curtain
Style High Performance
Installation Type Wall Mounted
Material Aluminum
Finish Powder Coated
Controls High/Med/Low Switch
Voltage 120 Volts
Amps 19.5 Amps
Hertz 60 Hz
Phase 1-Phase
Breaker Size 25 Amps
Motors 3
Horsepower Per Motor 1/2 HP
Maximum Opening Height 10 Feet
Air Volume 4,430 CFM
Average Outlet Velocity 1,841 FPM
Outlet Velocity Uniformity 73%
Shipping Weight 154 lb.
Country of Origin USA
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Warranty & Protection

5-year limited warranty on unheated models

Documents

PDF Cutsheet PDF Download PDF Warranty PDF Download PDF Air curtain flyer PDF Download PDF Installation manual PDF Download PDF Terms & conditions PDF Download PDF Replacement parts diagram PDF Download

Frequently Asked Questions

No. CHD10-3096A is an ambient, unheated air curtain.
It is designed for environmental separation at openings up to 10 feet high and for insect control at up to 8 feet high.
The A voltage code indicates 120/1/60 power. The electrical sheet lists 19.5 amps and a 25 amp breaker size per circuit.
It supports wall and top mounting and is intended for indoor mounting only.
Optional items include a washable aluminum filter and a wall mounting plate.
Unheated models carry a 5-year limited warranty from the original shipment date.
