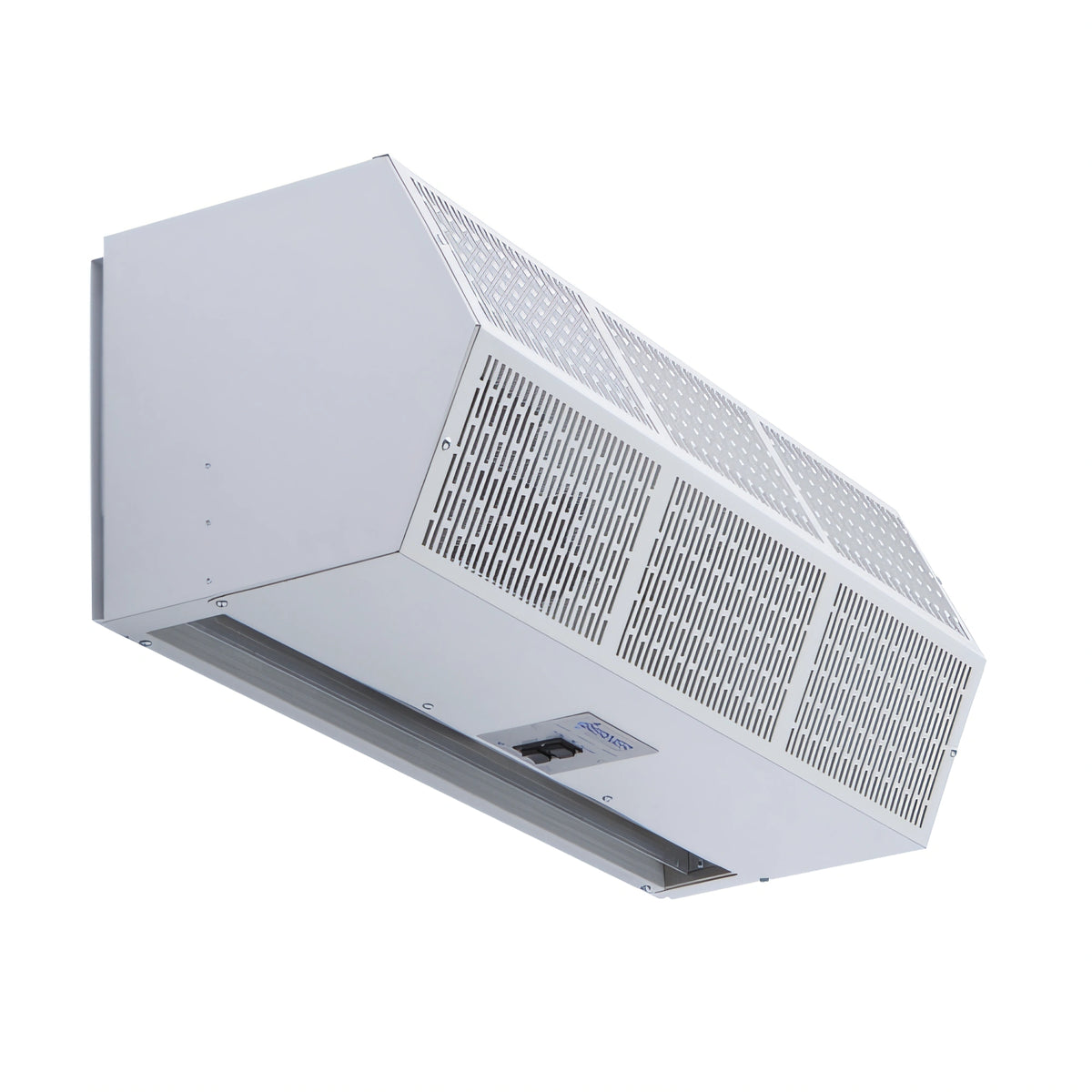

Berner Commercial High Performance 10 Ambient Unheated Air Curtain, 120-Inch, 2-Motor

For Openings Up to 10 Feet High; Indoor Wall or Top Mount

Creates a strong unheated air barrier for wide entrances while helping maintain comfortable, separated indoor spaces.

  • Ambient, unheated air curtain designed for openings up to 10 feet high.
  • Two 1/2 hp three-speed motors deliver strong airflow across wide entrances.
  • 120-inch nominal length suits extra-wide doors and service openings.
  • Wall and top mounting options; intended for indoor installation only.
  • White or black aluminum exterior with optional stainless steel or custom color finishes.
  • cULus listed, AMCA certified ratings, and made in the USA.

Product Weight:

138.0 lb

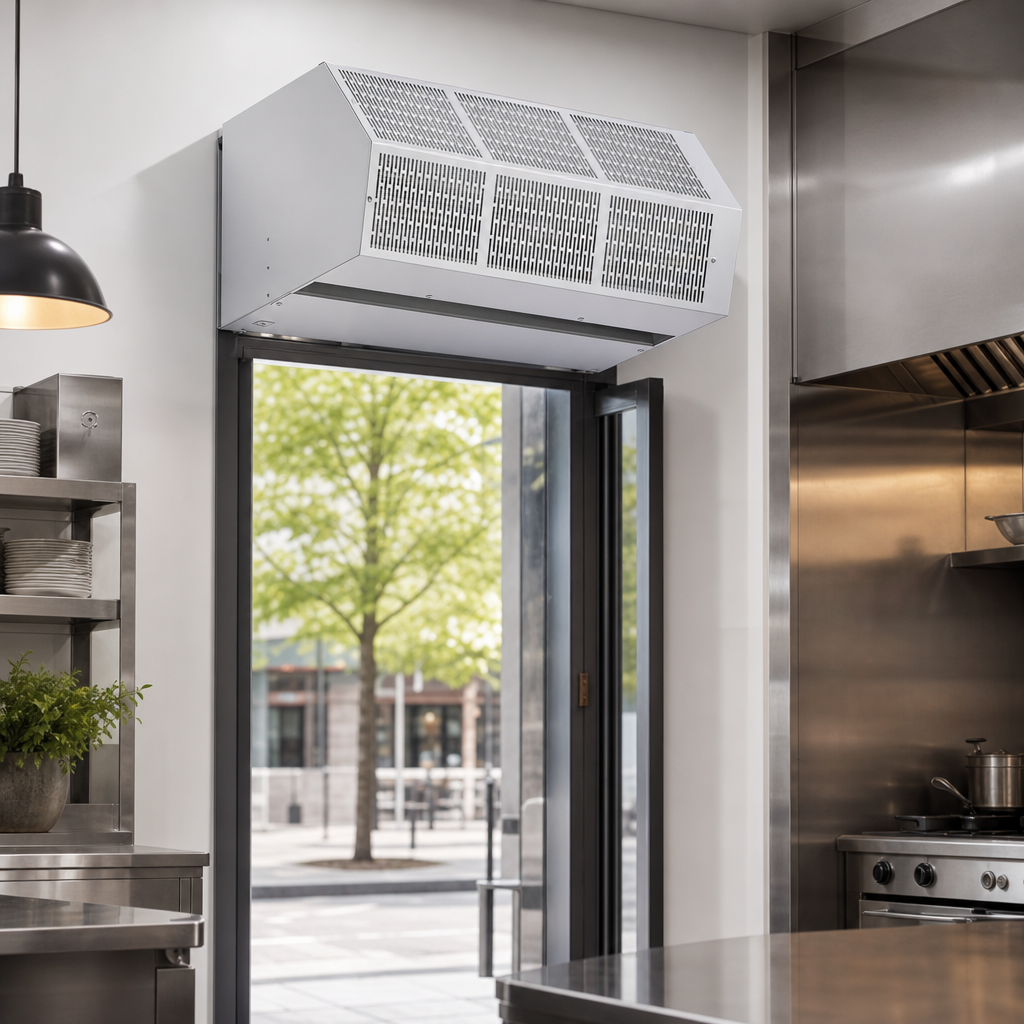

Ambient (Unheated) Operation

Provides air separation without heat, making it ideal for environmental separation and energy-conscious entrance control.

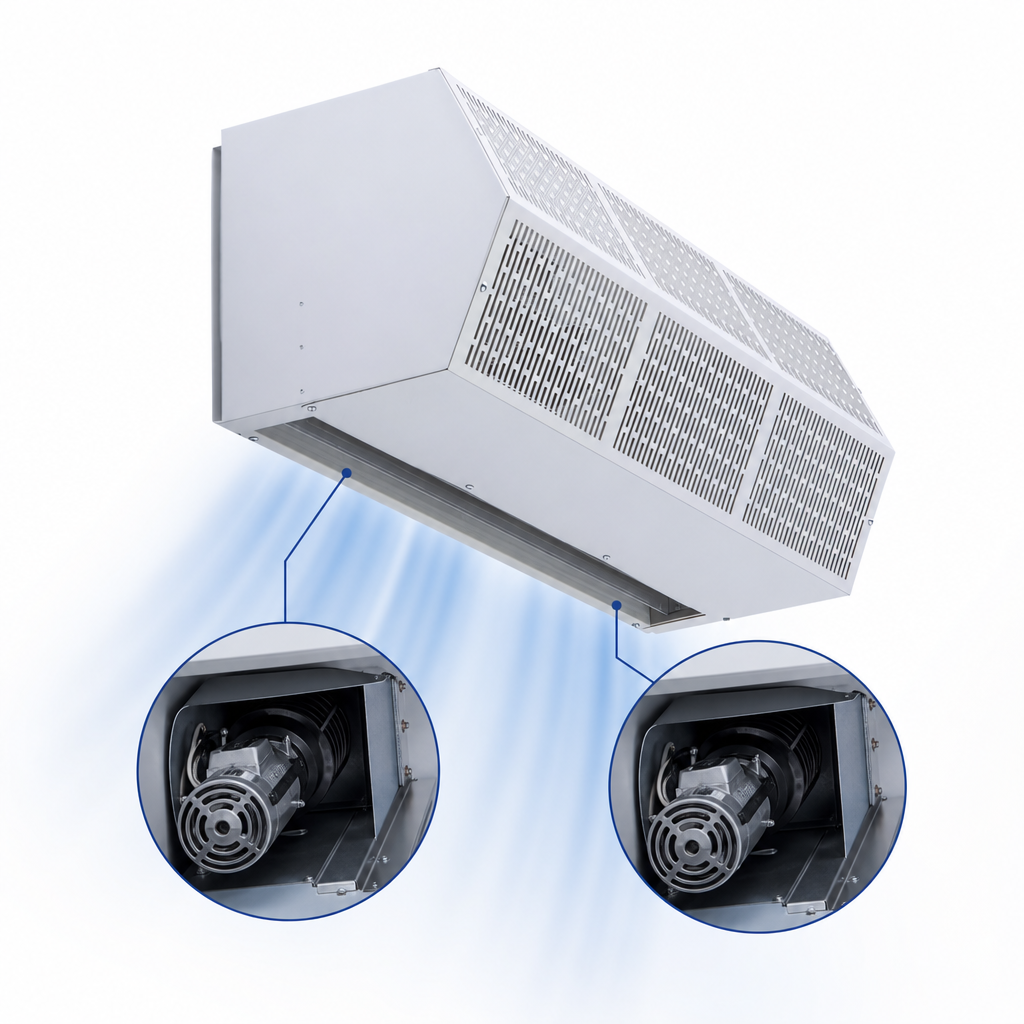

Dual 1/2 HP Three-Speed Motors

Two motors provide adjustable airflow for broad coverage across large openings.

Rated for 10-Foot Mounting Heights

Designed for mounting heights up to 10 feet for environmental separation and 8 feet for insect control.

Wall and Top Mounting

Supports wall and top mounting configurations for indoor installation.

Factory-Installed Fan Speed Switch

Built-in high/medium/low speed switching for straightforward operation.

Aluminum Cabinet Options

Standard white or black aluminum exterior cover, with optional custom color or stainless steel finishes.

Optional Accessories

Optional washable aluminum filter and wall mounting plate are available.

Compliance and Origin

AMCA certified ratings, cULus listed, and made in the USA.

Type Ambient Air Curtain
Style High Performance
Installation Type Wall Mounted
Maximum Opening Height 10 Feet
Number Of Motors 2
Horsepower Per Motor 1/2 HP
Air Volume 3,452 CFM
Controls Three-Speed
Material Aluminum
Finish Powder Coated
Country of Origin USA
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Warranty & Protection

5-year limited warranty on unheated models.

Documents

PDF Cutsheet PDF Download PDF Replacement parts diagram PDF Download PDF Terms & conditions PDF Download PDF Installation manual PDF Download PDF Warranty PDF Download PDF Air curtain flyer PDF Download

Frequently Asked Questions

It is designed for mounting heights up to 10 feet for environmental separation and 8 feet for insect control.
No. This is an ambient, unheated air curtain.
It uses two 1/2 hp three-speed motors.
It supports wall and top mounting and is intended for indoor installation only.
Available options include white, black, stainless steel, or custom color finishes, plus optional washable filters, a wall mounting plate, and multiple voltage packages.
Ambient models are covered by a 5-year limited warranty from the original date of shipment.
