Berner Commercial CHD10-2108E 108-Inch Heated Electric Air Curtain, Dual 1/2 HP Motors, Up to 10-Foot Openings
- Series
- Commercial High Performance Series Air Curtain
- Heat Type
- Electric
- Electric Heat Capacity
- 28.0 kW
- Overall Length
- 108 in
- Motor Quantity
- 2
- Horsepower per Motor
- 1/2 hp
Specifications
Description

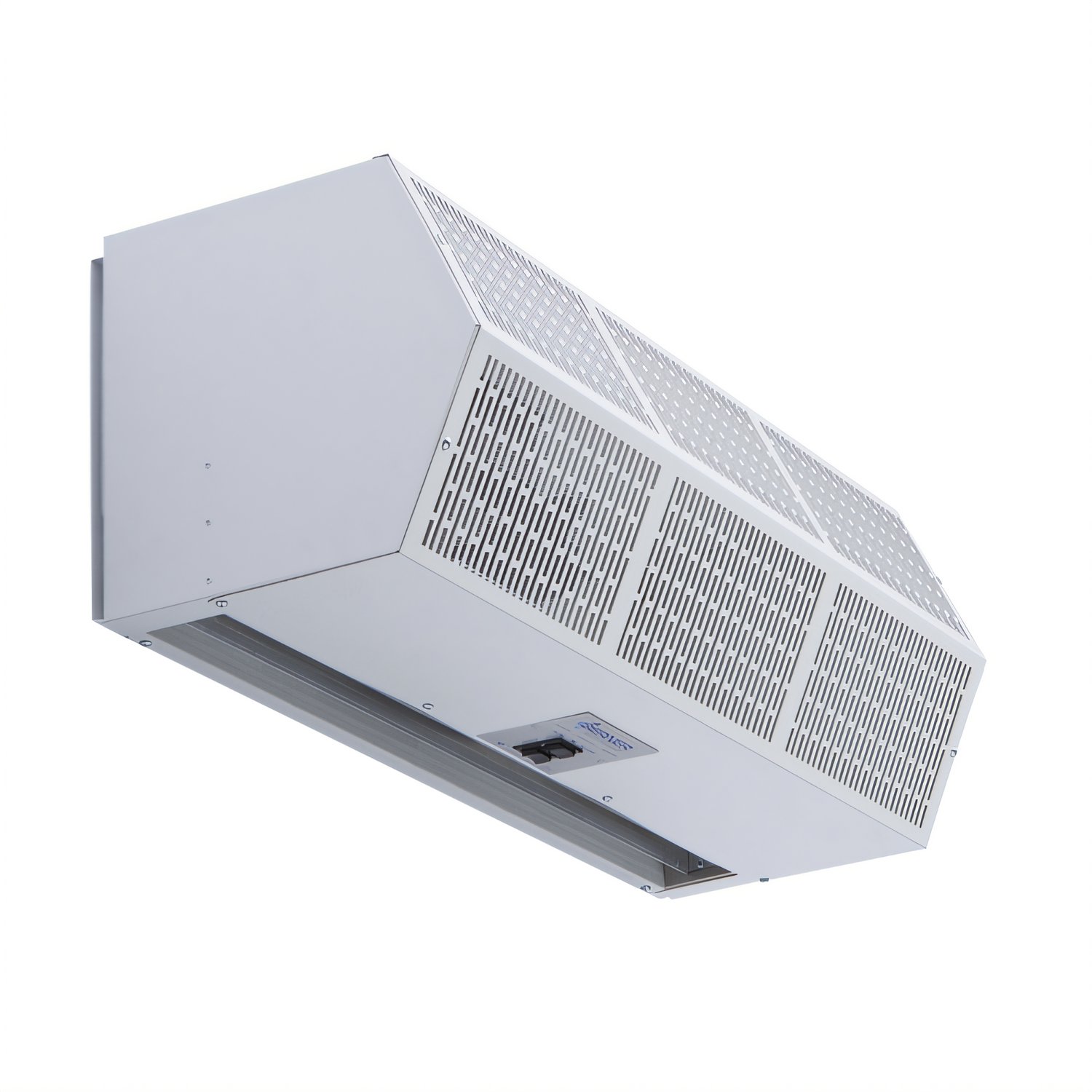

The Berner CHD10-2108E is a Commercial High Performance Series electric heated air curtain measuring 108 inches long. It is specified for indoor mounting and door openings up to 10 feet high.
- Heat: Electric heat rated at 28.0 kW.
- Motors: Two 1/2 hp three-speed motors.
- Standard construction: 14 inches high by 15 inches deep.
- Certifications and origin: cULus and Made in USA.
Model-specific notes: Berner's data sheet states that CHD10-2108E is not recommended and exists only as an equivalent to competitors' models. The same data sheet states that this model is not licensed to bear the AMCA seal.
Product Weight:

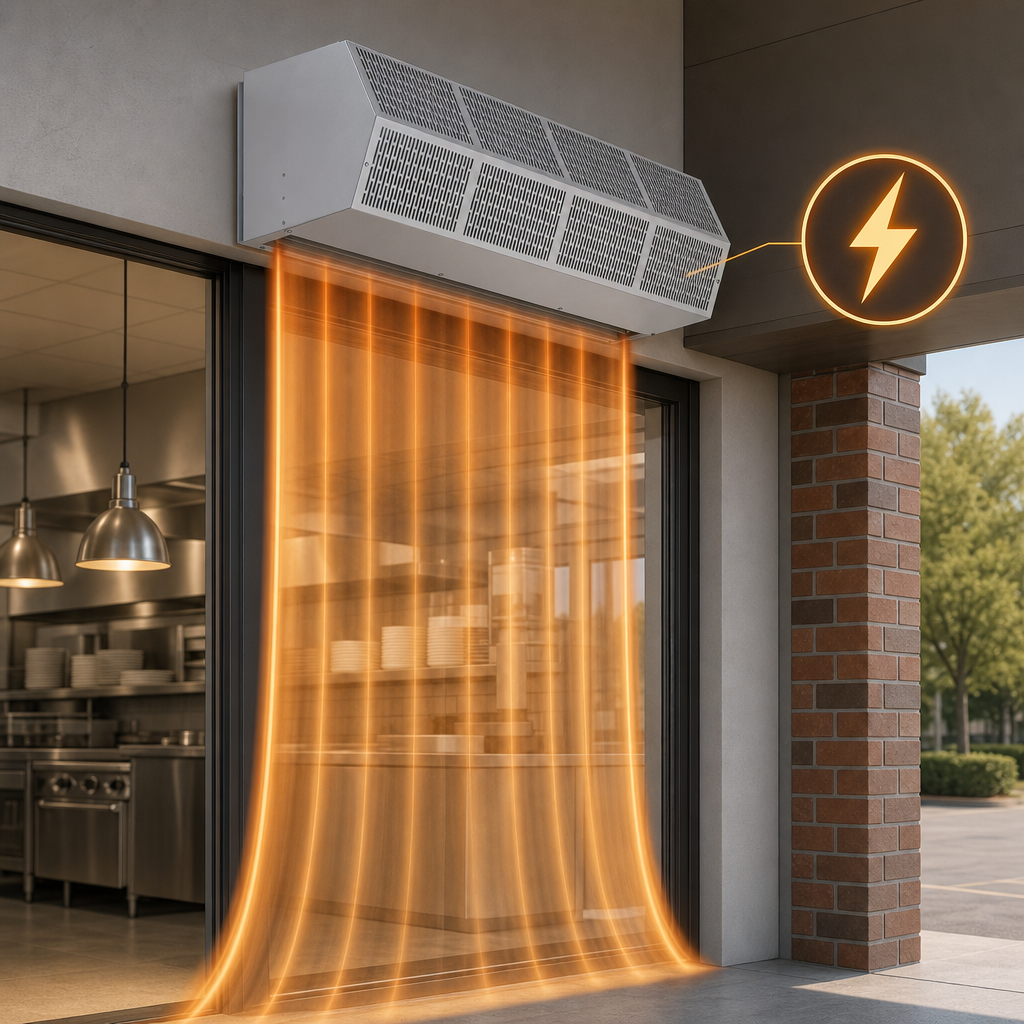

200.0 lbElectric heat
Rated at 28.0 kW.

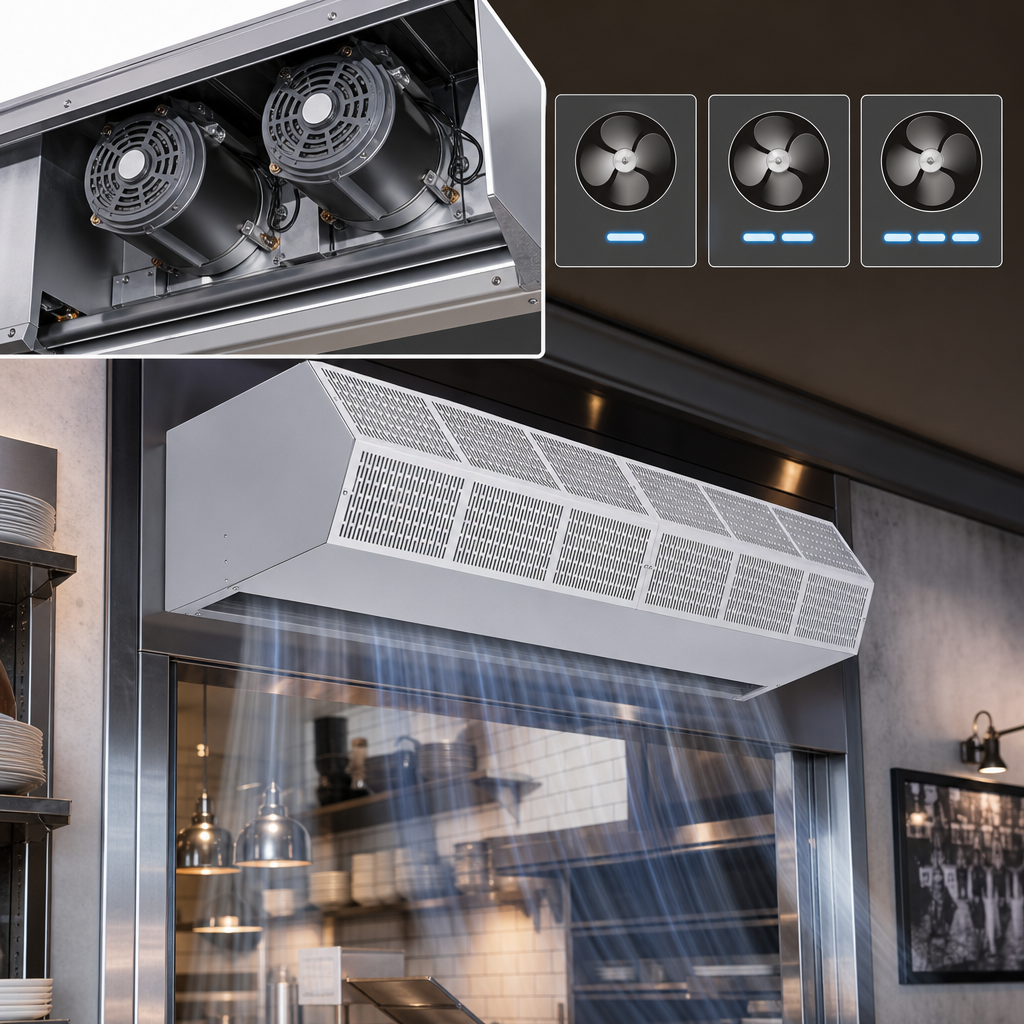

Dual three-speed motors
Uses two 1/2 hp motors specified as three speed.
Opening height
For door heights up to 10 feet.
Indoor mounting
Specified for indoor mounting only.
Standard construction
14 inches high by 15 inches deep.
AMCA status
The data sheet states that CHD10-2108E is not licensed to bear the AMCA seal.
Manufacturer model note
Berner's data sheet states that CHD10-2108E is not recommended and exists only as an equivalent to competitors' models.
