Berner Commercial High Performance 10 84-Inch Ambient Unheated Air Curtain

For Doors Up to 10 Feet High, 2 x 1/2 HP Motors

Create an air barrier at large entryways without adding heat, with a durable ambient curtain built for indoor openings up to 10 feet high.

  • Ambient, unheated design provides environmental separation without warming the airstream.
  • Two 1/2 HP three-speed motors deliver strong airflow for larger door openings.
  • Factory-installed fan speed switch simplifies on-unit operation.
  • Wall and top mounting options support indoor installations only.
  • Standard aluminum cabinet is available in white or black, with custom color and stainless options.
  • Optional washable filter and wall mounting plate expand installation flexibility.

Product Weight:

133.0 lb

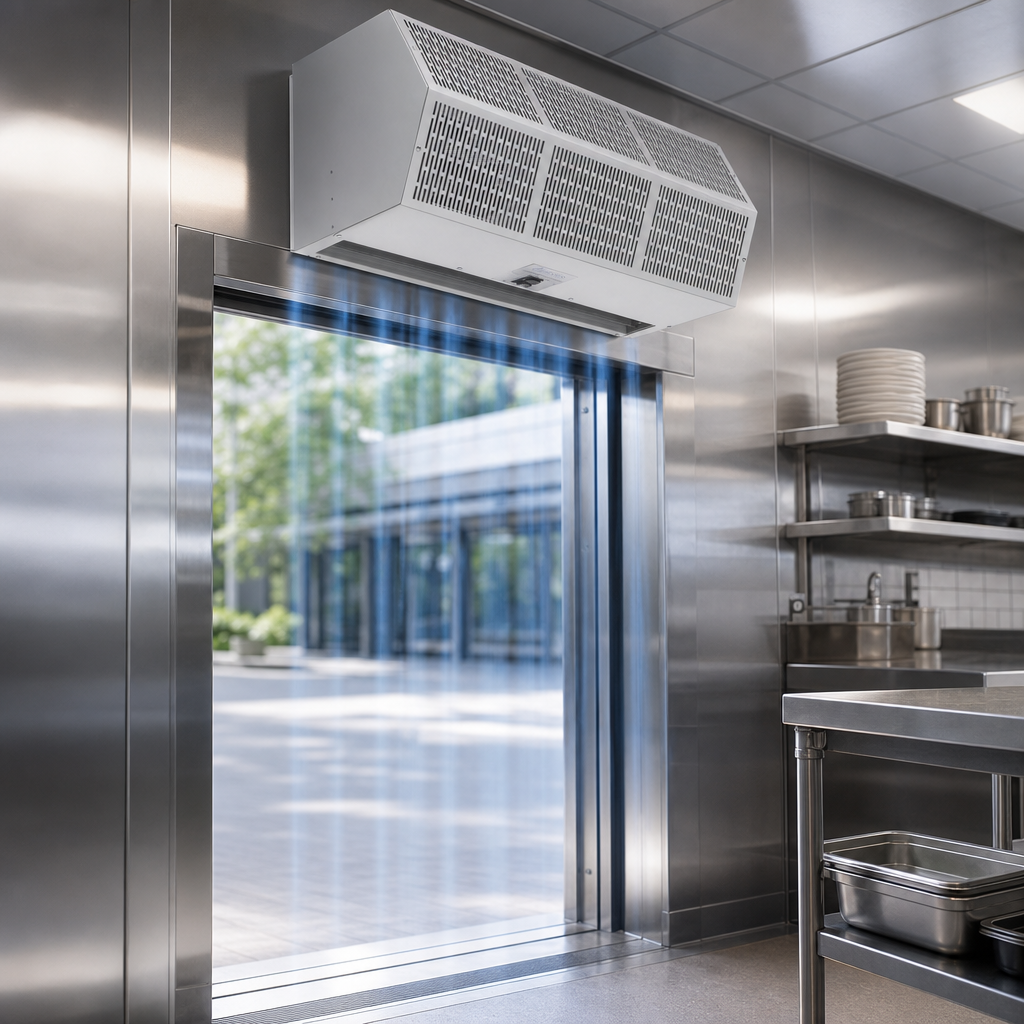

Ambient, Unheated Operation

Creates an air barrier without heat for environmental separation at entrances and service openings.

Ambient, Unheated Operation

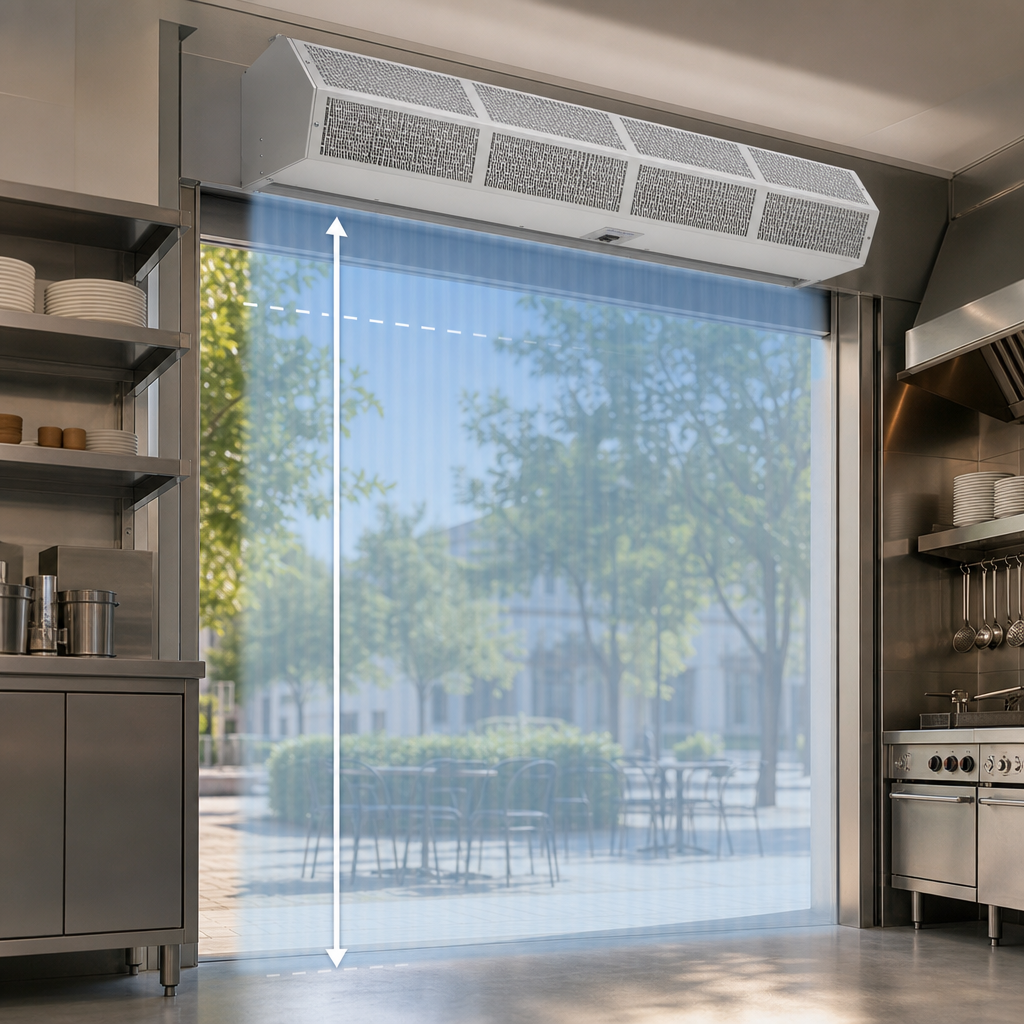

Rated for Up to 10-Foot Openings

Designed for mounting heights up to 10 feet for environmental separation and up to 8 feet for insect control.

Rated for Up to 10-Foot Openings

Dual 1/2 HP Three-Speed Motors

Uses 2 motors with three-speed operation to deliver strong airflow across the opening.

Factory-Installed Fan Speed Switch

Built-in fan speed control is installed at the unit for straightforward operation.

Flexible Indoor Mounting

Supports wall and top mounting, with indoor mounting only.

Aluminum Cabinet with Finish Options

Standard white or black aluminum exterior cover; custom color and stainless steel finishes are available.

High Air Volume Output

Rated at 3,568 CFM with 1,687 fpm average outlet velocity for this model.

Optional Washable Filter

Optional 3/8-inch aluminum washable filter is available for added protection and easier maintenance.

Made in USA

Manufactured in the USA.

Type Air Curtain
Style Ambient
Installation Type Wall Mounted
Material Aluminum
Motor Count 2
Horsepower Per Motor 1/2 HP
Controls Three-Speed Switch
Air Volume 3,568 CFM
Max Opening Height 10 Feet
Shipping Weight 133 lb.
Country of Origin USA
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Warranty & Protection

5-year limited warranty on unheated models

Documents

PDF Cutsheet PDF Download PDF Installation manual PDF Download PDF Replacement parts diagram PDF Download PDF Terms & conditions PDF Download PDF Warranty PDF Download PDF Air curtain flyer PDF Download

Frequently Asked Questions

No. CHD10-2084A is an ambient (unheated) air curtain.
It is rated for mounting heights up to 10 feet for environmental separation and up to 8 feet for insect control.
This model uses 2 motors, each rated at 1/2 HP, with three-speed operation.
Yes. It supports wall and top mounting, and is intended for indoor installation only.
Yes. An optional washable aluminum filter and an optional wall mounting plate are listed for the series.
Ambient models include a 5-year limited warranty from the original date of shipment.
