Berner Commercial High Performance 10 Ambient Unheated Air Curtain, 72-Inch, 2 x 1/2 HP Motors

For Openings Up To 10 Feet High; Wall or Top Mounted; Indoor Use Only

Create a strong ambient air barrier across 72-inch openings with dual 1/2 HP three-speed motors and no heating elements.

  • Unheated ambient design creates an air barrier without adding heat.
  • Two 1/2 HP three-speed motors support high-performance airflow.
  • Designed for openings up to 10 feet high for environmental separation.
  • Factory-installed fan speed switch provides simple manual control.
  • Wall and top mounting options, with indoor installation only.
  • Standard white aluminum cover with black, custom color, or stainless options.
  • No assembly required to simplify installation.

Product Weight:

108.0 lb

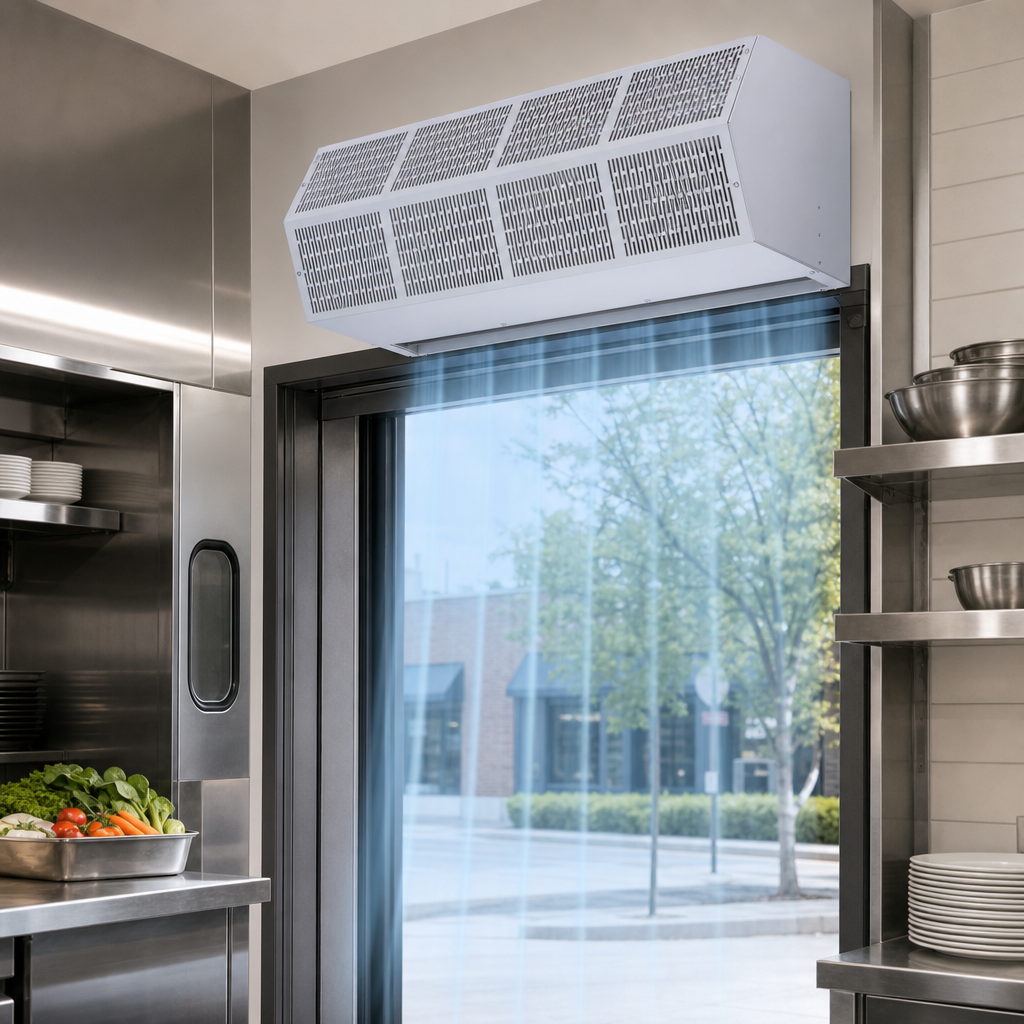

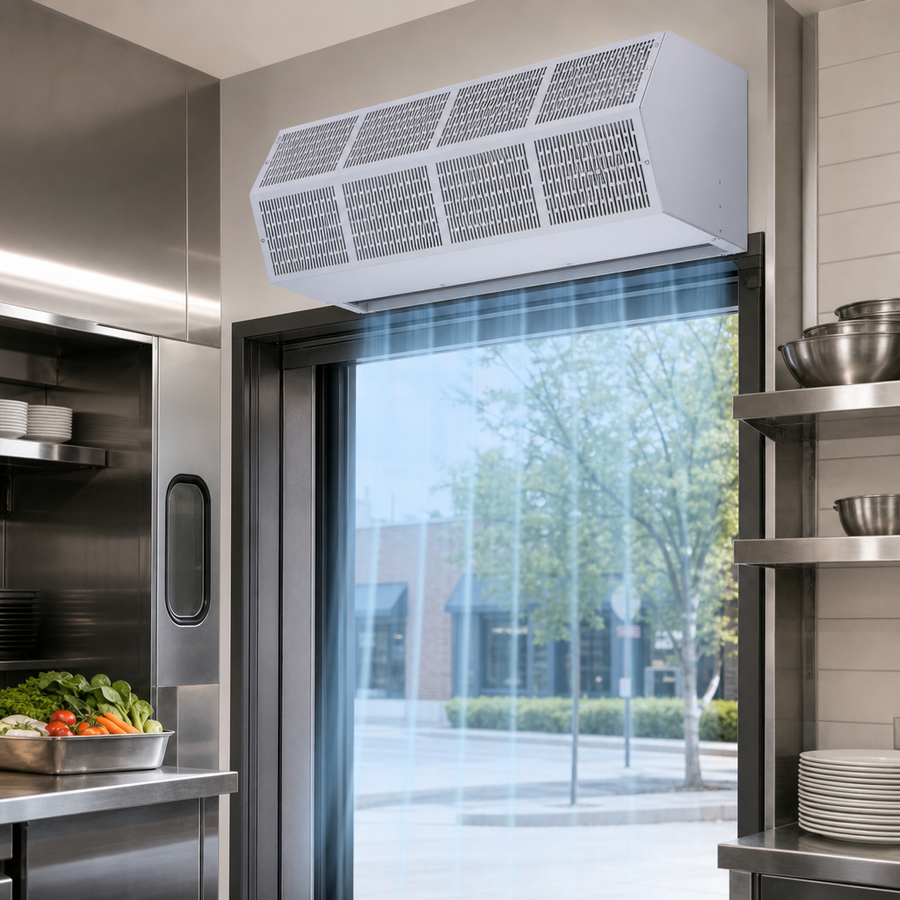

Ambient, Unheated Operation

Creates an air curtain without heating the airstream.

Ambient, Unheated Operation

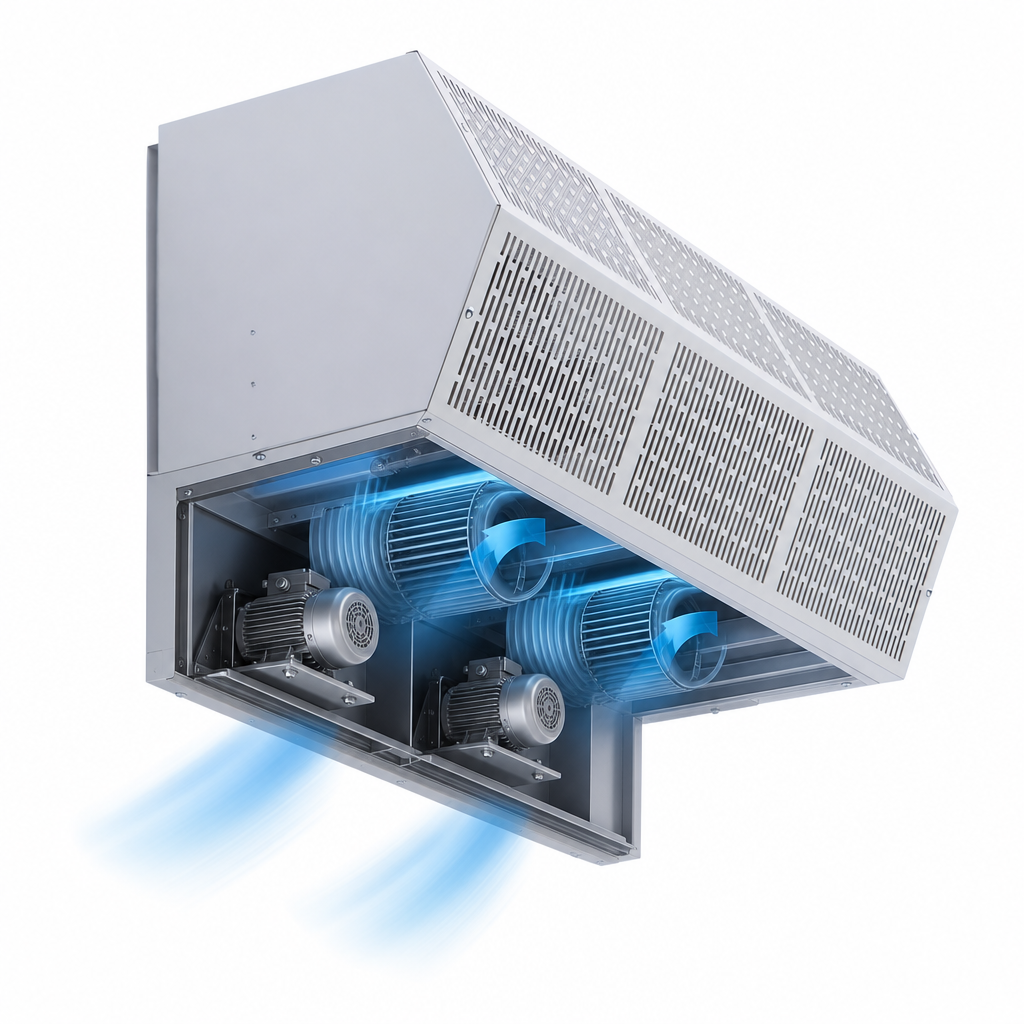

Dual 1/2 HP Motors

Two three-speed motors deliver strong airflow for wider openings.

Dual 1/2 HP Motors

Up To 10-Foot Mounting Height

Designed for environmental separation at openings up to 10 feet high.

Factory-Installed Speed Switch

Built-in fan speed control for easy operation.

Wall and Top Mounting

Supports wall or top mounting; indoor installation only.

White Aluminum Exterior Cover

White is standard, with black, custom color, and stainless options available.

No Assembly Required

Ships ready for installation to help reduce setup time.

Type Ambient Air Curtain
Style Commercial High Performance 10
Installation Type Wall Mounted
Material Aluminum
Color White
Finish Powder Coated
Maximum Opening Height 10 Feet
Nozzle Width 72 Inches
Motor Count 2
Motor Horsepower 1/2 HP Each
Controls Three-Speed Switch
Voltage 120 Volts
Phase 1-Phase
Hertz 60 Hz
Watts 1.56 kW
Air Volume 3,608 CFM
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Weight 108 lb.

Frequently Asked Questions

No. This is an ambient, unheated air curtain.
It is designed for mounting heights up to 10 feet for environmental separation and 8 feet for insect control.
Model CHD10-2072A uses 120/1/60 power and includes two 1/2 HP three-speed motors.
Yes. It supports wall and top mounting, but it is for indoor installation only.
The standard cover is white aluminum, with black, custom color, and stainless steel options available.
Ambient models are covered by a 5-year limited warranty from the original date of shipment.
