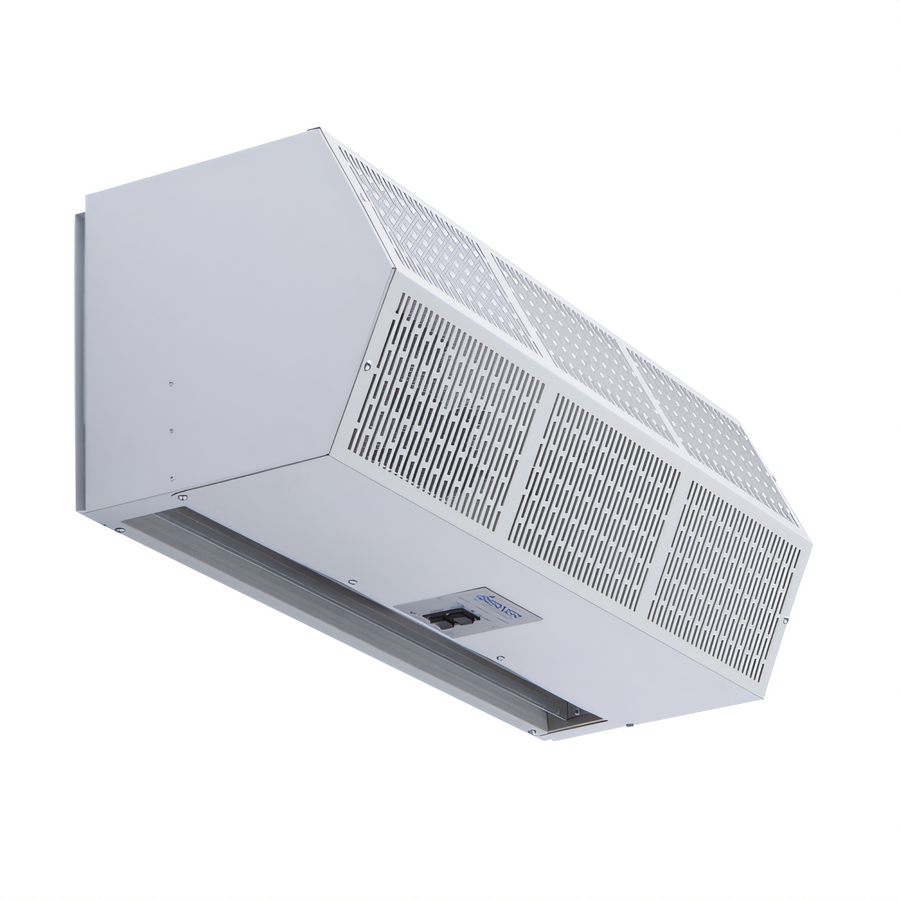

Berner Commercial High Performance 10 Ambient Unheated Air Curtain, 60 Inch Wide, 2-Motor, for Openings Up to 10 Feet High

Indoor wall or top mount; 3-speed control

This 60-inch ambient air curtain creates a powerful unheated air barrier for doorways up to 10 feet high, helping reduce energy loss without adding heat.

  • Ambient, unheated design for environmental separation at entrances and service doors.
  • Covers openings up to 10 feet high and supports 8-foot insect control.
  • Two 1/2 HP three-speed motors deliver strong air movement.
  • Factory-installed high/medium/low fan control.
  • Wall and top mounting with no assembly required for simpler installation.
  • Optional washable filter and wall mounting plate available.

Product Weight:

90.0 lb

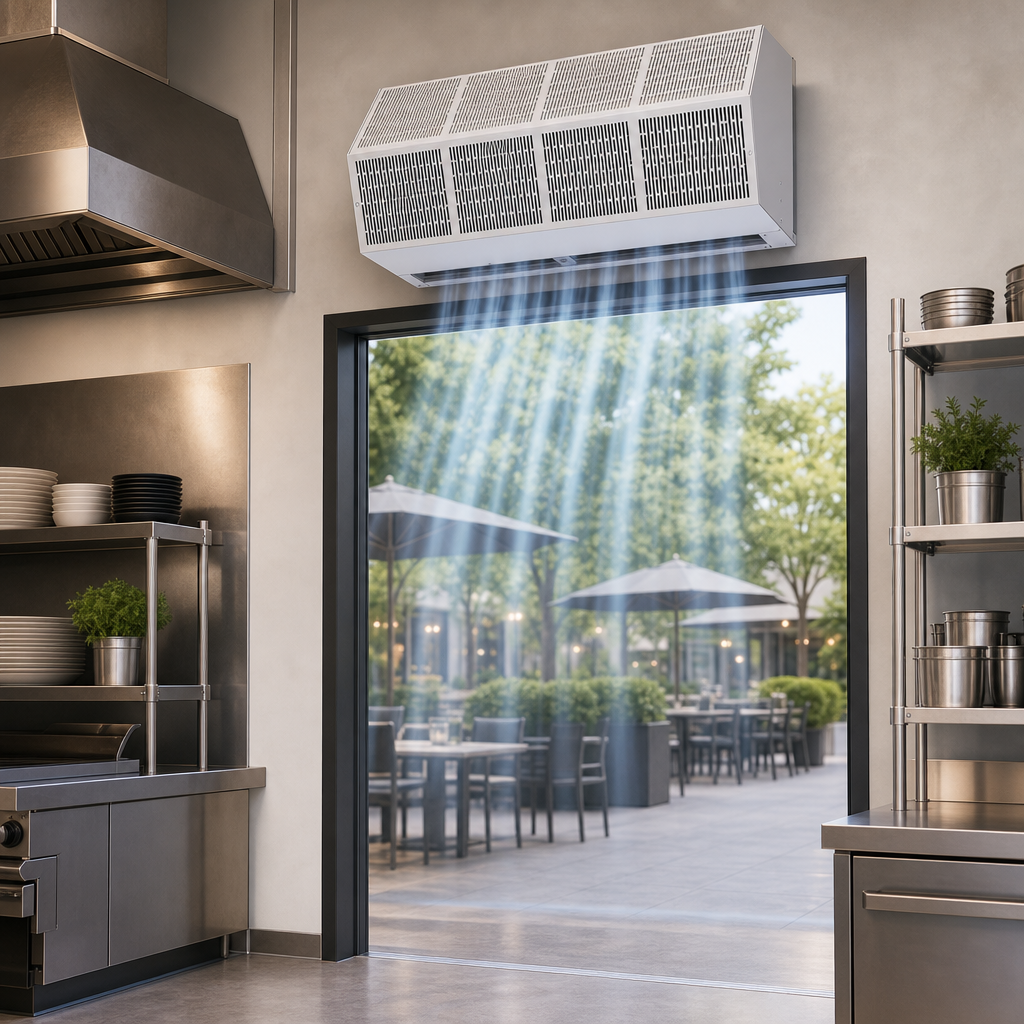

Ambient / Unheated Operation

Creates an air barrier without heat to help separate indoor and outdoor environments and reduce energy loss.

Ambient / Unheated Operation

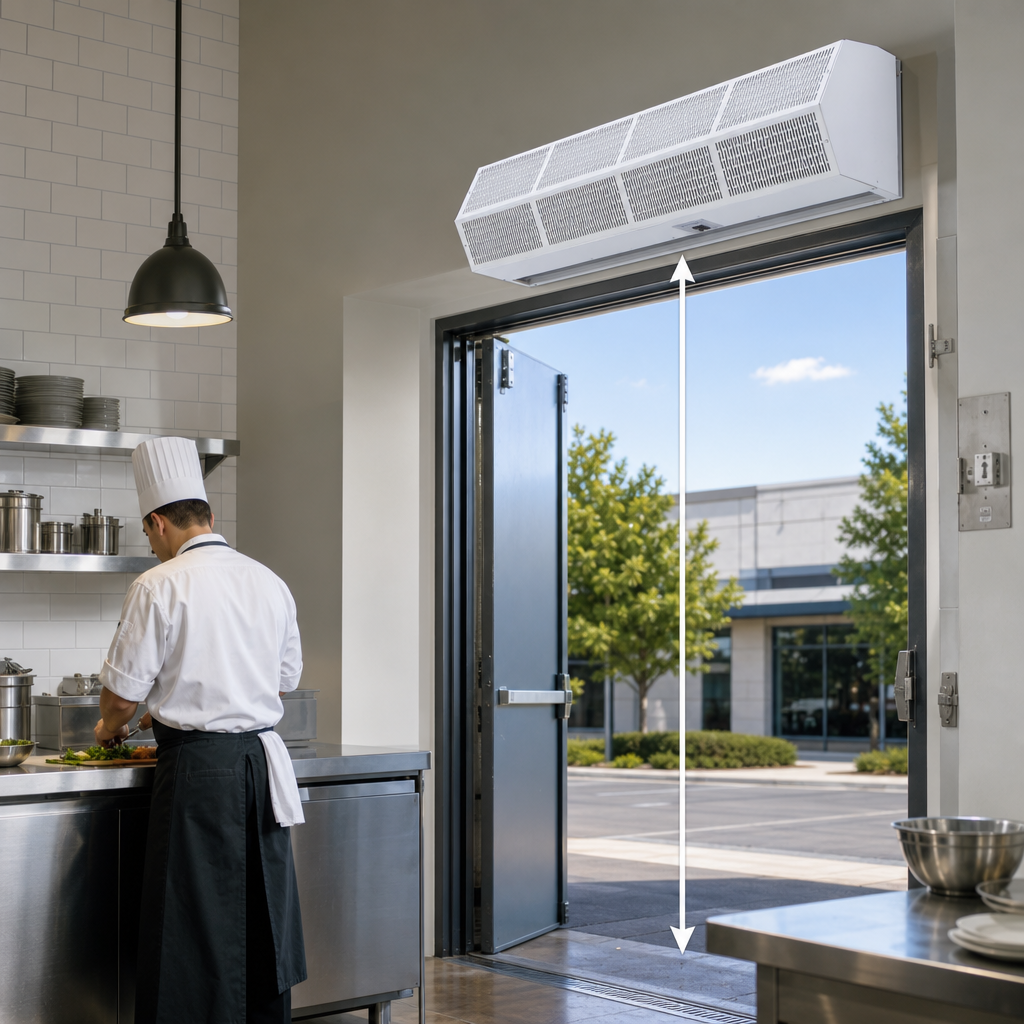

Up to 10-Foot Mounting Height

Designed for openings up to 10 feet high; the documentation also notes 8-foot insect control performance.

Up to 10-Foot Mounting Height

Dual 1/2 HP Motors

Two three-speed motors provide strong air movement for larger openings.

Built-In 3-Speed Control

Factory-installed fan speed switch supports high, medium, and low operation.

Flexible Indoor Mounting

Supports wall and top mounting and is intended for indoor installation only; no assembly required.

White Aluminum Cover Options

Standard white aluminum cover with black, stainless steel, and custom color options available.

Optional Accessories

Washable filter and wall mounting plate options are available.

Type Ambient Air Curtain
Style High Performance
Installation Type Wall Mounted
Nozzle Width 60 Inches
Max Opening Height 10 Feet
Motors 2
Horsepower Per Motor 1/2 HP
Controls 3-Speed
Air Volume 2,626 CFM
Sound Level 66/67/68 dBA
Material Aluminum
Color White
Finish Powder Coated
Shipping Weight 90 lb.
Selling Unit Each
Units Per Case 1
Country of Origin USA

Certifications & Compliance

Warranty & Protection

5-year limited warranty on ambient/unheated models.

Documents

PDF Cutsheet PDF Download PDF Replacement parts diagram PDF Download PDF Air curtain flyer PDF Download PDF Terms & conditions PDF Download PDF Installation manual PDF Download PDF Warranty PDF Download

Frequently Asked Questions

No. CHD10-2060A is an ambient, unheated air curtain.
It is designed for mounting heights up to 10 feet for environmental separation and 8 feet for insect control.
This model uses two 1/2 HP three-speed motors.
Yes. The documentation specifies indoor mounting only, with wall and top mounting supported.
The standard cover is white, and black, stainless steel, and custom color options are available.
Ambient models are covered by a 5-year limited warranty from the original shipment date.
