Berner Commercial High Performance 10 48-Inch Ambient Unheated Air Curtain

SKU: CHD10-1048A
$1,212.90
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Air Doors Berner Best Sellers Equipment Facility Equipment Kitchen Ventilation & Climate Control New Arrivals Restaurant Equipment

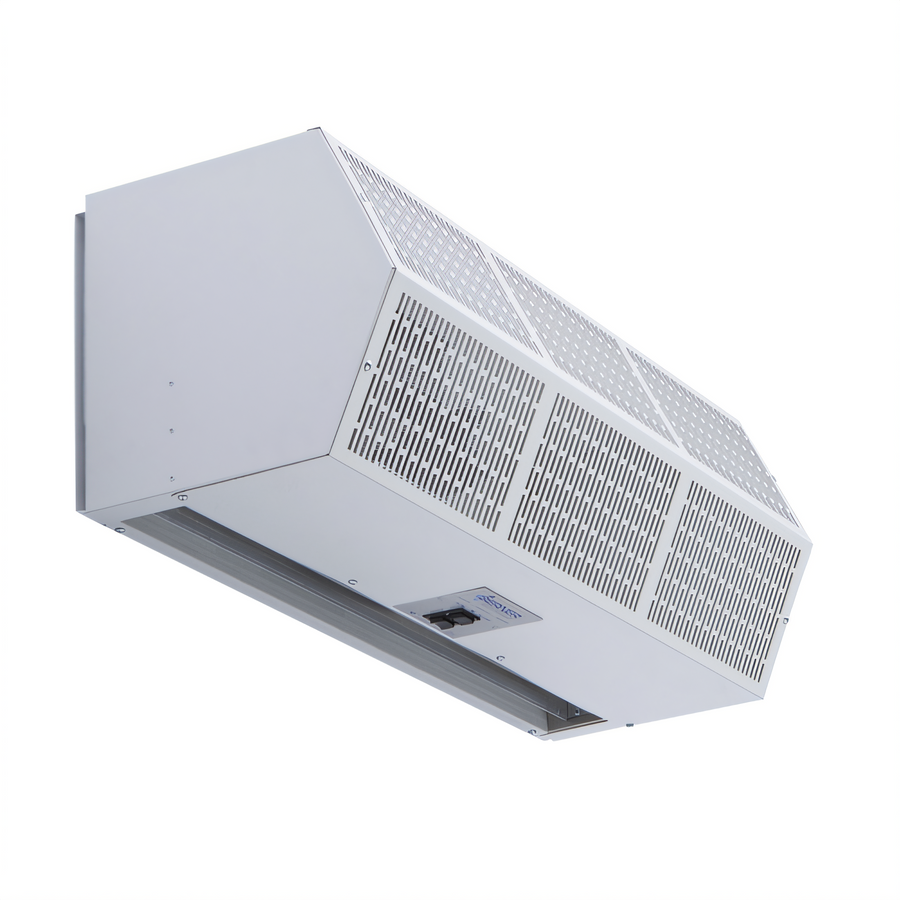

Berner Commercial High Performance 10 48-Inch Ambient Unheated Air Curtain

1/2 HP, 1 Motor, Wall/Top Mount, For Openings Up to 10 Feet

This ambient air curtain helps maintain indoor comfort and environmental separation over 10-foot openings with a compact 48-inch, three-speed design.

  • Ambient, unheated air curtain for environmental separation without added heat.
  • 48-inch nozzle width designed for openings up to 10 feet high.
  • One 1/2 HP three-speed motor with a factory-installed fan speed switch.
  • Wall and top mounting support flexible installation; indoor mounting only.
  • Standard white aluminum exterior with black, stainless steel, and custom color options available.
  • Optional washable filter and wall mounting plate are available for added convenience.

Product Weight:

68.0 lb

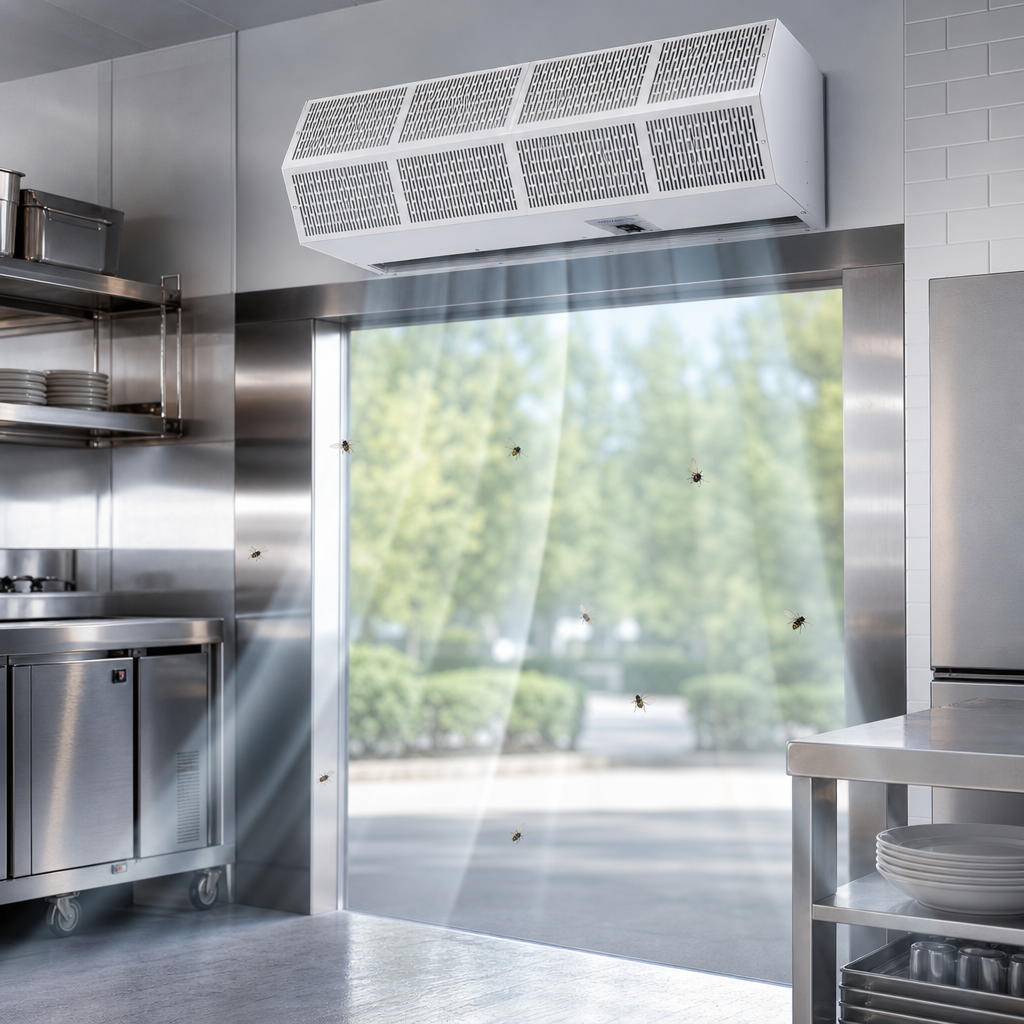

Ambient / Unheated Operation

Uses high-velocity air instead of heat to help separate indoor environments and reduce insect intrusion.

Ambient / Unheated Operation

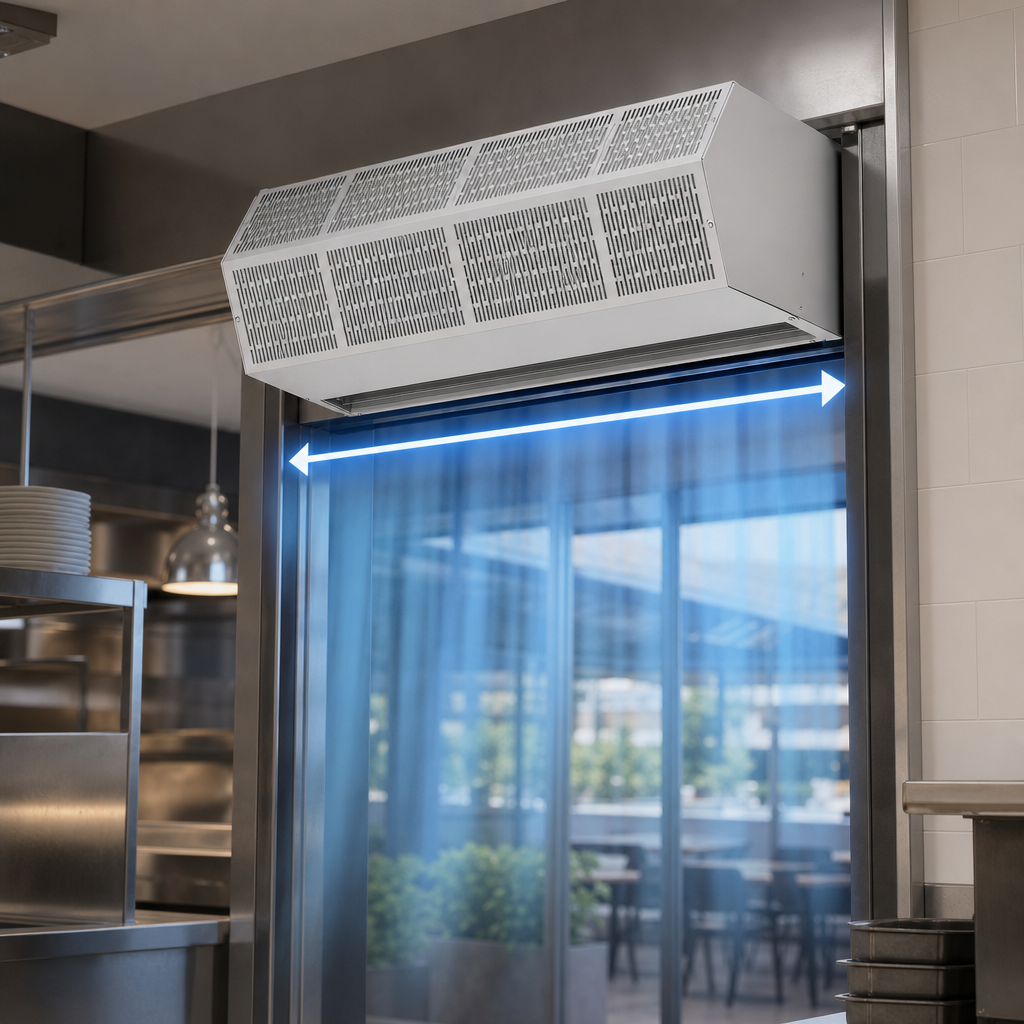

48-Inch Nozzle Width

Sized for standard commercial openings while delivering focused air performance across the doorway.

48-Inch Nozzle Width

1/2 HP Three-Speed Motor

Single-motor design provides adjustable airflow levels for changing traffic and environmental conditions.

Factory-Installed Fan Speed Switch

Built-in switching simplifies operation and lets staff adjust airflow quickly.

Wall and Top Mounting

Supports flexible installation options, with indoor mounting only for this model.

Standard White Aluminum Cover

Features a white aluminum exterior as standard, with black, stainless steel, and custom color finishes available.

Optional Washable Filter

Optional filter accessory can help protect internal components and simplify maintenance.

Ready for Installation

Standard construction is designed for straightforward installation with no assembly required.

Type Air Curtain
Style Ambient
Installation Type Wall Mounted
Nozzle Width 48 Inches
Max Opening Height 10 Feet
Horsepower Per Motor 1/2 HP
Motors 1
Controls Three-Speed
Voltage 120 Volts
Phase 1-Phase
Hertz 60 Hz
Amps 6.5 Amps
Breaker Size 15 Amps
Air Volume 1,768 CFM
Maximum Outlet Velocity 3,614 FPM
Average Outlet Velocity 1,515 FPM
Outlet Velocity Uniformity 62%
Power Rating 0.75 kW
Material Aluminum
Color White
Finish Powder Coated
Country of Origin USA
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Warranty & Protection

5-year limited warranty on ambient models

Documents

PDF Cutsheet PDF Download PDF Replacement parts diagram PDF Download PDF Air curtain flyer PDF Download PDF Installation manual PDF Download PDF Terms & conditions PDF Download PDF Warranty PDF Download

Frequently Asked Questions

No. CHD10-1048A is an ambient, unheated air curtain.
It is designed for mounting heights up to 10 feet for environmental separation and up to 8 feet for insect control.
This model uses one 1/2 HP three-speed motor.
It supports wall and top mounting and is intended for indoor installation only.
The model code A designates 120/1/60 power.
Yes. The documentation lists a washable filter and a wall mounting plate as optional accessories.
