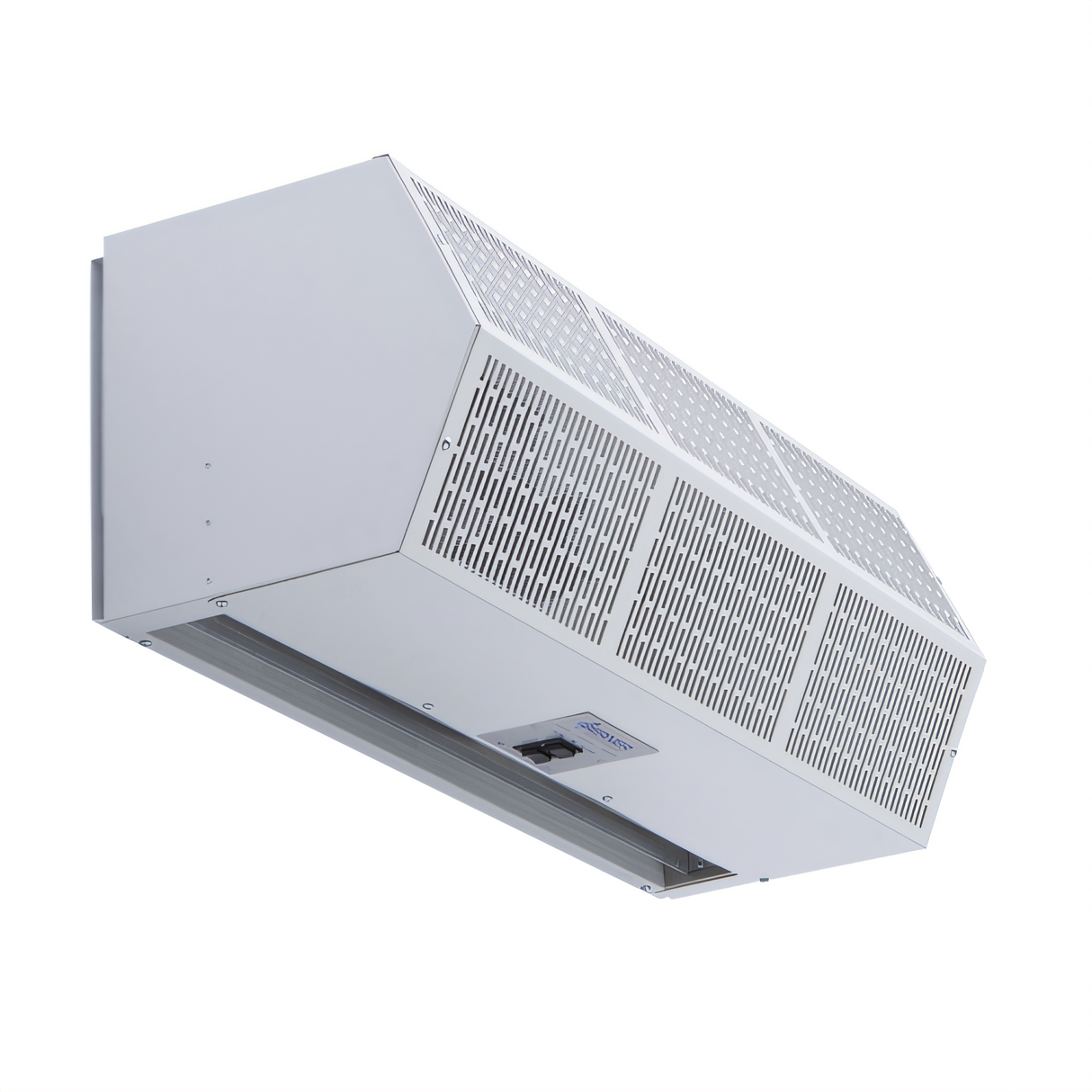

Berner Commercial High Performance 10 42-Inch Ambient Air Curtain

Unheated, 1/2 HP, Indoor Mounting Only, for Openings Up to 10 Feet High

Create a strong air barrier at commercial doorways to help reduce energy loss and keep indoor conditions more stable without adding heat.

  • 42-inch ambient, unheated air curtain for commercial entrances and service doors.
  • Helps separate indoor and outdoor air at mounting heights up to 10 feet.
  • One 1/2 HP three-speed motor with a factory-installed fan speed switch.
  • Supports wall and top mounting and is intended for indoor installation only.
  • Standard aluminum exterior cover with white or black finish options; custom color and stainless steel are available.
  • Optional washable filter and wall mounting plate can be added.

Product Weight:

67.0 lb

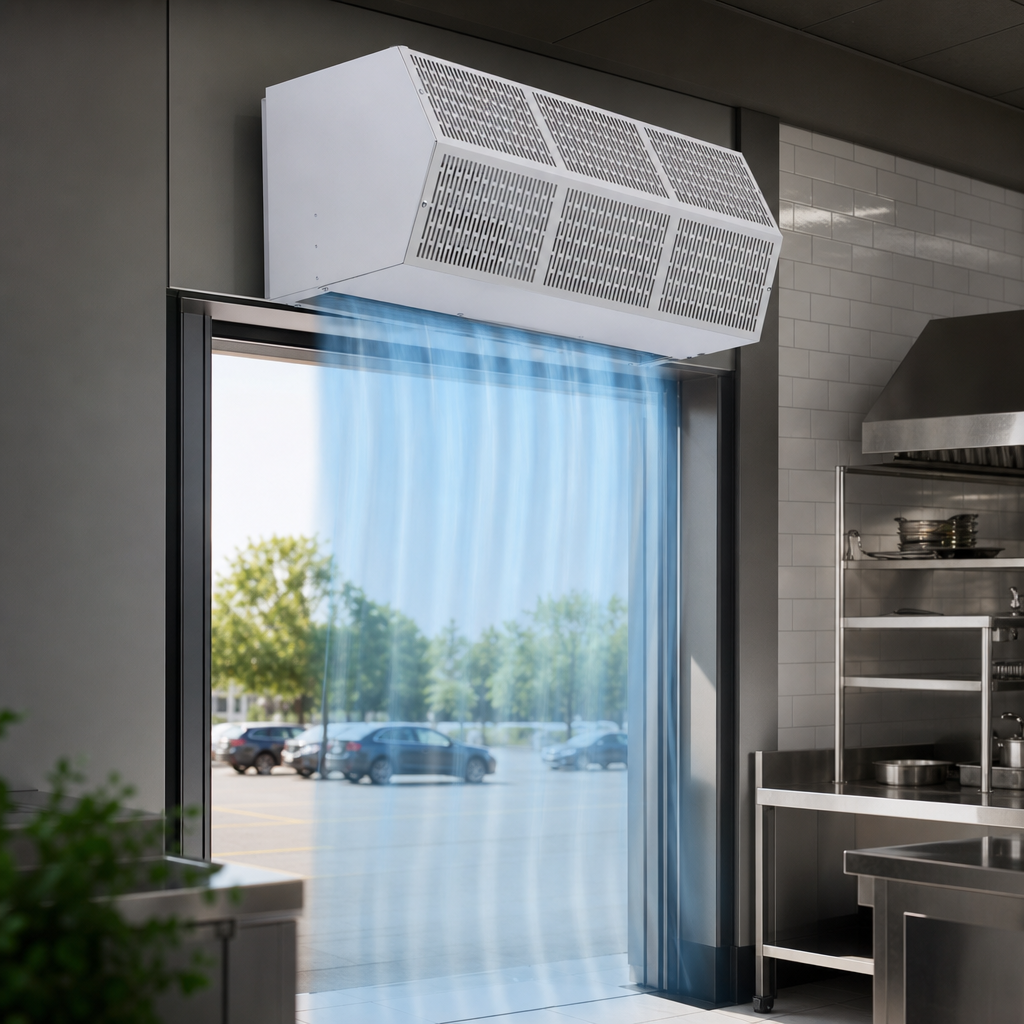

Ambient Air Barrier

Unheated operation creates an effective airflow barrier without adding heat to the doorway.

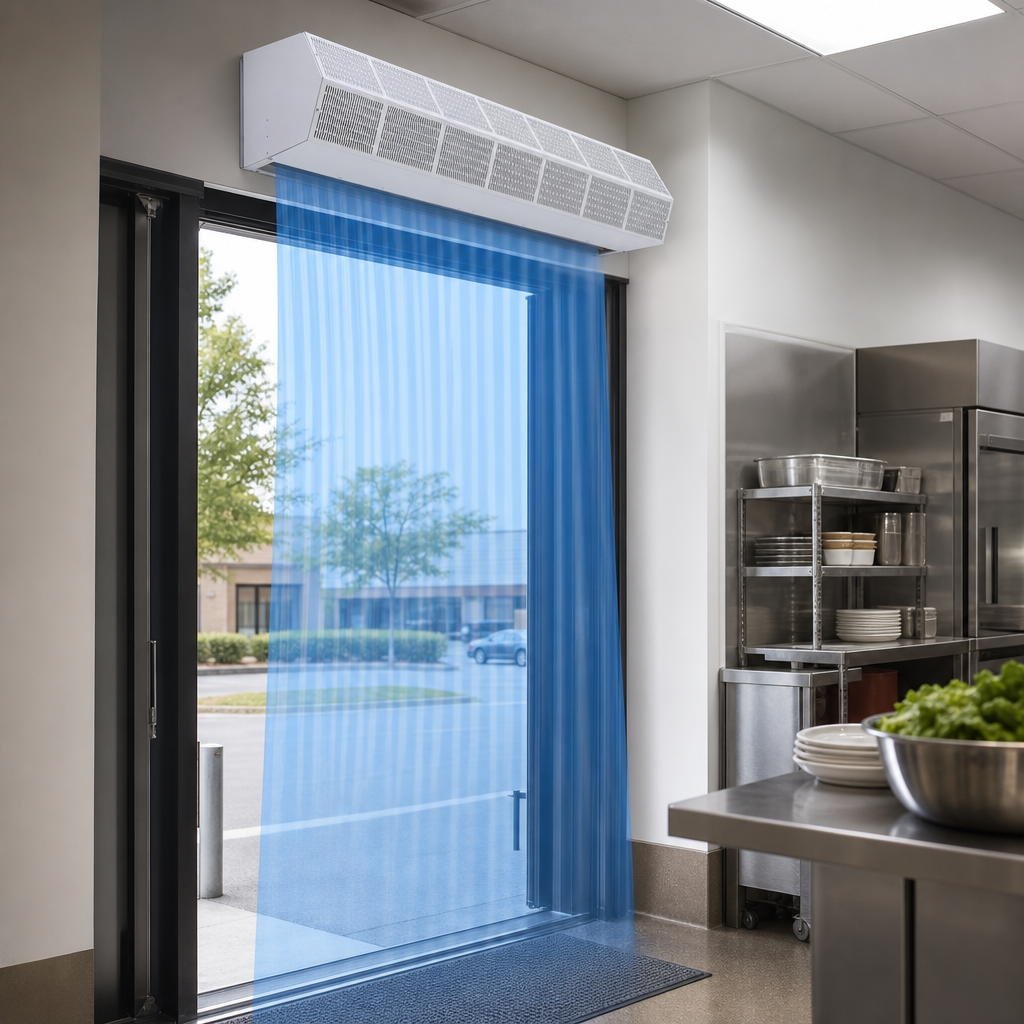

High Mounting Coverage

Designed for mounting heights up to 10 feet for environmental separation and 8 feet for insect control.

Three-Speed Motor System

Uses one 1/2 HP motor with a factory-installed fan speed switch for airflow control.

Flexible Mounting

Supports wall and top mounting; no assembly is required for installation.

Aluminum Cabinet Options

Standard white or black aluminum exterior cover with optional custom color or stainless steel finishes.

Optional Washable Filter

A washable aluminum filter is available as an option for added maintenance convenience.

Indoor Mounting Only

Intended for indoor use only.

Type Air Curtain
Style Ambient
Installation Type Wall Mounted
Material Aluminum
Controls Three-Speed
Motor Count 1
Horsepower Per Motor 1/2 HP
Nozzle Width 42 Inches
Maximum Opening Height 10 Feet
Air Volume 1,784 CFM
Maximum Velocity At Nozzle 3,592 FPM
Average Outlet Velocity 1,748 FPM
Outlet Velocity Uniformity 54%
Power Rating 0.74 kW
Country Of Origin USA
Shipping Weight 67 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Warranty & Protection

5-year limited warranty on ambient/unheated models.

Documents

PDF Cutsheet PDF Download PDF Air curtain flyer PDF Download PDF Installation manual PDF Download PDF Replacement parts diagram PDF Download PDF Terms & conditions PDF Download PDF Warranty PDF Download

Frequently Asked Questions

No. This model is ambient/unheated.
It is rated for mounting heights up to 10 feet for environmental separation and 8 feet for insect control.
It uses one 1/2 HP three-speed motor with a factory-installed fan speed switch.
Yes. The unit is intended for indoor mounting only.
An optional washable filter and a wall mounting plate are listed in the documentation.
