Berner

Berner Architectural Recessed 16 Electric Heated In-Ceiling Air Curtain, 144 Inch, 4-Motor, 3-Phase, 56 kW

SKU: ARE16-4144E-3
$11,973.65
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Air Doors Berner Best Sellers Equipment Facility Equipment Kitchen Ventilation & Climate Control New Arrivals Restaurant Equipment

Berner Architectural Recessed 16 Electric Heated In-Ceiling Air Curtain, 144 Inch, 4-Motor, 3-Phase, 56 kW

Flush-ceiling mount for openings up to 16 ft; factory-installed Intelliswitch touchscreen control

Protect large entrances with a flush-mounted electric heated air curtain built for 16-foot mounting heights, touchscreen control, and 144-inch coverage.

  • Recessed in-ceiling air curtain designed to mount flush with the ceiling.
  • Recommended for mounting heights up to 16 feet for environmental separation.
  • 144-inch unit with four 1 hp, two-speed motors for wide openings.
  • Factory-installed Intelliswitch digital controller with touch screen interface.
  • Electric heated, high-voltage, three-phase model rated at 56 kW.
  • Hinged white aluminum bottom access panel and washable filter simplify service.
  • High-efficiency, low-noise Pro-V nozzle and patented venturi heating element.
  • Made in USA and cULus listed.

Overall Dimensions:

144.0"W x 26.0"D x 15.0"H

Product Weight:

485.0 lb

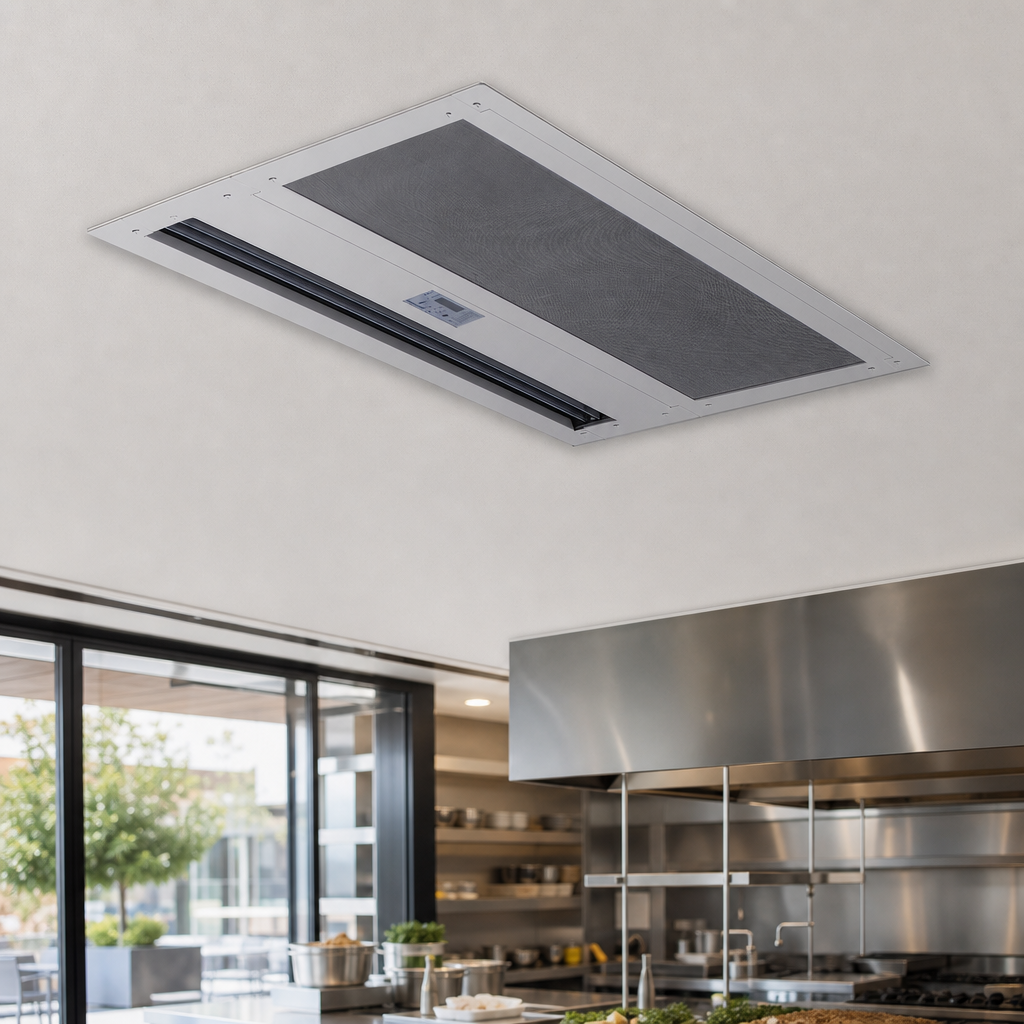

Recessed In-Ceiling Mount

Flush-ceiling design with top mounting only for a clean architectural installation.

Recessed In-Ceiling Mount

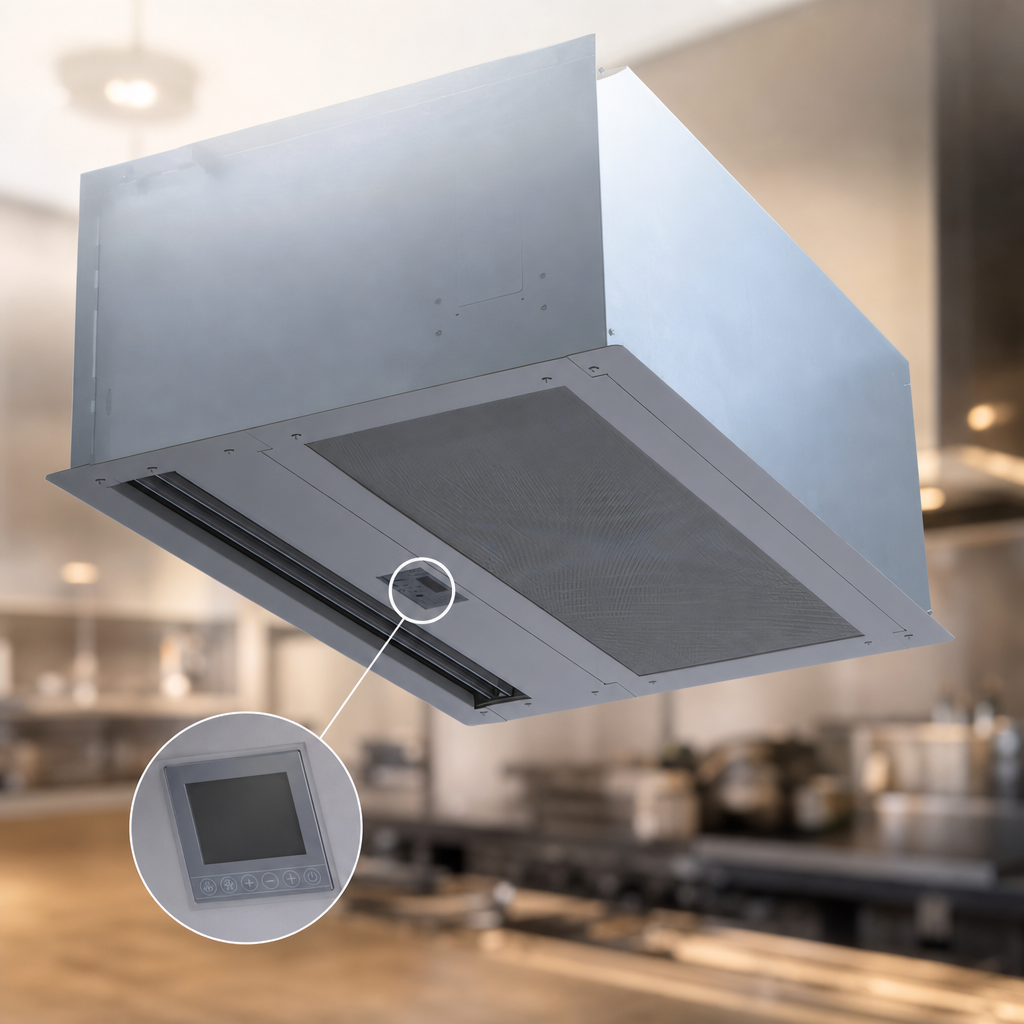

Intelliswitch Touchscreen Controller

Factory-installed digital controller with touchscreen interface and Berner AIR BASIC smart control.

Intelliswitch Touchscreen Controller

Four 1 HP Two-Speed Motors

Uses four AC motors at 1 hp each to support large-opening performance.

Electric Heated Design

High-voltage electric heat package with a maximum electric capacity of 56 kW.

White Aluminum Access Panel

Hinged white aluminum bottom access panel provides service access to internal components.

Washable Filter

Includes a recleanable polyester filter for easier maintenance.

Pro-V Nozzle

High-efficiency, low-noise nozzle designed to deliver a more uniform air stream.

Made in USA

Documentation also notes cULus listing and U.S. manufacturing.

Type Air Curtain
Style Recessed
Installation Type Built-In
Controls Intelliswitch Digital Touchscreen
Motor Count 4
Horsepower Per Motor 1 HP
Phase 3-Phase
Watts 56 kW
BTU 191,100 BTU/hr
Maximum Mounting Height 16 Feet
Finish White Aluminum
Country of Origin USA
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Warranty & Protection

2-year limited warranty on heated models.

Documents

PDF Cutsheet PDF Download PDF Terms & conditions PDF Download PDF Air curtain flyer PDF Download PDF Warranty PDF Download PDF Installation manual PDF Download PDF Fcb kw sheet PDF Download PDF Replacement parts diagram PDF Download

Frequently Asked Questions

It is recommended for mounting heights up to 16 feet for environmental separation.
This 144-inch model uses four 1 hp AC motors with two-speed operation.
A factory-installed Intelliswitch digital controller with touch screen is standard.
It includes a hinged white aluminum bottom access panel and a washable, recleanable polyester filter.
Standard construction uses a white aluminum exterior panel, and stainless steel or custom color finishes are available as options.
